2022 HYUNDAI GENESIS G70 Owners Manual

Convenient Features
5-56
Power window lock button
OIK050017
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:

[The rear passenger control will not
be able to operate the rear passenger
power window

[Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE

[To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.

[Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
WARNING

[NEVER leave the keys in your vehicle
with unsupervised children, when
the engine is running.

[NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselves in
the windows, or otherwise injure
themselves or others.

[Always double check to make sure
all arms, hands, head and other
obstructions are safely out of the
way before closing a window.

[Do not allow children to play with the
power windows. Keep the driver’s
door power window lock switch in
the LOCK position (pressed). Serious
injury can result from unintentional
window operation by the child.

[Do not extend your head, arms or
body outside the windows while
driving.

05
5-57
Remote Window Opening
Function (if equipped)
OIK050247N
You can still control the window
movement with the engine turned off.

[Press the Door Unlock button for more
than 3 seconds. The window moves
down after the doors are unlocked,
as long as you press the door unlock
button. The window movement
stops, when you release the door lock
button.
Information

[The remote window opening function
may abruptly stop, when you move
away from your vehicle during
operation. Stay in close proximity from
your vehicle, while monitoring the
window movement.

[One of the windows may stop
operating, when the window is
interrupted by certain force. However,
the other windows will keep operating.
Thus, you should make sure that all
windows are closed.

[Please be aware that the doors unlock
when the windows are opened using the
remote window opening function.

Convenient Features
5-58

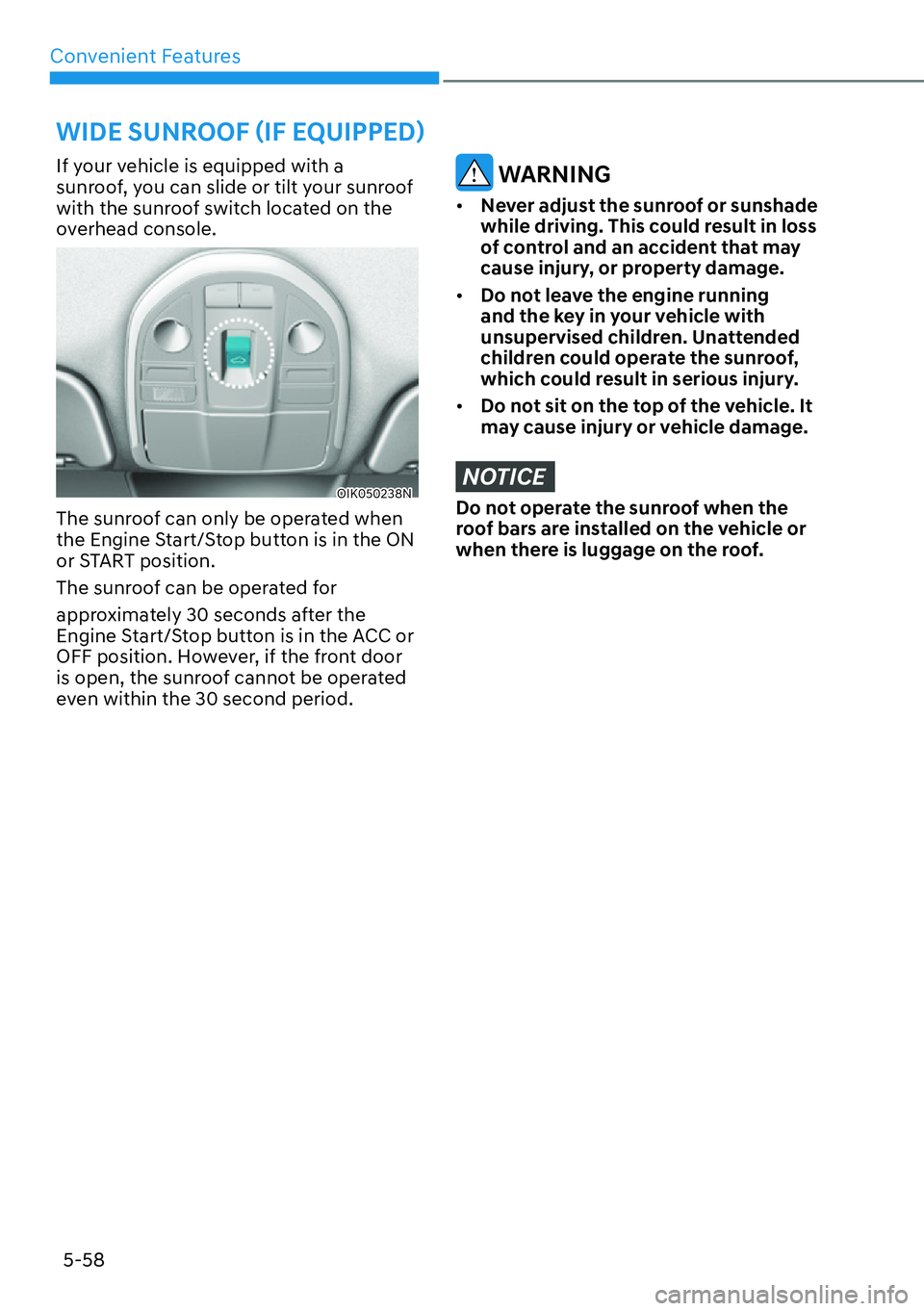

If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
OIK050238N
The sunroof can only be operated when
the Engine Start/Stop button is in the ON
or START position.
The sunroof can be operated for
approximately 30 seconds after the
Engine Start/Stop button is in the ACC or
OFF position. However, if the front door
is open, the sunroof cannot be operated
even within the 30 second period.
WARNING

[Never adjust the sunroof or sunshade
while driving. This could result in loss
of control and an accident that may
cause injury, or property damage.

[Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.

[Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when the
roof bars are installed on the vehicle or
when there is luggage on the roof.
:,'(681522)

05
5-59

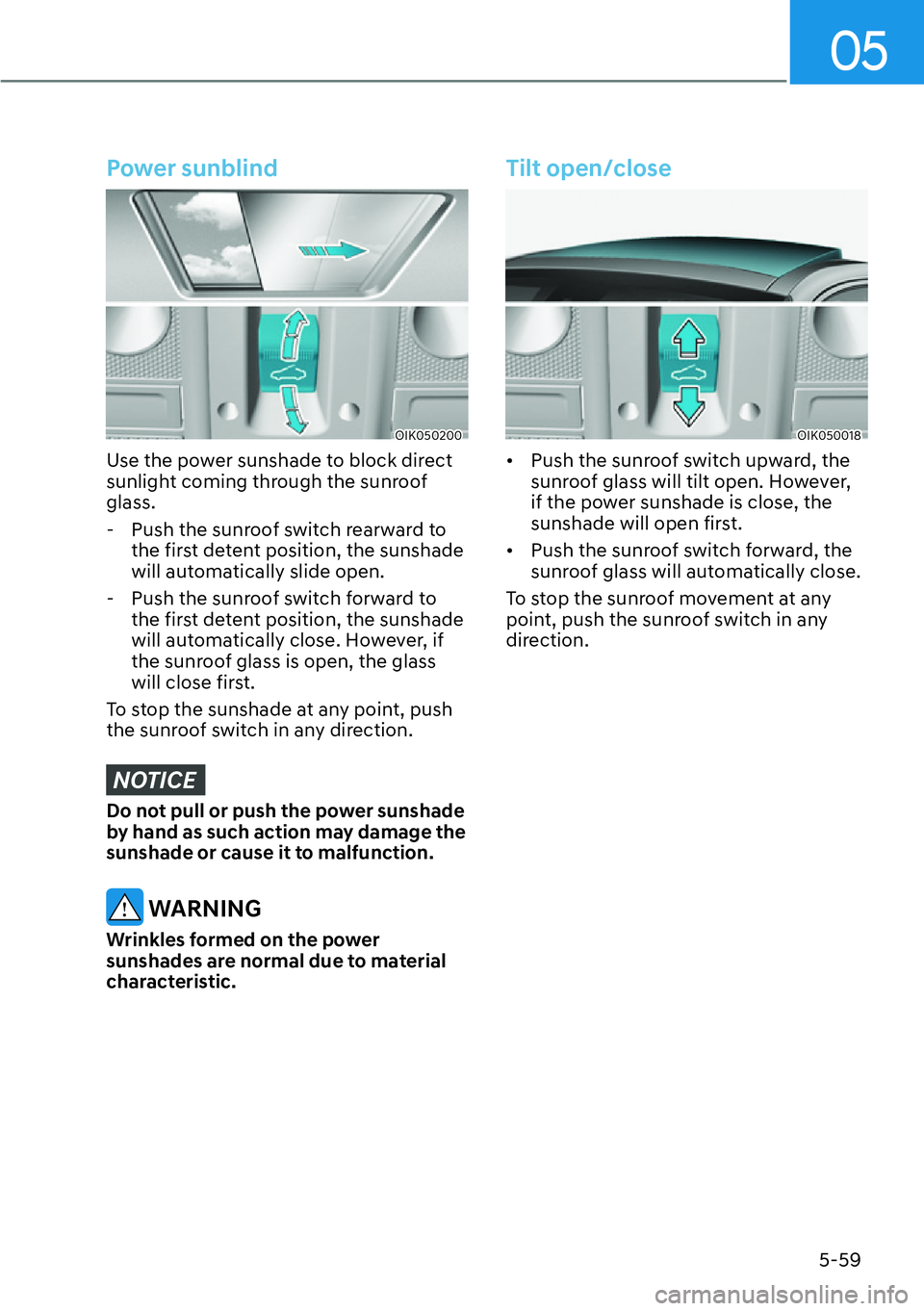

Power sunblind
OIK050200
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
- Push the sunroof switch rearward to
the first detent position, the sunshade
will automatically slide open.
- Push the sunroof switch forward to
the first detent position, the sunshade
will automatically close. However, if
the sunroof glass is open, the glass
will close first.
To stop the sunshade at any point, push
the sunroof switch in any direction.
NOTICE
Do not pull or push the power sunshade
by hand as such action may damage the
sunshade or cause it to malfunction.
WARNING
Wrinkles formed on the power
sunshades are normal due to material
characteristic.
Tilt open/close
OIK050018

[Push the sunroof switch upward, the
sunroof glass will tilt open. However,
if the power sunshade is close, the
sunshade will open first.

[Push the sunroof switch forward, the
sunroof glass will automatically close.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.

Convenient Features
5-60

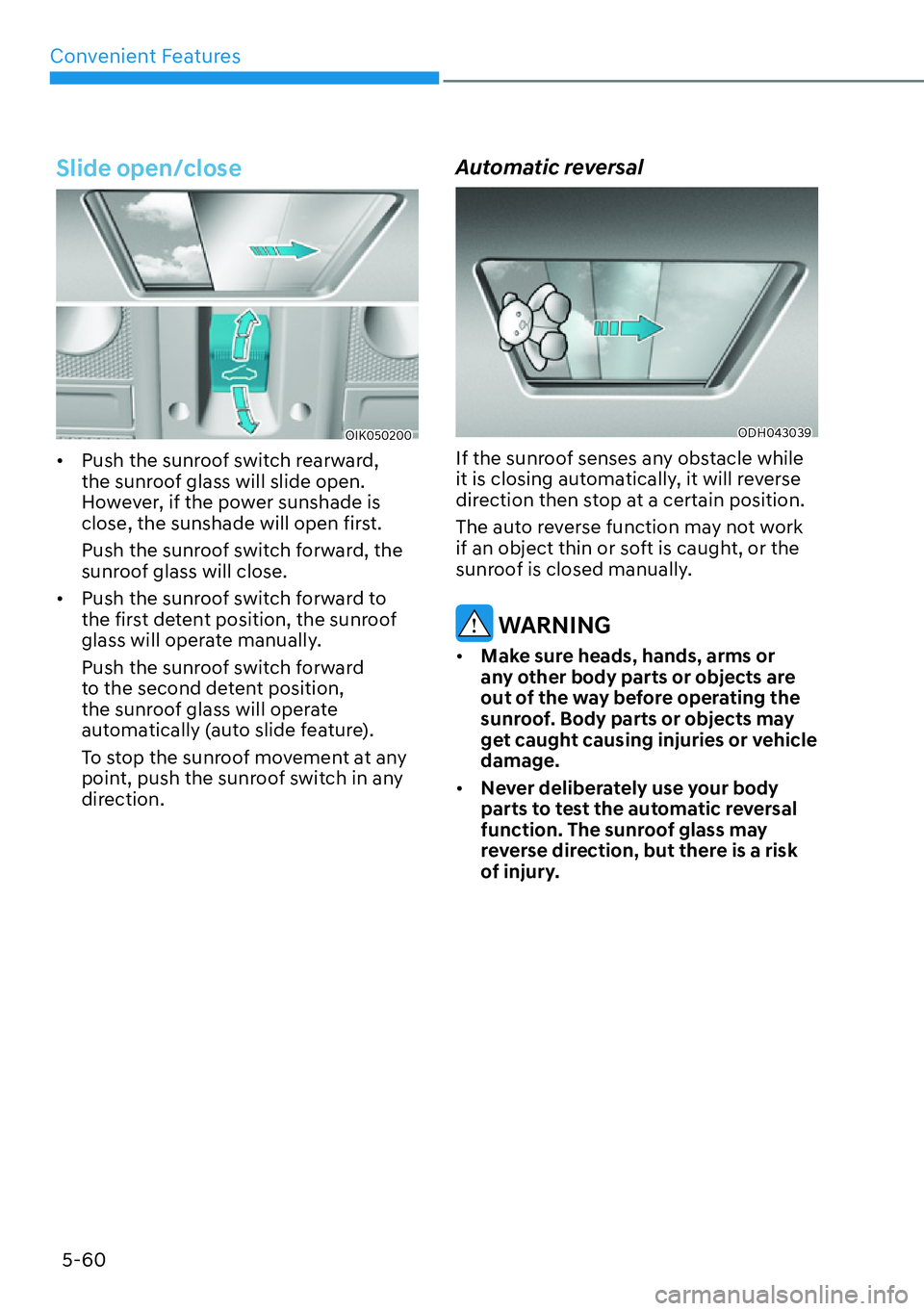

Slide open/close
OIK050200

[Push the sunroof switch rearward,
the sunroof glass will slide open.
However, if the power sunshade is
close, the sunshade will open first.
Push the sunroof switch forward, the
sunroof glass will close.

[Push the sunroof switch forward to
the first detent position, the sunroof
glass will operate manually.
Push the sunroof switch forward
to the second detent position,
the sunroof glass will operate
automatically (auto slide feature).
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Automatic reversal
ODH043039
If the sunroof senses any obstacle while
it is closing automatically, it will reverse
direction then stop at a certain position.
The auto reverse function may not work
if an object thin or soft is caught, or the
sunroof is closed manually.
WARNING

[Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle
damage.

[Never deliberately use your body
parts to test the automatic reversal
function. The sunroof glass may
reverse direction, but there is a risk
of injury.

05
5-61

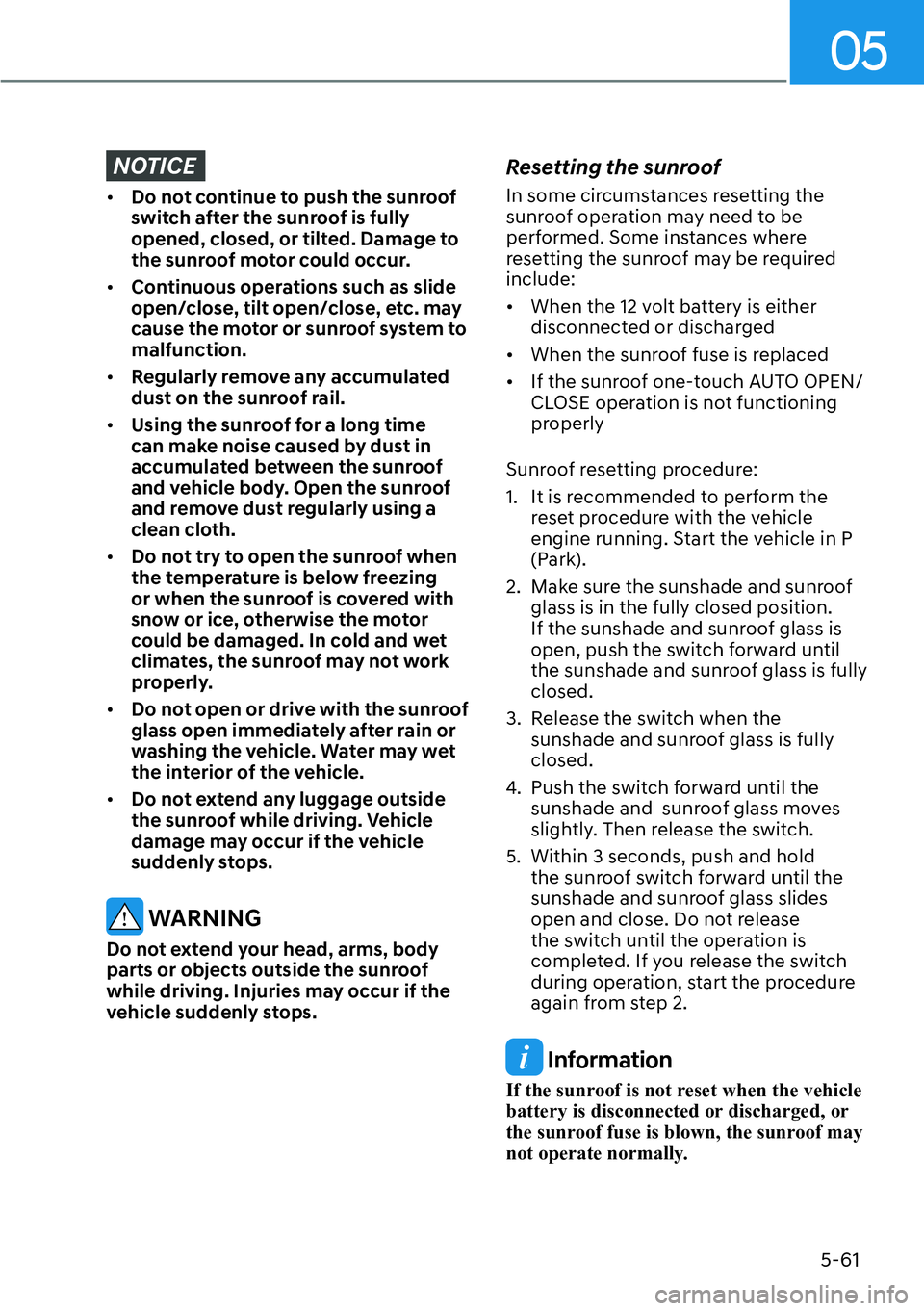

NOTICE

[Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.

[Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.

[Regularly remove any accumulated
dust on the sunroof rail.

[Using the sunroof for a long time
can make noise caused by dust in
accumulated between the sunroof
and vehicle body. Open the sunroof
and remove dust regularly using a
clean cloth.

[Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered with
snow or ice, otherwise the motor
could be damaged. In cold and wet
climates, the sunroof may not work
properly.

[Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.

[Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
while driving. Injuries may occur if the
vehicle suddenly stops.
Resetting the sunroof
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:

[When the 12 volt battery is either
disconnected or discharged

[When the sunroof fuse is replaced

[If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properly
Sunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the sunshade and sunroof
glass is in the fully closed position.
If the sunshade and sunroof glass is
open, push the switch forward until
the sunshade and sunroof glass is fully
closed.
3. Release the switch when the
sunshade and sunroof glass is fully
closed.
4. Push the switch forward until the
sunshade and sunroof glass moves
slightly. Then release the switch.
5. Within 3 seconds, push and hold
the sunroof switch forward until the
sunshade and sunroof glass slides
open and close. Do not release
the switch until the operation is
completed. If you release the switch
during operation, start the procedure
again from step 2.
Information
If the sunroof is not reset when the vehicle
battery is disconnected or discharged, or
the sunroof fuse is blown, the sunroof may
not operate normally.

Convenient Features
5-62

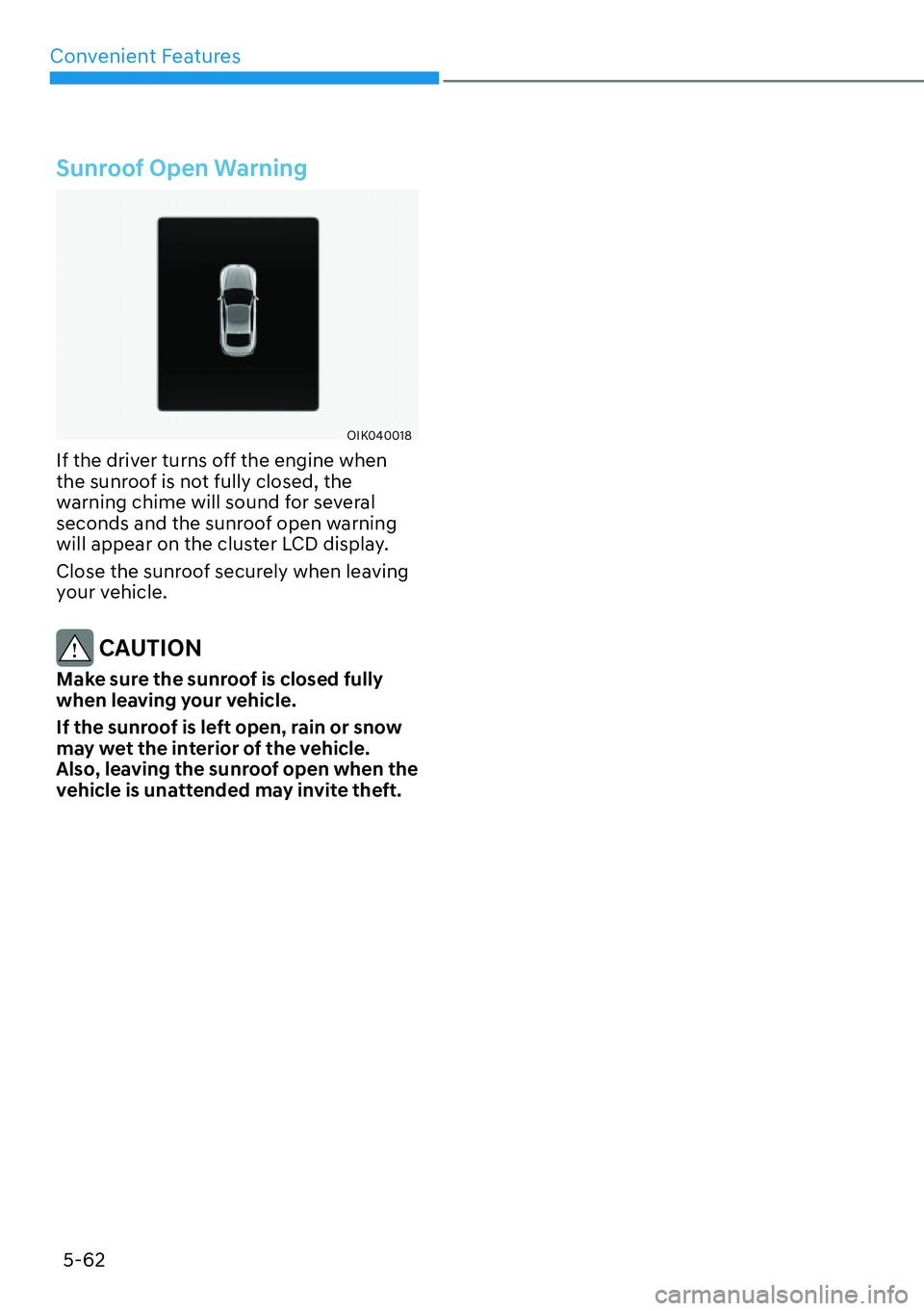

Sunroof Open Warning
OIK040018
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or snow
may wet the interior of the vehicle.
Also, leaving the sunroof open when the
vehicle is unattended may invite theft.

05
5-63
Hood
Opening the hood
OIK050020
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
OIK050021
3. Go to the front of the vehicle, raise the
hood slightly, push up the secondary
latch (1) inside of the hood center and
lift the hood (2).
After the hood has been lifted halfway,
it will raise completely by itself.
Closing the hood
1. Before closing the hood, check in and
around the engine compartment to
ensure the following:
- Any tools or other loose objects
are removed from the engine room
area or hood opening area
- All glove, rags, or other
combustible materials is removed
from the engine compartment
- All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted
approximately 12 in. (30 cm) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
