2022 HYUNDAI GENESIS G70 Owners Manual

08
8-25
How to Adjust Tire Pressure
OIGH067043
OIK080011
1. Park your vehicle in a safe location.
2. Connect the filling hose (3) of the
compressor directly to the tire valve.
3. Plug the compressor power cord into
the vehicle power outlet.
4. Adjust the tire inflation pressure to the
recommended tire inflation.
With the ignition switched on,
proceed as follows.
-To increase the inflation pressure
: Switch on the compressor. To
check the current inflation pressure
setting, briefly switch off the
compressor.
-To reduce the inflation pressure:
Press the button (9) on the
compressor.
NOTICE
Do not let the compressor run for more
than 10 minutes, otherwise the device
will overheat and may be damaged.
Information
The pressure gauge may show higher than
actual reading when the compressor is
running. To get an accurate tire reading,
the compressor needs to be turned off.
CAUTION
Do not use the sealant when the tire
pressure only needs to be adjusted.
WARNING
The tire inflation pressure must be at
least 32 psi (220 kPa). If it is not, do not
continue driving.
Call for road side service or towing.

Emergency Situations
8-26

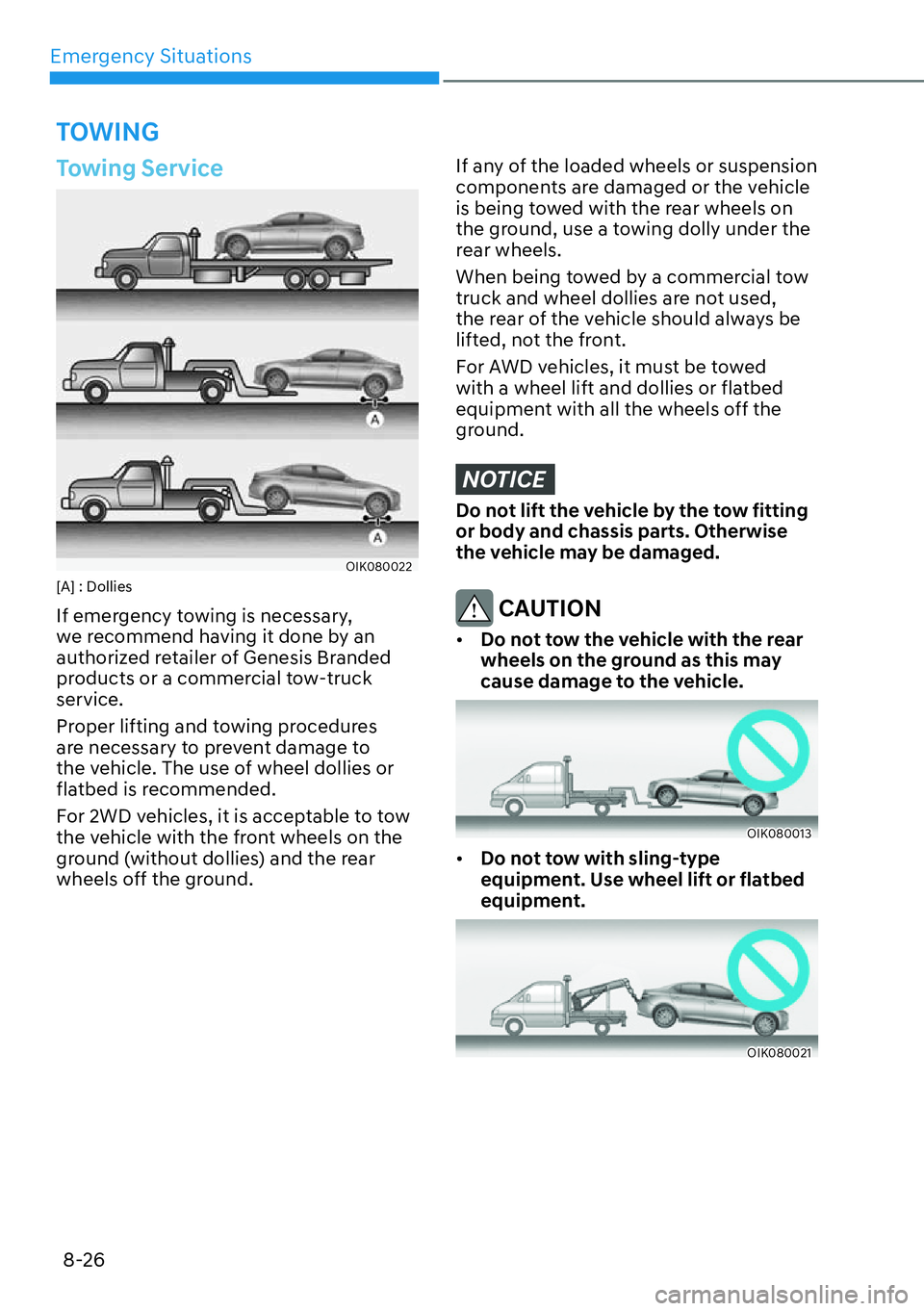

TOWING
Towing Service
OIK080022[A] : Dollies
If emergency towing is necessary,
we recommend having it done by an
authorized retailer of Genesis Branded
products or a commercial tow-truck
service.
Proper lifting and towing procedures
are necessary to prevent damage to
the vehicle. The use of wheel dollies or
flatbed is recommended.
For 2WD vehicles, it is acceptable to tow
the vehicle with the front wheels on the
ground (without dollies) and the rear
wheels off the ground.
If any of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the rear wheels on
the ground, use a towing dolly under the
rear wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the rear of the vehicle should always be
lifted, not the front.
For AWD vehicles, it must be towed
with a wheel lift and dollies or flatbed
equipment with all the wheels off the
ground.
NOTICE
Do not lift the vehicle by the tow fitting
or body and chassis parts. Otherwise
the vehicle may be damaged.
CAUTION

[Do not tow the vehicle with the rear
wheels on the ground as this may
cause damage to the vehicle.
OIK080013

[Do not tow with sling-type
equipment. Use wheel lift or flatbed
equipment.
OIK080021

08
8-27
WARNING
If your vehicle is equipped with a
rollover sensor, press the Engine Start/
Stop button to the OFF or ACC position
when the vehicle is being towed.
The side impact and curtain air bag
may deploy if the sensor detects the
situation as a rollover.
When towing your vehicle in an
emergency without wheel dollies:
1. Place the shift lever in N (Neutral).
2. Release the parking brake.
NOTICE
Failure to place the shift lever in N
(Neutral) when being towed with the
front wheels on the ground can cause
internal damage to the transmission.
Removable Towing Hook
1. Open the trunk, and remove the
towing hook from the tool case.
„Front
OIK080017
„Rear
OIK080019
2. Remove the hole cover by pressing
the lower part of the cover on the
bumper.
3. Install the towing hook by turning it
clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install
the cover after use.

Emergency Situations
8-28
Emergency Towing
„Front
OIK080018
„Rear
OIK080020
If towing is necessary, we recommend
you have it done by an authorized
retailer of Genesis Branded products or a
commercial tow truck service.
If towing service is not available in
an emergency, your vehicle may be
temporarily towed using a cable or chain
secured to the emergency towing hook
at the front (or rear) of the vehicle.
Use extreme caution when towing the
vehicle with a cable or chain. A driver
must be in the vehicle to steer it and
operate the brakes.
Towing in this manner may be done
only on hard-surfaced roads for a short
distance and at low speeds. Also, the
wheels, axles, power train, steering
and brakes must all be in good working
condition.
CAUTION
The driver must be in the vehicle for
steering and braking operations when
the vehicle is being towed. Passengers
other than the driver must not be in the
vehicle.
Always follow these emergency towing
precautions:

[Press the Engine Start/Stop button
to the ACC position so the steering
wheel is not locked.

[Shift the gear to N (Neutral).

[Release the parking brake.

[Depress the brake pedal with more
force than normal as you will have
reduced braking performance.

[More steering effort will be required
because the power steering system
will be disabled.

[Use a vehicle heavier than your own to
tow your vehicle.

[The drivers of both vehicles should
communicate with each other
frequently.

[Before emergency towing, check that
the hook is not broken or damaged.

[Fasten the towing cable or chain
securely to the hook.

[Do not jerk the hook. Apply steady
and even force.

08
8-29
OIK080016

[Use a towing cable or chain less than
16 ft. (5 m) long. Attach a white or red
cloth (about 12 in. (30 cm) width) in
the middle of the cable or chain for
easy visibility.

[Drive carefully so the towing cable or
chain remains tight during towing.

[Before towing, check the automatic
transmission for fluid leaks under your
vehicle. If the automatic transmission
fluid is leaking, flatbed equipment or a
towing dolly must be used.
NOTICE
Accelerate or decelerate the vehicle
in a slow and gradual manner while
maintaining tension on the tow rope
or chain to start or drive the vehicle,
otherwise tow hooks and the vehicle
may be damaged.
NOTICE
To avoid damage to your vehicle and
vehicle components when towing:

[Always pull straight ahead when
using the towing hooks. Do not pull
from the side or at a vertical angle.

[Do not use the towing hooks to pull
a vehicle out of mud, sand or other
conditions from which the vehicle
cannot be driven out under its own
power.

[Limit the vehicle speed to 10 mph
(15 km/h) and drive less than
1 mile (1.5 km) when towing to avoid
serious damage to the automatic
transmission.

9
9. Maintenance
Engine Compartment ....................................................................................... 9-3
Maintenance Services ...................................................................................... 9-4
Owner’s Responsibility ............................................................................................... 9-4
Owner Maintenance Precautions ............................................................................... 9-4
Owner Maintenance ......................................................................................... 9-5Owner Maintenance Schedule ................................................................................... 9-6
Scheduled Maintenance Services ....................................................................9-7Normal Maintenance Schedule .................................................................................. 9-8
Maintenance Under Severe Usage Conditions ........................................................ 9-12
Explanation of Scheduled Maintenance Items .............................................. 9-14Vacuum crankcase ventilation hoses........................................................................ 9-14
Brake Fluid ................................................................................................................. 9-16
Parking Brake .............................................................................................................. 9-16
Brake Discs, Pads, Calipers and Rotors .................................................................... 9-16
Exhaust Pipe and Muffler .......................................................................................... 9-16
Engine Oil ......................................................................................................... 9-17Checking the Engine Oil Level ....................................................................................9-17
Checking the Engine Oil and Filter ........................................................................... 9-19
Engine Coolant ................................................................................................ 9-20Checking the Coolant Level...................................................................................... 9-20
Changing Coolant ...................................................................................................... 9-22
Brake Fluid ....................................................................................................... 9-23Checking the Brake Fluid Level ................................................................................. 9-23
Washer Fluid .................................................................................................... 9-24Checking the Washer Fluid Level ..............................................................................9-24
Air cleaner ....................................................................................................... 9-25Filter Replacement ..................................................................................................... 9-25
Cabin Air Filter ................................................................................................. 9-26Filter Inspection..........................................................................................................9-26
Filter Replacement .....................................................................................................9-26
Wiper Blades ....................................................................................................9-27Blade Inspection ........................................................................................................ 9-27
Blade Replacement .................................................................................................... 9-27
Battery ............................................................................................................. 9-29Battery Usage Recommendations ........................................................................... 9-30
Battery Replacement ................................................................................................ 9-30
Battery Recharging ................................................................................................... 9-30
Reset Items ................................................................................................................. 9-31

9
Tires and Wheels ............................................................................................. 9-32Tire Care ......................................................................................................................9-32
Recommended Cold Tire Inflation Pressures ........................................................... 9-32
Check tire Inflation Pressure .....................................................................................9-33
Tire Rotation ...............................................................................................................9-34
Wheel Alignment and Tire Balance ...........................................................................9-35
Tire Replacement .......................................................................................................9-35
Wheel Replacement ...................................................................................................9-36
Tire Traction ................................................................................................................9-36
Tire Maintenance........................................................................................................9-36
Tire Sidewall Labeling ................................................................................................ 9-37
Tire Terminology and Definitions ............................................................................. 9-40
All Season Tires .......................................................................................................... 9-43
Summer Tires ............................................................................................................ 9-43
Snow Tires.................................................................................................................. 9-43
Radial-Ply Tires .......................................................................................................... 9-43
Low Aspect Ratio Tires .............................................................................................. 9-44
Fuses ................................................................................................................ 9-45Instrument Panel Fuse Replacement ....................................................................... 9-46
Engine Compartment Panel Fuse Replacement ......................................................9-47
Fuse/Relay Panel Description................................................................................... 9-48
Light Bulbs ........................................................................................................9-61
Headlamp, position lamp, turn signal lamp, Daytime Running Light (DRL)
replacement .............................................................................................................. 9-62
Side Repeater Lamp Replacement .......................................................................... 9-62
Puddle Lamp Replacement ...................................................................................... 9-63
Rear Combination Lamp Replacement ................................................................... 9-63
High Mounted Stop Lamp Replacement ................................................................. 9-64
License Plate Lamp Replacement ............................................................................ 9-64
Interior Light Replacement ....................................................................................... 9-65
Appearance Care ............................................................................................9-66Exterior Care .............................................................................................................. 9-66
Interior Care ................................................................................................................ 9-7 2
Emission Control System .................................................................................9-75
California Perchlorate Notice ..........................................................................9-77

9-3
09
* The battery is in trunk.
„2.0L T-GDI
„3.3L T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
OIK077001/OIK017007
1. Engine coolant reservoir
2. Radiator cap
3. Brake fluid reservoir
4. Air cleaner5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
ENGINE COMPARTMENT
