2022 HYUNDAI GENESIS G70 Owners Manual

03
3-9

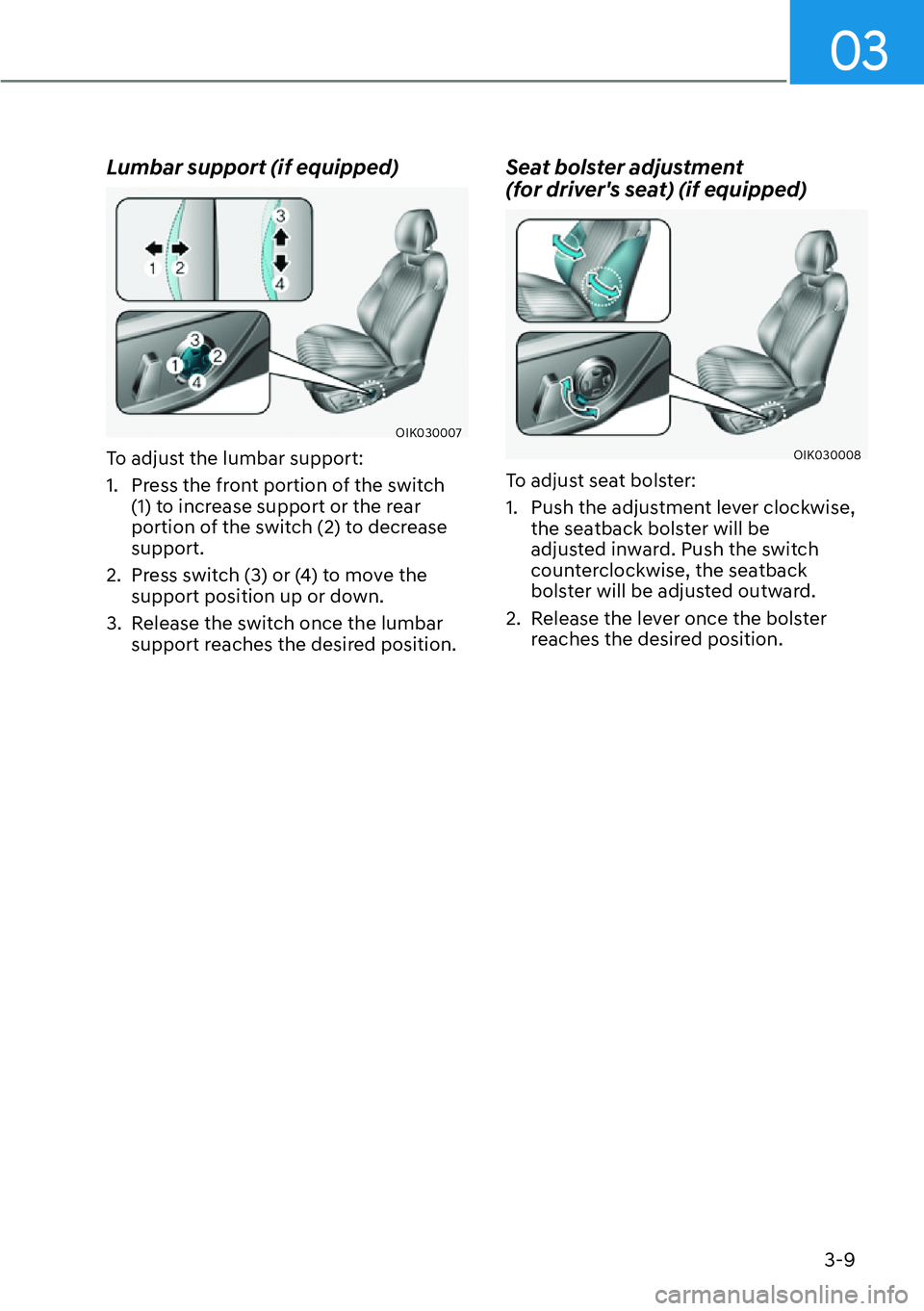

Lumbar support (if equipped)
OIK030007
To adjust the lumbar support:
1. Press the front portion of the switch
(1) to increase support or the rear
portion of the switch (2) to decrease
support.
2. Press switch (3) or (4) to move the
support position up or down.
3. Release the switch once the lumbar
support reaches the desired position.
Seat bolster adjustment
(for driver's seat) (if equipped)
OIK030008
To adjust seat bolster:
1. Push the adjustment lever clockwise,
the seatback bolster will be
adjusted inward. Push the switch
counterclockwise, the seatback
bolster will be adjusted outward.
2. Release the lever once the bolster
reaches the desired position.

Safety System
3-10

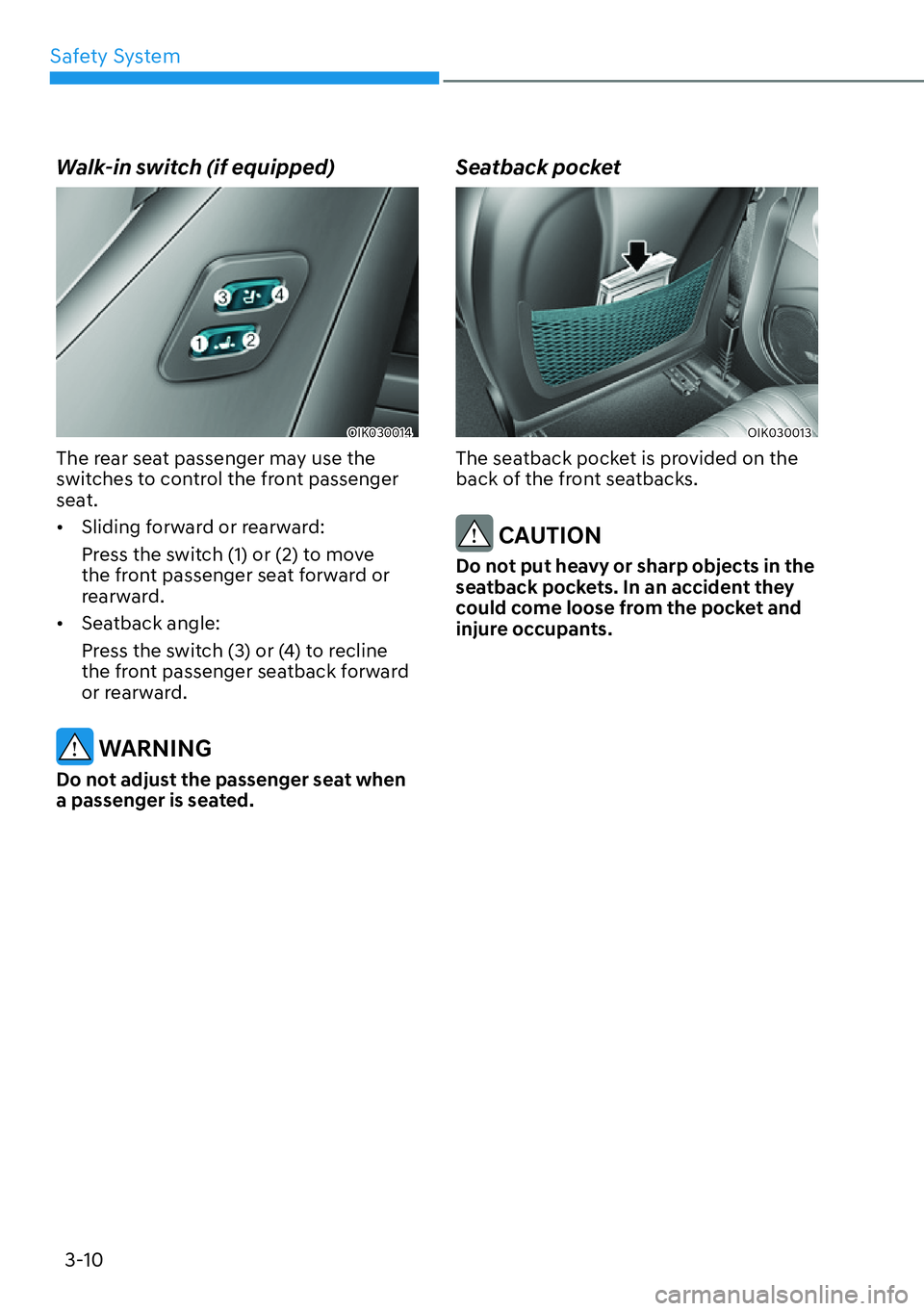

Walk-in switch (if equipped)
OIK030014
The rear seat passenger may use the
switches to control the front passenger
seat.

[Sliding forward or rearward:
Press the switch (1) or (2) to move
the front passenger seat forward or
rearward.

[Seatback angle:
Press the switch (3) or (4) to recline
the front passenger seatback forward
or rearward.
WARNING
Do not adjust the passenger seat when
a passenger is seated.
Seatback pocket
OIK030013
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.

03
3-11
Rear Seats
Folding the rear seat
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING

[Never allow passengers to sit on top
of the folded down seatback while
the vehicle is moving. This is not a
proper seating position and no seat
belts are available for use. This could
result in serious injury or death in
case of an accident or sudden stop.

[Objects carried on the folded down
seatback should not extend higher
than the top of the front seatbacks.
This could allow cargo to slide
forward and cause injury or damage
during sudden stops.To fold down the rear seatback:
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
OIK037025
2. Lower the rear head restraints to
the lowest position by pushing and
holding the release button (1) and
pushing down on the headrest (2).
OIK037069
3. Move the seatbelt toward the
outboard position before folding
down the seatback to avoid the
seatbelt system interfering with the
seatback.

Safety System
3-12

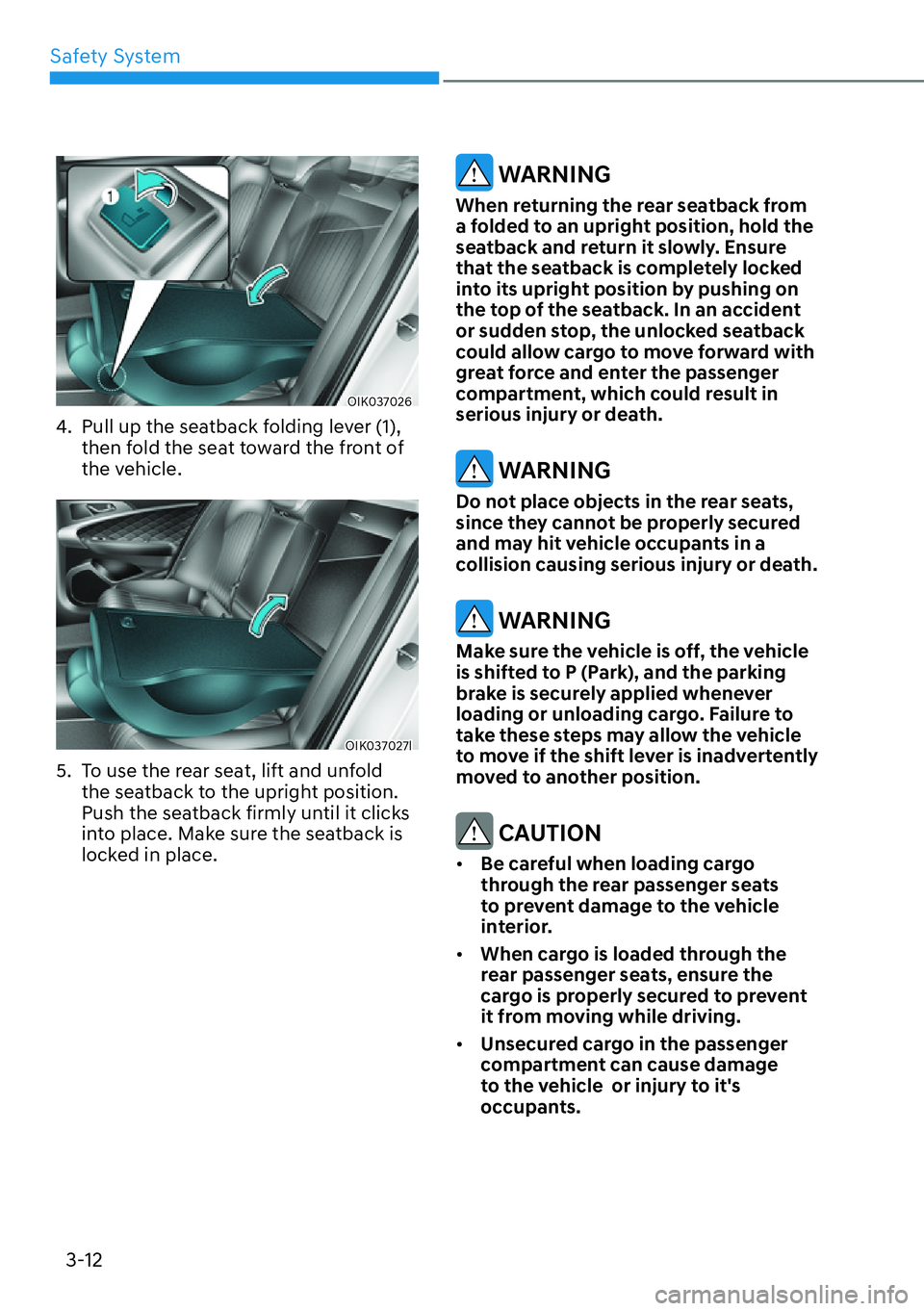

OIK037026
4. Pull up the seatback folding lever (1),
then fold the seat toward the front of
the vehicle.
OIK037027l
5. To use the rear seat, lift and unfold
the seatback to the upright position.
Push the seatback firmly until it clicks
into place. Make sure the seatback is
locked in place.
WARNING
When returning the rear seatback from
a folded to an upright position, hold the
seatback and return it slowly. Ensure
that the seatback is completely locked
into its upright position by pushing on
the top of the seatback. In an accident
or sudden stop, the unlocked seatback
could allow cargo to move forward with
great force and enter the passenger
compartment, which could result in
serious injury or death.
WARNING
Do not place objects in the rear seats,
since they cannot be properly secured
and may hit vehicle occupants in a
collision causing serious injury or death.
WARNING
Make sure the vehicle is off, the vehicle
is shifted to P (Park), and the parking
brake is securely applied whenever
loading or unloading cargo. Failure to
take these steps may allow the vehicle
to move if the shift lever is inadvertently
moved to another position.
CAUTION

[Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.

[When cargo is loaded through the
rear passenger seats, ensure the
cargo is properly secured to prevent
it from moving while driving.

[Unsecured cargo in the passenger
compartment can cause damage
to the vehicle or injury to it's
occupants.

03
3-13
Armrest
OIK037023L
The armrest is located in the center of
the rear seat. Use the strap in the center
of the armrest to pull it down.

Head Restraints
The vehicle’s front and rear seats
have adjustable head restraints. The
head restraints provide comfort for
passengers, but more importantly they
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in
a rear impact collision.
WARNING
To reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your head
restraints:

[Always properly adjust the head
restraints for all passengers BEFORE
starting the vehicle.

[NEVER let anyone ride in a seat
with the head restraint removed or
reversed.
OHI039190N

[Adjust the head restraints so the
middle of the head restraint is at the
same height as the height of the top
of the eyes.

[NEVER adjust the head restraint
position of the driver’s seat when the
vehicle is in motion.

[Adjust the head restraint as close to
the passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.

[Make sure the head restraint locks
into position after adjusting it.

Safety System
3-14
WARNING
OTL035061
When sitting on the rear seat, do not
adjust the height of the head restraint
to the lowest position.
CAUTION
When there is no occupant in the rear
seats, adjust the height of the head
restraint to the lowest position. The
rear seat head restraint can reduce the
visibility of the rear area.
NOTICE
To prevent damage, NEVER hit or pull
on the head restraints.
Front seat head restraints
ODH033105L
The driver’s and front passenger’s seats
are equipped with adjustable head
restraints for the passenger's safety and
comfort.
OIK030009
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).

03
3-15
OIK030010
Forward and rearward adjustment
The head restraint can be adjusted
forward to 3 different positions by
pulling the headrest detent forward
to the desired position. To adjust the
head restraint to it’s furthest rearwards
position, pull it fully forward to the
farthest position and release it.
NOTICE
OHI038136
If you recline the seatback towards the
front with the head restraint and seat
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.
OIK030011
Removal/Reinstall
To remove the head restraint:
1. Recline the seatback (2) with the
seatback angle switch (1).
2. Raise the head restraint as far as it can
go.
3. Press the head restraint release button
(3) while pulling the head restraint up
(4).
WARNING
NEVER allow anyone to travel in a seat
with the head restraint removed.

Safety System
3-16
OIK030012
To reinstall the head restraint :
1. Recline the seatback.
2. Put the head restraint poles (2) into
the holes while pressing the release
button (1).
3. Adjust the head restraint to the
appropriate height.
4. Recline the seatback (4) with the
seatback angle switch (3).
WARNING
Always make sure the head restraint
locks into position after reinstalling and
adjusting it properly.
Rear seat head restraints
ODH034111
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
OIK030015
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).
