2022 HYUNDAI GENESIS G70 Owners Manual

Convenient Features
5-88

ôType A

ôType B
The switch arrangements may vary depending on which functions are applicable to your
vehicle.
OIK047300/OIK047301
AUTOMATIC CLIMATE CONTROL SYSTEM
1. Driver’s temperature control knob
2. Passenger’s temperature control knob
3. AUTO (automatic control) button
4. OFF button
5. Front windshield defroster button
6. Fan speed control knob
7. Air intake control button8. Mode selection button
9. SYNC button
10. Climate control information screen
selection button
11. Rear window defroster button
12. Air conditioning button

05
5-89

ôType C

ôType D
The switch arrangements may vary depending on which functions are applicable to your
vehicle.
OIK050220L/OIK050223L
1. Driver’s temperature control knob
2. Passenger’s temperature control knob
3. AUTO (automatic control) button
4. OFF button
5. Front windshield defroster button
6. Fan speed control knob
7. Air intake control button8. Mode selection button
9. SYNC button
10. Climate control information screen
selection button
11. Rear window defroster button
12. Air conditioning button

5-90
Convenient Features
Automatic Heating and Air
Conditioning
The Automatic Climate Control System
is controlled by setting the desired
temperature.
OIK050082
1. Press the AUTO button.
The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically by the temperature setting
you select.
„Driver side
OIK050083
2. Turn the temperature control knob
to the desired temperature. If the
temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Air conditioning button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO' sign
will illuminate on the information
display once again.)
- Air intake control button
- Fan speed control button
The selected function will be controlled
manually while other functions operate
automatically.
For your convenience and to improve
the effectiveness of the climate control,
use the AUTO button and set the
temperature to 72°F (22°C).
OIK050047
Information
Never place anything near the sensor to
ensure better control of the heating and
cooling system.

05
5-91
Manual Heating and Air
Conditioning
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected. When
pressing any button except the AUTO
button while using automatic operation,
the functions not selected will be
controlled automatically.
1. Start the engine.
2. Set the mode to the desired position.
For improving the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to the
outside (fresh) air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button to convert to
full automatic control of the system.
Mode selection
„Type A
OIK047305
„Type B
OIK047306
„Type C
OIK050222L
The mode selection button controls
the direction of the air flow through the
ventilation system.

Convenient Features
5-92
OIK050048

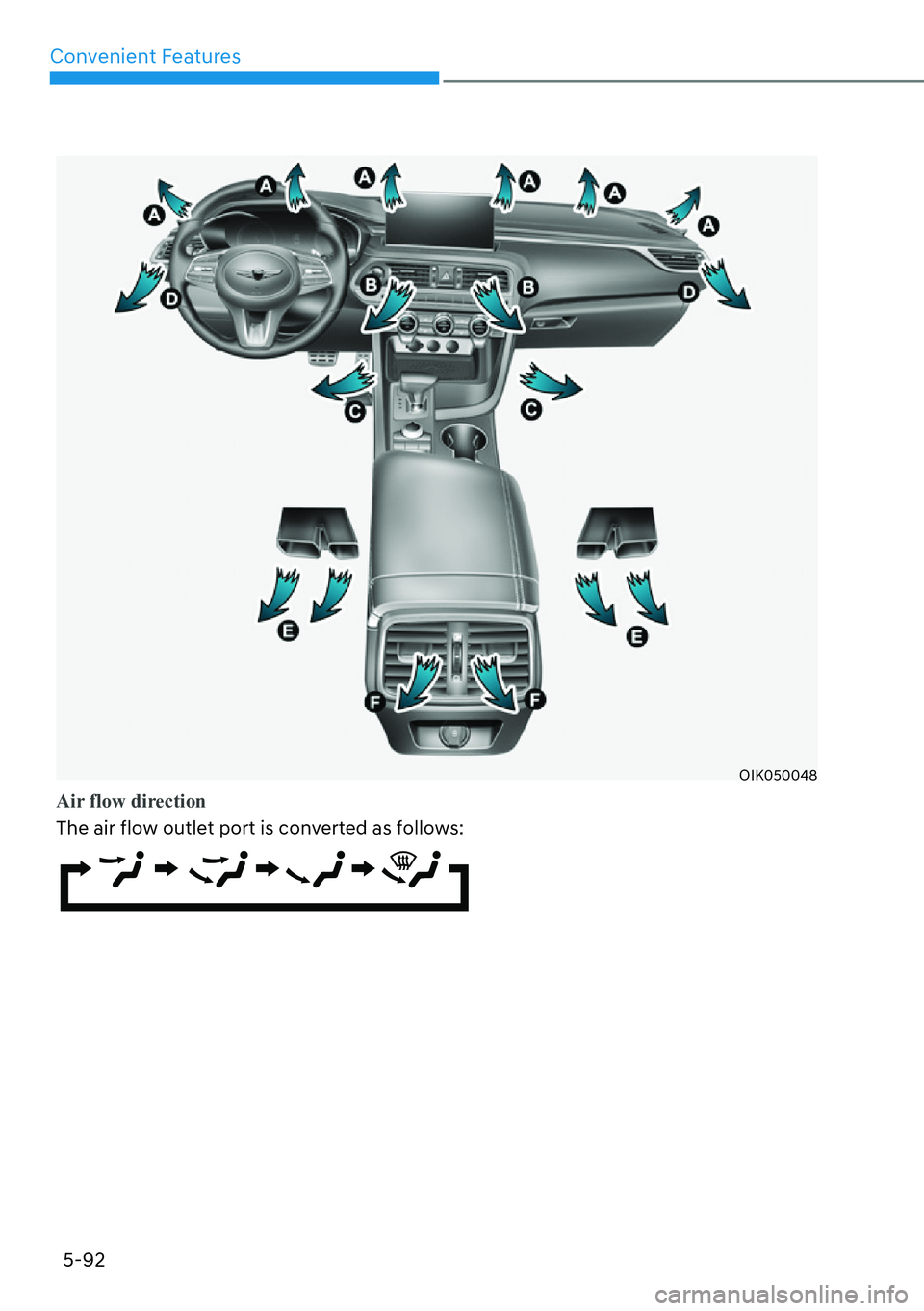

Air flow direction
The air flow outlet port is converted as follows:

05
5-93

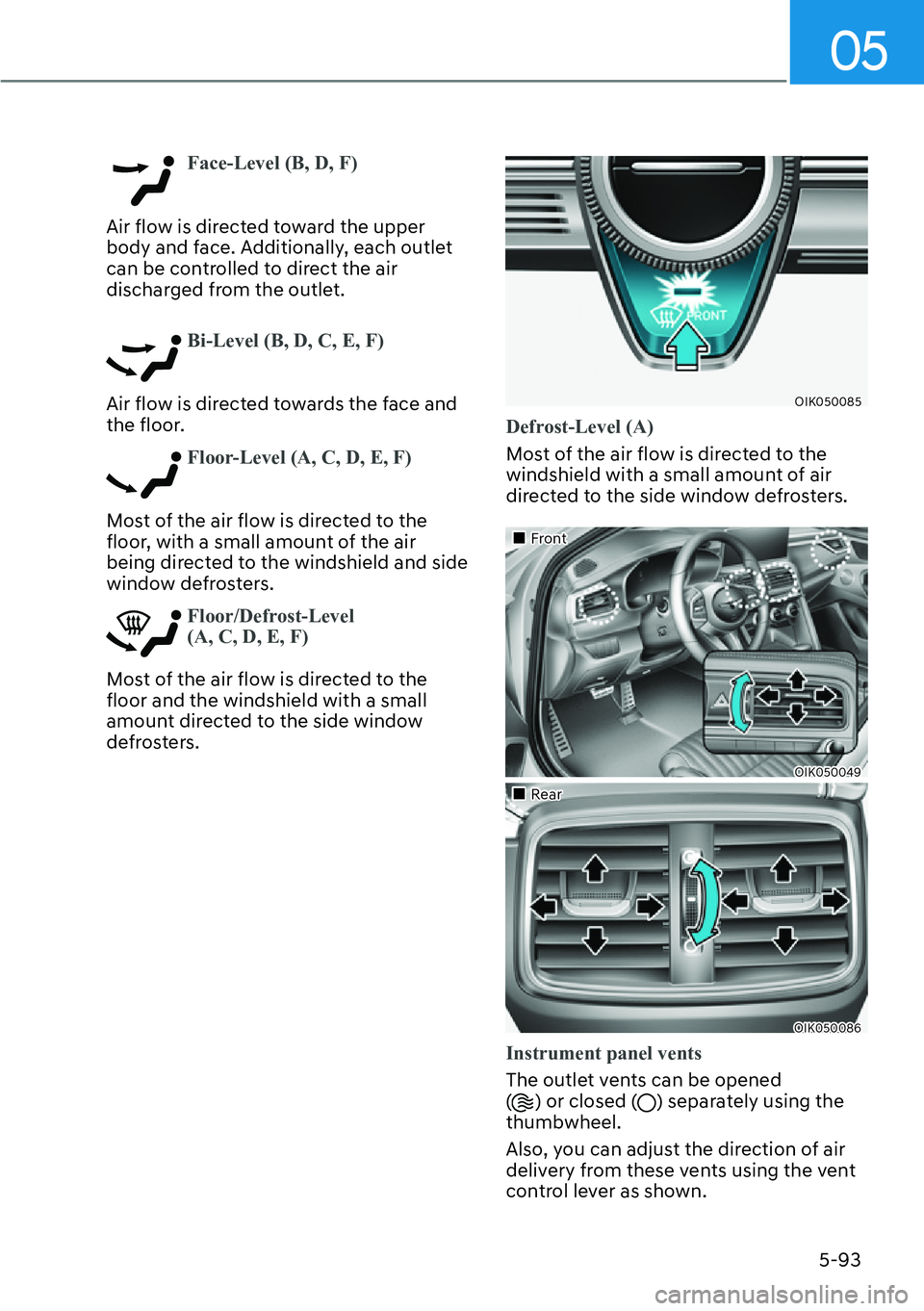

Face-Level (B, D, F)
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Bi-Level (B, D, C, E, F)
Air flow is directed towards the face and
the floor.
Floor-Level (A, C, D, E, F)
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and side
window defrosters.
)ORRU'HIURVW/HYHO
(A, C, D, E, F)
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
OIK050085
Defrost-Level (A)
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
„Front
OIK050049
„Rear
OIK050086
Instrument panel vents
The outlet vents can be opened
() or closed () separately using the
thumbwheel.
Also, you can adjust the direction of air
delivery from these vents using the vent
control lever as shown.

Convenient Features
5-94
Temperature control
„Driver side
OIK050083
„Passenger side
The temperature will increase by turning
the knob to the right. The temperature
will decrease by turning the knob to the
left.
OIK050087
Adjusting the driver and passenger side
temperature equally

[ 3UHVVWKH
U6<1&
VEXWWRQWRDGMXVW
the driver and passenger side
temperature equally.
The passenger side temperature will
be set to the same temperature as the
driver side temperature.

[Turn the driver side temperature
control knob. The driver and
passenger side temperature will be
adjusted equally.
Adjusting the driver and passenger side
temperature individually
3UHVVWKH
U6<1&
VEXWWRQDJDLQWR
adjust the driver and passenger side
temperature individually. The button
indicator will turn off.
Temperature conversion
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Fahrenheit.
To change the temperature unit from °C
to °F or °F to °C :
- Automatic climate control system
Press the AUTO button for 3 seconds
while pressing the OFF button.
- You can change the temperature
unit from the Settings menu in the
infotainment system screen. Select:
-6HWXS

05
5-95
Air intake control
„Type A
OIK050088
„Type B
OIK047313
This is used to select the outside (fresh)
air position or recirculated air position.
To change the air intake control position,
push the control button.
Recirculated air position
With the recirculated air
position selected, air from the
passenger compartment will
be drawn through the heating
system and heated or cooled
according to the function
selected.
Outside (fresh) air position
„Type AWith the outside (fresh) air
position selected, air enters
the vehicle from outside and
is heated or cooled according
to the function selected.
„Type B
Information
Using the system in the fresh air position is
recommended.
Prolonged operation of the heater in the
recirculated air position (without air
conditioning selected) may cause fogging
of the windshield and side windows and
the air within the passenger compartment
may become stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in excessively
dry air in the passenger compartment.
