2022 HYUNDAI GENESIS G70 Owners Manual

Convenient Features
5-112

[A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.

[A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.

[The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media In the
infotainment system.
NOTICE
Use the USB charger when the engine
is running. Using USB charger for
prolonged periods of time with the
engine off could cause the battery to
discharge.
To prevent damage to the USB charger:
-Do not insert foreign objects or spill
liquid into the outlet. The USB charging
terminal may be damaged.
-Do not use devices with current
consumption exceeding 2,100 mA (2.1 A).
Wireless Smart Phone Charging
System (if equipped)
OIK050063
[A] : Charging pad, [B] : Indicator light
On certain models, the vehicle comes
equipped with a wireless smart phone
charger.
The system is available when all doors
are closed, and when the Engine Start/
Stop button is in the ON or START
position.

05
5-113

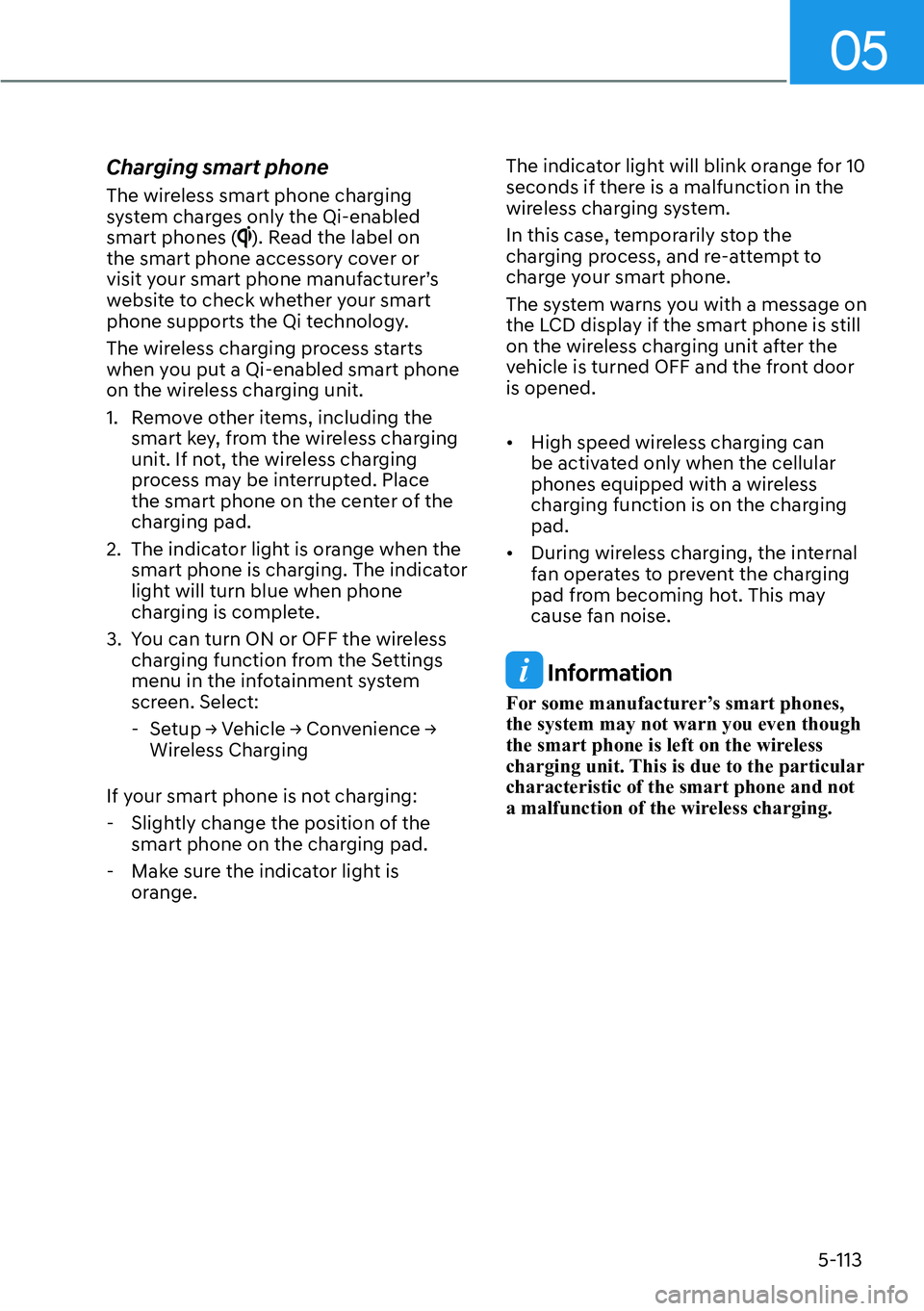

Charging smart phone
The wireless smart phone charging
system charges only the Qi-enabled
smart phones (
). Read the label on
the smart phone accessory cover or
visit your smart phone manufacturer’s
website to check whether your smart
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smart phone
on the wireless charging unit.
1. Remove other items, including the
smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place
the smart phone on the center of the
charging pad.
2. The indicator light is orange when the
smart phone is charging. The indicator
light will turn blue when phone
charging is complete.
3. You can turn ON or OFF the wireless
charging function from the Settings
menu in the infotainment system
screen. Select:
-6HWXS

Convenient Features
5-114

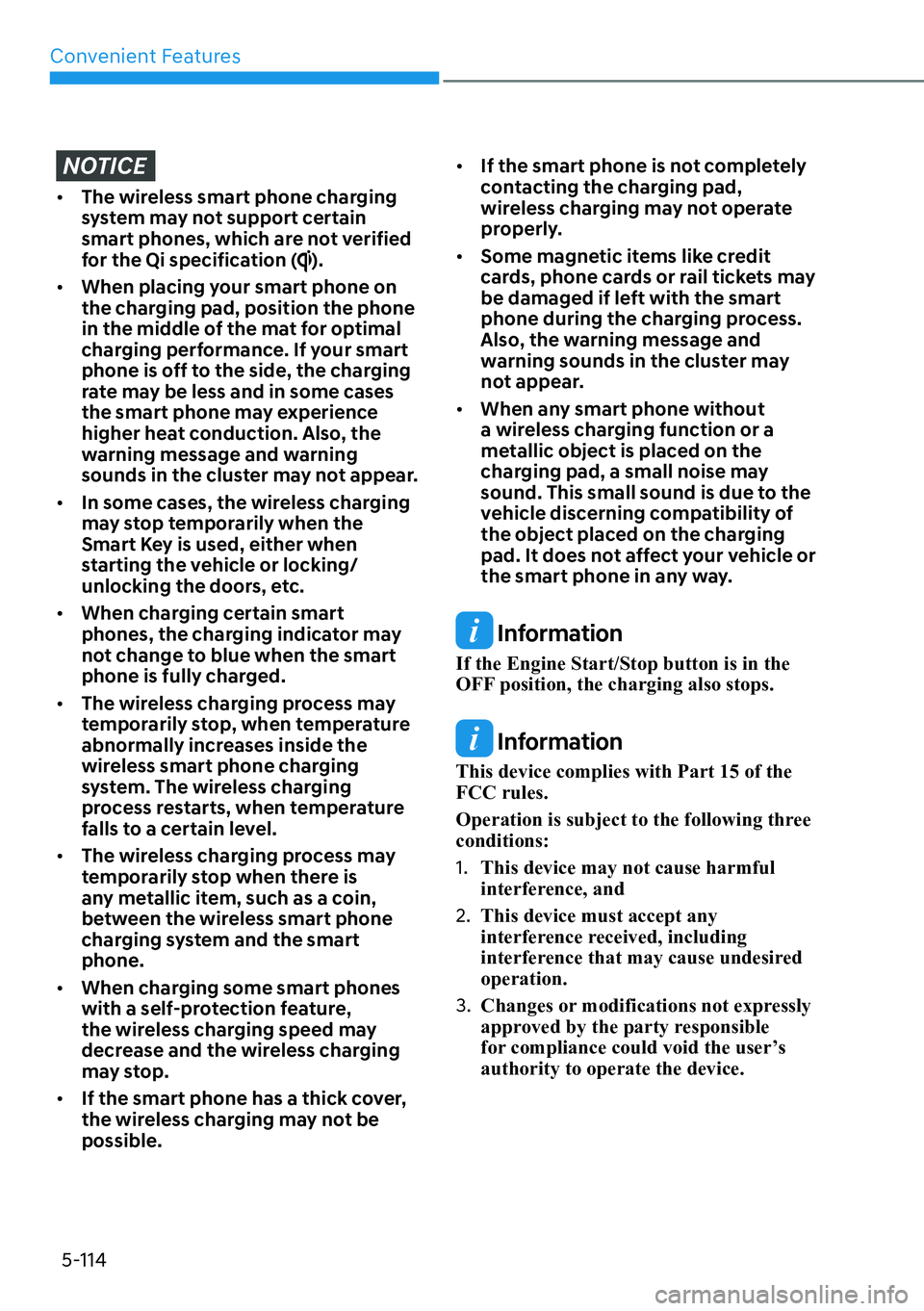

NOTICE

[The wireless smart phone charging
system may not support certain
smart phones, which are not verified
IRUWKH4LVSHFLILFDWLRQ(
).

[When placing your smart phone on
the charging pad, position the phone
in the middle of the mat for optimal
charging performance. If your smart
phone is off to the side, the charging
rate may be less and in some cases
the smart phone may experience
higher heat conduction. Also, the
warning message and warning
sounds in the cluster may not appear.

[In some cases, the wireless charging
may stop temporarily when the
Smart Key is used, either when
starting the vehicle or locking/
unlocking the doors, etc.

[When charging certain smart
phones, the charging indicator may
not change to blue when the smart
phone is fully charged.

[The wireless charging process may
temporarily stop, when temperature
abnormally increases inside the
wireless smart phone charging
system. The wireless charging
process restarts, when temperature
falls to a certain level.

[The wireless charging process may
temporarily stop when there is
any metallic item, such as a coin,
between the wireless smart phone
charging system and the smart
phone.

[When charging some smart phones
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.

[If the smart phone has a thick cover,
the wireless charging may not be
possible.
[If the smart phone is not completely
contacting the charging pad,
wireless charging may not operate
properly.

[Some magnetic items like credit
cards, phone cards or rail tickets may
be damaged if left with the smart
phone during the charging process.
Also, the warning message and
warning sounds in the cluster may
not appear.

[When any smart phone without
a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the smart phone in any way.
Information
,IWKH(QJLQH6WDUW6WRSEXWWRQLVLQWKH
OFF position, the charging also stops.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.

05
5-115
Clock
The clock can be set from the
infotainment system.
See additional information in supplied
Infotainment Manual.
WARNING
Do not attempt to adjust the clock
while driving. Doing so may result in
distracted driving which may lead to
an accident involving personal injury or
death.
Coat Hook
„Type A
OIK047068
„Type B
OIK047069
These hooks are not designed to hold
large or heavy items.
WARNING
OIK050064
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.
Floor Mat Anchor(s)
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet
keep the floor mats from sliding forward.
WARNING
Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the
anchors.

Convenient Features
5-116
WARNING
The following must be observed when
installing ANY floor mat to the vehicle.

[Ensure to remove a protective
film attached on the carpet
before attaching a floor mat on
the front floor carpet. Otherwise,
the floor mat may move freely on
the protective film and it could
result in unintentional braking or
accelerating.

[Ensure that the floor mats are
securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.

[Do not use ANY floor mat that cannot
be firmly attached to the vehicle’s
floor mat anchors.

[Do not stack floor mats on top of one
another (e.g. all-weather rubber mat
on top of a carpeted floor mat). Only
a single floor mat should be installed
in each position.
IMPORTANT Your vehicle was
manufactured with driver’s side floor
mat anchors that are designed to
securely hold the floor mat in place.
To avoid any interference with pedal
operation, Genesis Branded Vehicle
recommends that the Genesis floor
mat designed for use in your vehicle be
installed.
Luggage Net Holder (if equipped)
OIK050065
OIK050066
To keep items from shifting in the
luggage compartment, you can use the 4
holders located in the luggage board to
attach the luggage net.
Make sure the luggage net is securely
attached to the holders in the luggage
board.
If necessary, we recommend that you
contact your authorized retailer of
Genesis Branded products to obtain a
luggage net.
WARNING
Avoid eye injury. DO NOT overstretch
the luggage net. ALWAYS keep your
face and body out of the luggage net’s
recoil path. DO NOT use the luggage net
when the strap has visible signs of wear
or damage.
Use the luggage net to keep only light
items from shifting in the luggage
compartment.

05
5-117
NOTICE

[If you install an aftermarket HID
head lamp, your vehicle’s audio and
electronic devices may not function
properly.

[Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB Port
OIK050069
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information
:KHQXVLQJDSRUWDEOHDXGLRGHYLFH
connected to the power outlet, noise may
occur during playback. If this happens,
use the portable audio device’s power
source.
Antenna
OIK047071
Shark fin antenna (1, if equipped)
The shark fin antenna receives
transmitted data. (for example: SXM,
GPS, LTE)
Glass antenna (2)
Your vehicle uses a glass antenna to
receive both AM and FM signals.
ÃHowever, the signals which the
antenna can transmit and receive
varies depending on the vehicle
option.
INFOTAINMENT SYSTEM

Convenient Features
5-118
Steering Wheel Remote Controls
OIK050067
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
VOLUME (VOL + / VOL -) (1)

[Rotate the VOLUME scroll up to
increase volume.

[Rotate the VOLUME scroll down to
decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET switch is pressed up
or down and held for 0.8 second or more,
it will function in the following modes:

[
RADIO mode
It will function as the AUTO SEEK
select button. It will SEEK until you
release the button.

[
0(',$PRGH
It will function as the FF/RW button.
If the SEEK/PRESET switch is pressed up
or down, it will function in the following
modes:

[
RADIO mode
It will function as the PRESET STATION
UP/DOWN button.

[
0(',$PRGH
It will function as the TRACK UP/
DOWN button.
MODE (3)
Press the MODE button to toggle
through Radio or Media modes.
MUTE () (4)

[Press the MUTE button to mute the
sound.

[Press the MUTE button again to
activate the sound.
See additional information in supplied
Infotainment Manual.
Infotainment System
OIK050068N
See additional information in supplied
Infotainment Manual.
Voice Recognition
OIK050072
See additional information in supplied
Infotainment Manual.

05
5-119
Bluetooth® Wireless Technology
OIK050070
OIK050095N
(1) Call / Answer / Call end button
(2) Microphone
See additional information in supplied
Infotainment Manual.
CAUTION
To avoid driver distractions, do not
excessively operate the device while
driving the vehicle which may lead to
an accident.
Lexicon Premium Sound System
(if equipped)
CAUTION
Lexicon premium sound system is
equipped with door speaker grills made
of stainless steel. The grill surface can
be heated when the vehicle is exposed
to hot weather for a long period of time.
Keep away from the speaker grill when
it is hot.
