2022 HYUNDAI GENESIS G70 engine coolant

2-7
02
„2.0L T-GDI
„3.3L T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
OIK077001/ OIK017007
1. Engine coolant reservoir ...................... 9-20
2. Radiator cap ........................................... 9-21
3. Brake fluid reservoir ............................. 9-23
4. Air cleaner ............................................. 9-255. Engine oil dipstick ................................. 9-17
6. Engine oil filler cap ................................9-18
7. Windshield washer fluid reservoir ....... 9-24
8. Fuse box ................................................ 9-45

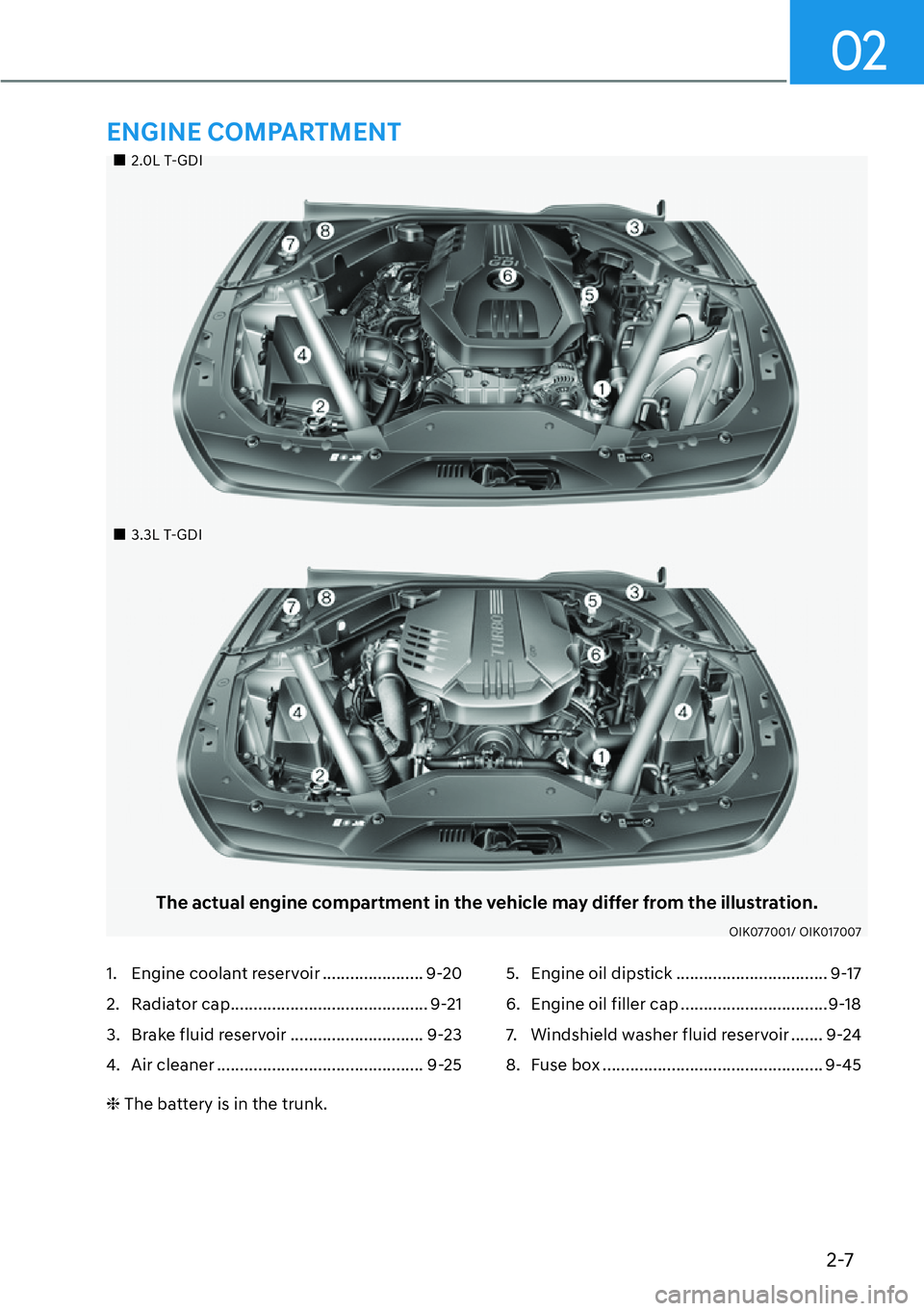

ENGINE COMPARTMENT
❈ The battery is in the trunk.

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill)2.0L T-GDI86TW
bAPI SN PLUS/SP or ILSAC
GF-6 *3
SAE : 0W-30
3.3L T-GDI86TW
bACEA A5/B5*4
SAE : 5W-30
Automatic transmission fluid2.0L T-GDI
86TW
bGS ATF SP-IV-RR
Genesis/Hyundai genuine
ATF SP-IV-RR or other
brands meeting the above
specifica- tion approved by
Genesis Customer Care 3.3L T-GDI
Engine coolant2.0L T-GDI7.68 US qt.

bMixture of antifreeze and
water (Phosphate-based
Ethylene glycol coolant for
aluminum radiator) 3.3L T-GDI9.84 US qt.

b
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : If the above recommended specification oil is not available, SAE 0W-30 grade synthetic
oil can be used. If mineral oil or semi-synthetic oil is used, it is a severe maintenance
condition in terms of engine oil change.
*3 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*4 : Requires grade engine oil. If a
lower grade engine oil (mineral oil including Semi-synthetic) is used. Then the engine oil
and engine oil filter must be replaced as indicated severe maintenance condition.
RECOMMENDED LUBRICANTS AND CAPACITIES

4
Instrument Cluster ............................................................................................ 4-4Instrument Cluster Control ..........................................................................................4-5
Instrument panel illumination ...................................................................................4-5
Gauges and Meters ..................................................................................................... 4-6
Speedometer ............................................................................................................ 4-6
Tachometer ............................................................................................................... 4-6
Engine coolant temperature gauge .......................................................................... 4-7
Fuel gauge .................................................................................................................. 4-7
Outside temperature gauge ..................................................................................... 4-8
Odometer .................................................................................................................. 4-8
Distance to empty .................................................................................................... 4-9
Transmission Shift Indicator ....................................................................................... 4-9
Automatic transmission shift indicator ................................................................... 4-9
Warning and Indicator Lights .................................................................................... 4-10
Seat belt warning light ............................................................................................ 4-10
Air bag warning light ............................................................................................... 4-10
Parking brake & Brake fluid warning light .............................................................. 4-10
Anti-lock Brake System (ABS) warning light ........................................................... 4-11
Electronic Brake Force Distribution (EBD) system warning light .......................... 4-11
Electric Power Steering (EPS) warning light .......................................................... 4-12
Charging system warning light ............................................................................... 4-12
Engine oil pressure warning light ........................................................................... 4-13
Engine coolant temperature warning light (for 8-inch cluster) ............................ 4-13
Low fuel level warning light .................................................................................... 4-13
Malfunction Indicator Lamp (MIL) .......................................................................... 4-14
Master warning light ................................................................................................ 4-14
Electronic Parking Brake (EPB) warning light ........................................................ 4-15
Low tire pressure warning light .............................................................................. 4-15
Forward Safety warning light .................................................................................. 4-16
Lane Safety indicator light ...................................................................................... 4-16
All Wheel Drive (AWD) warning light ...................................................................... 4-16
LED headlight warning light .....................................................................................4-17
Icy road warning light ...............................................................................................4-17
Electronic Stability Control (ESC) indicator light ................................................... 4-18
Electronic Stability Control (ESC) OFF indicator light ........................................... 4-18
Immobilizer indicator light ...................................................................................... 4-18
Turn signal indicator light ........................................................................................ 4-19
High beam indicator light ....................................................................................... 4-19
Low beam indicator light ........................................................................................ 4-19
Light ON indicator light ........................................................................................... 4-19
High Beam Assist indicator light ............................................................................. 4-19
4. Instrument Cluster

4-4
Instrument Cluster
The actual cluster in the vehicle may differ from the illustration.
For more details, refer to “Gauges and meters” section in this chapter.
OIK040050N/OIK040051N
1. Tachometer
2. Speedometer
3. Fuel gauge4. Engine coolant temperature gauge
5. Warning and indicator lights
6. LCD display
INSTRUMENT CLUSTER

04
4-7
Engine coolant temperature gauge
OIK040080L
This gauge indicates the temperature
of the engine coolant when the Engine
Start/Stop button is in the ON position.
You can check the engine coolant
temperature in the Utility view on the
cluster.
Refer to “View Modes” section in
chapter 4.
NOTICE
If the gauge pointer moves beyond the
normal range area toward the “H (Hot)”
position, it indicates overheating that
may damage the engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” section in chapter 8.
WARNING
Never remove the engine coolant
reservoir cap when the engine is hot.
The engine coolant is under pressure
and could cause severe burn. Wait until
the engine is cool before adding coolant
to the reservoir.
Fuel gauge
OJX1049032
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
Information

[The fuel tank capacity is given in
chapter 2.

[The fuel gauge is supplemented by
a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty.

[On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in
the tank.
WARNING
Running out of fuel can expose vehicle
occupants to danger.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “E
(Empty)” level.
NOTICE
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire damaging
the catalytic converter.

04
4-13
Engine oil pressure warning
light
If the engine oil pressure is low:

[Drive carefully to the nearest safe
location and stop your vehicle.

[Turn the engine off and check the
engine oil level (For more details,
refer to “Engine Oil” section in
chapter 9). If the level is low, add oil as
required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
(Continued driving with the warning
light on may cause engine failure.)
NOTICE

[If the engine is not stopped
immediately after the Engine Oil
Pressure warning light is illuminated
while the engine is running, severe
damage could result.

[If the warning light stays on while the
engine is running, it indicates that
there may be serious engine damage
or malfunction. In this case:
1. Stop the vehicle as soon as it is
safe to do so.
2. Turn off the engine and check the
oil level. If the oil level is low, fill
the engine oil to the proper level.
3. Start the engine again. If the
warning light stays on after the
engine is started, turn the engine
off immediately. If this occurs,
have the vehicle inspected by
an authorized retailer of Genesis
Branded products.
Engine coolant temperature
warning light (for 8-inch
cluster)
The warning light illuminates:
When the temperature of the engine
coolant is extremely high.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “Overheating” section
in chapter 8.
NOTICE
If the Engine Coolant Temperature
warning light illuminates, it indicates
overheating that may damage the
engine.
Low fuel level warning light
This warning light illuminates:
When the fuel tank is nearly empty.
Add fuel as soon as possible.
NOTICE
Driving with the Low Fuel Level warning
light on or with the fuel level below “E”
can cause the engine to misfire and
damage the catalytic converter.

04
4-25
Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended Lubricants and
Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
After adding engine oil, if you travel
approximately 31~62 miles (50~100 km)
after the engine warms up, the warning
message should disappear.
Engine overheated
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlamp LED (if equipped)
This message is displayed if there is a
problem with the LED headlamp. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.

04
4-29
OIK040086L
Attention level
The driver’s attention level is shown
based on the driver’s driving pattern.
For more details, refer to "Driver
Attention Warning (DAW)“ section in
chapter 7.
OIK080023L
Tire pressure
The tire pressure of each tire is displayed.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
OIK040080L
Engine temperature
Engine coolant temperature gauge
display shows the temperature of the
engine coolant when the engine is
running.
