2022 HYUNDAI GENESIS G70 Owners Manual

03
3-17

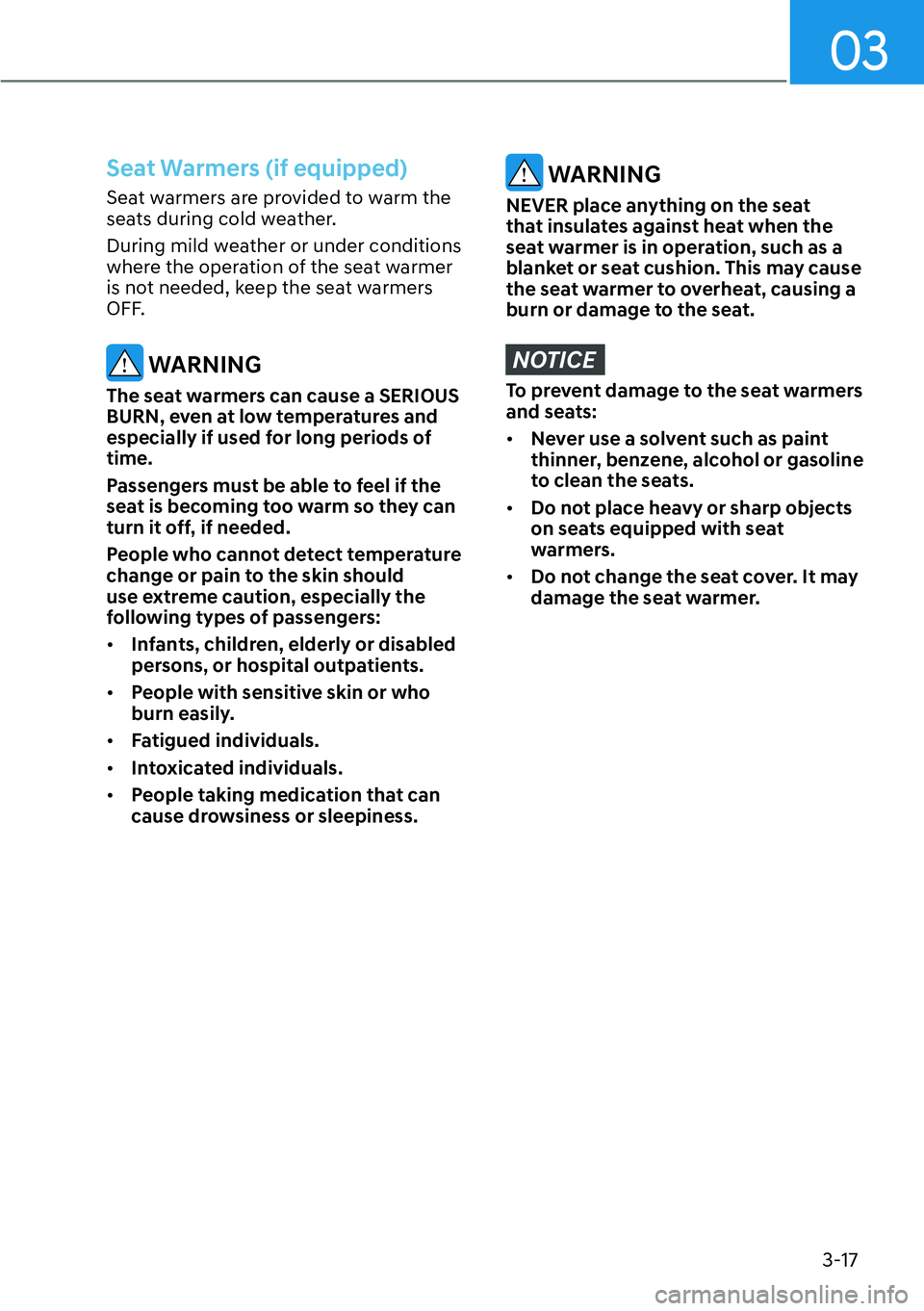

Seat Warmers (if equipped)
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[People with sensitive skin or who
burn easily.

[Fatigued individuals.

[Intoxicated individuals.

[People taking medication that can
cause drowsiness or sleepiness.
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[Do not change the seat cover. It may
damage the seat warmer.

Safety System
3-18
„Front
OIK030017L
„Rear (if equipped)
OIK037017
While the engine is running, push either
of the switches to warm the driver's seat
or front passenger's seat (and/or rear
passenger's seat).
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.

[Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows:

OFF HIGH ()
LOW (
) MIDDLE ()
➞➞
➞
➞

[Automatic temperature control
The seat warmer starts to
automatically control the seat
temperature in order to prevent
low-temperature burns after being
manually turned on.

OFF HIGH ()
LOW (
) MIDDLE ()➞
➞
➞
➞
30 MIN
60 MIN
You may manually press the switch to
increase seat temperature, However,
it soon returns the automatic mode
again.

[Auto. Controls That Use Climate
Control Settings (for driver’s seat)
The seat warmer automatically
controls the seat temperature
depending on the ambient
temperature when the engine is
running.
To use this function, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
-6HWXS

03
3-19

[If the vehicle is turned off then on
again, the seat warmer turns on or off
as follows:
- Driver’s seat
The seat warmer stays OFF if it was
turned off before the vehicle was
turned off.
The seat warmer stays ON (HIGH) if
it was turned ON (HIGH/MIDDLE/
LOW) before the vehicle was turned
off.
- Passenger’s seat
The seat warmer stays OFF
regardless of the previous state of
the seat warmer.

[
OIK030108L
You can also adjust the rear seat
warmers from the front seats. With
the engine running, touch the seat
warmer icon on the infotainment
system screen.
Air Ventilation Seats
(if equipped)
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the air
ventilation seats off.
NOTICE
To prevent damage to the air ventilation
seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[Avoid spilling liquids on the surface
of the front seats and seatbacks;
this may cause the air vent holes
to become blocked and not work
properly.

[Do not place materials such as
plastic bags or newspapers under
the seats. They may block the air
intake causing the air vents to not
work properly.

[Do not change the seat covers. It may
damage the air ventilation seat.

[If the air vents do not operate, restart
the vehicle. If there is no change,
have your vehicle inspected by an
authorized retailer Genesis Branded
products.

Safety System
3-20

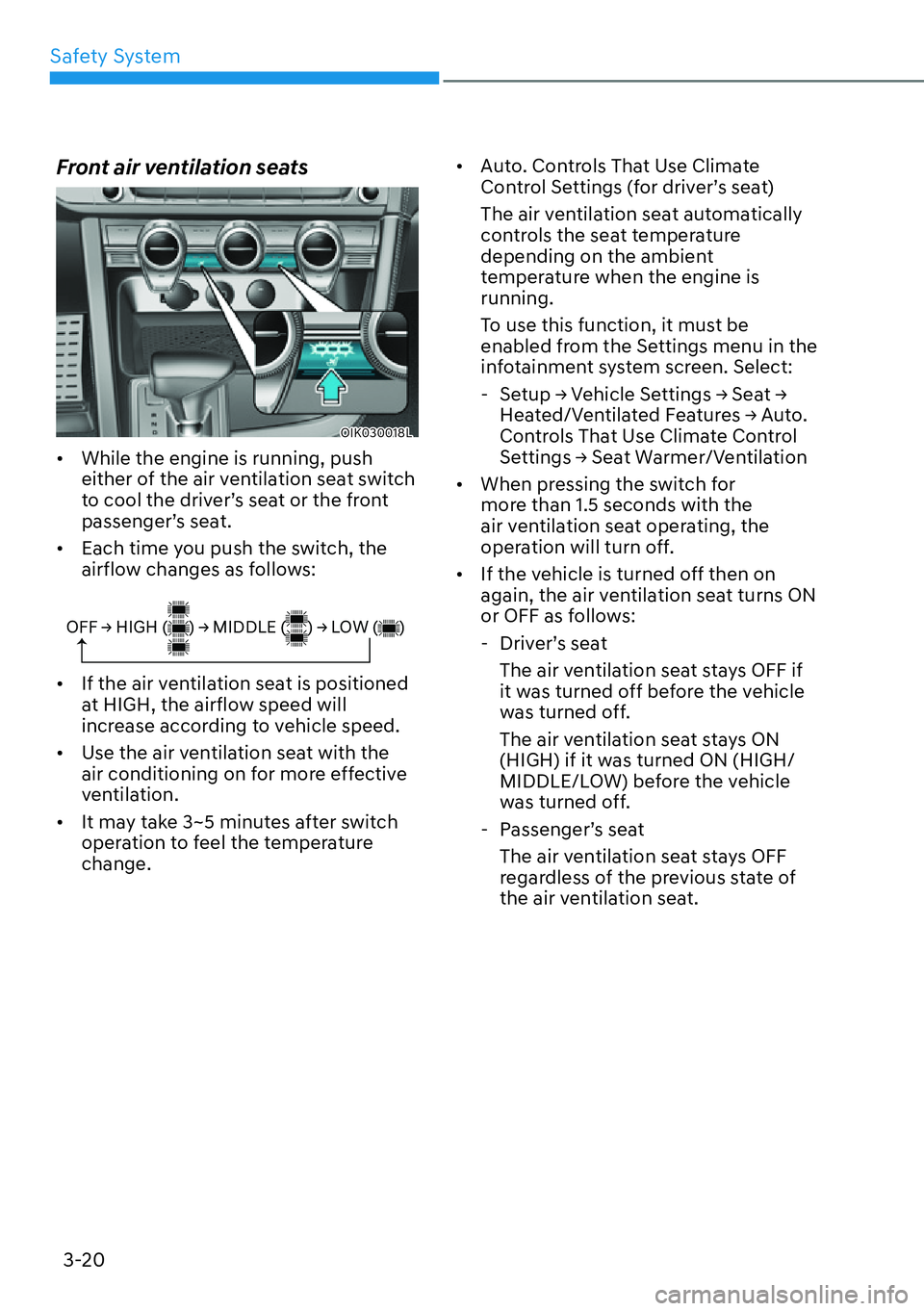

Front air ventilation seats
OIK030018L

[While the engine is running, push
either of the air ventilation seat switch
to cool the driver’s seat or the front
passenger’s seat.

[Each time you push the switch, the
airflow changes as follows:
2))

03
3-21
Rear Occupant Alert (ROA)
(if equipped)
Rear Occupant Alert is provided to help
prevent the driver from leaving the
vehicle with the rear passenger left in the
vehicle.
System settings
System setting
To use Rear Occupant Alert, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
6HWXS

Safety System
3-22
This section describes how to use the
seat belts properly. It also describes
some of the things not to do when using
seat belts.
Seat Belt Safety Precautions
Always fasten your seat belt and make
sure all passengers have fastened their
seat belts before starting any trip. Air
bags are designed to supplement the
seat belt as an additional safety device,
but they are not a substitute. Most
countries require all occupants of a
vehicle to wear seat belts.
WARNING
Seat belts must be used by ALL
passengers whenever the vehicle is
moving. Take the following precautions
when adjusting and wearing seat belts:

[Children under the age of 13 should
be properly restrained in the rear
seats.

[NEVER allow children to ride in the
front passenger seat, unless the air
bag is deactivated. If a child is seated
in the front passenger seat, move
the seat as far back as possible and
properly restrain them in the seat.

[NEVER allow an infant or child to be
carried on an occupant’s lap.

[NEVER ride with the seatback
reclined when the vehicle is moving.

[Do not allow children to share a seat
or seat belt.

[Do not wear the shoulder belt under
your arm or behind your back.
[NEVER wear a seat belt over fragile
objects. If there is a sudden stop or
impact, the seat belt can damage it.

[Do not use the seat belt if it is
twisted. A twisted seat belt will not
protect you properly in an accident.

[Do not use a seat belt if the webbing
or hardware is damaged.

[Do not latch the seat belt into the
buckles of other seats.

[NEVER unfasten the seat belt
while driving. This may cause loss
of vehicle control resulting in an
accident.

[Make sure there is nothing in the
buckle interfering with the seat belt
latch mechanism. This may prevent
the seat belt from fastening securely.

[No modifications or additions
should be made by the user which
will either prevent the seat belt
adjusting devices from operating to
remove slack, or prevent the seat
belt assembly from being adjusted to
remove slack.
WARNING
Damaged seat belts and seat belt
assemblies will not operate properly.
Always replace:

[Frayed, contaminated, or damaged
webbing.

[Damaged hardware.

[The entire seat belt assembly after it
has been worn in an accident, even
if damage to webbing or assembly is
not apparent.
SEAT BELTS

03
3-23

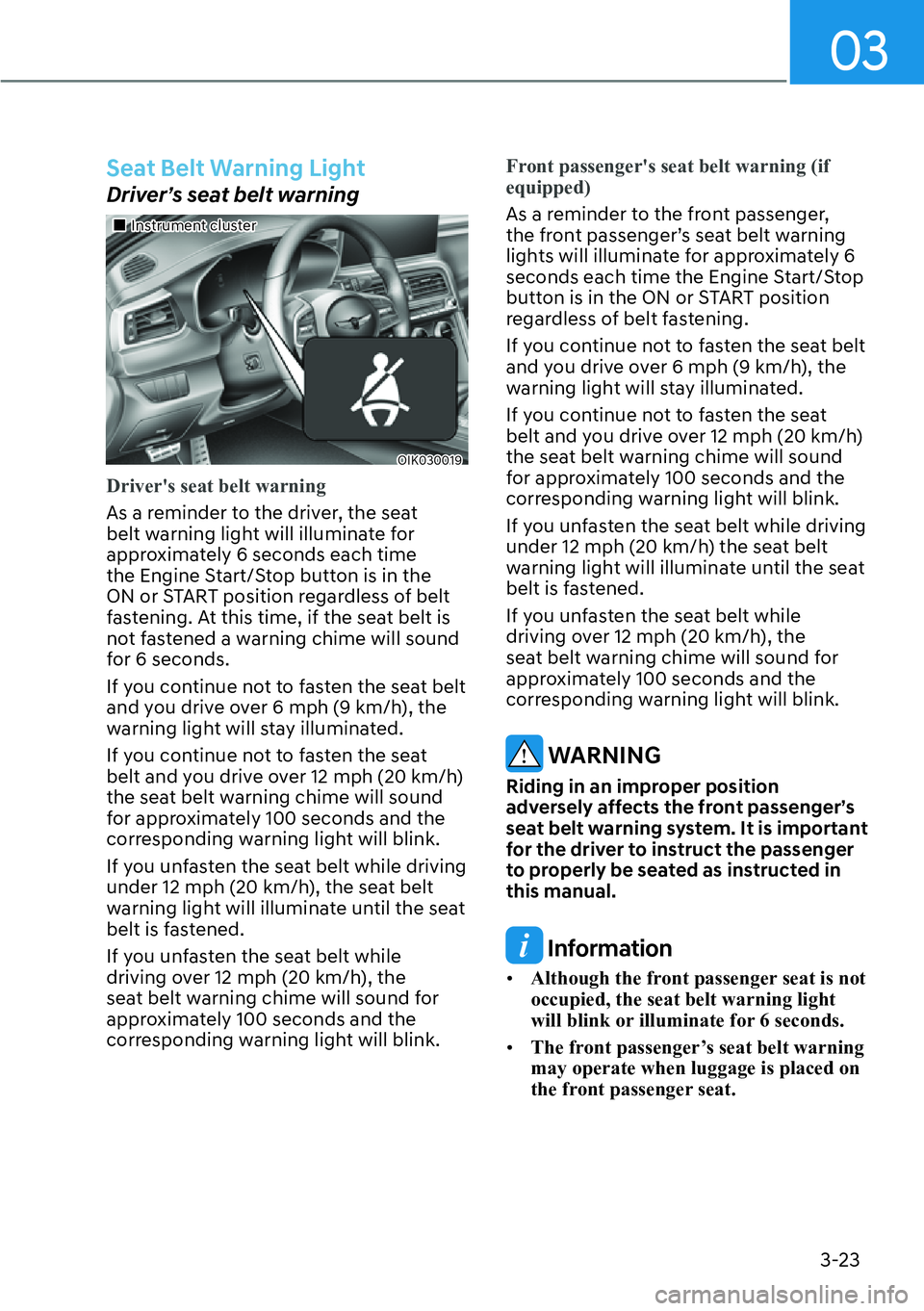

Seat Belt Warning Light
Driver’s seat belt warning
„Instrument cluster
OIK030019
Driver's seat belt warning
As a reminder to the driver, the seat
belt warning light will illuminate for
approximately 6 seconds each time
the Engine Start/Stop button is in the
ON or START position regardless of belt
fastening. At this time, if the seat belt is
not fastened a warning chime will sound
for 6 seconds.
If you continue not to fasten the seat belt
and you drive over 6 mph (9 km/h), the
warning light will stay illuminated.
If you continue not to fasten the seat
belt and you drive over 12 mph (20 km/h)
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driving
under 12 mph (20 km/h), the seat belt
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.
Front passenger's seat belt warning (if
equipped)
As a reminder to the front passenger,
the front passenger’s seat belt warning
lights will illuminate for approximately 6
seconds each time the Engine Start/Stop
button is in the ON or START position
regardless of belt fastening.
If you continue not to fasten the seat belt
and you drive over 6 mph (9 km/h), the
warning light will stay illuminated.
If you continue not to fasten the seat
belt and you drive over 12 mph (20 km/h)
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driving
under 12 mph (20 km/h) the seat belt
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.
WARNING
Riding in an improper position
adversely affects the front passenger’s
seat belt warning system. It is important
for the driver to instruct the passenger
to properly be seated as instructed in
this manual.
Information

[Although the front passenger seat is not
occupied, the seat belt warning light
will blink or illuminate for 6 seconds.

[The front passenger’s seat belt warning
may operate when luggage is placed on
the front passenger seat.

Safety System
3-24
Seat Belt Restraint System
WARNING
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:

[Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it fits
snugly.

[Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.

[Always position the shoulder belt
anchor into the locked position at the
appropriate height.

[NEVER position the shoulder belt
across your neck or face.
Seat Belt-Driver’s 3-point system
with emergency locking retractor
OHI038140
To fasten your seat belt:
Pull it out of the retractor and insert the
metal tab (1) into the buckle (2). There
will be an audible “click” when the tab
locks into the buckle.
OHI038137
You should place the lap belt (1) portion
across your hips and the shoulder belt (2)
portion across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion
is adjusted manually so that it fits snugly
around your hips. If you lean forward in
a slow, easy motion, the belt will extend
and move with you.
If there is a sudden stop or impact, the
belt will lock into position. It will also lock
if you try to lean forward too quickly.
