2022 HYUNDAI GENESIS G70 Owners Manual

Driver assistance system
7-12

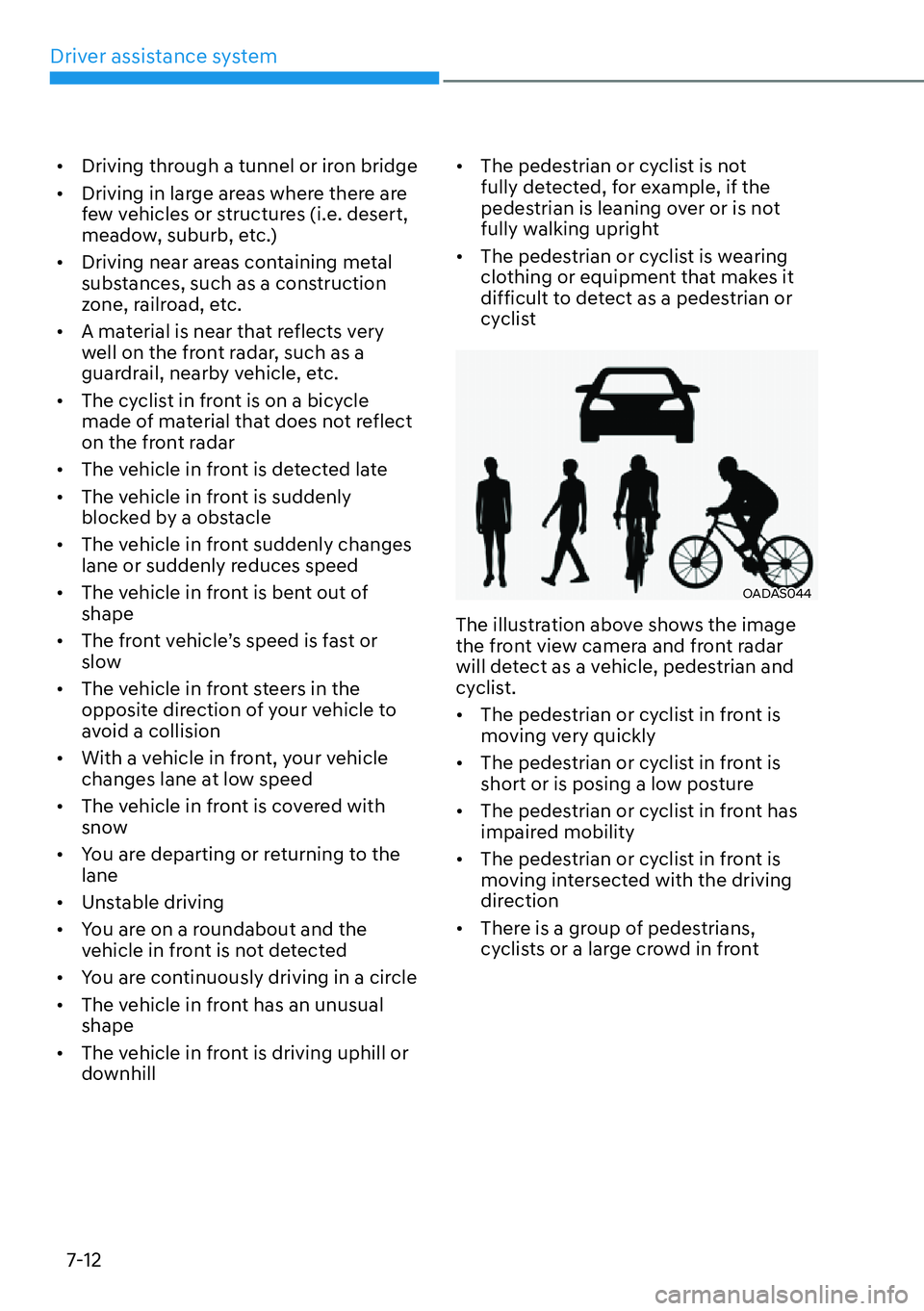

[Driving through a tunnel or iron bridge

[Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)

[Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.

[The cyclist in front is on a bicycle
made of material that does not reflect
on the front radar

[The vehicle in front is detected late

[The vehicle in front is suddenly
blocked by a obstacle

[The vehicle in front suddenly changes
lane or suddenly reduces speed

[The vehicle in front is bent out of
shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU
slow

[The vehicle in front steers in the
opposite direction of your vehicle to
avoid a collision

[With a vehicle in front, your vehicle
changes lane at low speed

[The vehicle in front is covered with
snow

[You are departing or returning to the
lane

[Unstable driving

[You are on a roundabout and the
vehicle in front is not detected

[You are continuously driving in a circle

[The vehicle in front has an unusual
shape

[The vehicle in front is driving uphill or
downhill
[The pedestrian or cyclist is not
fully detected, for example, if the
pedestrian is leaning over or is not
fully walking upright

[The pedestrian or cyclist is wearing
clothing or equipment that makes it
difficult to detect as a pedestrian or
cyclist
OADAS044
The illustration above shows the image
the front view camera and front radar
will detect as a vehicle, pedestrian and
cyclist.

[The pedestrian or cyclist in front is
moving very quickly

[The pedestrian or cyclist in front is
short or is posing a low posture

[The pedestrian or cyclist in front has
impaired mobility

[The pedestrian or cyclist in front is
moving intersected with the driving
direction

[There is a group of pedestrians,
cyclists or a large crowd in front

07
7-13

[The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect

[The pedestrian or cyclist is difficult to
distinguish from the similar shaped
structure in the surroundings

[You are driving by a pedestrian,
cyclist, traffic sign, structure, etc. near
the intersection

[Driving in a parking lot

[Driving through a tollgate,
construction area, unpaved road,
partial paved road, uneven road,
speed bumps, etc.

[Driving on an incline road, curved
road, etc.

[Driving through a roadside with trees
or streetlights

[The adverse road conditions cause
excessive vehicle vibrations while
driving

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[Driving through a narrow road where
trees or grass are overgrown

[There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise WARNING

[Driving on a curve
OADAS052SD
OADAS016SDOADAS018SD
Forward Collision-Avoidance Assist
may not detect other vehicles,
pedestrians or cyclists in front of you
on curved roads adversely affecting
the performance of the sensors. This
may result in no warning or braking
assist when necessary.
When driving on a curve, you must
maintain a safe braking distance,
and if necessary, steer the vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.

Driver assistance system
7-14
OADAS015SD
OADAS017SDOADAS019SD
Forward Collision-Avoidance Assist
may detect a vehicle, pedestrian or
cyclist in the next lane or outside the
lane when driving on a curved road.
If this occurs, Forward Collision-
Avoidance Assist may unnecessarily
warn the driver and control the
brake. Always check the traffic
conditions around the vehicle.
[Driving on a slope
OADAS053SD
OADAS010SDOADAS011SD
Forward Collision-Avoidance Assist
may not detect other vehicles,
pedestrians or cyclists in front of
you while driving uphill or downhill
adversely affecting the performance
of the sensors.
This may result in unnecessary
warning or braking assist, or no
warning or braking assist when
necessary.
Also, vehicle speed may rapidly
decrease when a vehicle, pedestrian
or cyclist ahead is suddenly
detected.
Always have your eyes on the road
while driving uphill or downhill and
if necessary, steer your vehicle and
depress the brake pedal to reduce
your driving speed in order to
maintain a safe distance.

07
7-15

[Changing lanes
OADAS030SD[A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot
be detected by the sensor until it
is in the sensor's detection range.
Forward Collision-Avoidance Assist
may not immediately detect the
vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance,
and if necessary, steer your vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
OADAS031SD[A] : Your vehicle, [B] : Lane changing vehicle,
[C] : Same lane vehicle
When a vehicle in front of you
merges out of the lane, Forward
Collision-Avoidance Assist may not
immediately detect the vehicle that
is now in front of you. In this case,
you must maintain a safe braking
distance, and if necessary, steer your
vehicle and depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.

Driver assistance system
7-16

[Detecting vehicle
OIK070013
If the vehicle in front of you has
cargo that extends rearward from
the cab, or when the vehicle in front
of you has higher ground clearance,
additional special attention is
required. Forward Collision-
Avoidance Assist may not be able
to detect the cargo extending from
the vehicle. In these instances,
you must maintain a safe braking
distance from the rearmost object,
and if necessary, steer your vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain distance.
WARNING

[If emergency towing is necessary, we
recommend that Forward Collision-
Avoidance Assist is turned off due to
safety reasons.

[Forward Collision-Avoidance Assist
may operate if objects that are
similar in shape or characteristics to
vehicles, pedestrians and cyclists are
detected.

[Forward Collision-Avoidance Assist
does not operate on bicycles,
motorcycles, or smaller wheeled
objects, such as luggage bags,
shopping carts, or strollers.
[Forward Collision-Avoidance
Assist may not operate normally if
interfered by strong electromagnetic
waves.

[Forward Collision-Avoidance Assist
may not operate for 15 seconds after
the vehicle is started, or the front
view camera is initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-17

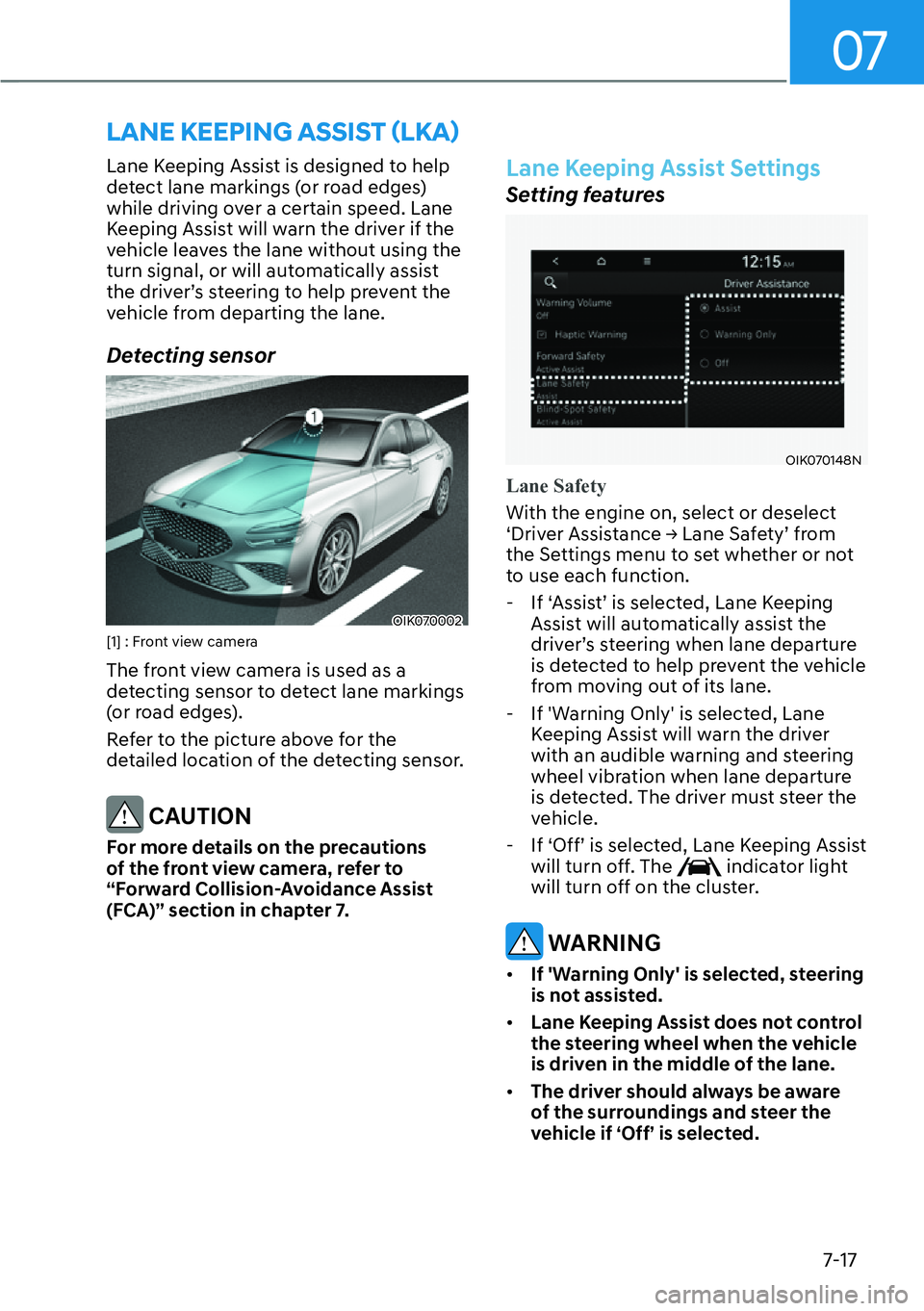

/$1(.((3,1*$66,67

Driver assistance system
7-18
OIK070016

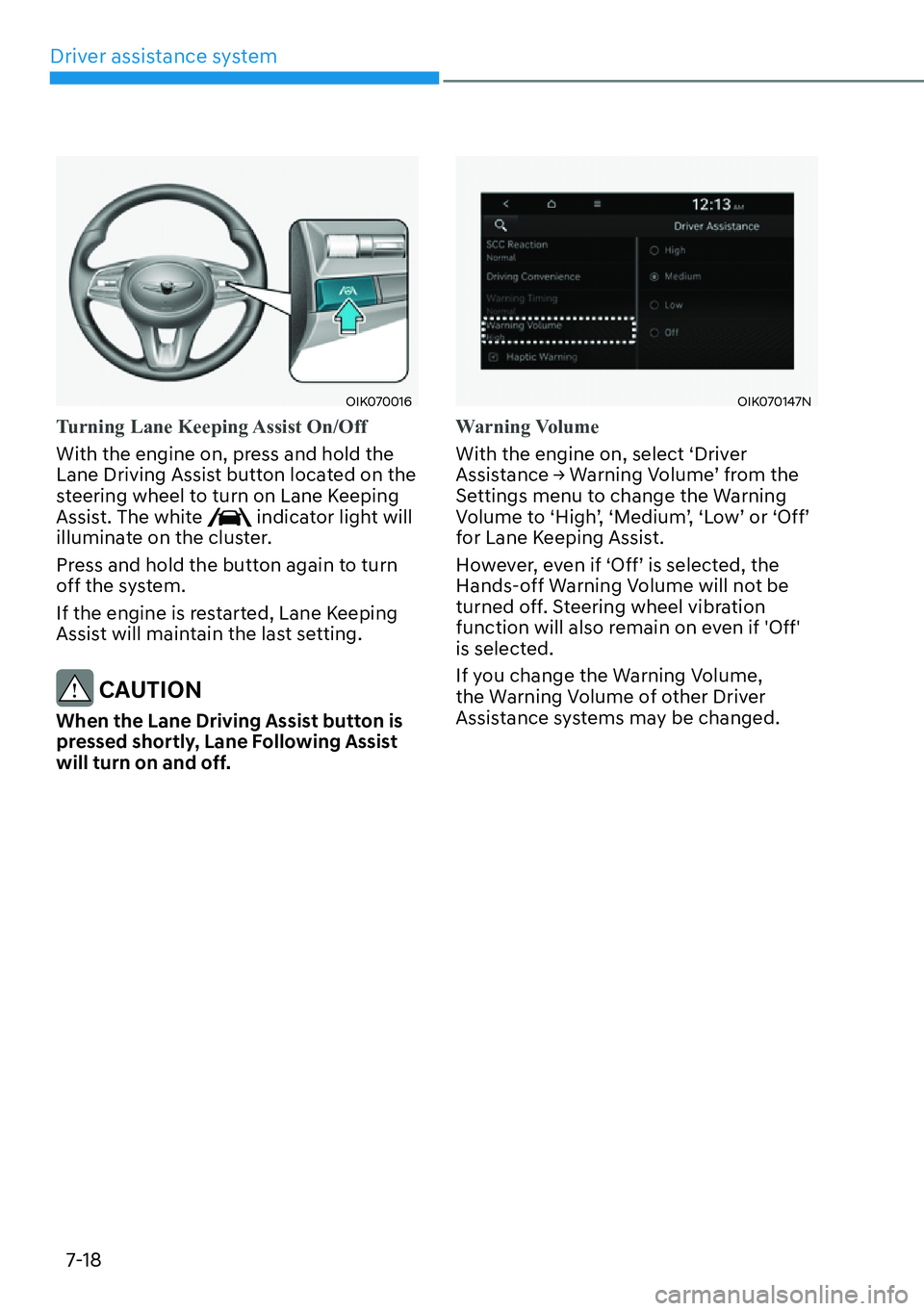

Turning Lane Keeping Assist On/Off
With the engine on, press and hold the
Lane Driving Assist button located on the
steering wheel to turn on Lane Keeping
Assist. The white
indicator light will
illuminate on the cluster.
Press and hold the button again to turn
off the system.
If the engine is restarted, Lane Keeping
Assist will maintain the last setting.
CAUTION
When the Lane Driving Assist button is
pressed shortly, Lane Following Assist
will turn on and off.
OIK070147N
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-19

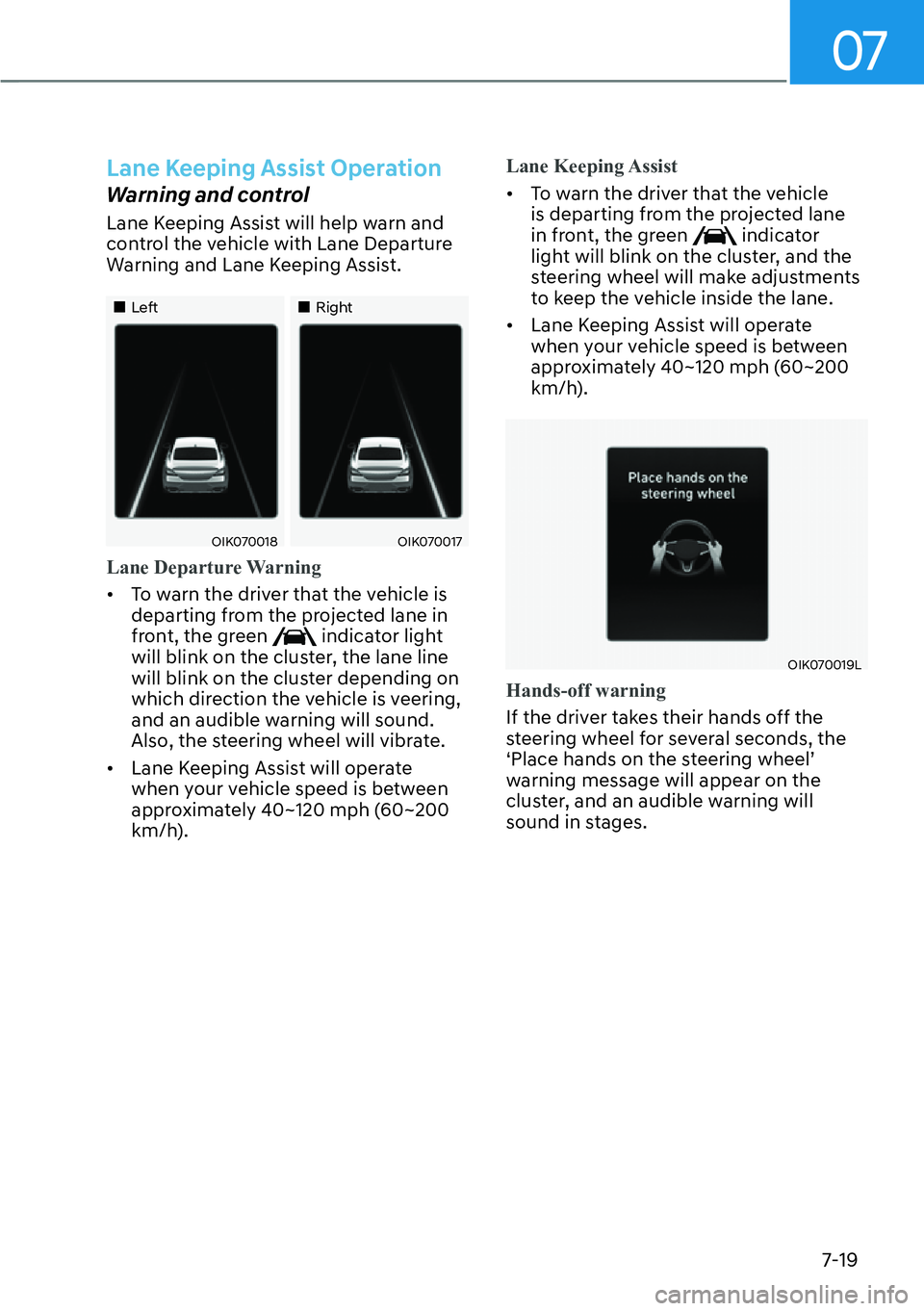

Lane Keeping Assist Operation
Warning and control
Lane Keeping Assist will help warn and
control the vehicle with Lane Departure
Warning and Lane Keeping Assist.
„Left„Right
OIK070018OIK070017
Lane Departure Warning

[To warn the driver that the vehicle is
departing from the projected lane in
front, the green
indicator light
will blink on the cluster, the lane line
will blink on the cluster depending on
which direction the vehicle is veering,
and an audible warning will sound.
Also, the steering wheel will vibrate.

[Lane Keeping Assist will operate
when your vehicle speed is between
approximately 40~120 mph (60~200
km/h).
Lane Keeping Assist

[To warn the driver that the vehicle
is departing from the projected lane
in front, the green
indicator
light will blink on the cluster, and the
steering wheel will make adjustments
to keep the vehicle inside the lane.

[Lane Keeping Assist will operate
when your vehicle speed is between
approximately 40~120 mph (60~200
km/h).
OIK070019L
Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds, the

S3ODFHKDQGVRQWKHVWHHULQJZKHHO
T
warning message will appear on the
cluster, and an audible warning will
sound in stages.
