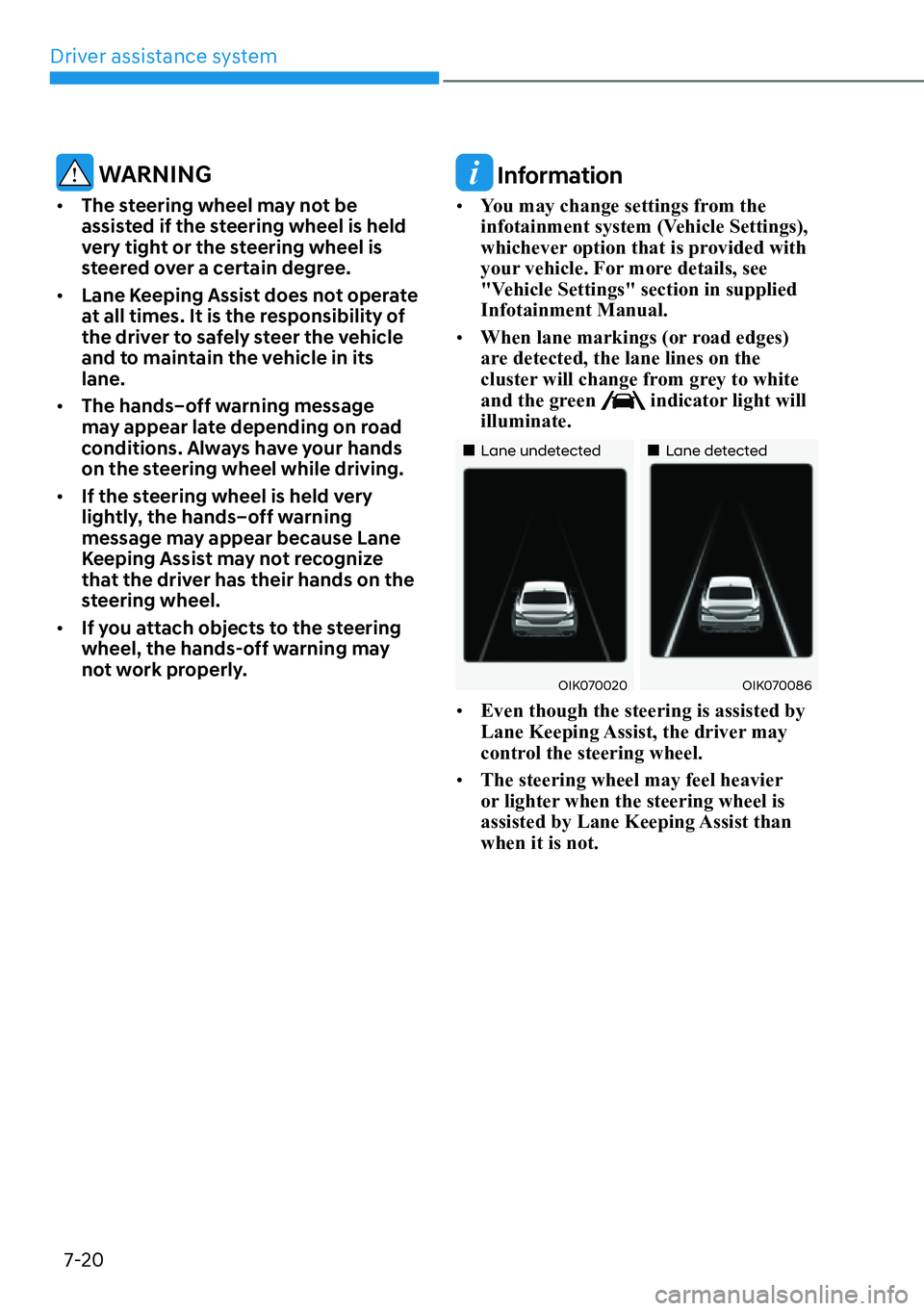

2022 HYUNDAI GENESIS G70 Owners Manual

Driver assistance system
7-20
WARNING

[The steering wheel may not be
assisted if the steering wheel is held
very tight or the steering wheel is
steered over a certain degree.

[Lane Keeping Assist does not operate
at all times. It is the responsibility of
the driver to safely steer the vehicle
and to maintain the vehicle in its
lane.

[The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[If the steering wheel is held very
lightly, the hands–off warning
message may appear because Lane
Keeping Assist may not recognize
that the driver has their hands on the
steering wheel.

[If you attach objects to the steering
wheel, the hands-off warning may
not work properly.
Information

[You may change settings from the
infotainment system (Vehicle Settings),
whichever option that is provided with
your vehicle. For more details, see
"Vehicle Settings" section in supplied
Infotainment Manual.

[When lane markings (or road edges)
are detected, the lane lines on the
cluster will change from grey to white
and the green
indicator light will
illuminate.
„Lane undetected„Lane detected
OIK070020OIK070086

[Even though the steering is assisted by
Lane Keeping Assist, the driver may
control the steering wheel.

[The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Keeping Assist than
when it is not.

07
7-21

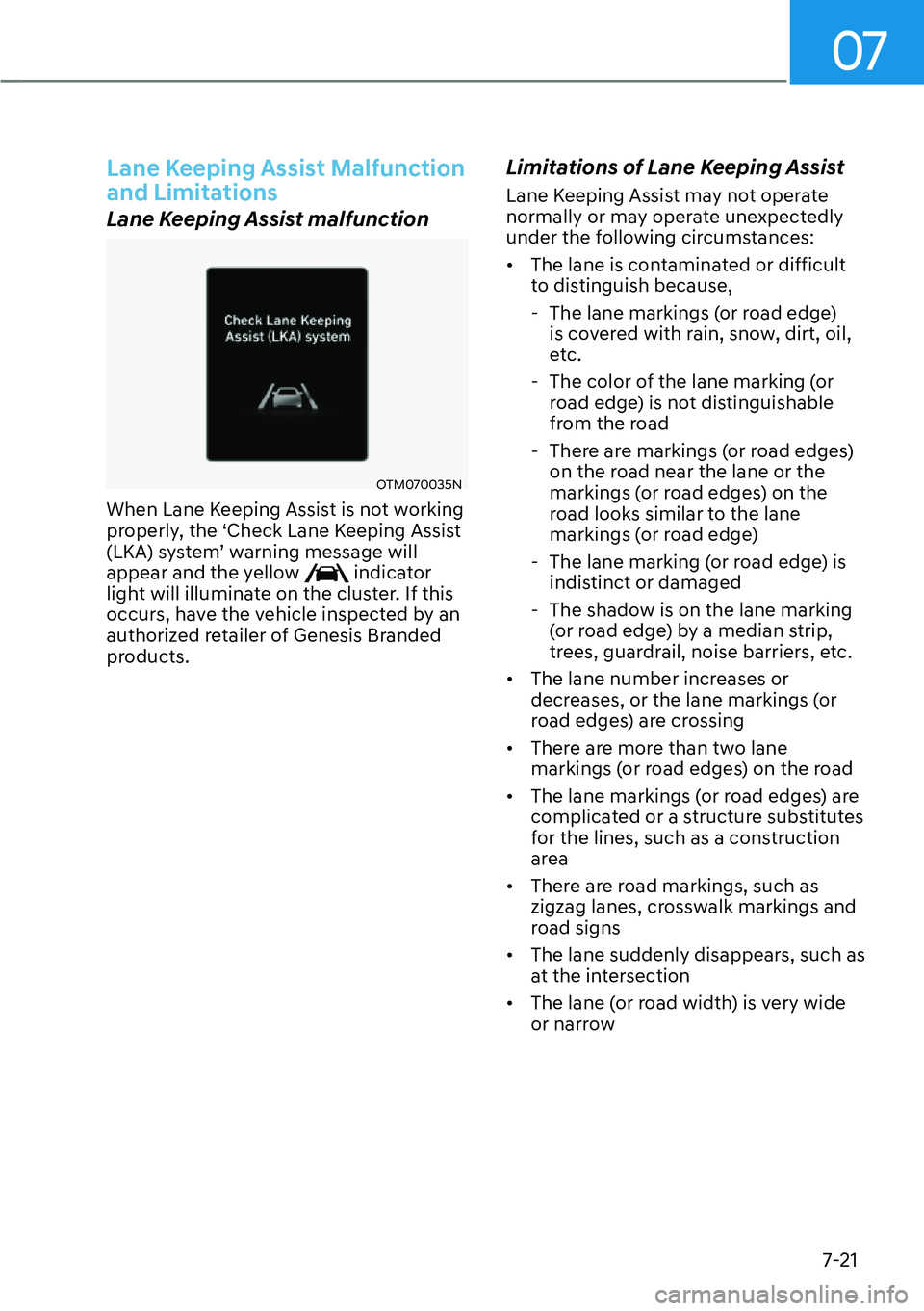

Lane Keeping Assist Malfunction
and Limitations
Lane Keeping Assist malfunction
OTM070035N
When Lane Keeping Assist is not working
properly, the ‘Check Lane Keeping Assist
/.$V\VWHP
TZDUQLQJPHVVDJHZLOO
appear and the yellow
indicator
light will illuminate on the cluster. If this
occurs, have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Limitations of Lane Keeping Assist
Lane Keeping Assist may not operate
normally or may operate unexpectedly
under the following circumstances:

[The lane is contaminated or difficult
to distinguish because,
- The lane markings (or road edge)
is covered with rain, snow, dirt, oil,
etc.
- The color of the lane marking (or
road edge) is not distinguishable
from the road
- There are markings (or road edges)
on the road near the lane or the
markings (or road edges) on the
road looks similar to the lane
markings (or road edge)
- The lane marking (or road edge) is
indistinct or damaged
- The shadow is on the lane marking
(or road edge) by a median strip,
trees, guardrail, noise barriers, etc.

[The lane number increases or
decreases, or the lane markings (or
road edges) are crossing

[There are more than two lane
markings (or road edges) on the road

[The lane markings (or road edges) are
complicated or a structure substitutes
for the lines, such as a construction
area

[There are road markings, such as
zigzag lanes, crosswalk markings and
road signs

[The lane suddenly disappears, such as
at the intersection

[The lane (or road width) is very wide
or narrow

Driver assistance system
7-22

[There is a road edge without a lane

[There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.

[The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking (or road
edge)
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
WARNING
Take the following precautions when
using Lane Keeping Assist:

[The driver should hold the
responsibility to safely drive and
control the vehicle. Do not solely rely
on Lane Keeping Assist and drive
dangerously.

[The operation of Lane Keeping Assist
can be canceled or not work properly
depending on road conditions and
surroundings. Always be cautious
while driving.

[Refer to “Limitations of Lane Keeping
Assist” if the lane is not detected
properly.

[If emergency towing is necessary, we
recommend that Lane Keeping Assist
is turned off due to safety reasons.

[If the vehicle is driven at high speed,
the steering wheel will not be
controlled. The driver must always
follow the speed limit when using
Lane Keeping Assist.
[If any other system’s warning
message is displayed or audible
warning is generated, Lane Keeping
Assist warning message may not be
displayed and audible warning may
not be generated.

[You may not hear the warning
sound of Lane Keeping Assist if the
surrounding is noisy.

[If you attach objects to the steering
wheel, steering may not be assisted
properly.

[Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.

[Lane Keeping Assist will not operate
when:
-The turn signal or hazard warning
flasher is turned on
-The vehicle is not driven in the
center of the lane when Lane
Keeping Assist is turned on or right
after changing a lane
-ESC (Electronic Stability Control)
or VSM (Vehicle Stability
Management) is activated
-The vehicle is driven on a sharp
curve
-The vehicle speed is below 35 mph
(55 km/h) or above 130 mph
(210 km/h)
-The vehicle makes sharp lane
changes
-The vehicle brakes suddenly

07
7-23
%/,1'

Driver assistance system
7-24
ORG3070024
When you are driving forward out of a
parking space, if Blind-Spot Collision-
Avoidance Assist judges that there is a
collision risk with an approaching vehicle
in the blind spot, it will help avoid a
collision by applying the brake.
Information
In the following text, Blind-Spot Collision-
Avoidance Assist will be referred as Blind-
Spot Safety system.
NOTICE
In the following text, Blind-Spot
Collision-Avoidance Assist will be
referred as Blind-Spot Safety system.
Detecting sensor
OIK070002
OIK070093[1] : Front view camera,
[2] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the rear corner
radar or radar assembly, or apply any
impact on it.

[If there is impact on the rear corner
radar or near the radar, even though
the warning message does not
appear on the cluster, Blind-Spot
Safety system may not operate
properly. Have the vehicle inspected
by an authorized retailer of Genesis
Branded products.

07
7-25

[If the rear corner radars have been
replaced or repaired, have the
system inspected by an authorized
retailer of Genesis Branded products.

[Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.

[Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.

[The system may not work properly
if the bumper has been replaced, or
the surroundings of the rear corner
radar has been damaged or paint has
been applied.

[If a trailer, carrier, etc. is installed,
it may adversely affect the
performance of the rear corner radar
or the system may not operate.
Information
For more details on the precautions of
the front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
Blind- Spot Safety system
Settings
Setting features
OIK070125L
Blind-Spot Safety
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

Driver assistance system
7-26
OTM070097N
When the engine is restarted with the
system off, the ‘Blind-Spot Safety System
LV2II
TPHVVDJHZLOODSSHDURQWKH
cluster.
,I\RXFKDQJHWKHVHWWLQJIURP
S2II
TWR

S$FWLYH$VVLVW
TRU
S:DUQLQJ2QO\
TWKH
warning light on the side view mirror will
blink for three seconds.
In addition, if the engine is turned on,
ZKHQWKHV\VWHPLVVHWWR
S$FWLYH$VVLVW
T
RU
S:DUQLQJ2QO\
TWKHZDUQLQJOLJKWRQ
the side view mirror will blink for three
seconds.
WARNING

[If ‘Warning Only’ is selected, braking
is not assisted.

[If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Safety system will maintain the last
setting.
OIK070146N
Warning Timing
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-27

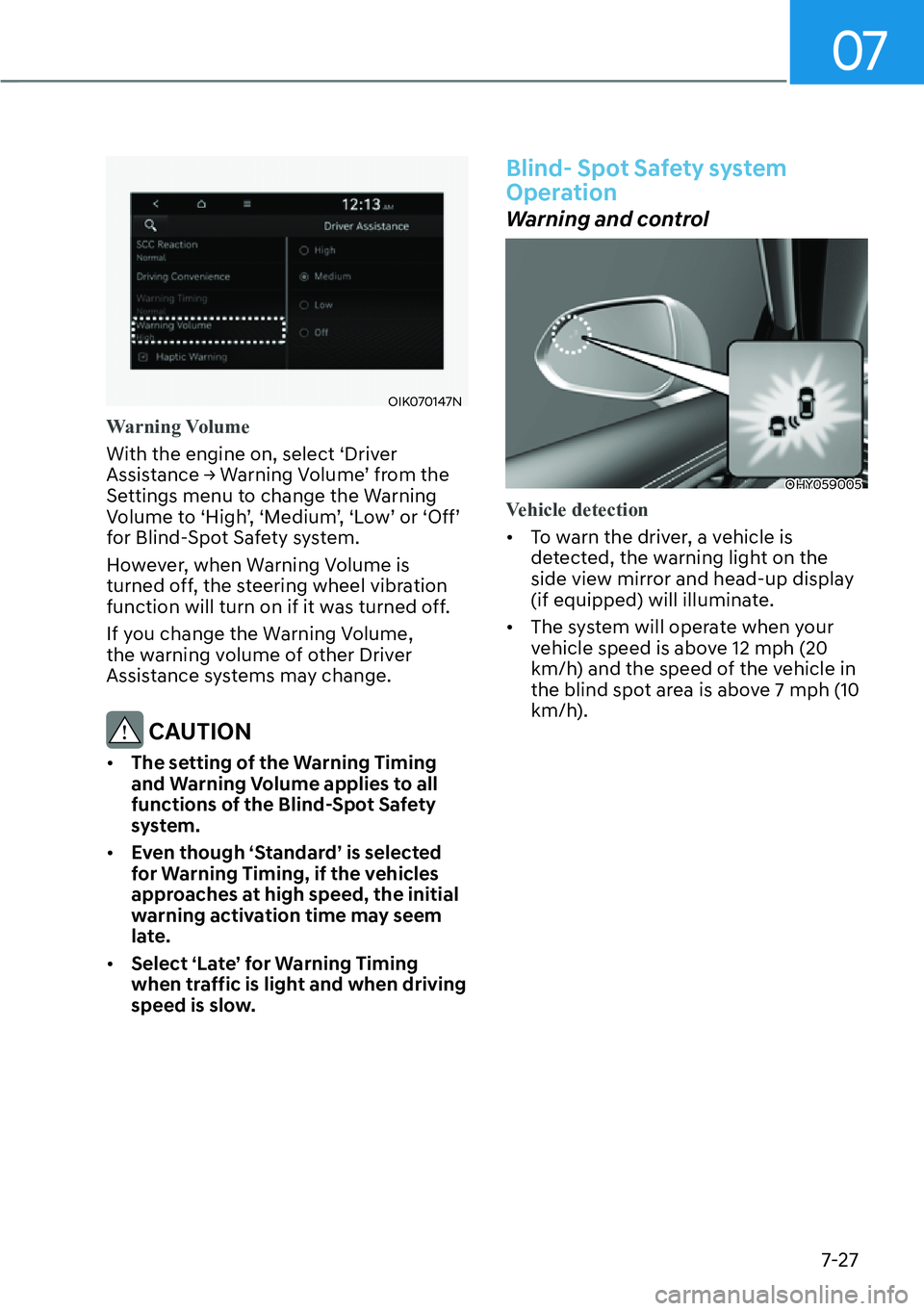

OIK070147N
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH
