2022 HYUNDAI GENESIS G70 Owners Manual

Driver assistance system
7-100
WARNING
Take the following precautions when
using Rear Cross-Traffic Safety system:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[If any other system’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Safety system’s warning
message may not be displayed
and audible warning may not be
generated.

[You may not hear the warning sound
of Rear Cross-Traffic Safety system if
the surrounding is noisy.

[Rear Cross-Traffic Safety system may
not operate if the driver applies the
brake pedal to avoid collision.

[During Rear Cross-Traffic Safety
system operation, the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.

[Even if there is a problem with Rear
Cross-Traffic Safety system, the
vehicle’s basic braking performance
will operate normally.

[When Rear Cross-Traffic Safety
system is operating, braking control
by the system will automatically
cancel when the driver excessively
depresses the accelerator pedal.

[Rear Cross-Traffic Safety system does
not operate in all situations or cannot
avoid all collisions.

[Rear Cross-Traffic Safety system may
warn the driver late or may not warn
the driver depending on the road and
driving conditions.
[The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Rear
Cross-Traffic Safety system. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.

[Never deliberately operate Rear
Cross-Traffic Safety system on
people, animal, objects, etc. It may
cause serious injury or death.
CAUTION
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
-The ESC (Electronic Stability Control)
warning light is on
-ESC (Electronic Stability Control) is
engaged in a different function
Information
If the system assists you with braking, the
driver check vehicle surroundings.

[Brake control will end when the
driver depresses the brake pedal with
sufficient power.

[After shifting the gear to R (Reverse),
braking control will operate once for
left and right vehicle approach.

07
7-101

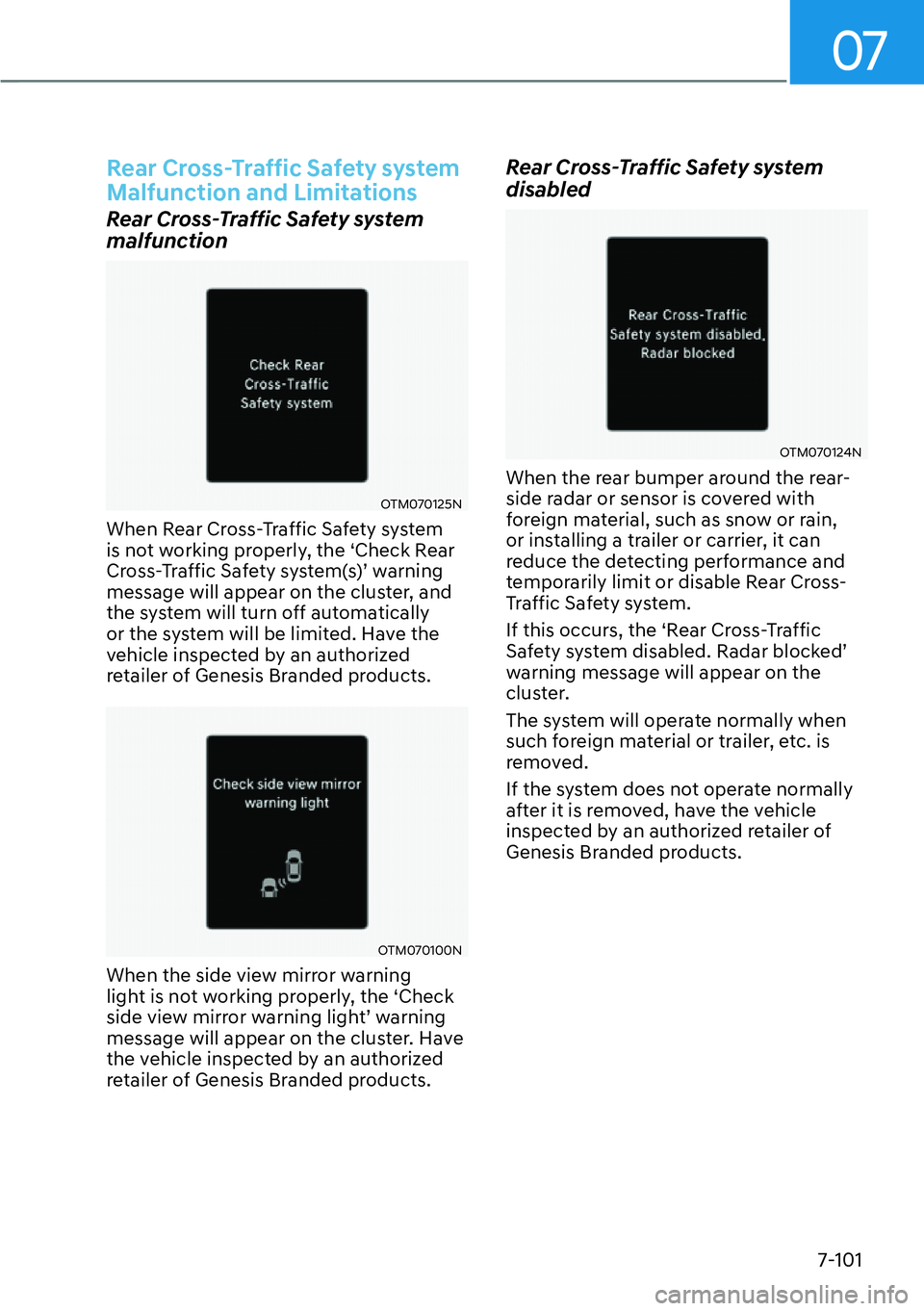

Rear Cross-Traffic Safety system
Malfunction and Limitations
Rear Cross-Traffic Safety system
malfunction
OTM070125N
When Rear Cross-Traffic Safety system
is not working properly, the ‘Check Rear
&URVV7UDIILF6DIHW\V\VWHPV
TZDUQLQJ
message will appear on the cluster, and
the system will turn off automatically
or the system will be limited. Have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGHYLHZPLUURUZDUQLQJOLJKW
TZDUQLQJ
message will appear on the cluster. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Rear Cross-Traffic Safety system
disabled
OTM070124N
When the rear bumper around the rear-
side radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Safety system.
If this occurs, the ‘Rear Cross-Traffic
6DIHW\V\VWHPGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
The system will operate normally when
such foreign material or trailer, etc. is
removed.
If the system does not operate normally
after it is removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.

Driver assistance system
7-102
WARNING

[Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Safety system may not
operate properly.

[Rear Cross-Traffic Safety system may
not operate properly in an area (for
example: open terrain), where any
substance are not detected after
turning ON the engine.
CAUTION
Turn off Rear Cross-Traffic Safety
system to install a trailer, carrier, etc.,
or remove the trailer, carrier, etc. to use
Rear Cross-Traffic Safety system.
Limitations of Rear Cross-Traffic
Safety system
Rear Cross-Traffic Safety system may
not operate normally, or the system
may operate unexpectedly under the
following circumstances:

[Departing from where trees or grass
are overgrown

[Departing from where roads are wet

[Speed of the approaching vehicle is
fast or slow
%UDNLQJFRQWUROPD\QRWZRUNGULYHU
TV
attention is required in the following
circumstances:

[The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch

[Driving on a slippery surface due to
snow, water puddle, ice, etc.

[The tire pressure is low or a tire is
damaged

[The brake is reworked
Information
For more details on the limitations of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in chapter 7.
WARNING

[Driving near a vehicle or structure
ORG3070070[A] : Structure
Rear Cross-Traffic Safety system
may be limited when driving near
a vehicle or structure, and may not
detect the vehicle approaching from
the left or right. If this occurs, the
system may not warn the driver or
control the brakes when necessary.
Always check your surroundings
while backing up.

07
7-103

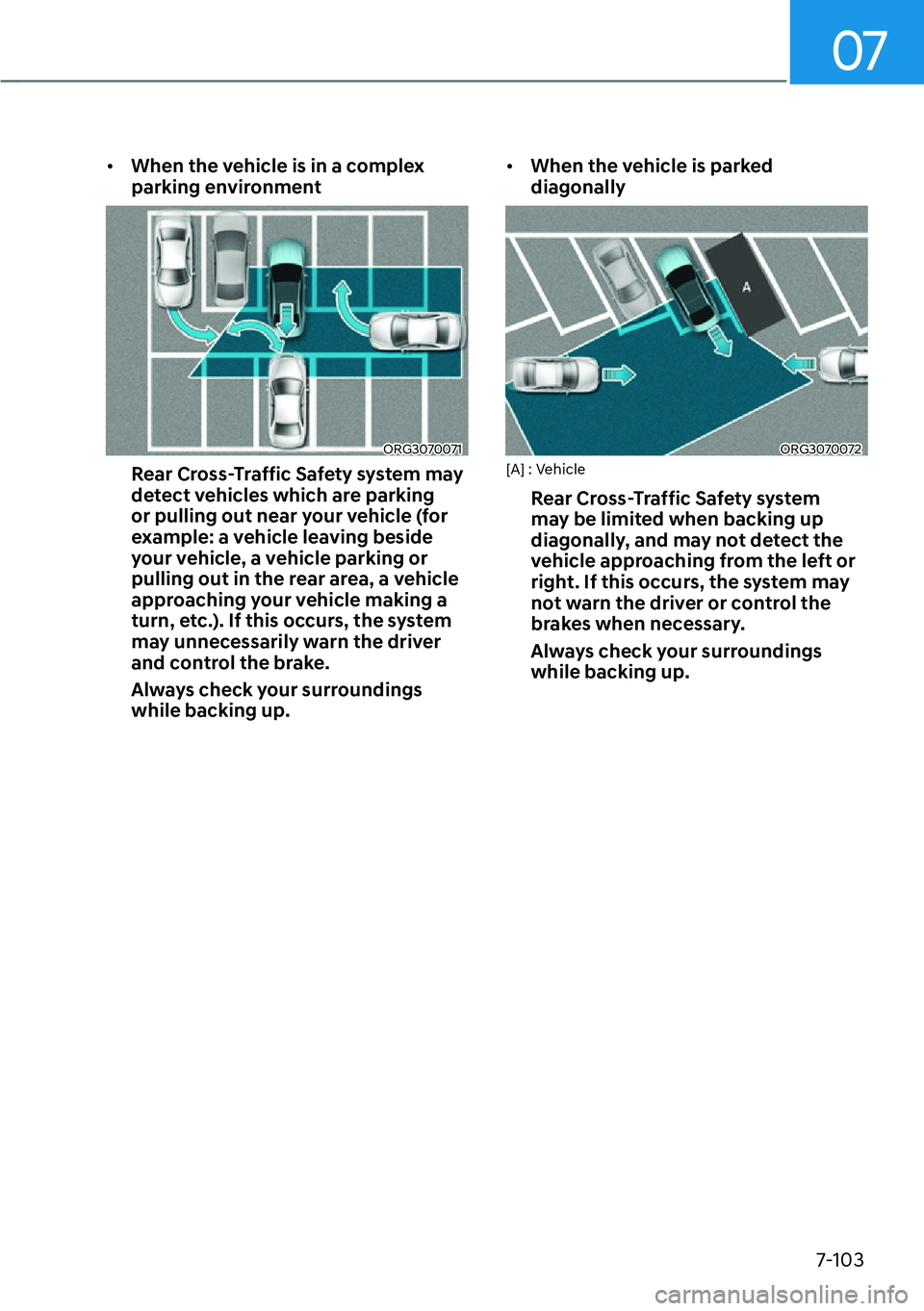

[When the vehicle is in a complex
parking environment
ORG3070071
Rear Cross-Traffic Safety system may
detect vehicles which are parking
or pulling out near your vehicle (for
example: a vehicle leaving beside
your vehicle, a vehicle parking or
pulling out in the rear area, a vehicle
approaching your vehicle making a
turn, etc.). If this occurs, the system
may unnecessarily warn the driver
and control the brake.
Always check your surroundings
while backing up.
[When the vehicle is parked
diagonally
ORG3070072[A] : Vehicle
Rear Cross-Traffic Safety system
may be limited when backing up
diagonally, and may not detect the
vehicle approaching from the left or
right. If this occurs, the system may
not warn the driver or control the
brakes when necessary.
Always check your surroundings
while backing up.

Driver assistance system
7-104

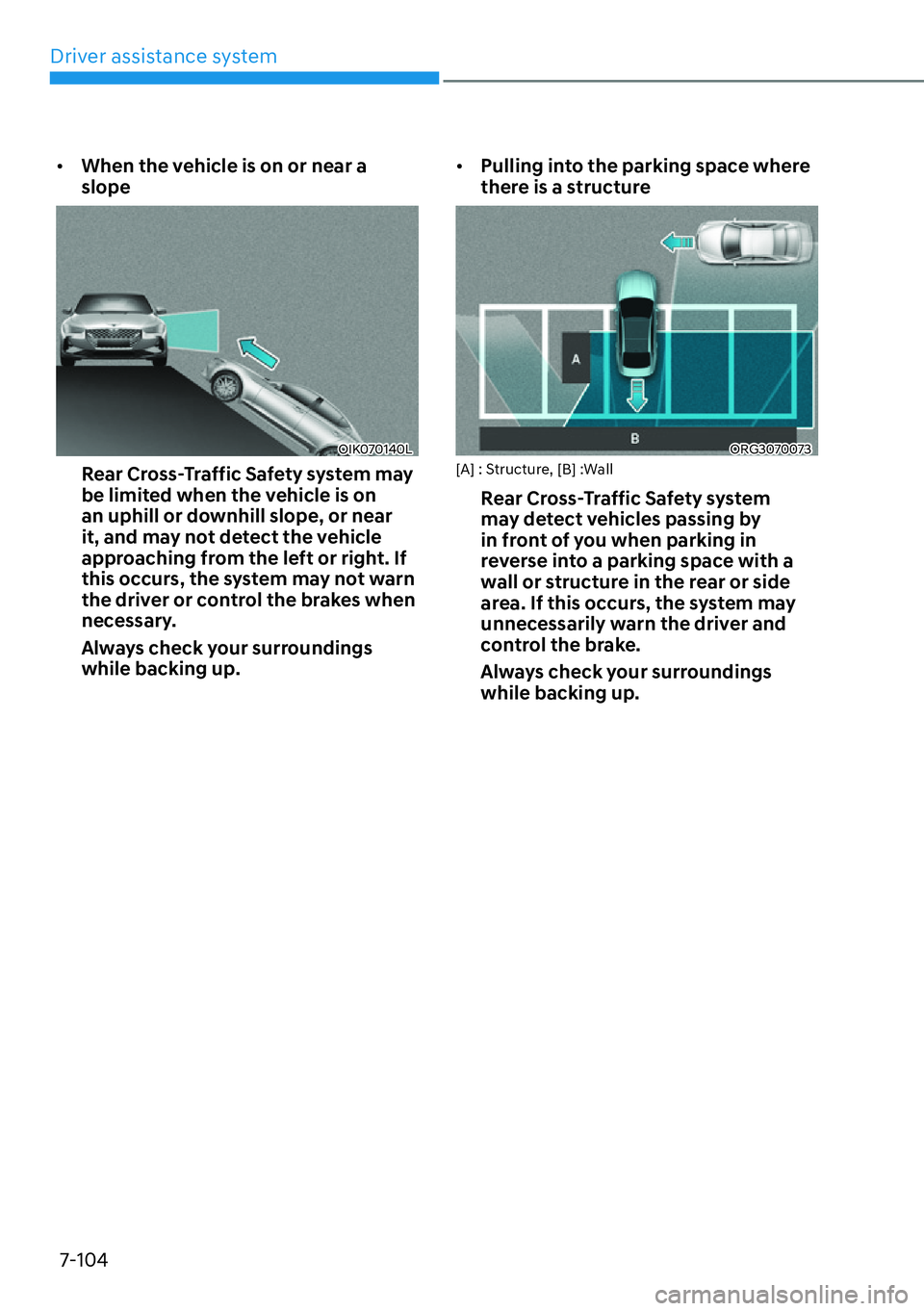

[When the vehicle is on or near a
slope
OIK070140L
Rear Cross-Traffic Safety system may
be limited when the vehicle is on
an uphill or downhill slope, or near
it, and may not detect the vehicle
approaching from the left or right. If
this occurs, the system may not warn
the driver or control the brakes when
necessary.
Always check your surroundings
while backing up.
[Pulling into the parking space where
there is a structure
ORG3070073[A] : Structure, [B] :Wall
Rear Cross-Traffic Safety system
may detect vehicles passing by
in front of you when parking in
reverse into a parking space with a
wall or structure in the rear or side
area. If this occurs, the system may
unnecessarily warn the driver and
control the brake.
Always check your surroundings
while backing up.

07
7-105

[When the vehicle is parked rearward
ORG3070074
Rear Cross-Traffic Safety system may
detect vehicles passing by behind
you when parking in reverse into
a parking space. If this occurs, the
system may unnecessarily warn the
driver and control the brake.
Always check your surroundings
while backing up.
WARNING
If emergency towing is necessary, we
recommend that Rear Cross-Traffic
Safety system is turned off due to safety
reasons.

[Rear Cross-Traffic Safety system may
not operate normally if interfered by
strong electromagnetic waves.

[Rear Cross-Traffic Safety system may
not operate for 3 seconds after the
vehicle is started, or the rear corner
radars are initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

Driver assistance system
7-106

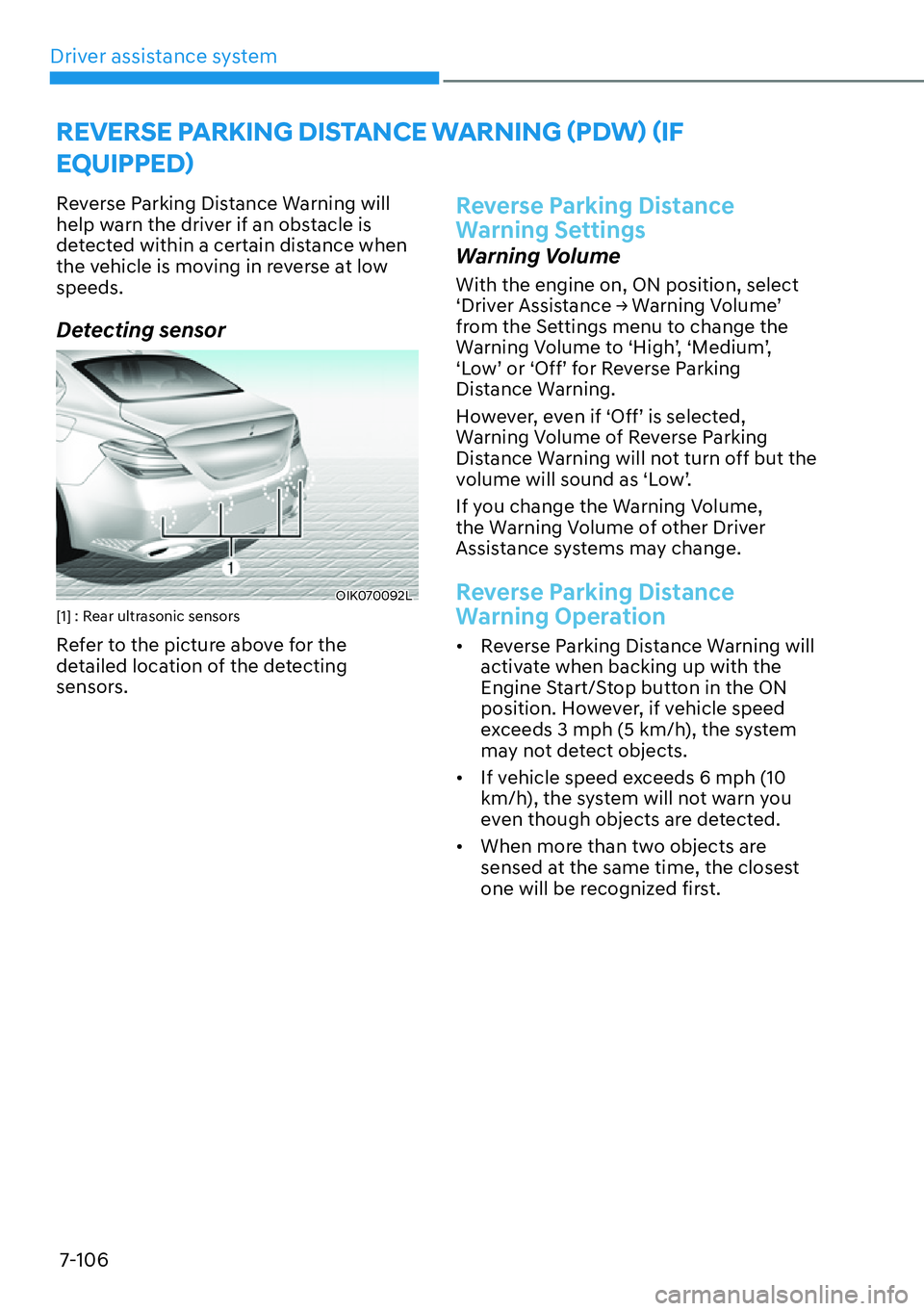

5(9(56(3$5.,1*',67$1&(:$51,1*

07
7-107
Reverse Parking Distance Warning

[Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).

[Reverse Parking Distance Warning
detects a person, animal or object in
WKHUHDUZKHQWKHYHKLFOH
TVUHDUZDUG
speed is below 6 mph (10 km/h).
Distance
from objectWarning
indicator
Warning
sound
Driving
rearward
24~48 in.
(60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
12 in. (within
30 cm)
Beeps
continuously

[The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.

[When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.

[The shape of the indicator in the
illustration may differ from the actual
vehicle.
Reverse Parking Distance
Warning Malfunction and
Precautions
Reverse Parking Distance Warning
malfunction
After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Reverse Parking
Distance Warning is operating normally.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle inspected by
an authorized retailer of Genesis Branded
products.

[The audible warning does not sound.

[The buzzer sounds intermittently.

[ 7KH
S3DUNLQJVHQVRUHUURURUEORFNDJH
T
warning message appears on the
cluster.
OIK070141L
