2022 HYUNDAI GENESIS G70 Owners Manual

Convenient Features
5-24
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
USMHead Up Display
(HUD)Position adjustment of image, Information display
selection
Lamp Blink number of one-touch signal lamps
ClusterInformation display on the cluster, Voice volume,
Welcome sound
Seat/Mirror/
Steering wheelSeat position, O/S mirror position, Steering wheel
position, Easy Access
Smart heating wire/ventilation On/Off
Door Automatic door lock/unlock, Two Press Unlock
Smart phone
wireless chargingWireless charging On/Off
Air conditioningSetting up temperature unit, Block air inflow/
Automatic ventilation/Window defroster On/Off
Infotainment
menuNavigationPreferred volume of the navigation system
Recent destination
User preset Radio preset
Phone connectivityBluetooth preferential connection
CarPlay/Android Auto On/Off
Air conditioning Operating conditionLatest operation setup of the following functions:
Temperature (AUTO), air flow direction, air
volume, air conditioner, air intake control, SYNC,
Front windshield defroster, OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key in the vehicle after locking or unlocking the doors or
starting the vehicle with the smart key, the doors can be locked with the central
door lock. Have the digital key with you at all times.

05
5-25
Used Vehicle/Digital Key
Maintenance
Purchasing used vehicle
If any of the digital key devices (smart
phone key, card key) are registered in
the vehicle, the message ‘Digital key(s)
active’ will appear on the instrument
cluster once when the vehicle is turned
on after unlocking the vehicle door.
When purchasing a used car, be sure to
check the message and delete the smart
phone key and card key registered by
the previous user. Please let us know
the purchase of a used vehicle through
Genesis Customer Care. Check whether
the card key that came with the used
vehicle operates properly. If the card key
does not work properly, delete the card
key and register the smart phone key,
and then re-register the card key.
Digital Key Maintenance
If you need to have your Digital Key
System repaired or replaced, the
registered smart key/card key can be
deleted. In this case, you should delete
the digital key on the smart phone and
re-register the key.
Limitations of the System

[Genesis Digital Key App on the smart
phone and card key may not work if
any of the following occurs:
- The Digital Key App in the smart
phone is deleted (reinstall the app)
- Account log information of Genesis
Digital Key App is expired (required
to re-log in)
- When you try to log in from
another smart phone instead of the
registered smart phone with same
user account - Smart phone rooting
or app hacking is detected
- Smart phone battery or the vehicle
battery is discharged
- Smart phone’s screen is off or
locked
- NFC or Bluetooth is turned off in the
smart phone settings
- Smart phone’s mobile network
setting is off or airplane mode is
activated
- A credit card is overlapped in the
back of your smart phone, or metal
or thick smart phone case is used
- Using the card key with other cards,
or using it in a wallet or card holder
- There is electronic interference by
other vehicles, objects, etc.

[The vehicle may not be controlled
by the smart phone if any of the
following occurs:
- Basic and necessary functions of
the smart phone are operating
(general call, urgent call, audio or
NFC payment)
- Using wireless earphone

Convenient Features
5-26
Operating Door Locks from
Outside the Vehicle
Mechanical key
OIK050112
In order to operate door lock by using
mechanical key, turn the key after
removing the cover.
To remove the cover :
1. Pull out the door handle.
2. Press the lock located at the bottom
of the cover with a key or flat-head
screwdriver (1).
3. Push out the cover (2) while pressing
the lock.
After removing the cover, turn the key
clockwise to lock (A) or turn the key
counterclockwise to unlock (B).
If you lock/unlock the driver’s door with
a mechanical key, the door of driver will
lock/unlock automatically, not others.
Namely, the driver’s door and the rest of
the doors are not interlocked in terms of
mechanical key.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
NOTICE
Do not apply excessive force on the
door and door handle. It may damage
the door and door handle.
Information
When the keyhole freezes and does not
open, lightly tap or indirectly warm (i.e.
hand temperature) the keyhole.
Smart key
OIK050096
Lock
Touch the touch sensor on the front
outside door handle (the engraved part)
while carrying the Smart Key with you or
press the Door Lock button on the Smart
Key, all doors will lock.
DOOR LOCK

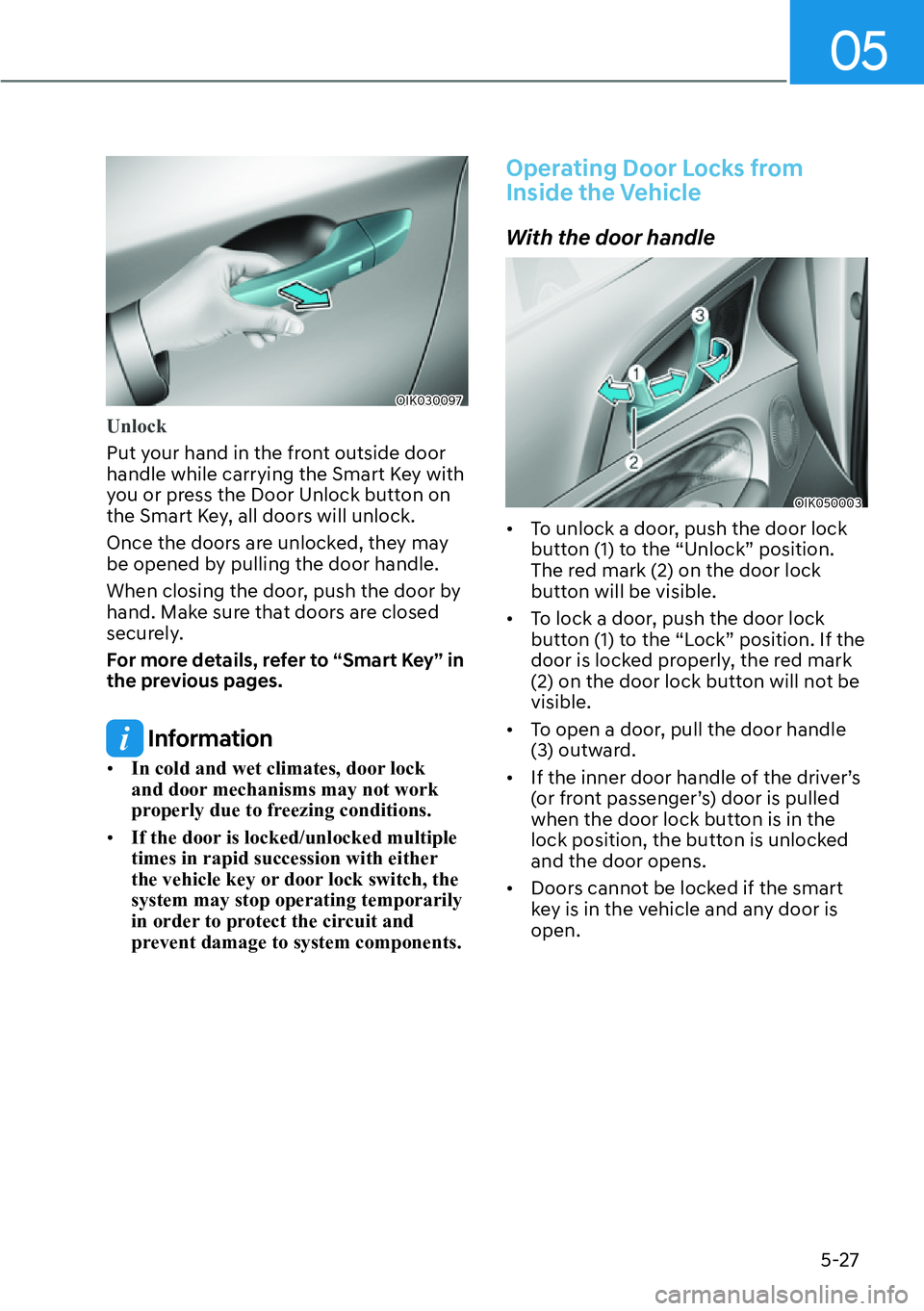

05
5-27
OIK030097
Unlock
Put your hand in the front outside door
handle while carrying the Smart Key with
you or press the Door Unlock button on
the Smart Key, all doors will unlock.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
For more details, refer to “Smart Key” in
the previous pages.
Information

[In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.

[,IWKHGRRULVORFNHGXQORFNHGPXOWLSOH
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.
Operating Door Locks from
Inside the Vehicle
With the door handle
OIK050003

[To unlock a door, push the door lock
EXWWRQWRWKH
U8QORFN
VSRVLWLRQ
The red mark (2) on the door lock
button will be visible.

[To lock a door, push the door lock
EXWWRQWRWKH
U/RFN
VSRVLWLRQ,IWKH
door is locked properly, the red mark
(2) on the door lock button will not be
visible.

[To open a door, pull the door handle
(3) outward.

[If the inner door handle of the driver’s
(or front passenger’s) door is pulled
when the door lock button is in the
lock position, the button is unlocked
and the door opens.

[Doors cannot be locked if the smart
key is in the vehicle and any door is
open.

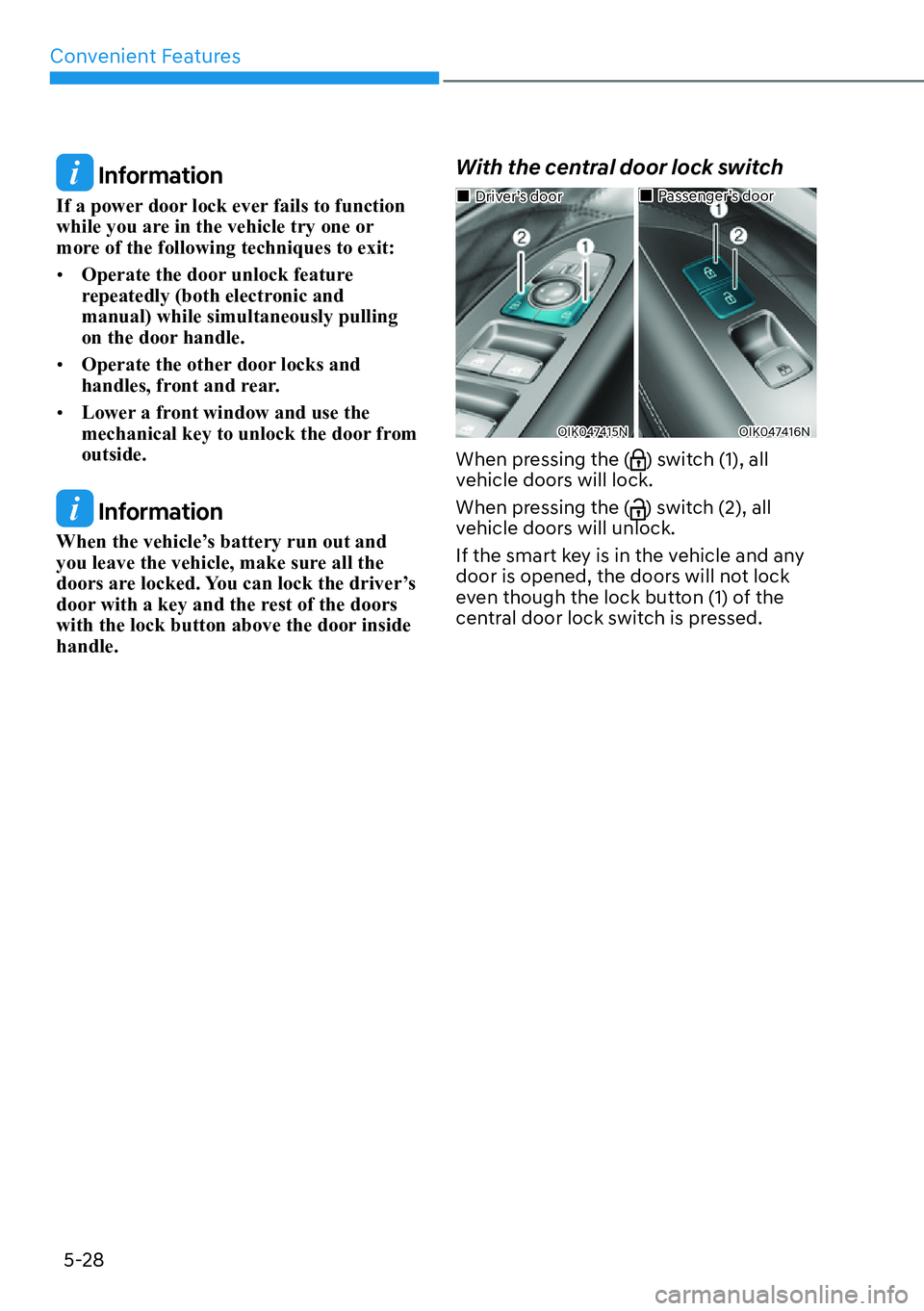

Convenient Features
5-28
Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:

[Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.

[Operate the other door locks and
handles, front and rear.

[Lower a front window and use the
mechanical key to unlock the door from
outside.
Information
:KHQWKHYHKLFOH

05
5-29
WARNING

[The doors should always be fully
closed and locked while the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.

[Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.
WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape the vehicle. Children
might operate features of the vehicle
that could injure them, or they could
encounter other harm, possibly from
someone gaining entry to the vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while
depressing the brake pedal, shift the
vehicle to P(Park), apply the parking
brake, and press the Engine Start/Stop
button to the OFF position, close all
windows, lock all doors, and always
take the Smart Key with you.
CAUTION
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.

Convenient Features
5-30
Automatic Door Lock and Unlock
Features (if equipped)
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the infotainment system screen.
Auto LOCK Enable on speed
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle exceeds 9 mph (15 km/h).
Auto LOCK Enable on shift
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle is shifted out of P (Park) while the
engine is running.
Auto UNLOCK On Shift to P
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is shifted back into P (Park) while
the engine is running.
Auto UNLOCK Vehicle off
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is turned off.
See additional information in supplied
Infotainment Manual.
Additional unlock safety feature air
bag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the air bags to deploy.
Child-Protector Rear Door Locks
(if equipped)
OIK050204
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors. The
rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position, the
rear door will not open if the inner door
handle (2) is pulled.
To lock the child safety lock, insert a
small flat blade tool (like a screwdriver or
similar) (1) into the slot and turn it to the
lock position as shown.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING
If children accidently open the rear
doors while the vehicle is in motion,
they could fall out of the vehicle. The
rear door safety locks should always
be used whenever children are in the
vehicle.

05
5-31
This system helps to protect your vehicle
and valuables. The horn will sound and
the hazard warning lights will blink
continuously if any of the following
occur:
- A door is opened without using the
smart key.
- The trunk is opened without using the
smart key.
- The engine hood is opened.
The alarm continues for 30 seconds, then
the system resets. To turn off the alarm,
unlock the doors with the smart key.
The Theft Alarm System automatically
sets 30 seconds after you lock the doors
and the trunk. For the system to activate,
you must lock the doors and the trunk
from outside the vehicle with the smart
key or by touching the touch sensor on
the outside of the door handle with the
smart key in your possession.
The hazard warning lights will blink and
the chime will sound once to indicate the
system is armed.
Once the security system is set, opening
any door, the trunk, or the hood without
using the smart key will cause the alarm
to activate.
The Theft Alarm System will not set if the
hood, the trunk, or any door is not fully
closed. If the system will not set, check
the hood, the trunk, or the doors are fully
closed.
Do not attempt to alter this system or
add other devices to it. Information

[Do not lock the doors until all
passengers have left the vehicle. If the
remaining passenger leaves the vehicle
when the system is armed, the alarm
will be activated.

[If the vehicle is not disarmed with the
smart key, open the doors by using the
mechanical key and start the engine by
GLUHFWO\SUHVVLQJWKH(QJLQH6WDUW6WRS
button with the smart key.

[If the system is disarmed by unlocking
the vehicle, but neither a door or the
trunk is opened within 30 seconds, the
doors will relock and the system will
rearm automatically.
7+()7
