2022 HYUNDAI GENESIS G70 Owners Manual

Driver assistance system
7-4

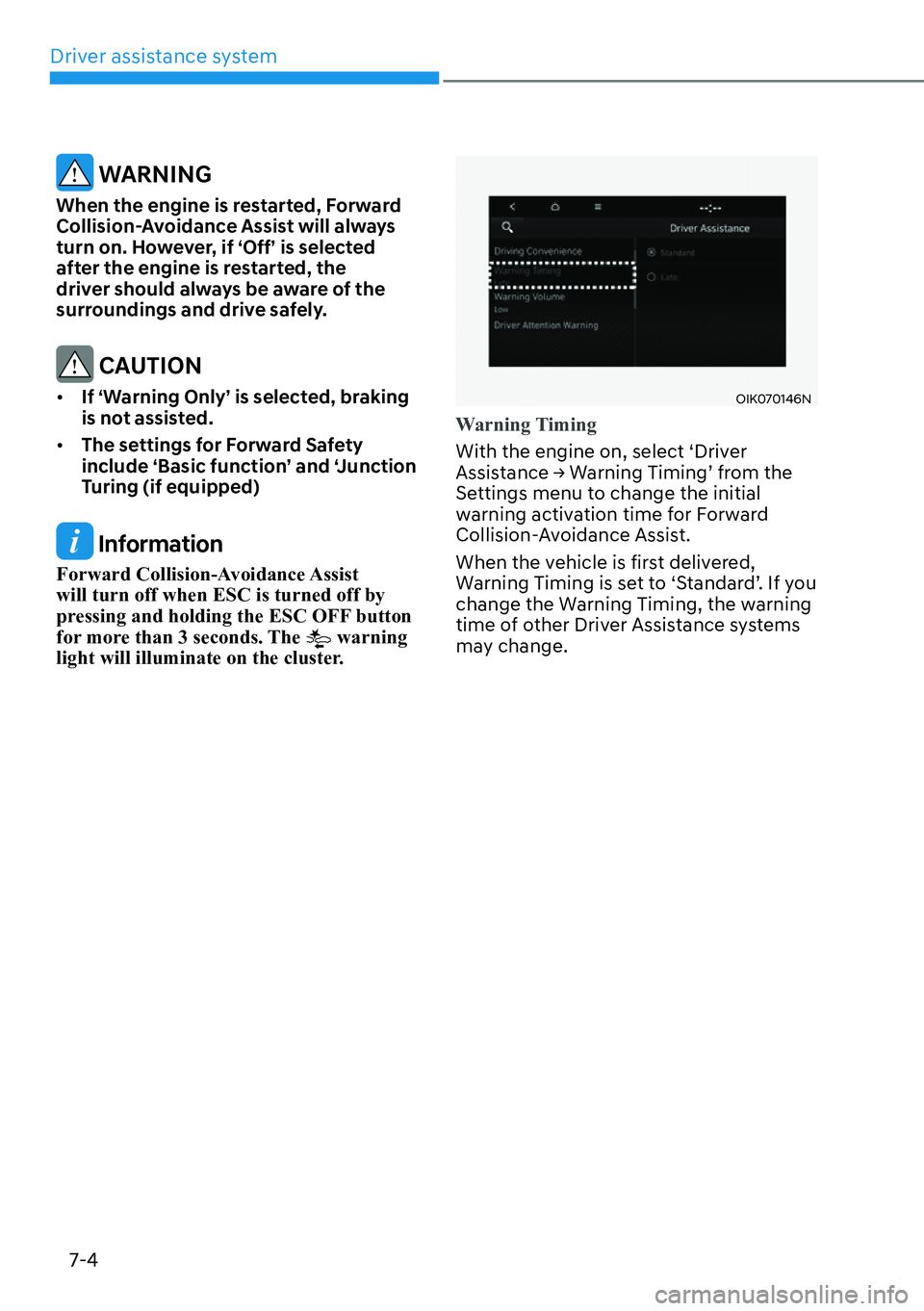

WARNING
When the engine is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, if ‘Off’ is selected
after the engine is restarted, the
driver should always be aware of the
surroundings and drive safely.
CAUTION

[If ‘Warning Only’ is selected, braking
is not assisted.

[The settings for Forward Safety
include ‘Basic function’ and ‘Junction
Turing (if equipped)
Information
Forward Collision-Avoidance Assist
will turn off when ESC is turned off by
pressing and holding the ESC OFF button
for more than 3 seconds. The
warning
light will illuminate on the cluster.
OIK070146N
Warning Timing
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-5
OIK070147N

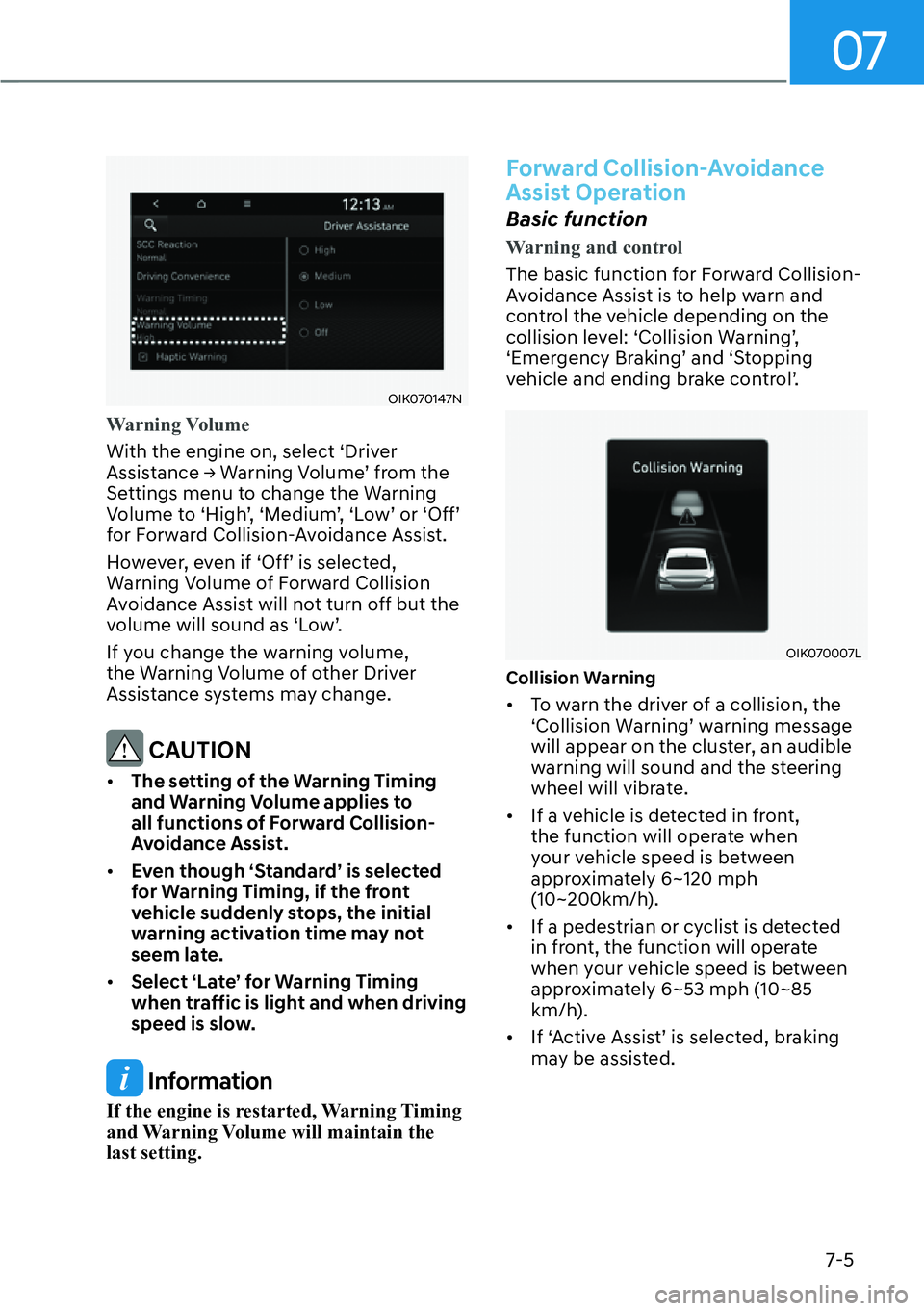

Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system
7-6
OIK070008L

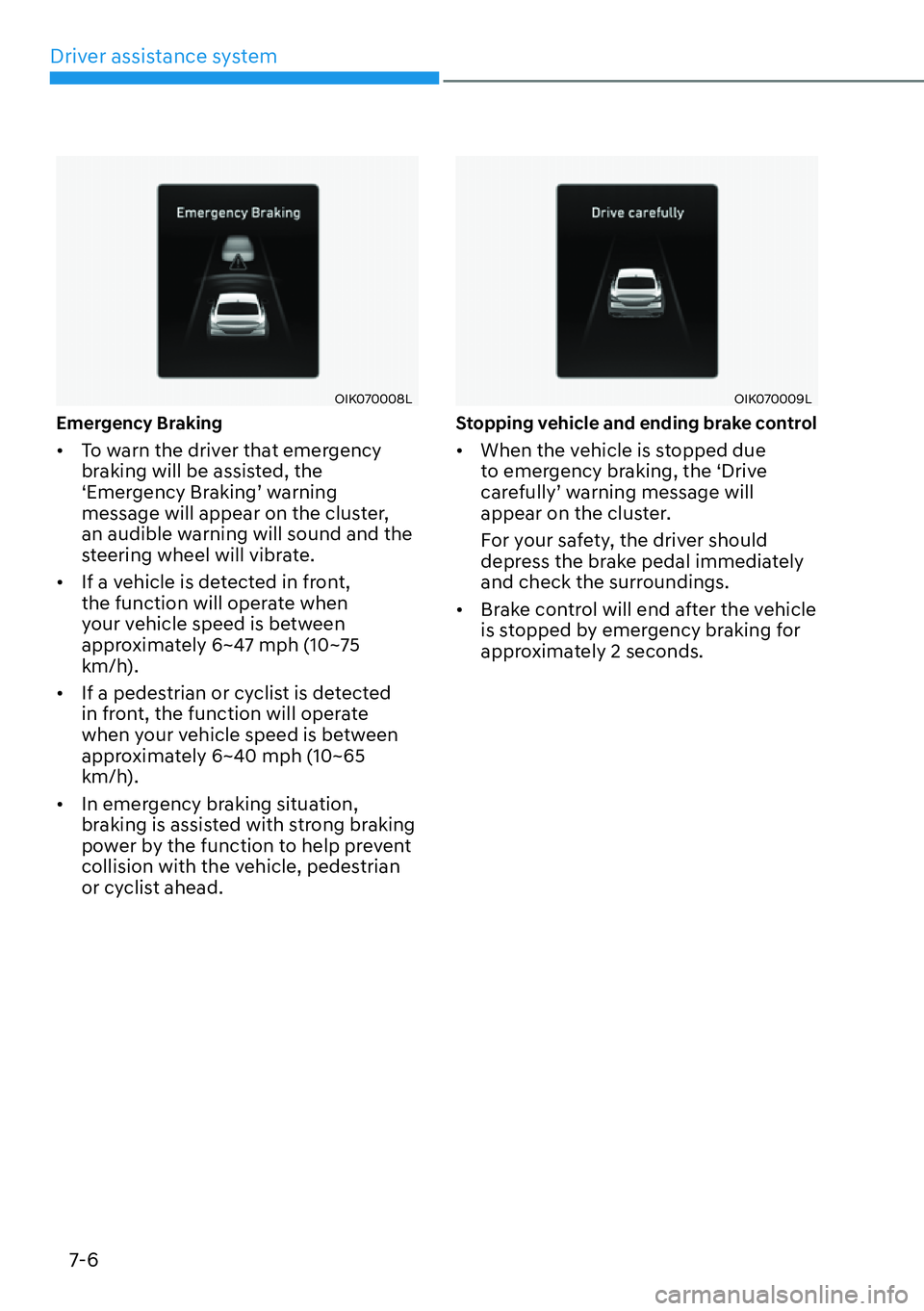

Emergency Braking

[To warn the driver that emergency
braking will be assisted, the

S(PHUJHQF\%UDNLQJ
TZDUQLQJ
message will appear on the cluster,
an audible warning will sound and the
steering wheel will vibrate.

[If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~47 mph (10~75
km/h).

[If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6~40 mph (10~65
km/h).

[In emergency braking situation,
braking is assisted with strong braking
power by the function to help prevent
collision with the vehicle, pedestrian
or cyclist ahead.
OIK070009L
Stopping vehicle and ending brake control

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

07
7-7

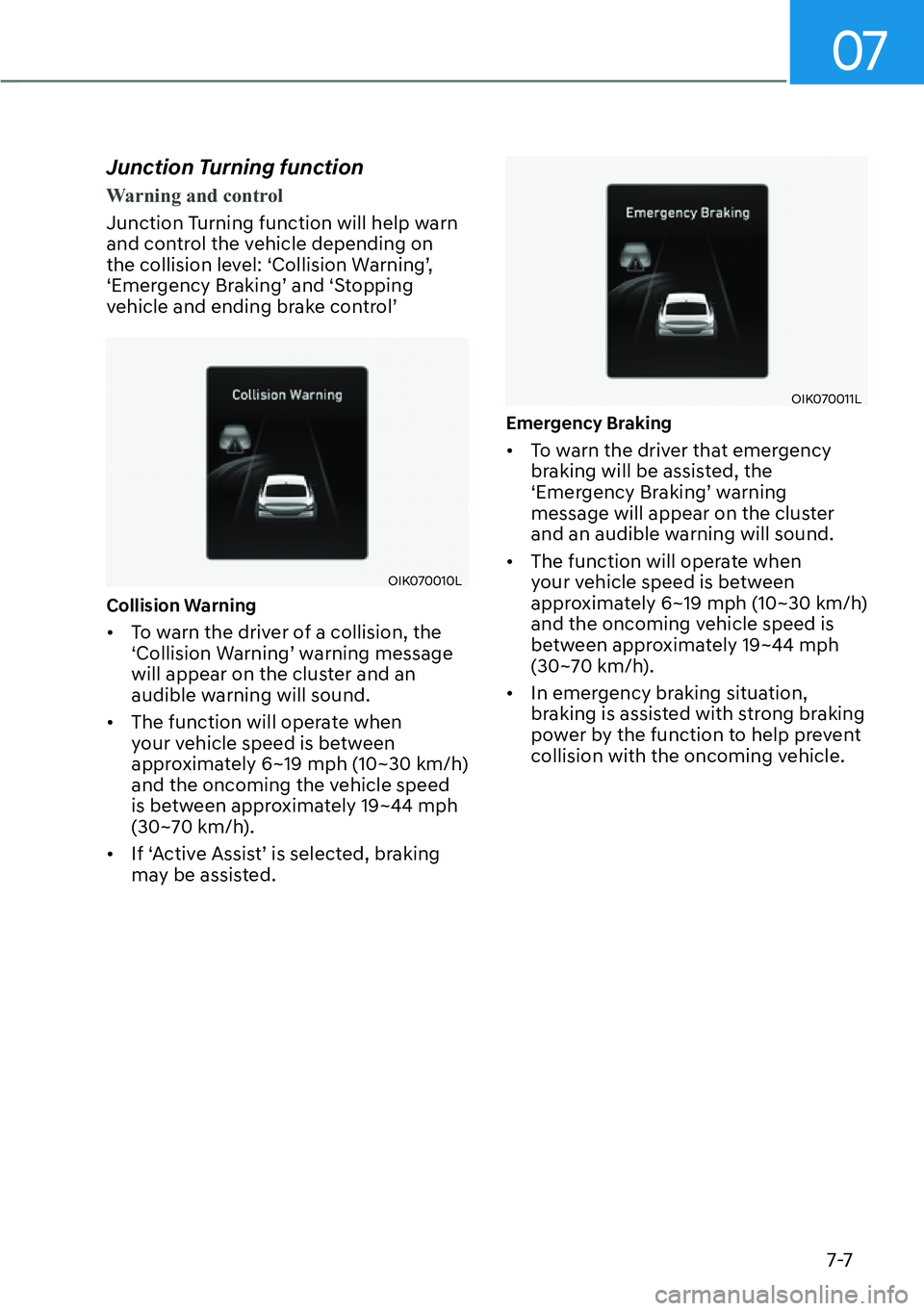

Junction Turning function
Warning and control
Junction Turning function will help warn
and control the vehicle depending on
WKHFROOLVLRQOHYHO
S&ROOLVLRQ:DUQLQJ
T

S(PHUJHQF\%UDNLQJ
TDQG
S6WRSSLQJ
YHKLFOHDQGHQGLQJEUDNHFRQWURO
T
OIK070010L
Collision Warning

[To warn the driver of a collision, the

S&ROOLVLRQ:DUQLQJ
TZDUQLQJPHVVDJH
will appear on the cluster and an
audible warning will sound.

[The function will operate when
your vehicle speed is between
approximately 6~19 mph (10~30 km/h)
and the oncoming the vehicle speed
is between approximately 19~44 mph
(30~70 km/h).

[ ,I
S$FWLYH$VVLVW
TLVVHOHFWHGEUDNLQJ
may be assisted.
OIK070011L
Emergency Braking

[To warn the driver that emergency
braking will be assisted, the

S(PHUJHQF\%UDNLQJ
TZDUQLQJ
message will appear on the cluster
and an audible warning will sound.

[The function will operate when
your vehicle speed is between
approximately 6~19 mph (10~30 km/h)
and the oncoming vehicle speed is
between approximately 19~44 mph
(30~70 km/h).

[In emergency braking situation,
braking is assisted with strong braking
power by the function to help prevent
collision with the oncoming vehicle.

Driver assistance system
7-8
OIK070009L

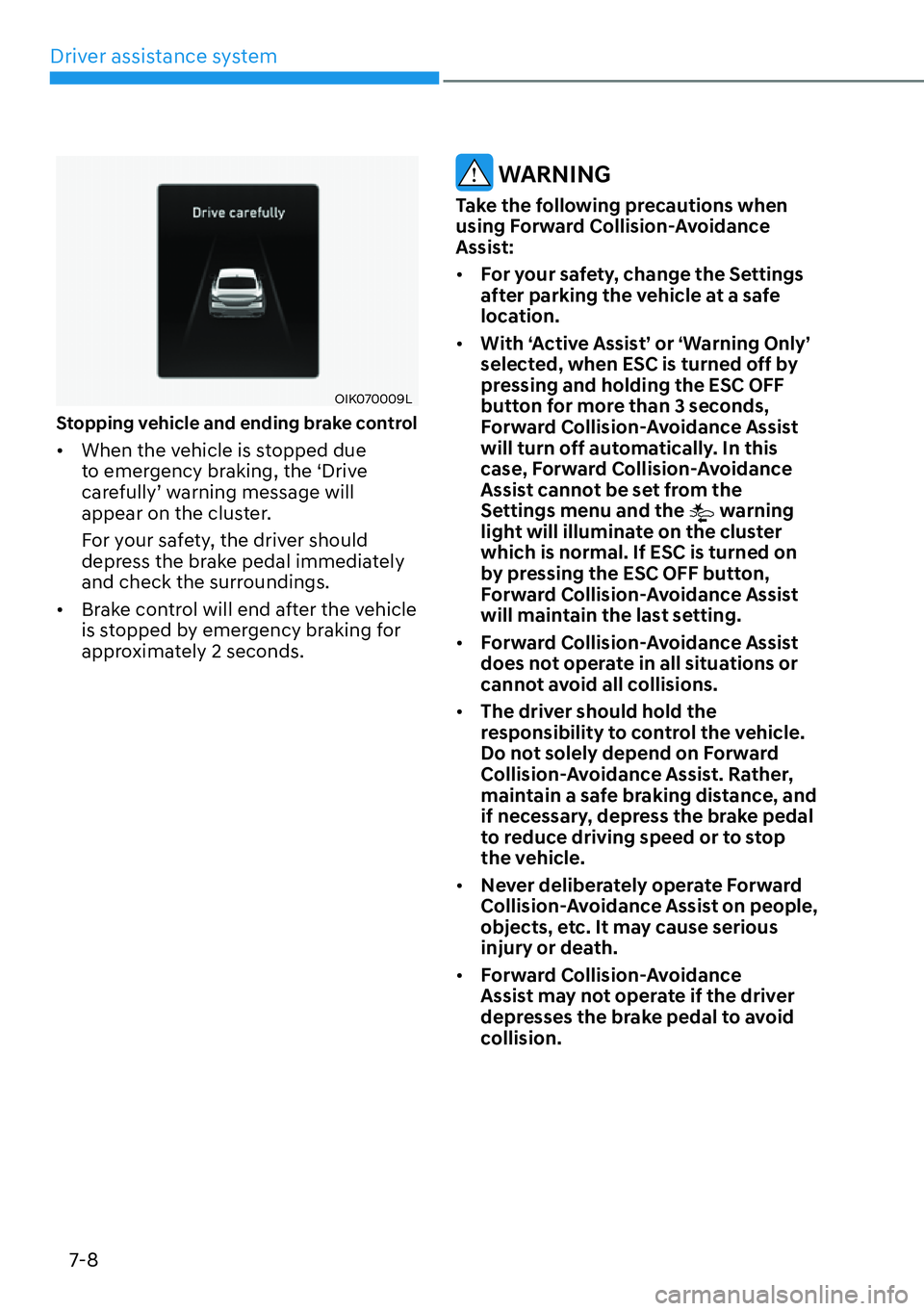

Stopping vehicle and ending brake control

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Forward Collision-Avoidance
Assist:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[With ‘Active Assist’ or ‘Warning Only’
selected, when ESC is turned off by
pressing and holding the ESC OFF
button for more than 3 seconds,
Forward Collision-Avoidance Assist
will turn off automatically. In this
case, Forward Collision-Avoidance
Assist cannot be set from the
Settings menu and the
warning
light will illuminate on the cluster
which is normal. If ESC is turned on
by pressing the ESC OFF button,
Forward Collision-Avoidance Assist
will maintain the last setting.

[Forward Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.

[The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Forward
Collision-Avoidance Assist. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.

[Never deliberately operate Forward
Collision-Avoidance Assist on people,
objects, etc. It may cause serious
injury or death.

[Forward Collision-Avoidance
Assist may not operate if the driver
depresses the brake pedal to avoid
collision.

07
7-9

[Depending on the road and driving
conditions, Forward Collision-
Avoidance Assist may warn the driver
late or may not warn the driver.

[During Forward Collision-Avoidance
Assist operation, the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.

[If any other system’s warning
message is displayed or audible
warning is generated, Forward
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.

[You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[Forward Collision-Avoidance
Assist may turn off or may not
operate properly or may operate
unnecessarily depending on the road
conditions and the surroundings.
WARNING

[Even if there is a problem with
Forward Collision-Avoidance
Assist, the vehicle’s basic braking
performance will operate normally.

[During emergency braking, braking
control by Forward Collision-
Avoidance Assist will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.
CAUTION

[Forward Collision-Avoidance
Assist operating speed range may
reduce due to the conditions of
the vehicle or pedestrian in front
or surroundings. Depending on the
speed, Forward Collision-Avoidance
Assist may only warn the driver, or it
may not operate.

[Forward Collision-Avoidance Assist
will operate under certain conditions
by judging the risk level based on
the condition of the oncoming
vehicle, driving direction, speed and
surroundings.
Information
In a situation where collision is imminent,
braking may be assisted by Forward
Collision-Avoidance Assist when braking
is insufficient by the driver.

Driver assistance system
7-10
Forward Collision-Avoidance
Assist Malfunction and
Limitations
Forward Collision-Avoidance Assist
malfunction
OTM070094N
When Forward Collision-Avoidance
Assist is not working properly, the ‘Check
)RUZDUG6DIHW\V\VWHP
TZDUQLQJPHVVDJH
will appear, and the
and warning
lights will illuminate on the cluster. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Forward Collision-Avoidance Assist
disabled
OTM070093NOTM070095N
When the front windshield where the
front view camera is located, front radar
cover or sensor is covered with foreign
material, such as snow or rain, it can
reduce the detecting performance and
temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety system
GLVDEOHG&DPHUDREVFXUHG
TRUWKH
‘Forward Safety system disabled. Radar
EORFNHG
TZDUQLQJPHVVDJHDQGWKH

and warning lights will illuminate on
the cluster.
Forward Collision-Avoidance Assist will
operate normally when such snow, rain
or foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate normally after
obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
WARNING

[Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[Forward Collision-Avoidance Assist
may not properly operate in an
area (e.g. open terrain), where any
substance are not detected after
turning ON the engine.

07
7-11
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate normally, or it may operate
unexpectedly under the following
circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[The temperature around the front
view camera is high or low

[The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or stuck of foreign
material (sticker, bug, etc.) on the
glass

[Moisture is not removed or frozen on
the windshield

[Washer fluid is continuously sprayed,
or the wiper is on

[Driving in heavy rain or snow, or thick
fog

[The field of view of the front view
camera is obstructed by sun glare

[Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road

[An object is placed on the dashboard

[Your vehicle is being towed

[The surrounding is very bright

[The surrounding is very dark, such as
in a tunnel, etc.

[The brightness changes suddenly, for
example when entering or exiting a
tunnel
[The brightness outside is low, and the
headlamps are not on or are not bright

[Driving through steam, smoke or
shadow

[Only part of the vehicle, pedestrian or
cyclist is detected

[The vehicle in front is a bus, heavy
truck, truck with a unusually shaped
luggage, trailer, etc.

[The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[The brightness outside is low, and the
tail lamps are not on or are not bright

[The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visible, etc.

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV
low or high

[A vehicle, pedestrian or cyclist
suddenly cuts in front

[The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[The temperature around the front
radar is high or low
