2022 HYUNDAI GENESIS G70 Owners Manual

Convenient Features
5-48
HomeLink 5 Programing Flow Chart
OOS040475N

05
5-49
Side View Mirrors
OIK047035
Your vehicle is equipped with both left-
hand and right-hand side view mirrors.
The mirrors can be adjusted remotely
with the mirror adjustment control
switch. The side view mirrors can be
folded to help prevent damage when
going through an automatic car wash or
when passing through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

[Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

Convenient Features
5-50
Adjusting the side view mirrors
OIK050012
1. Move the lever (1) either to the L (left
side) or R (right side) to select the side
view mirrors you would like to adjust.
2. Use the side view mirrors adjustment
control (2) to position the selected
mirror up, down, left or right.
3. After adjustment, move the lever (1)
to the middle to prevent inadvertent
adjustment.
NOTICE

[The side view mirrors stop moving
when they reach the maximum
adjusting angles, but the motor
continues to operate while the switch
is pressed. Do not press the switch
longer than necessary, because this can
damage the motor.

[Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Folding the side view mirrors
OIK050013
Folding button
The side view mirrors can be folded or
unfolded by pressing the button.
Infotainment system setting

[Enable on door unlock
,I
S6HWXS

05
5-51
NOTICE
The electric type side view mirror
operates even though the Engine Start/
Stop button is in the OFF position.
However, to prevent unnecessary
battery discharge, do not adjust the
mirrors longer than necessary while the
engine is not running.
NOTICE
Do not fold the electric type side view
mirror by hand. It could cause motor
failure.

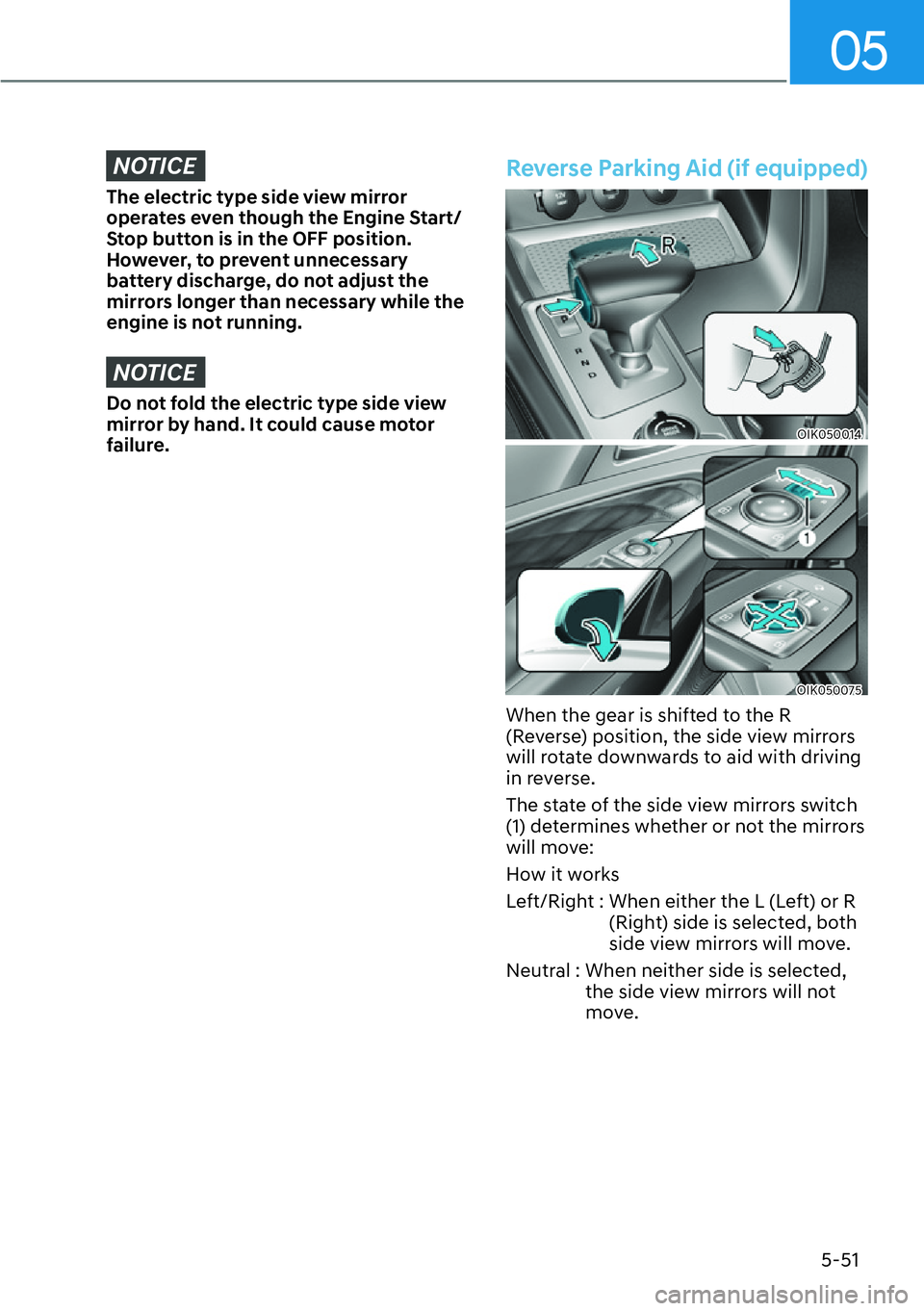

Reverse Parking Aid (if equipped)
OIK050014
OIK050075
When the gear is shifted to the R
(Reverse) position, the side view mirrors
will rotate downwards to aid with driving
in reverse.
The state of the side view mirrors switch
(1) determines whether or not the mirrors
will move:
How it works
Left/Right : When either the L (Left) or R
(Right) side is selected, both
side view mirrors will move.
Neutral : When neither side is selected,
the side view mirrors will not
move.

Convenient Features
5-52

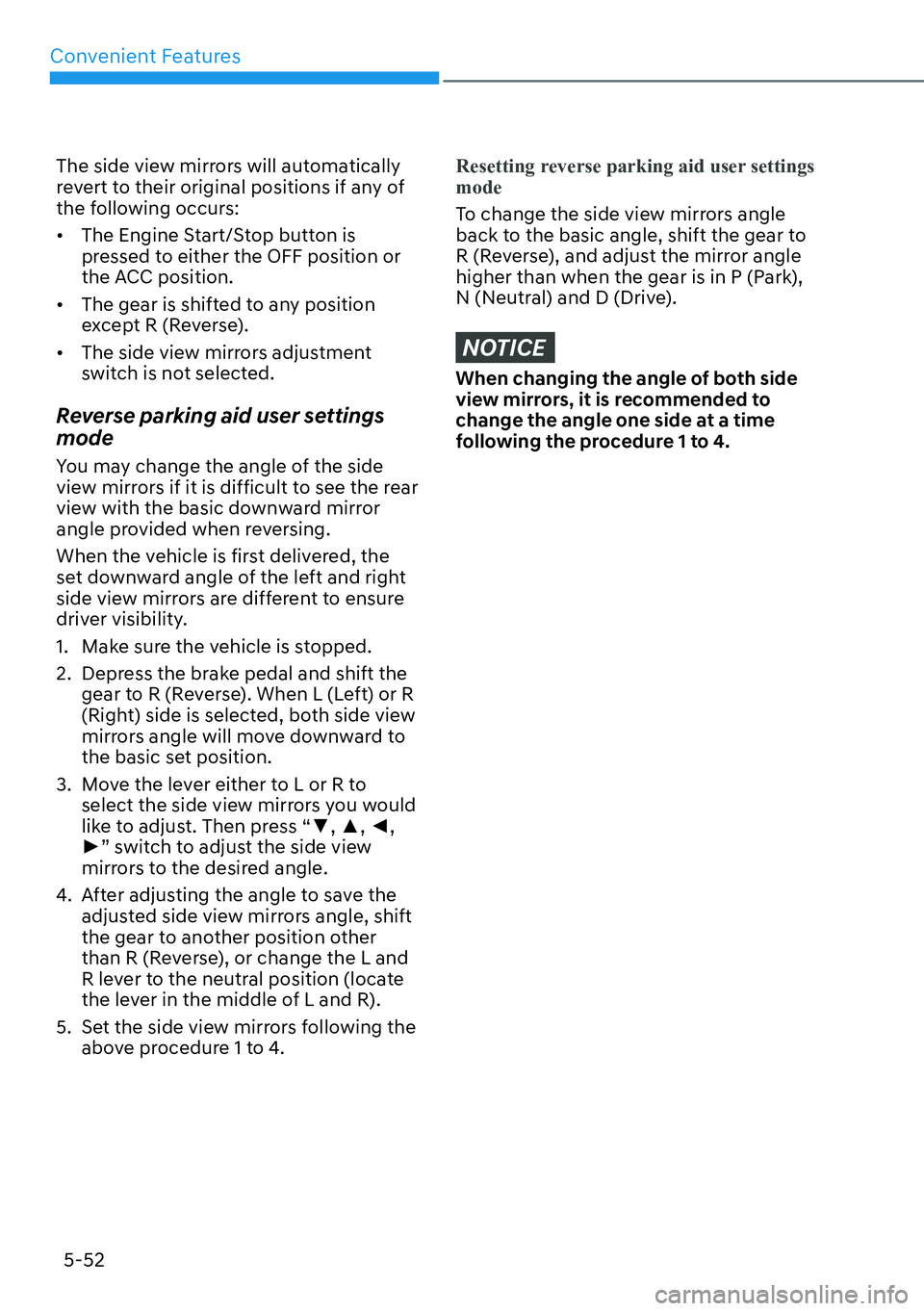

The side view mirrors will automatically
revert to their original positions if any of
the following occurs:

[The Engine Start/Stop button is
pressed to either the OFF position or
the ACC position.

[The gear is shifted to any position
except R (Reverse).

[The side view mirrors adjustment
switch is not selected.
Reverse parking aid user settings
mode
You may change the angle of the side
view mirrors if it is difficult to see the rear
view with the basic downward mirror
angle provided when reversing.
When the vehicle is first delivered, the
set downward angle of the left and right
side view mirrors are different to ensure
driver visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift the
gear to R (Reverse). When L (Left) or R
(Right) side is selected, both side view
mirrors angle will move downward to
the basic set position.
3. Move the lever either to L or R to
select the side view mirrors you would
like to adjust. Then press “
z,
x,
{,

y
VVZLWFKWRDGMXVWWKHVLGHYLHZ
mirrors to the desired angle.
4. After adjusting the angle to save the
adjusted side view mirrors angle, shift
the gear to another position other
than R (Reverse), or change the L and
R lever to the neutral position (locate
the lever in the middle of L and R).
5. Set the side view mirrors following the
above procedure 1 to 4.
Resetting reverse parking aid user settings
mode
To change the side view mirrors angle
back to the basic angle, shift the gear to
R (Reverse), and adjust the mirror angle
higher than when the gear is in P (Park),
N (Neutral) and D (Drive).
NOTICE
When changing the angle of both side
view mirrors, it is recommended to
change the angle one side at a time
following the procedure 1 to 4.

05
5-53
2,.
ž
˜
›
ž
•
™1

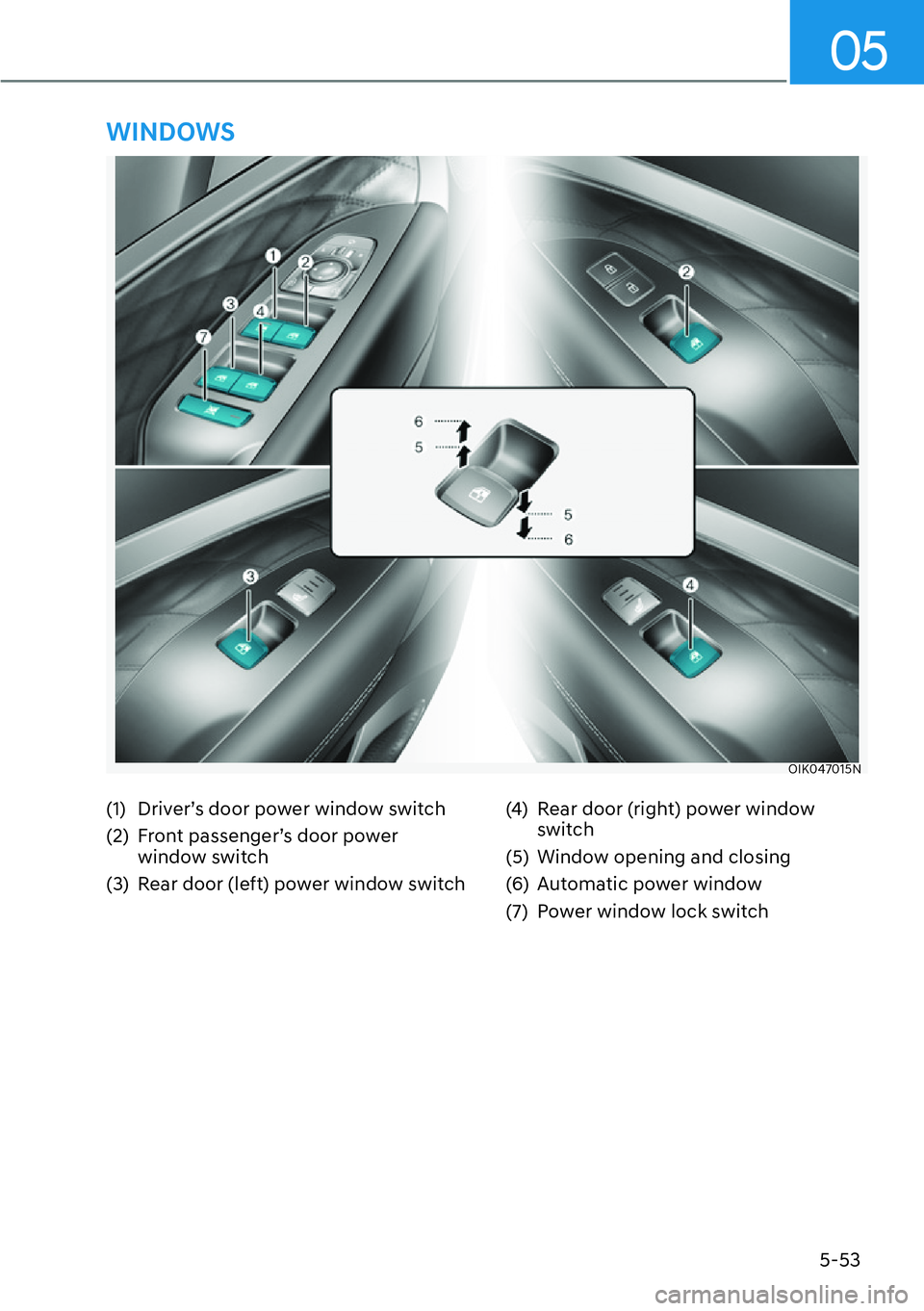

WINDOWS
(1) Driver’s door power window switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window switch(4) Rear door (right) power window
switch
(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch

Convenient Features
5-54
Power Windows
The Engine Start/Stop button must be
in the ON position to be able to raise
or lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock button which can block
the operation of passenger windows.
The power windows will operate for
approximately 30 seconds after the
Engine Start/Stop button is in the ACC or
OFF position. However, if the front doors
are opened, the Power Windows will
not operate even within the 30 seconds
period.
WARNING
To avoid serious injury or death, do not
extend your head, arms or body outside
the windows while driving.
Information

[In cold and wet climates, power
windows may not work properly due to
freezing conditions.

[:KLOHGULYLQJZLWKWKHUHDUZLQGRZV
down or with the sunroof (if equipped)
opened (or partially opened), your
vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is normal and can be reduced
or eliminated by taking the following
actions. If the noise occurs with one
or both of the rear windows down,
partially lower both front windows
approximately one inch. If you
experience the noise with the sunroof
open, slightly close the sunroof.
Window opening and closing
OIK047016
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.

05
5-55

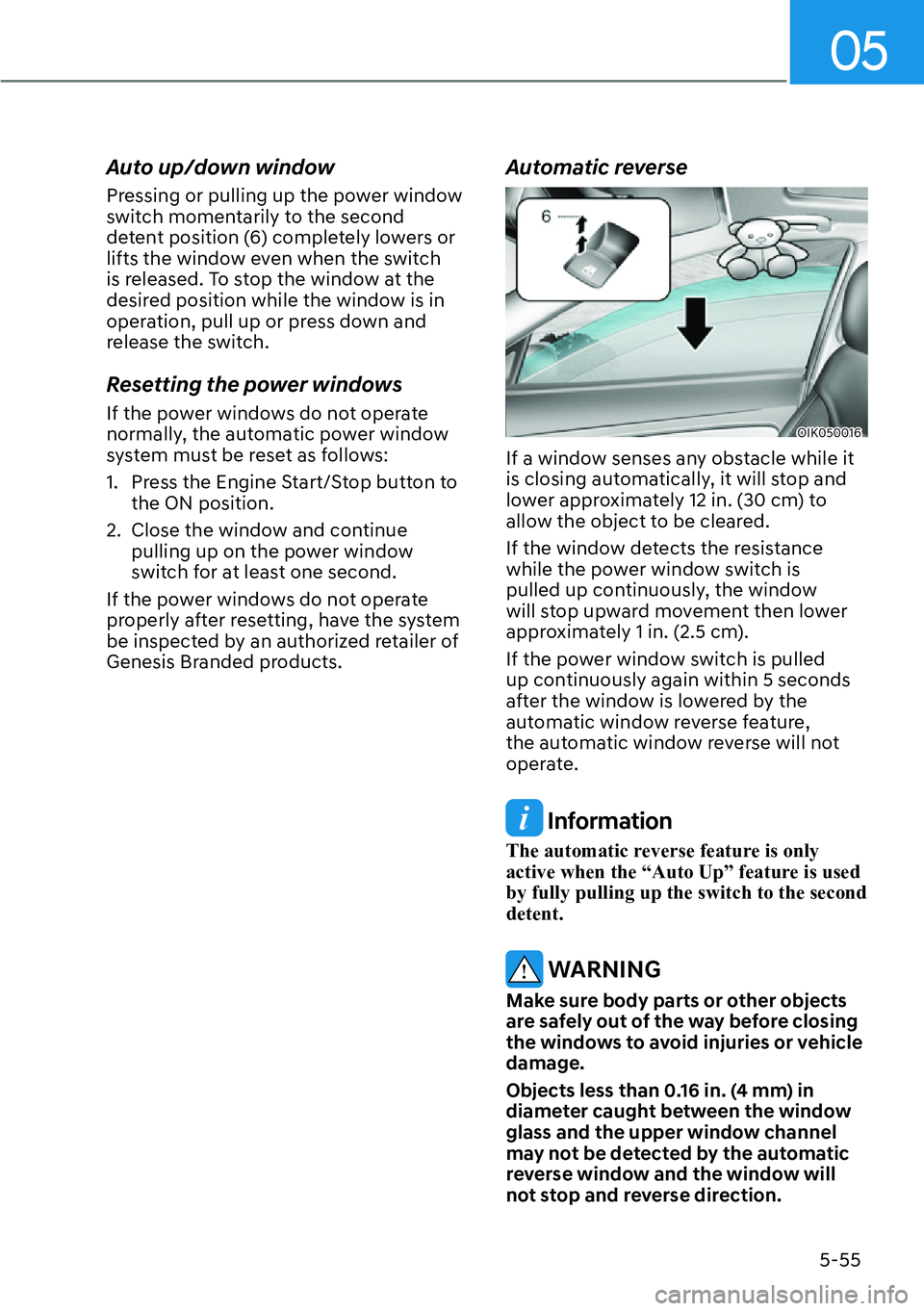

Auto up/down window
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the Engine Start/Stop button to
the ON position.
2. Close the window and continue
pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
be inspected by an authorized retailer of
Genesis Branded products.
Automatic reverse
OIK050016
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 in. (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 in. (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 in. (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.
