2022 HYUNDAI GENESIS G70 Owners Manual

03
3-65

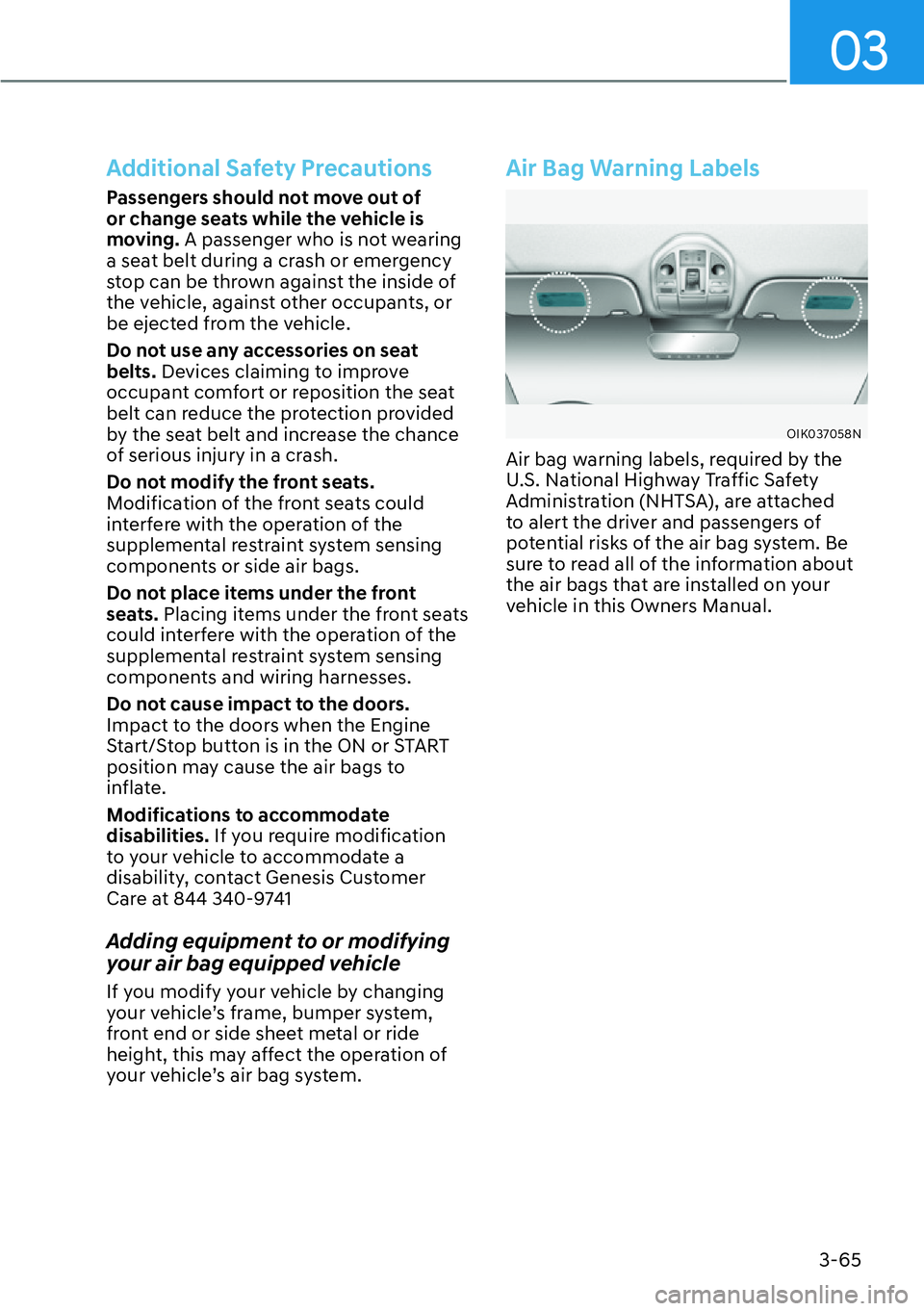

Additional Safety Precautions
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
of serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON or START
position may cause the air bags to
inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate a
disability, contact Genesis Customer
Care at 844 340-9741
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
Air Bag Warning Labels
OIK037058N
Air bag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached
to alert the driver and passengers of
potential risks of the air bag system. Be
sure to read all of the information about
the air bags that are installed on your
vehicle in this Owners Manual.

4
Instrument Cluster ............................................................................................ 4-4Instrument Cluster Control ..........................................................................................4-5
Instrument panel illumination ...................................................................................4-5
Gauges and Meters ..................................................................................................... 4-6
Speedometer ............................................................................................................ 4-6
Tachometer ............................................................................................................... 4-6
Engine coolant temperature gauge .......................................................................... 4-7
Fuel gauge .................................................................................................................. 4-7
Outside temperature gauge ..................................................................................... 4-8
Odometer .................................................................................................................. 4-8
Distance to empty .................................................................................................... 4-9
Transmission Shift Indicator ....................................................................................... 4-9
Automatic transmission shift indicator ................................................................... 4-9
Warning and Indicator Lights .................................................................................... 4-10
Seat belt warning light ............................................................................................ 4-10
Air bag warning light ............................................................................................... 4-10
Parking brake & Brake fluid warning light .............................................................. 4-10
Anti-lock Brake System (ABS) warning light ........................................................... 4-11
Electronic Brake Force Distribution (EBD) system warning light .......................... 4-11
Electric Power Steering (EPS) warning light .......................................................... 4-12
Charging system warning light ............................................................................... 4-12
Engine oil pressure warning light ........................................................................... 4-13
Engine coolant temperature warning light (for 8-inch cluster) ............................ 4-13
Low fuel level warning light .................................................................................... 4-13
Malfunction Indicator Lamp (MIL) .......................................................................... 4-14
Master warning light ................................................................................................ 4-14
Electronic Parking Brake (EPB) warning light ........................................................ 4-15
Low tire pressure warning light .............................................................................. 4-15
Forward Safety warning light .................................................................................. 4-16
Lane Safety indicator light ...................................................................................... 4-16
All Wheel Drive (AWD) warning light ...................................................................... 4-16
LED headlight warning light .....................................................................................4-17
Icy road warning light ...............................................................................................4-17
Electronic Stability Control (ESC) indicator light ................................................... 4-18
Electronic Stability Control (ESC) OFF indicator light ........................................... 4-18
Immobilizer indicator light ...................................................................................... 4-18
Turn signal indicator light ........................................................................................ 4-19
High beam indicator light ....................................................................................... 4-19
Low beam indicator light ........................................................................................ 4-19
Light ON indicator light ........................................................................................... 4-19
High Beam Assist indicator light ............................................................................. 4-19
4. Instrument Cluster

4
AUTO HOLD indicator light .....................................................................................4-20
SPORT mode indicator light ....................................................................................4-20
ECO mode indicator light ........................................................................................4-20
SPORT + mode indicator light ..................................................................................4-21
CUSTOM mode indicator light .................................................................................4-21
LCD Display Messages ................................................................................................4-21
Vehicle is on ..............................................................................................................4-21
Shift to P ....................................................................................................................4-21
Vehicle is in N. Press START button and shift to P ..................................................4-21
Low key battery ........................................................................................................4-21
Press brake pedal to start engine ........................................................................... 4-22
Key not in vehicle .................................................................................................... 4-22
Key not detected ...................................................................................................... 4-22
Press START button again ...................................................................................... 4-22
Press START button with key ................................................................................... 4-22
Check BRAKE SWITCH fuse ................................................................................... 4-22
Shift to P or N to start engine .................................................................................. 4-22
Battery discharging due to external electrical devices ......................................... 4-23
Door, Hood, trunk open indicator ........................................................................... 4-23
Sunroof open indicator ............................................................................................ 4-23
Low tire pressure ..................................................................................................... 4-23
Lights ........................................................................................................................4-24
Wiper ........................................................................................................................ 4-24
Low washer fluid ...................................................................................................... 4-25
Low fuel .................................................................................................................... 4-25
Low engine oil .......................................................................................................... 4-25
Engine overheated ................................................................................................... 4-25
Check haptic steering wheel system ...................................................................... 4-25
Check headlight ....................................................................................................... 4-25
Check turn signal ..................................................................................................... 4-25
Check headlamp LED .............................................................................................. 4-25

4
LCD Display ..................................................................................................... 4-26LCD Display Control ...................................................................................................4-26
View Modes ................................................................................................................4-26
Driving Assist view ................................................................................................... 4-27
Turn By Turn (TBT) view ........................................................................................... 4-27
Utility view ................................................................................................................ 4-27
Option Menu .............................................................................................................. 4-30
Service messages .................................................................................................... 4-31
Head-up display ....................................................................................................... 4-31
Driver Assistance settings ....................................................................................... 4-31
Speed unit ................................................................................................................ 4-31
Vehicle Settings (Infotainment System) ........................................................ 4-32Setting Your Vehicle ................................................................................................... 4-32
4. Instrument Cluster

4-4
Instrument Cluster
The actual cluster in the vehicle may differ from the illustration.
For more details, refer to “Gauges and meters” section in this chapter.
OIK040050N/OIK040051N
1. Tachometer
2. Speedometer
3. Fuel gauge4. Engine coolant temperature gauge
5. Warning and indicator lights
6. LCD display
INSTRUMENT CLUSTER

04
4-5
Instrument Cluster Control
Instrument panel illumination
(if equipped)
OIK040005
When the vehicle’s position lights or
headlamps are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity is also adjusted.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
vehicle damage.
OJX1049003L

[The brightness of the instrument
panel illumination is displayed.

[If the brightness reaches to the
maximum or minimum level, a chime
will sound.

Instrument Cluster
4-6

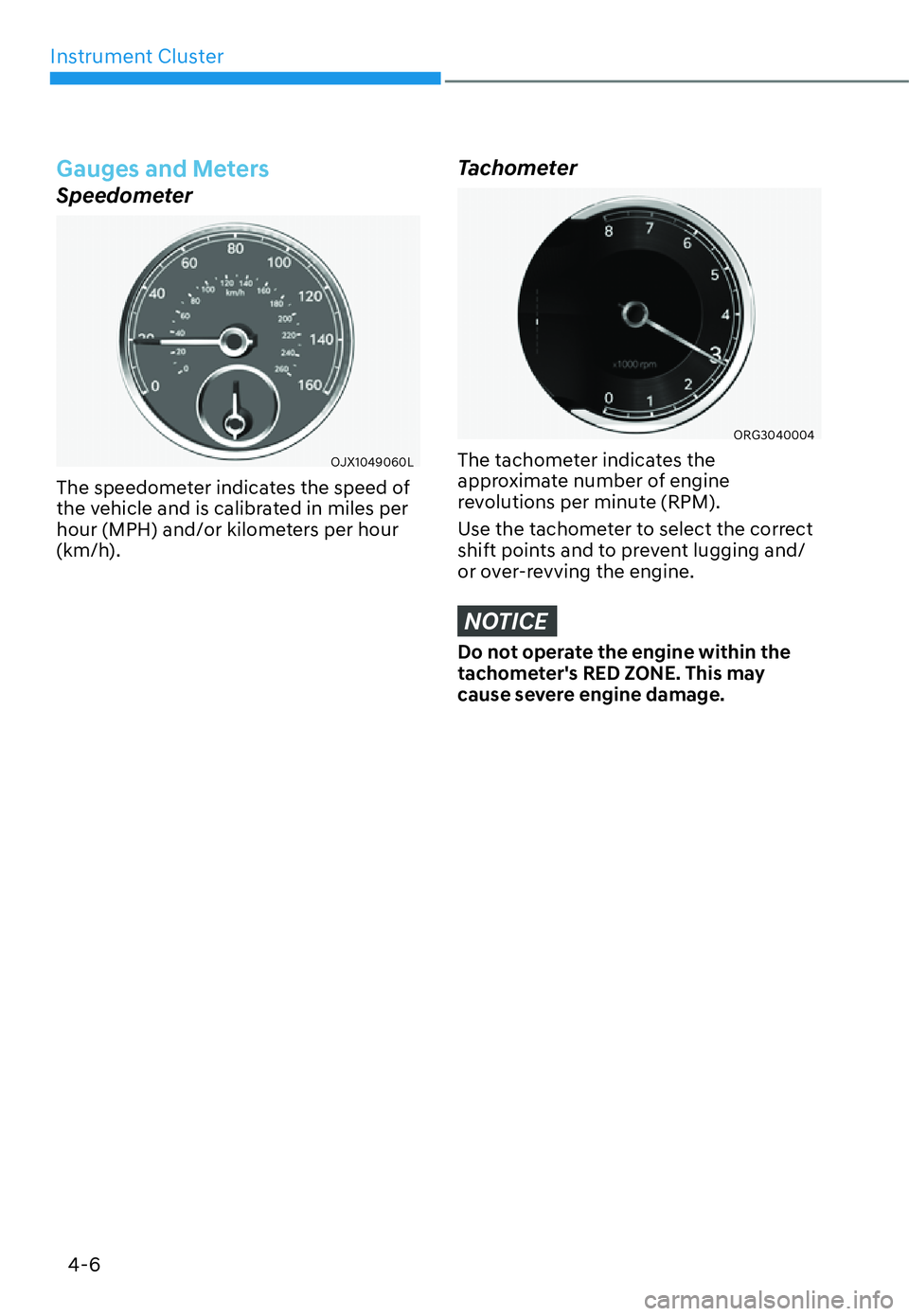

Gauges and Meters
Speedometer
OJX1049060L
The speedometer indicates the speed of
the vehicle and is calibrated in miles per
hour (MPH) and/or kilometers per hour
(km/h).
Tachometer
ORG3040004
The tachometer indicates the
approximate number of engine
revolutions per minute (RPM).
Use the tachometer to select the correct
shift points and to prevent lugging and/
or over-revving the engine.
NOTICE
Do not operate the engine within the
tachometer's RED ZONE. This may
cause severe engine damage.

04
4-7
Engine coolant temperature gauge
OIK040080L
This gauge indicates the temperature
of the engine coolant when the Engine
Start/Stop button is in the ON position.
You can check the engine coolant
temperature in the Utility view on the
cluster.
Refer to “View Modes” section in
chapter 4.
NOTICE
If the gauge pointer moves beyond the
normal range area toward the “H (Hot)”
position, it indicates overheating that
may damage the engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” section in chapter 8.
WARNING
Never remove the engine coolant
reservoir cap when the engine is hot.
The engine coolant is under pressure
and could cause severe burn. Wait until
the engine is cool before adding coolant
to the reservoir.
Fuel gauge
OJX1049032
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
Information

[The fuel tank capacity is given in
chapter 2.

[The fuel gauge is supplemented by
a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty.

[On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in
the tank.
WARNING
Running out of fuel can expose vehicle
occupants to danger.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “E
(Empty)” level.
NOTICE
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire damaging
the catalytic converter.
