2022 HYUNDAI GENESIS G70 Owners Manual

Driver assistance system
7-92
Rear View Parking Guidance
OIK070102L

[When the ‘Rear View Parking
*XLGDQFH
TLVVHOHFWHGSDUNLQJ
guidance is displayed in the rear view.

[The horizontal guideline of the Rear
View Parking Guidance shows the
distance of 1.6 ft. (0.5 m), 3.3 ft. (1 m)
and 7.6 ft. (2.3 m) from the vehicle.
Parking Distance Warning
OIK070103L

[ :KHQWKH
S3DUNLQJ'LVWDQFH:DUQLQJ
T
is selected, parking distance warning
is displayed on the right side of the
Surround View Monitor screen.

[The image will be displayed only when
Parking Distance Warning is warning
the driver.
Surround View Monitor Auto On
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-93
Front view
The front image is displayed on the
screen when the gear is in N (Neutral) or
D (Drive) to assist in parking. The front
view has a top view/front view/side view.
Operating conditions

[Front view function will operate when
the following conditions are satisfied:
- While the infotainment system
screen is being displayed, press the
Parking/View button (1) briefly when
the gear is in D (Drive) or N (Neutral)
and the vehicle speed is below 6
mph (10 km/h).

[Surround View Monitor Auto On
function will operate when the
following conditions are satisfied:
-:LWK
S'ULYHU$VVLVWDQFH

Driver assistance system
7-94
Surround View Monitor
Malfunction and Limitations
Surround View Monitor malfunction
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
normally, have the vehicle inspected by
an authorized retailer of Genesis Branded
products.

Limitations of Surround View
Monitor

[When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur
the image.

[The screen may be displayed
abnormally, and an icon will appear at
the top left side of the screen under
the following circumstances:
- The trunk is opened
- The driver or front passenger door
is opened
- The side view mirror is folded
WARNING

[ALWAYS look around your vehicle
to make sure there are no objects
or obstacles before moving the
vehicle. What you see on the screen
may differ from the actual vehicle’s
location.

[The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[When the rear view is displayed
while driving, an icon (
) appears at
the top right side of the infotainment
system screen to inform the driver
the rear view is being displayed. Do
not be confused with the front wide
view image.

[Surround View Monitor is designed
to be used on a flat surface.
Therefore, if used on roads with
different heights such as curbs
and speed bumps, the image in the
screen my not look correct.

[Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Surround
View Monitor may not operate
normally. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

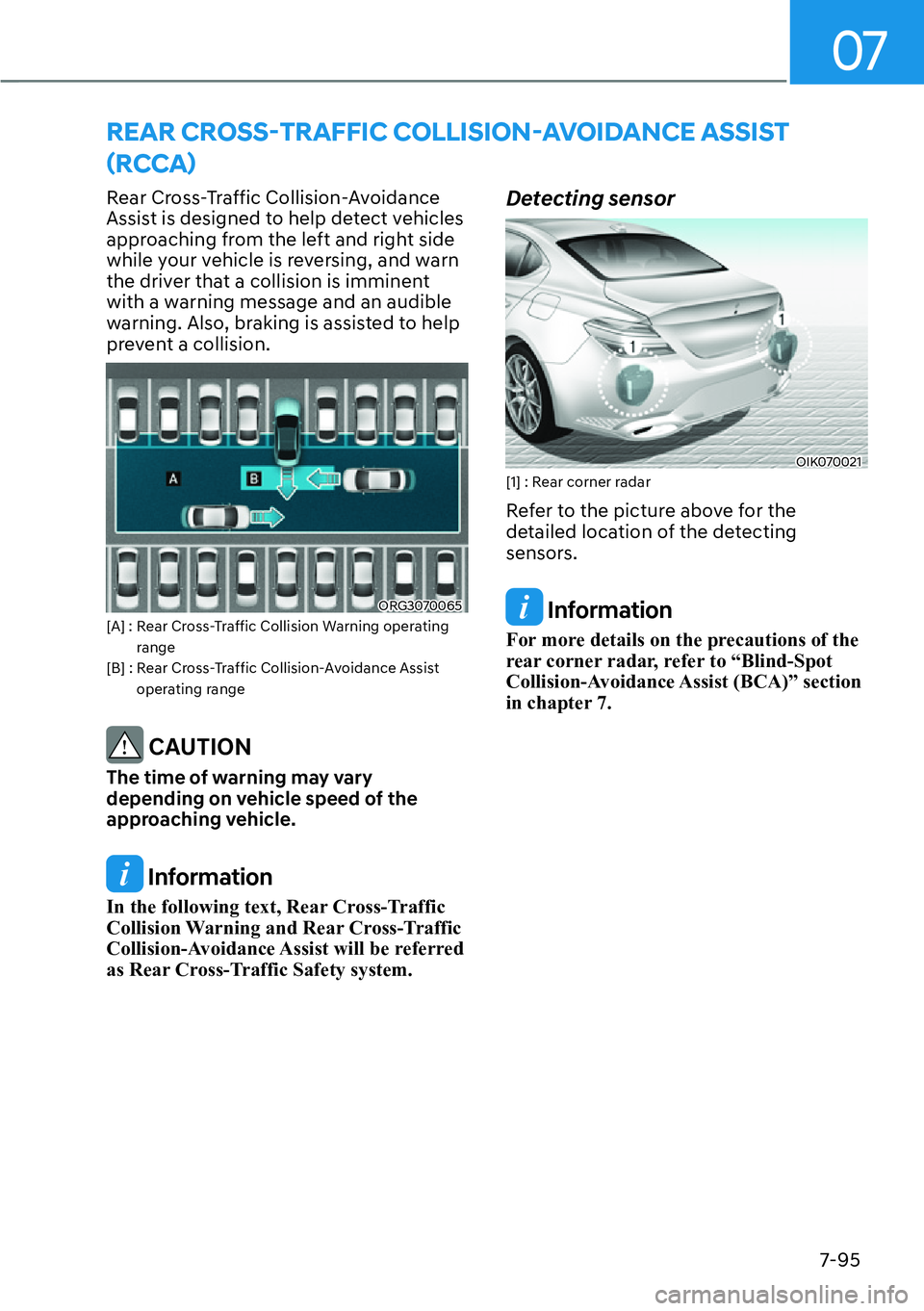

07
7-95
5($5&5266

Driver assistance system
7-96
Rear Cross-Traffic Safety system
Settings
Setting functions for features
OIK070149N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
$VVLVWDQFH

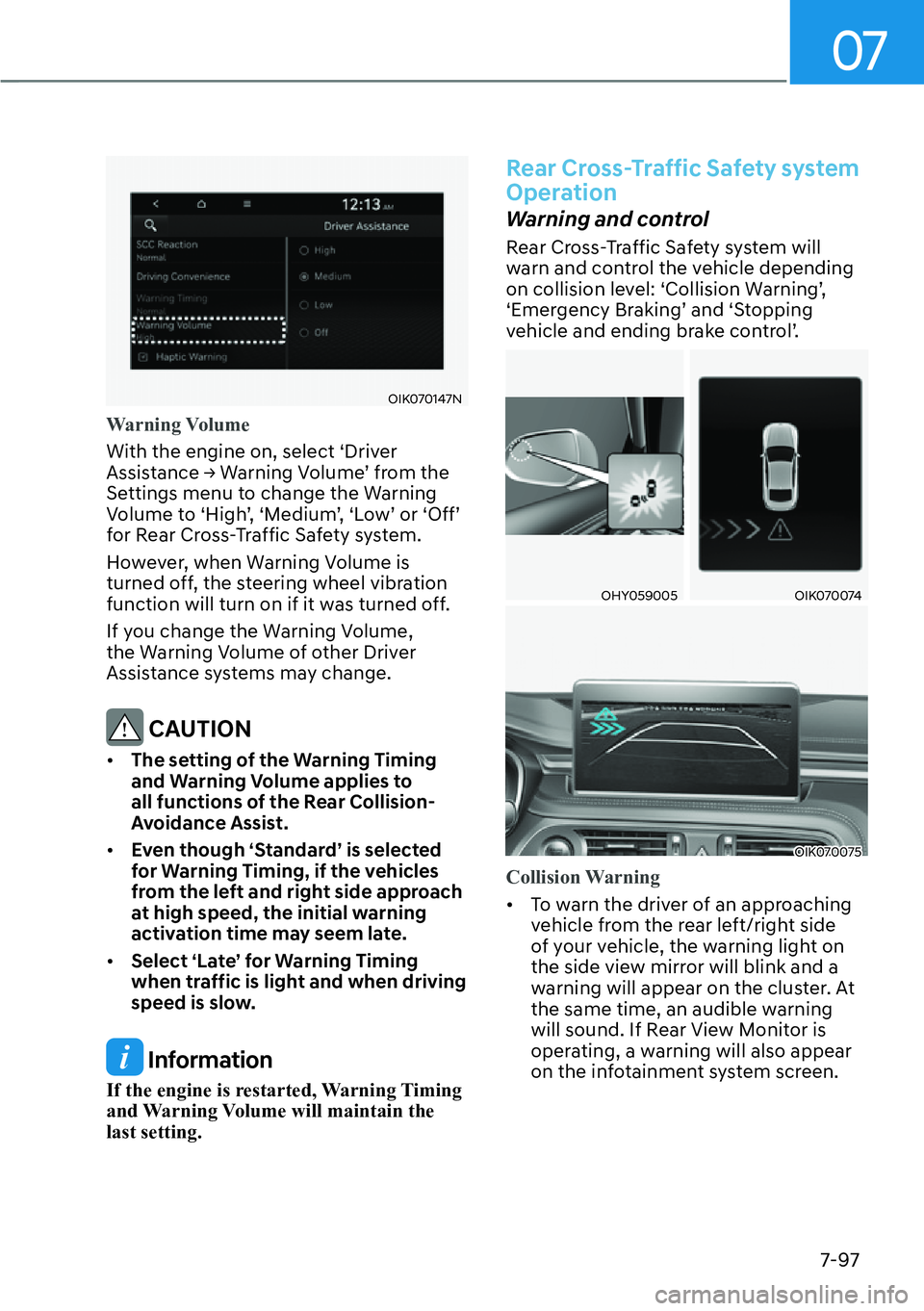

07
7-97
OIK070147N
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

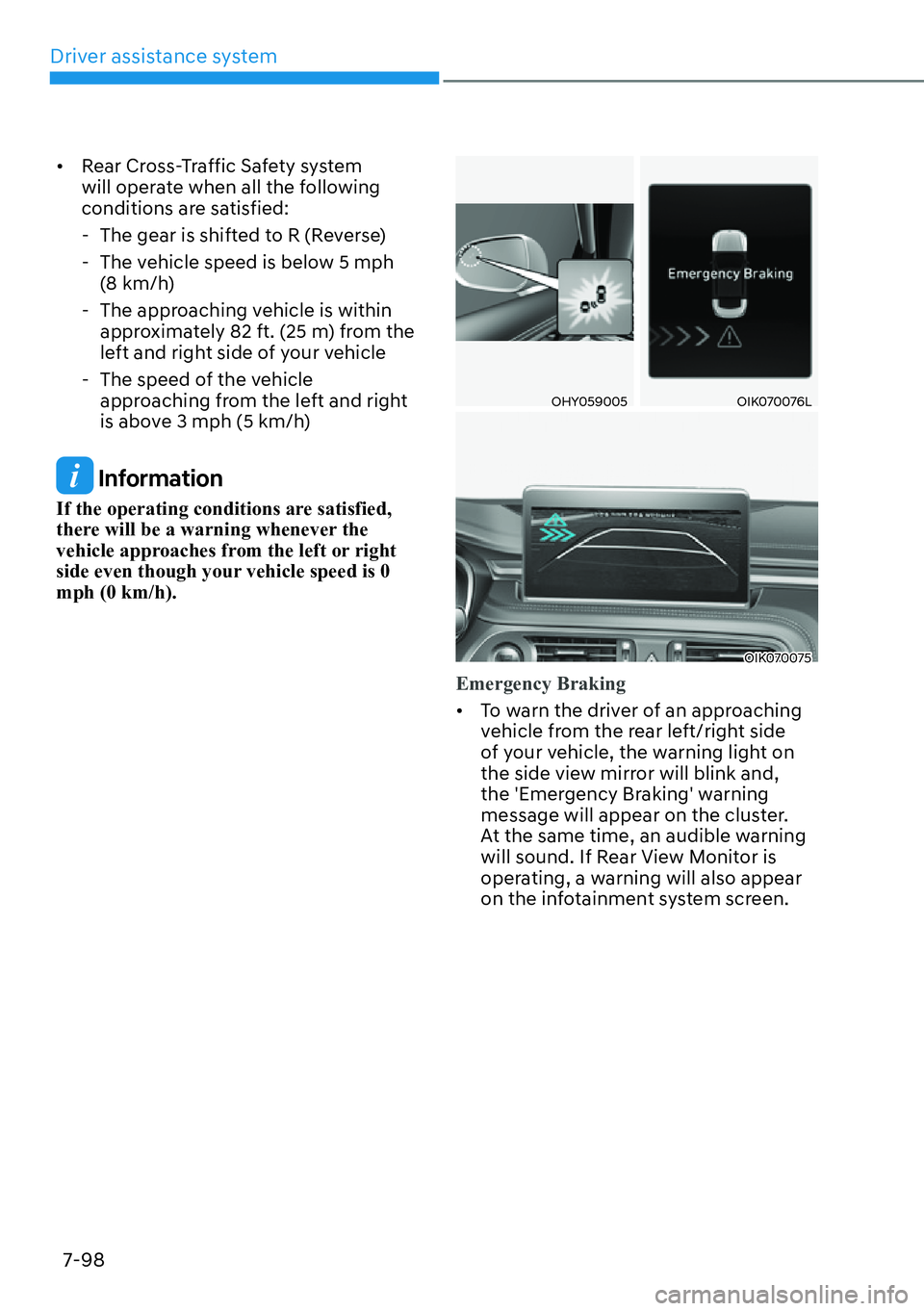

Driver assistance system
7-98

[Rear Cross-Traffic Safety system
will operate when all the following
conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph
(8 km/h)
- The approaching vehicle is within
approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the vehicle
approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
OHY059005OIK070076L
OIK070075
Emergency Braking

[To warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the side view mirror will blink and,
the 'Emergency Braking' warning
message will appear on the cluster.
At the same time, an audible warning
will sound. If Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.

07
7-99

[Rear Cross-Traffic Safety system
will operate when all the following
conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph
(8 km/h)
- The approaching vehicle is within
approximately 5 ft. (1.5 m) from the
left and right side of your vehicle
- The speed of the vehicle
approaching from the left and right
is above 3 mph (5 km/h)

[Emergency braking will be assisted
to help prevent collision with
approaching vehicles from the left
and right.
WARNING
Brake control will end when:
-The approaching vehicle is out of the
detecting range
-The approaching vehicle passes
behind your vehicle
-The approaching vehicle does not
drive toward your vehicle
-The approaching vehicle speed slows
down
-The driver depresses the brake pedal
with sufficient power
OIK070077L
Stopping vehicle and ending brake control

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.

[For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

[During emergency braking, braking
control by Rear Cross-Traffic Safety
system will automatically cancel when
the driver excessively depresses the
brake pedal.
