2022 HYUNDAI GENESIS G70 Owners Manual

06
6-9
AUTOMATIC TRANSMISSION
UNLOCK Button
P Button
OIK057003
When you move the shift lever, depress the brake pedal while pressing the UNLOCK
button.
Automatic Transmission Operation
The automatic transmission has eight forward speeds and one reverse speed.
The individual speeds are selected automatically in the D (Drive) position.

Driving Your Vehicle
6-10
WARNING
To reduce the risk of serious injury or
death:

[ALWAYS check the surrounding
areas near your vehicle for people,
especially children, before shifting a
vehicle into D (Drive) or R (Reverse).

[Before leaving the driver's seat,
always make sure the vehicle is
shifted to the P (Park) position, then
apply the parking brake, then press
the Engine Start/Stop button to
the OFF position. Unexpected and
sudden vehicle movement can occur
if these precautions are not followed.

[When using the paddle shifter
(manual shift mode), do not use
engine braking (shifting from a
high gear to lower gear) rapidly on
slippery roads. The vehicle may slip
causing an accident.
Transmission ranges
The indicator in the instrument cluster
displays the gear position when the
Engine Start/Stop button is in the ON
position.
However, if the gear is in N (Neutral)
or P (Park), the position is displayed on
the instrument cluster when the Engine
Start/Stop button is in the OFF or ACC
position.
P (Park)
Always come to a complete stop before
shifting into P (Park).
OIK060002
To shift the gear to P (Park), press the P
button while depressing the brake pedal.
If you turn the engine off in R (Reverse)
or D (Drive), the gear will automatically
shift to P (Park).
WARNING

[Shifting into P (Park) while the
vehicle is in motion may cause you to
lose control of the vehicle.

[After the vehicle has stopped, always
make sure the vehicle is in P (Park),
apply the parking brake, and turn the
engine off.

[When parking on an incline, shift
the gear to P (Park) and apply the
parking brake to prevent the vehicle
from rolling downhill.

06
6-11

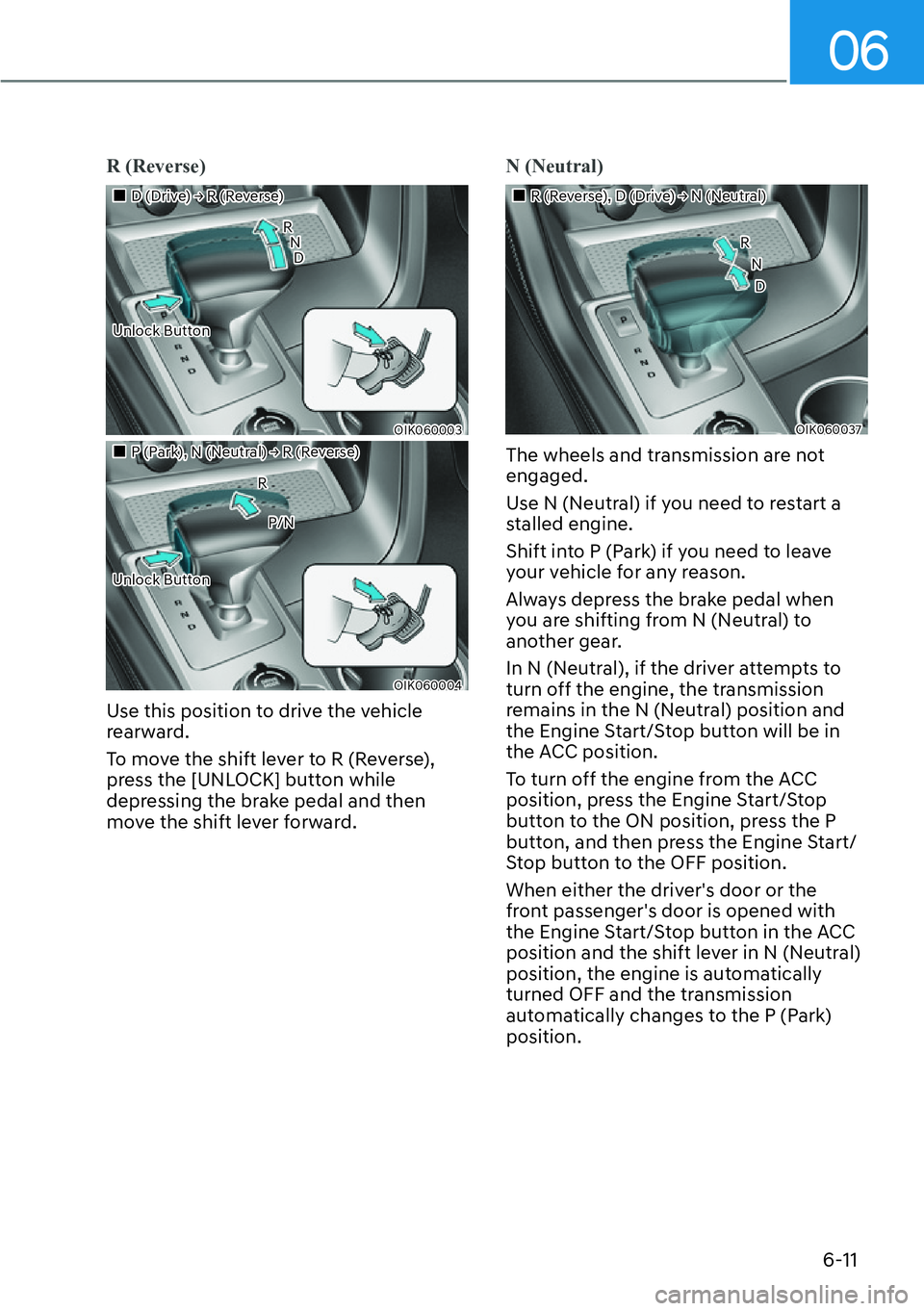

R (Reverse)
„D (Drive)
Ÿ R (Reverse)
R N D
Unlock Button
OIK060003
„P (Park), N (Neutral)
Ÿ R (Reverse)
R
P/N
Unlock Button
OIK060004
Use this position to drive the vehicle
rearward.
To move the shift lever to R (Reverse),
press the [UNLOCK] button while
depressing the brake pedal and then
move the shift lever forward.
N (Neutral)
„R (Reverse), D (Drive)
Ÿ N (Neutral)
R N D
OIK060037
The wheels and transmission are not
engaged.
Use N (Neutral) if you need to restart a
stalled engine.
Shift into P (Park) if you need to leave
your vehicle for any reason.
Always depress the brake pedal when
you are shifting from N (Neutral) to
another gear.
In N (Neutral), if the driver attempts to
turn off the engine, the transmission
remains in the N (Neutral) position and
the Engine Start/Stop button will be in
the ACC position.
To turn off the engine from the ACC
position, press the Engine Start/Stop
button to the ON position, press the P
button, and then press the Engine Start/
Stop button to the OFF position.
When either the driver's door or the
front passenger's door is opened with
the Engine Start/Stop button in the ACC
position and the shift lever in N (Neutral)
position, the engine is automatically
turned OFF and the transmission
automatically changes to the P (Park)
position.

Driving Your Vehicle
6-12
WARNING

[Do not shift into gear unless your
foot is firmly on the brake pedal. Use
the P (Park) position to idle a vehicle
for an extended period of time. The
wheels and the transmission are not
engaged. While parking the vehicle
with the engine running, depress
the brake pedal or apply the parking
brake.

[Do not drive with the shift lever in N
(Neutral). Doing so may result in an
accident because of a loss of engine
braking and the transmission could
be damaged.
D (Drive)
This is the normal driving position. The
transmission will automatically shift
through an 8-gear sequence, providing
the best fuel economy and power.
For extra power when passing another
vehicle or driving uphill, depress the
accelerator pedal further until you feel
the transmission downshift to a lower
gear.
„R (Reverse)
Ÿ D (Drive)\
R

D
Unlock Button
OIK060005
„P (Park), N (Neutral)
Ÿ D (Drive)
P/N
D
Unlock Button
OIK060006
To shift into D (Drive), depress the brake
pedal and press the [UNLOCK] button
on the shift lever. Move the shift lever
rearward.
To shift into D (Drive) from N (Neutral),
you must depress the brake pedal.
NOTICE
Always come to a complete stop before
shifting into D (Drive).

06
6-13
Shift-lock system
For your safety, the automatic
transmission has a shift-lock system
which prevents shifting the transmission
from P (Park) into R (Reverse) or D (Drive)
unless the [UNLOCK] button is pressed
while depressing the brake pedal.
To shift from P (Park) into R (Reverse) or
D (Drive):
1. Depress and hold the brake pedal.
2. Start the engine or place the Engine
Start/Stop button in the ON position.
3. Move the shift lever to R (Reverse) or
D (Drive) while pressing the [UNLOCK]
button.
When the battery is discharged:
OIK060007L
You cannot move the shift lever, when
the battery is discharged.
In emergencies, do the following to
move the shift lever to N (Neutral) on a
level ground.
1. Connect the battery cables from
another vehicle or from a another
battery to the jump-starting terminals
inside the engine compartment.
For more information refer to "Jump
Starting" in chapter 8.
2. Release the parking brake with the
Engine Start/Stop button in the ON
position.
3. Press the Engine Start/Stop button to
the OFF position.
4. Remove the cap-cover (1) and
press the P release button (2) while
depressing the brake pedal. Then, the
gear will change to the N (Neutral)
position. The button (2) operates only
for 20 seconds to change the gear
between P (Park) and N (Neutral) from
the time when the button (2) is first
pressed.
Information

[In situations when the gear needs to be
shifted from P (Park) to N (Neutral)
when the Engine Start/Stop button is in
the OFF position, refer to step 4.

[While the gear shifts to N (Neutral) or P
(Park), you may hear mechanical noise
which is a normal operating noise.

Driving Your Vehicle
6-14
Parking
Always come to a complete stop and
continue to depress the brake pedal.
Shift the vehicle into the P (Park)
position, apply the parking brake, and
place the Engine Start/Stop button in
the OFF position. Take the Key with you
when exiting the vehicle.
WARNING

[When you stay in the vehicle with
the engine running, be careful not
to depress the accelerator pedal for
a long period of time. The engine or
exhaust system may overheat and
start a fire.

[The exhaust gas and the exhaust
system are very hot. Keep away from
the exhaust system components.

[Do not stop or park over flammable
materials, such as dry grass, paper
or leaves. They may ignite and cause
a fire.
Paddle Shifter
(Manual shift mode)
OIK060018
The paddle shifter is available when the
shift lever is in the D (Drive) position.
Pull the [+] or [-] paddle shifter once to
shift up or down one gear and the system
changes from automatic shift mode to
manual shift mode.
To change back to the automatic shift
mode from manual shift mode, do one of
the following:

[Move the shift lever down toward the
D (Drive) position.

[Gently depress the accelerator pedal
for more than 6 seconds.
However, if SPORT mode, SPORT+
mode, or CUSTOM mode (setting
powertrain to SPORT or SPORT+) is
selected, the paddle shifter will not
change to automatic shift mode from
manual shift mode.

[Drive the vehicle under 4mph (7
km/h).

[Pull and hold the right side paddle
shifter.
Information
If the [+] and [-] paddle shifters are pulled
at the same time, gear shift may not occur.

06
6-15
LCD Display Messages
Shifter system malfunction
OIK060008L
The message appears on the LCD display
when the transmission or the shift lever
does not properly operate in the P (Park)
position.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Check shift lever
OIK060009L
The message appears on the LCD display
when there is a malfunction with one of
the key transmission shifter components.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Shifting conditions not met
OIK060010L
The message appears on the LCD display
when engine RPM is too high, or when
driving speed is too fast to shift the gear.
Decrease the vehicle speed or slow down
before shifting the gear.
Press brake pedal to change gear
OIK060011L
The message appears on the LCD display
when the brake pedal is not depressed
while shifting the gear.
Depress the brake pedal and then shift
the gear.

Driving Your Vehicle
6-16
Shift to P after stopping
OIK060012L
The message appears on the LCD display
when the gear is shifted to P (Park) while
the vehicle is moving.
Stop the vehicle before shifting to P
(Park).
Press P for Park
OIK060013L
The message appears on the LCD display
to inform the driver to press the P button
to shift to P (Park) when the driver moves
the shift lever upward even though the
gear is in R (Reverse).
Check P button
OIK060040L
The message appears on the LCD display
when there is problem with the P button.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Press brake pedal, then press P
RELEASE button
OIK060038L
The message appears on the LCD display
when the driver presses the PARK
RELEASE button without depressing the
brake pedal.
Depress the brake pedal before pressing
the P RELEASE button.
