2022 HYUNDAI GENESIS G70 Owners Manual

Driver assistance system
7-76
/$1()2//2:,1*$66,67

07
7-77
OIK070147N
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system
7-78
OIK070019L
Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds, the

S3ODFHKDQGVRQWKHVWHHULQJZKHHO
T
warning message will appear and an
audible warning will sound in stages.
First stage : Warning message
Second stage : Warning message (red
steering wheel) and
audible warning
OTM070117N
If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the ‘Lane Following
$VVLVW/)$FDQFHOHG
TZDUQLQJPHVVDJH
will appear and Lane Following Assist will
be automatically canceled.
WARNING

[The steering wheel may not be assist
if the steering wheel is held very
tight or the string wheel is steered
over a certain degree.

[Lane Following Assist does not
operate at all times. It is the
responsibility of the driver to safely
steer the vehicle and to maintain the
vehicle in its lane.

[The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[If the steering wheel is held very
lightly, the hands–off warning
message may appear because Lane
Following Assist may not recognize
that the driver has their hands on the
steering wheel.

[If you attach objects to the steering
wheel, the hands-off warning may
not work properly.

07
7-79

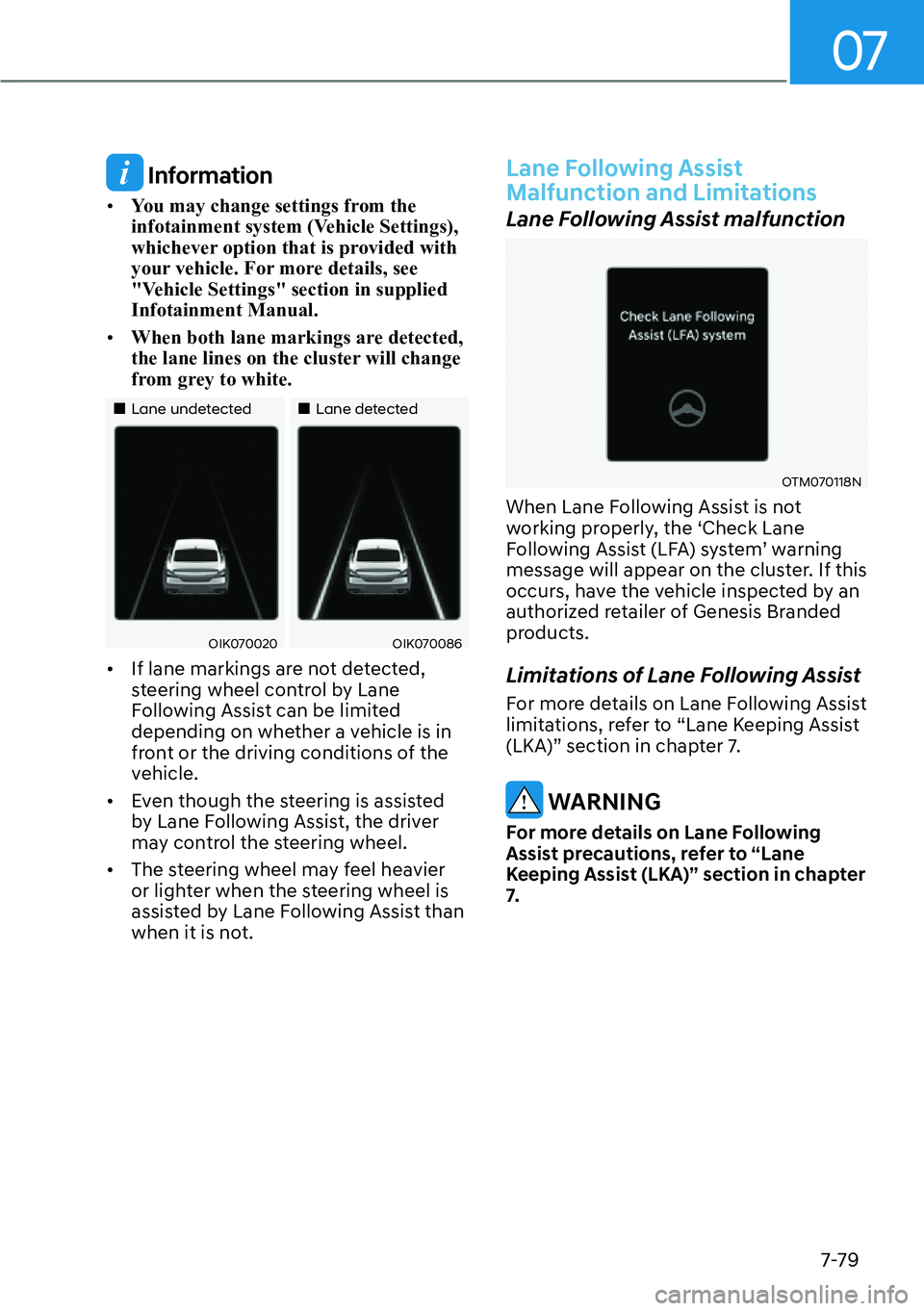

Information

[You may change settings from the
infotainment system (Vehicle Settings),
whichever option that is provided with
your vehicle. For more details, see
"Vehicle Settings" section in supplied
Infotainment Manual.

[When both lane markings are detected,
the lane lines on the cluster will change
from grey to white.
„Lane undetected„Lane detected
OIK070020OIK070086

[If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is in
front or the driving conditions of the
vehicle.

[Even though the steering is assisted
by Lane Following Assist, the driver
may control the steering wheel.

[The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Following Assist than
when it is not.
Lane Following Assist
Malfunction and Limitations
Lane Following Assist malfunction
OTM070118N
When Lane Following Assist is not
working properly, the ‘Check Lane
)ROORZLQJ$VVLVW/)$V\VWHP
TZDUQLQJ
message will appear on the cluster. If this
occurs, have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Limitations of Lane Following Assist
For more details on Lane Following Assist
limitations, refer to “Lane Keeping Assist
(LKA)” section in chapter 7.
WARNING
For more details on Lane Following
Assist precautions, refer to “Lane
Keeping Assist (LKA)” section in chapter
7.

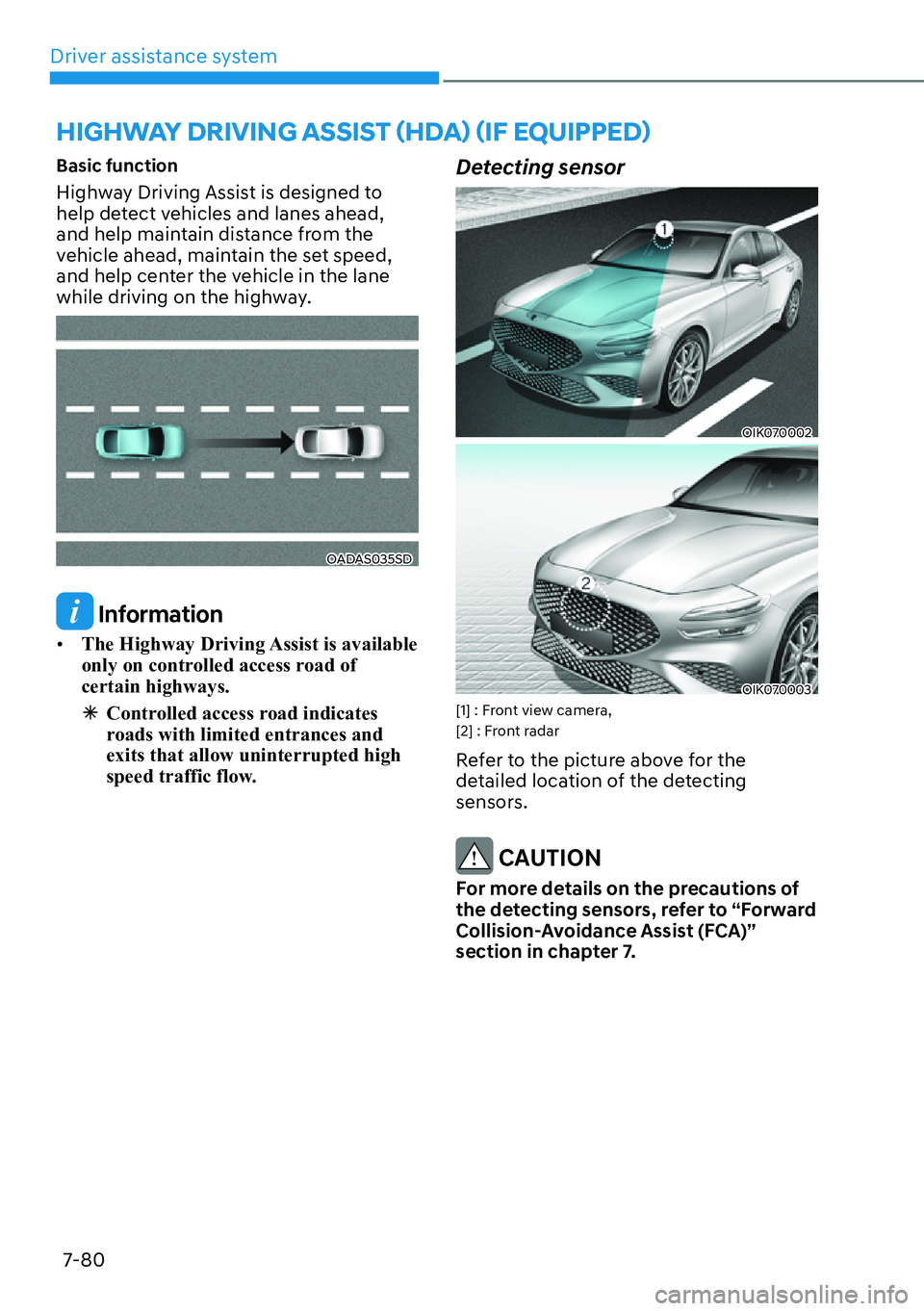

Driver assistance system
7-80
+,*+:$<'5,9,1*$66,67

07
7-81
Highway Driving Assist Settings
Setting features
OIK070133L
Highway Driving Assist
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

Driver assistance system
7-82
Highway Driving Assist
Operation
Basic function
Display and control
You can see the status of the Highway
Driving Assist operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Highway Driving Assist will be displayed
as below depending on the status of the
function.
„Standby state„Operating state
OIK070137NOIK070138N
(1) Highway Driving Assist indicator,
whether there is a vehicle ahead
and the selected distance level are
displayed.
ÃHighway Driving Assist indicator
- Green
: Operating state
- White
: Standby state(2) Set speed is displayed.
(3) Lane Following Assist indicator
displayed.
(4) Whether there is a vehicle ahead and
the selected vehicle distance are
displayed.
(5) Whether the lane is detected or not is
displayed.
ÃFor more details and the limitations
of the function on Lane Following
Assistance, refer to ''Lane Following
Assistance (LFA)''.
ÃFor more details and the limitations
of the function on Smart Cruise
Control, refer to ''Smart Cruise
Control (SCC)''.
System operating
Highway Driving Assist will operate when
entering or driving on the main road of
highways, and satisfying all the following
conditions:
- Lane Following Assist is operating
- Smart Cruise Control is operating
Information

[While driving on the highway, if
Smart Cruise Control starts operating,
Highway Driving Assist will operate.

[When entering the main roads of
highways, Highway Driving Assist will
not turn on if the Lane Following Assist
is turned off even when Smart Cruise
Control is operating.

07
7-83

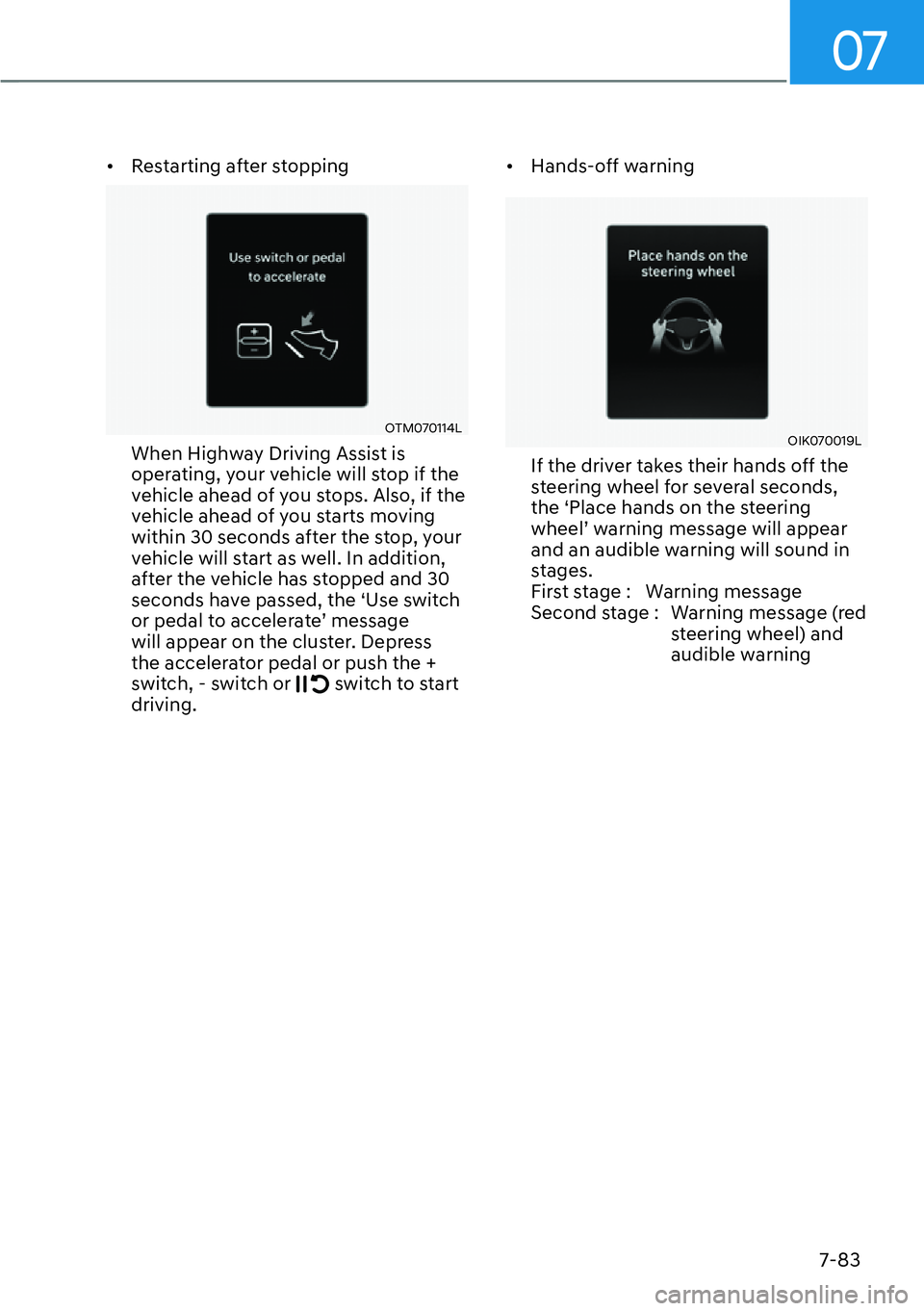

[Restarting after stopping
OTM070114L
When Highway Driving Assist is
operating, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving
within 30 seconds after the stop, your
vehicle will start as well. In addition,
after the vehicle has stopped and 30
seconds have passed, the ‘Use switch
RUSHGDOWRDFFHOHUDWH
TPHVVDJH
will appear on the cluster. Depress
the accelerator pedal or push the +
switch, - switch or
switch to start
driving.
[Hands-off warning
OIK070019L
If the driver takes their hands off the
steering wheel for several seconds,
the ‘Place hands on the steering
ZKHHO
TZDUQLQJPHVVDJHZLOODSSHDU
and an audible warning will sound in
stages.
First stage : Warning message
Second stage : Warning message (red
steering wheel) and
audible warning
