2022 HYUNDAI GENESIS G70 Owners Manual

2-2
Vehicle Information, Consumer Information and Reporting Safety Defects
(;7(5,2529(59,(:

2-3
02

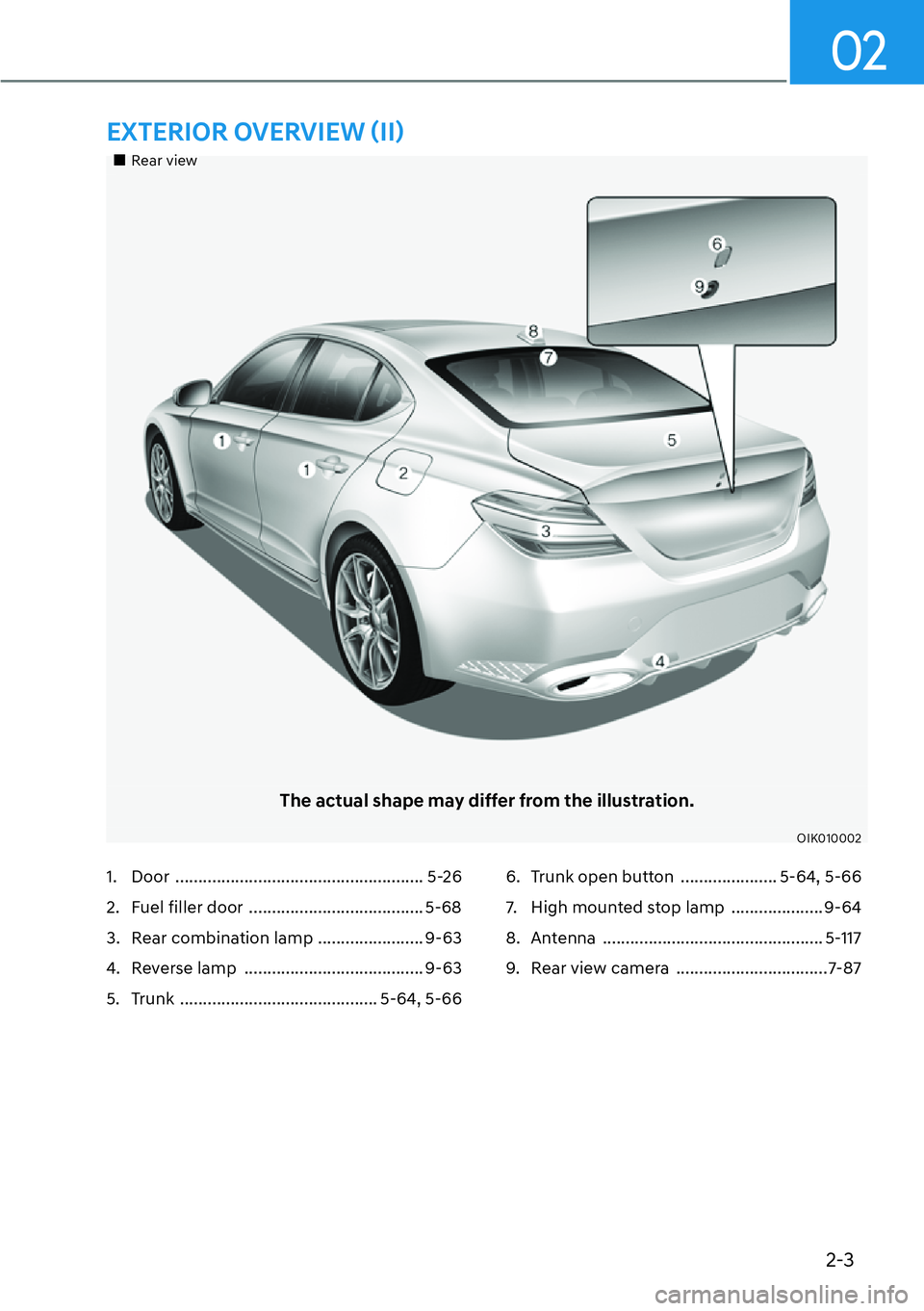

„Rear view
The actual shape may differ from the illustration.
OIK010002
(;7(5,2529(59,(:

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
OIK010003
1. Inside door handle ................................ 5-27
2. Integrated memory system ..................5-32
3. Side view mirror folding button .......... 5-50
4. Side view mirror control switch ......... 5-50
5. Central door lock switch ..................... 5-28
6. Power window lock button ................. 5-56
7. Power window switches ...................... 5-53
8. Instrument panel illumination control
switch ..................................................... 4-59. Fuel filler door open button ................. 5-68
10. Trunk open/close button ..................... 5-64
11. Hood release lever ................................ 5-63
12. Steering wheel tilt/telescopic switch.. 5-36
13. Steering wheel ...................................... 5-35
14. Seat .......................................................... 3-3
INTERIOR OVERVIEW

2-5
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-45
3. Engine Start/Stop button ....................... 6-5
4. Hazard warning flasher button .............. 8-2
5. Infotainment system ............................ 5-117
6. Automatic climate control system ...... 5-88
7. Heated steering wheel button ............. 5-38
8. Seat warmer button .............................. 3-17
9. Air ventilation seat button .................... 3-18
10. Passenger’s front air bag ..................... 3-45
11. Glove box .............................................5-108
12. Transmission shift lever .......................... 6-913. Drive mode integrated control ............ 6-45
14. ESC (Electronic Stability Control) OFF
button ..................................................... 6-31
15. Parking Safety button .......................... 7-109
16. Auto Hold button .................................. 6-26
17. Parking/View button ............................ 7-90
18. EPB (Electronic Parking Brake)
switch .................................................... 6-22
19. Power outlet ......................................... 5-110
20. USB port ................................................ 5-117
21. Wireless charging system indicator .... 5-112
22. Wireless charging system pad ............. 5-112
The actual shape may differ from the illustration.
OIK010004N
,167580(173$1(/29(59,(:

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects

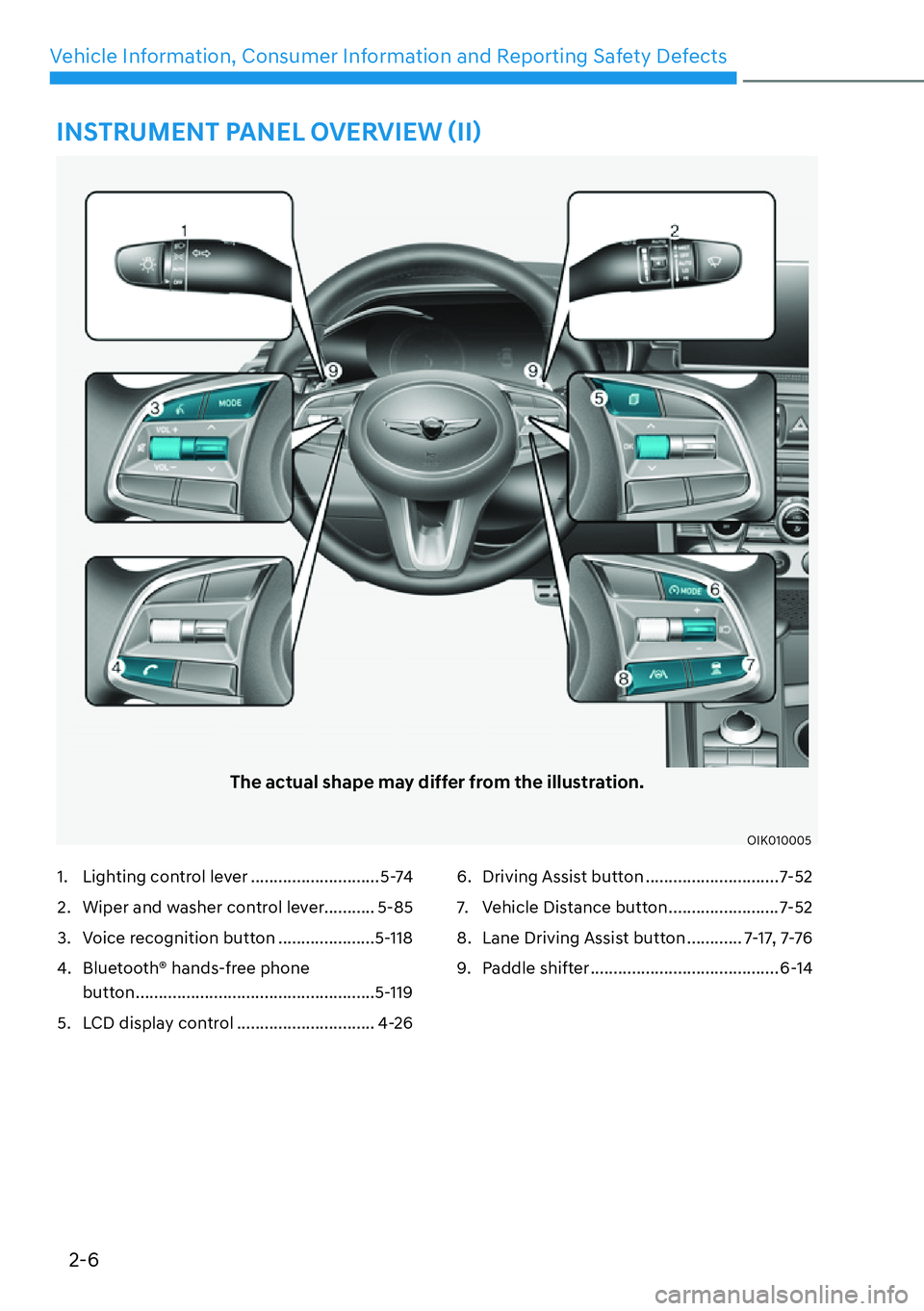

,167580(173$1(/29(59,(:

2-7
02
„2.0L T-GDI
„3.3L T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
OIK077001/ OIK017007
1. Engine coolant reservoir ...................... 9-20
2. Radiator cap ........................................... 9-21
3. Brake fluid reservoir ............................. 9-23
4. Air cleaner ............................................. 9-255. Engine oil dipstick ................................. 9-17
6. Engine oil filler cap ................................9-18
7. Windshield washer fluid reservoir ....... 9-24
8. Fuse box ................................................ 9-45
ENGINE COMPARTMENT
❈ The battery is in the trunk.

Vehicle Information, Consumer Information and Reporting Safety Defects
2-8
Items in (mm)
Overall length 184.45 (4,685)
Overall width 72.83 (1,850)
Overall height 55.12 (1,400)
Front tread225/45R18 62.83 (1,596)
225/40R19
62.83 (1,596)
225/40ZR19
Rear tread225/45R18 64.25 (1,632)
225/35R19
63.15 (1,604)
255/35ZR19
Wheelbase 111.61 (2,835)
ENGINE
Items 2.0 T-GDI 3.3 T-GDI
Displacement
cu. in (cc)121.9 (1,998) 203.94 (3,342)
Bore x Stroke
in. (mm)3.39 x 3.39 (86 x 86) 3.78 x 3.299 (92 x 83.8)
Firing order 1-3-4-2 1-2-3-4-5-6
No. of cylinders In-line 4 cylinder V-type 6 cylinder
DIMENSIONS

02
2-9
Light bulb Bulb type Wattage
FrontHeadlampLow LED LED
High LED LED
Turn signal lamp LED LED
Parking lamp LED LED
Side marker LED LED
Daytime Running Lamp (DRL) LED LED
Puddle lamp LED LED
RearTail lamp LED LED
Stop lamp / Turn signal lamp LED LED
Reverse lamp LED LED
Side marker LED LED
License plate lamp LED LED
High mounted stop lamp LED LED
InteriorMap lamp LED LED
Room lamp LED LED
Vanity mirror lamp LED LED
Glove box lamp LED LED
Foot lamp LED LED
Trunk lamp LED LED
BULB WATTAGE
