5. Convenient Features

Convenient Features
5-16
Information

[After the battery has been reconnected
or the battery has been recharged, it
will take time for the digital key (smart
phone) to operate due to remote security
XSGDWH:KHQORFNLQJRUXQORFNLQJWKH
door with the smart phone NFC antenna,
touch and hold the smart phone on the
door handle until the door(s) is locked or
unlocked.

[If the mobile data connection of the
smart phone is weak, remote security
information update may fail. At this
time, use the card key to lock or unlock
WKHGRRUVRUVWDUWWKHHQJLQH:KHQ
you are in a place where the mobile
data connection of your smart phone is
available, place your smart phone on the
in-vehicle authentication pad (wireless
charger pad) and start your vehicle, or
touch the digital key on the door handle
to lock or unlock the door, the remote
security information will be automatically
updated. Even though the engine is not
started, wait until the remote security
information is updated and the in-vehicle
authentication pad (wireless charging
pad) changes to charging mode.
WARNING
The engine can be started when the
registered smart phone is placed on the
in-vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
smart phone with you to prevent
vehicle theft when leaving the vehicle.
Digital key App remote control
Various control functions such as Door
Lock/Unlock, Remote Start, Panic and
Trunk Open/Close are available using the
Digital Key App. To use the Digital Key App
functions, the smart phone’s Bluetooth must
be activated, and must be approximately
within 32 ft. (10 m) from the vehicle.

[Connecting Digital Key App with the
vehicle
1. Open the Genesis Digital Key App in
the smart phone. Select the vehicle
you want to control from the vehicle
list in the App.
2. Approach the vehicle with the Genesis
Digital Key App opened. The Digital
Key App will automatically connect
with the vehicle.
3. When the connection is complete,
the icons in the Digital Key App will
become active.

[Controlling the vehicle with Digital
Key App
OIK050111
Press the icons to remotely control the
vehicle.
1. Lock Doors
2. Unlock Doors
3. Panic On
4. Panic Off
5. Remote Engine On
6. Remote Engine Off
7. Open Trunk

05
5-17
The icon will be highlighted or an alarm
and vibration will also be provided when
the selected icon function is being
performed.
After the Digital Key App and vehicle are
connected, if Digital Key App remote
control is not used over 5 minutes, the
connection between the app and vehicle
will disconnect automatically.
Note that you cannot lock your vehicle
using Genesis Digital Key APP if any of
the following occurs:
- The Engine Start/Stop button is in the
ACC or ON position
- Door(s) is open

[Remotely starting vehicle with the
Digital Key App
1. Press the Door Lock button in Genesis
Digital Key App.
2. Press the Remote Engine On icon
within 4 seconds.
3. The hazard warning lights will blink
and the engine will start.
- Unless the driver puts the
registered digital key (smart phone)
on the in-vehicle authentication
pad (wireless charging pad) when
the Remote Start function is on, the
engine will turn off.
- If the driver does not get in the
vehicle within 10 minutes after
the engine is remotely started, the
engine will turn off.
CAUTION

[If the vehicle windows are tinted
with a film containing metallic
substances, it may cause poor
Bluetooth connection and poor
performance of the Digital Key App.
[If multiple users use the digital key
at the same time, the functions of
the Digital Key App may not work
properly. Only the necessary user
should operate the Digital Key App
remote control.

[When using the Digital Key App
remote control, the driver (the
remote control user) should leave
the vehicle after checking that the
doors are locked. When the doors are
locked, the chime will sound and the
hazard warning lights will blink once.

[The remote functions of the Digital
Key App enables the vehicle to be
controlled when the user is within
operating range. If the digital key
is out of the operating range, the
remote control function may not
operate properly.

[If the smart phone is moved away
from the vehicle while the smart
phone and the vehicle is connected,
Digital Key App remote control may
not operate properly.

[When using Digital Key App
remote control via Bluetooth,
communication may be slow or the
operating range may be reduced in
the following circumstances:
-Smart phone mobile data is weak
-Bluetooth connection is weak due
to many Bluetooth devices
-There is an object such as metal or
concrete between the vehicle and
smart phone
-The smart phone is wrapped in
your hand or other electronic
devices that cause interference is
placed near the smart phone

[If you use a smart phone cover that
uses wireless communication or is
made of metal, the digital key NFC
function may not work properly.
Remove the smart phone cover
before using the digital key NFC
function.

Convenient Features
5-24
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
USMHead Up Display
(HUD)Position adjustment of image, Information display
selection
Lamp Blink number of one-touch signal lamps
ClusterInformation display on the cluster, Voice volume,
Welcome sound
Seat/Mirror/
Steering wheelSeat position, O/S mirror position, Steering wheel
position, Easy Access
Smart heating wire/ventilation On/Off
Door Automatic door lock/unlock, Two Press Unlock
Smart phone
wireless chargingWireless charging On/Off
Air conditioningSetting up temperature unit, Block air inflow/
Automatic ventilation/Window defroster On/Off
Infotainment
menuNavigationPreferred volume of the navigation system
Recent destination
User preset Radio preset
Phone connectivityBluetooth preferential connection
CarPlay/Android Auto On/Off
Air conditioning Operating conditionLatest operation setup of the following functions:
Temperature (AUTO), air flow direction, air
volume, air conditioner, air intake control, SYNC,
Front windshield defroster, OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key in the vehicle after locking or unlocking the doors or
starting the vehicle with the smart key, the doors can be locked with the central
door lock. Have the digital key with you at all times.

05
5-25

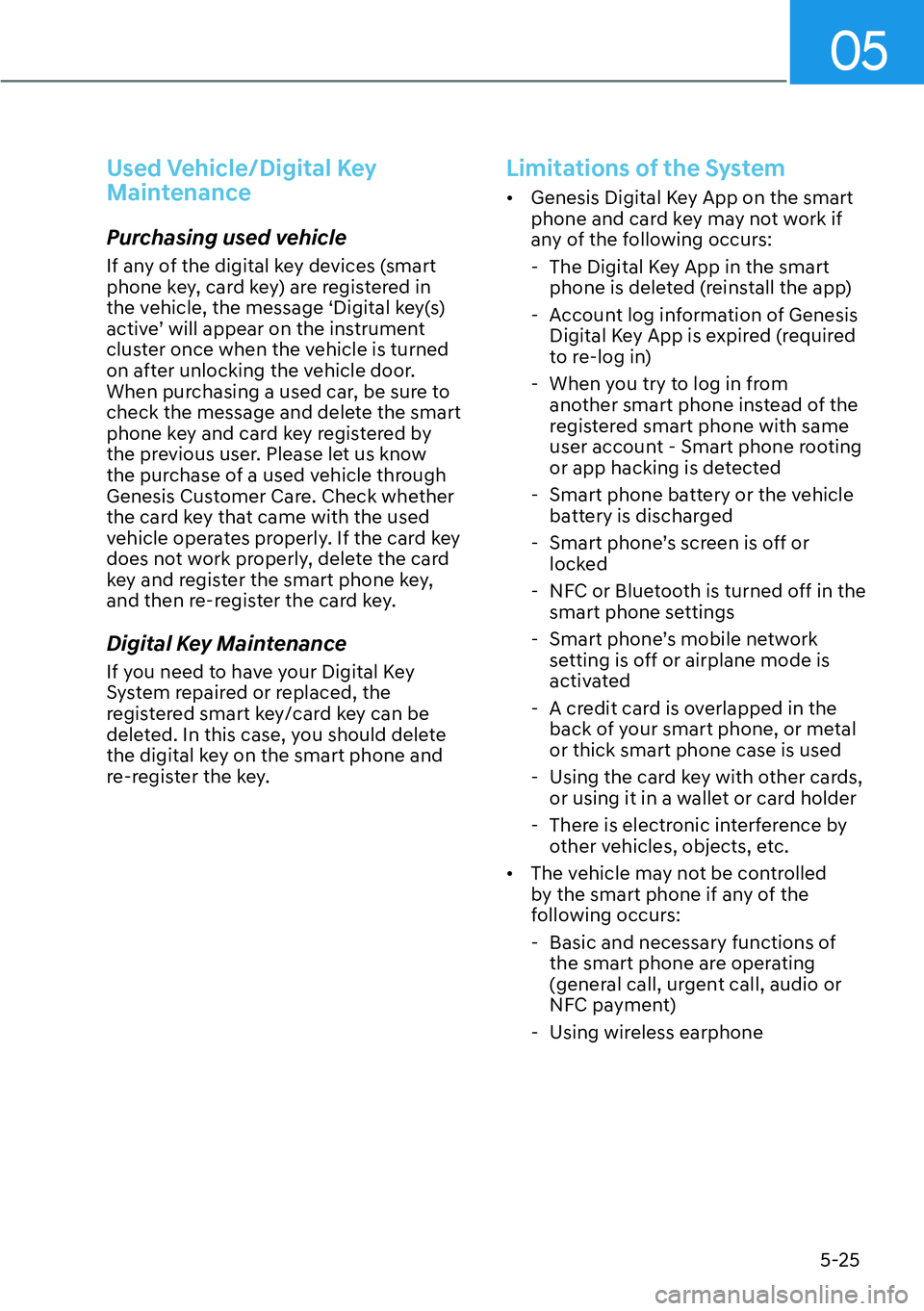

Used Vehicle/Digital Key
Maintenance
Purchasing used vehicle
If any of the digital key devices (smart
phone key, card key) are registered in
the vehicle, the message ‘Digital key(s)
active’ will appear on the instrument
cluster once when the vehicle is turned
on after unlocking the vehicle door.
When purchasing a used car, be sure to
check the message and delete the smart
phone key and card key registered by
the previous user. Please let us know
the purchase of a used vehicle through
Genesis Customer Care. Check whether
the card key that came with the used
vehicle operates properly. If the card key
does not work properly, delete the card
key and register the smart phone key,
and then re-register the card key.
Digital Key Maintenance
If you need to have your Digital Key
System repaired or replaced, the
registered smart key/card key can be
deleted. In this case, you should delete
the digital key on the smart phone and
re-register the key.
Limitations of the System

[Genesis Digital Key App on the smart
phone and card key may not work if
any of the following occurs:
- The Digital Key App in the smart
phone is deleted (reinstall the app)
- Account log information of Genesis
Digital Key App is expired (required
to re-log in)
- When you try to log in from
another smart phone instead of the
registered smart phone with same
user account - Smart phone rooting
or app hacking is detected
- Smart phone battery or the vehicle
battery is discharged
- Smart phone’s screen is off or
locked
- NFC or Bluetooth is turned off in the
smart phone settings
- Smart phone’s mobile network
setting is off or airplane mode is
activated
- A credit card is overlapped in the
back of your smart phone, or metal
or thick smart phone case is used
- Using the card key with other cards,
or using it in a wallet or card holder
- There is electronic interference by
other vehicles, objects, etc.

[The vehicle may not be controlled
by the smart phone if any of the
following occurs:
- Basic and necessary functions of
the smart phone are operating
(general call, urgent call, audio or
NFC payment)
- Using wireless earphone

05
5-119
Bluetooth® Wireless Technology
OIK050070
OIK050095N
(1) Call / Answer / Call end button
(2) Microphone
See additional information in supplied
Infotainment Manual.
CAUTION
To avoid driver distractions, do not
excessively operate the device while
driving the vehicle which may lead to
an accident.
Lexicon Premium Sound System
(if equipped)
CAUTION
Lexicon premium sound system is
equipped with door speaker grills made
of stainless steel. The grill surface can
be heated when the vehicle is exposed
to hot weather for a long period of time.
Keep away from the speaker grill when
it is hot.
