2022 HYUNDAI GENESIS G70 Owners Manual

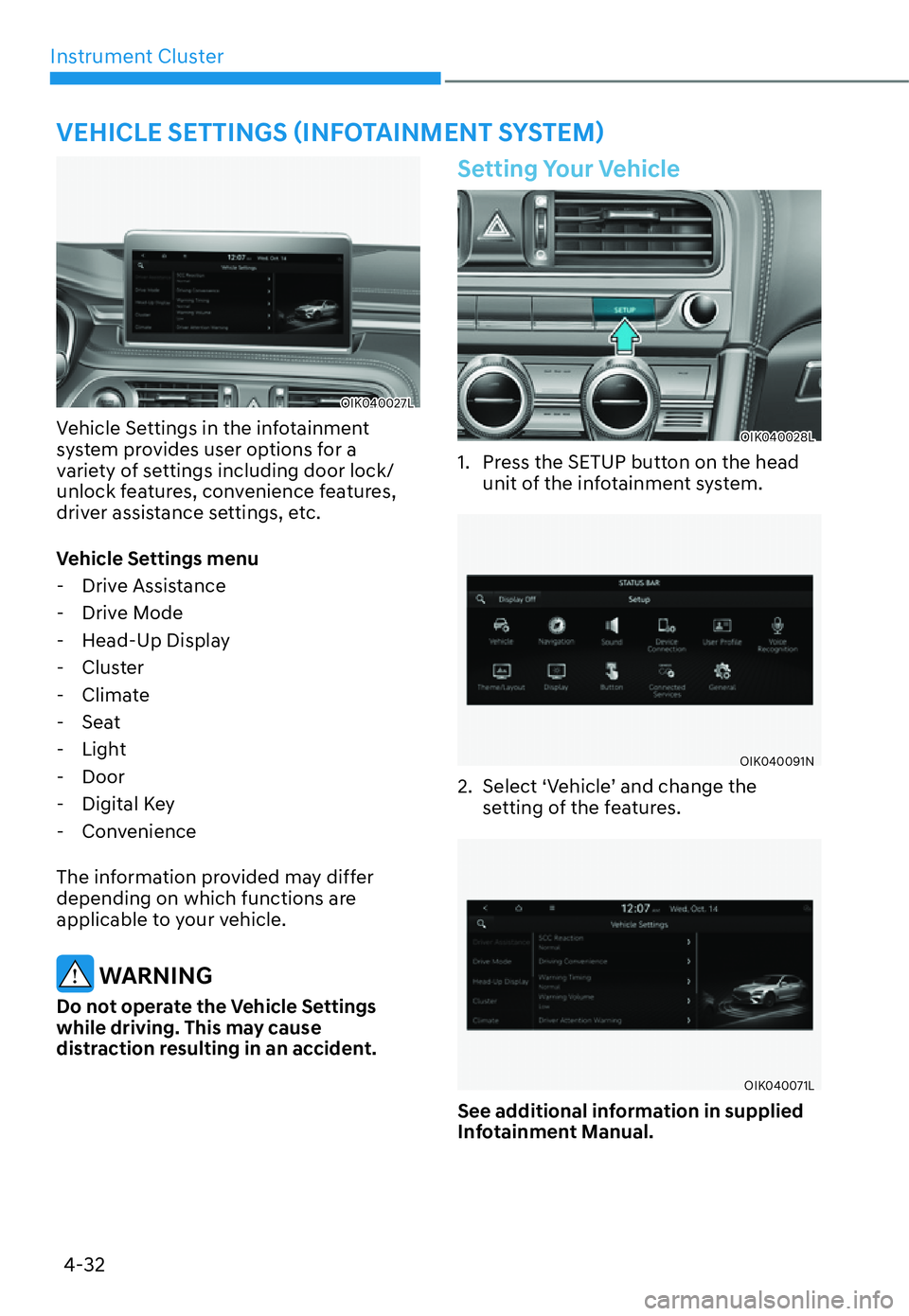

Instrument Cluster
4-32
9(+,&/(6(77,1*6

5
Accessing Your Vehicle ..................................................................................... 5-4Smart Key ......................................................................................................................5-4
Immobilizer System ....................................................................................................5-12
Genesis Digital Key ......................................................................................... 5-13Digital Key (Smart Phone) ...........................................................................................5-13
Digital Key (Card Key) ................................................................................................. 5-19
Personalized Profile and Vehicle Settings ................................................................ 5-22
Used Vehicle/Digital Key Maintenance .................................................................... 5-25
Limitations of the System .......................................................................................... 5-25
Door Lock ........................................................................................................ 5-26Operating Door Locks from Outside the Vehicle ..................................................... 5-26
Operating Door Locks from Inside the Vehicle ........................................................ 5-27
Automatic Door Lock and Unlock Features ..............................................................5-30
Child-Protector Rear Door Locks ..............................................................................5-30
Theft-Alarm System ......................................................................................... 5-31
Integrated Memory System............................................................................ 5-32
Storing Memory Positions ......................................................................................... 5-32
Recalling Memory Positions ...................................................................................... 5-33
Resetting the System ................................................................................................. 5-33
Seat Easy Access ........................................................................................................ 5-34
Steering Wheel ................................................................................................ 5-35
Electric Power Steering (EPS) .................................................................................... 5-35
Tilt/Telescopic Steering .............................................................................................5-36
Horn............................................................................................................................. 5-37
Heated Steering Wheel ..............................................................................................5-38
Mirrors ............................................................................................................. 5-39Inside Rearview Mirror ...............................................................................................5-39
Side View Mirrors ...................................................................................................... 5-49
Reverse Parking Aid ................................................................................................... 5-51
Windows .......................................................................................................... 5-53Power Windows ..........................................................................................................5-54
Remote Window Opening Function ......................................................................... 5-57
Wide sunroof ................................................................................................... 5-58Power sunblind ...........................................................................................................5-59
Tilt open/close ............................................................................................................5-59
Slide open/close ........................................................................................................ 5-60
Sunroof Open Warning ..............................................................................................5-62
5. Convenient Features

5
Exterior Features ............................................................................................. 5-63Hood ............................................................................................................................5-63
Trunk ........................................................................................................................... 5-64
Smart Trunk ............................................................................................................... 5-66
Fuel Filler Door .......................................................................................................... 5-68
Head-Up Display (HUD)................................................................................... 5-71Head-Up Display Settings .......................................................................................... 5-71
Head-Up Display Information .................................................................................... 5-71
Precautions While Using the Head-Up Display ........................................................ 5-72
Lighting .............................................................................................................5-73Exterior Lights ............................................................................................................ 5-73
Puddle Lamp ............................................................................................................... 5-77
Welcome System ........................................................................................................ 5-78
High Beam Assist (HBA) ..................................................................................5-79High Beam Assist Settings ......................................................................................... 5-79
High Beam Assist Operation ..................................................................................... 5-80
High Beam Assist Malfunction and Limitations ...................................................... 5-80
Interior Lights .................................................................................................. 5-82Interior Lamp AUTO cut .............................................................................................5-82
Front Lamps ................................................................................................................5-82
Rear Lamps .................................................................................................................5-83
Vanity Mirror Lamp .....................................................................................................5-83
Glove Box Lamp ........................................................................................................ 5-84
Foot Lamp .................................................................................................................. 5-84
Trunk Lamp ................................................................................................................ 5-84
Wipers and Washers ....................................................................................... 5-85Front Windshield Wipers ...........................................................................................5-85
Windshield Washers ................................................................................................... 5-87
Automatic climate control system ................................................................ 5-88Automatic Heating and Air Conditioning ................................................................ 5-90
Manual Heating and Air Conditioning ...................................................................... 5-91
System Operation ........................................................................................... 5-98System Maintenance ................................................................................................ 5-99
Windshield Defrosting and Defogging ......................................................... 5-101To Defog Inside Windshield ...................................................................................... 5-101
To Defrost Inside Windshield ................................................................................... 5-102
Defogging Logic ....................................................................................................... 5-102
Rear Window Defroster............................................................................................ 5-103

5
Climate Control Additional Features ............................................................5-104Auto Defogging System ........................................................................................... 5-104
Automatic Ventilation ............................................................................................. 5-105
Recirculating Air when Washer Fluid is Used ......................................................... 5-106
Sunroof Inside Air Recirculation .............................................................................. 5-106
Storage Compartment ................................................................................... 5-107Center Console Storage ............................................................................................5-107
Glove Box .................................................................................................................. 5-108
Sunglass Holder ....................................................................................................... 5-108
Interior Features .............................................................................................5-109Cup Holder ................................................................................................................ 5-109
Sunvisor ..................................................................................................................... 5-110
Power Outlet .............................................................................................................. 5-110
USB Charger ............................................................................................................... 5-111
Wireless Smart Phone Charging System ................................................................. 5-112
Clock .......................................................................................................................... 5-115
Coat Hook .................................................................................................................. 5-115
Floor Mat Anchor(s) ................................................................................................... 5-115
Luggage Net Holder .................................................................................................. 5-116
Infotainment System ...................................................................................... 5-117USB Port ..................................................................................................................... 5-117
Antenna ...................................................................................................................... 5-117
Steering Wheel Remote Controls ............................................................................. 5-118
Infotainment System ................................................................................................. 5-118
Voice Recognition ..................................................................................................... 5-118
Bluetooth® Wireless Technology .............................................................................. 5-119
Lexicon Premium Sound System ............................................................................. 5-119
5. Convenient Features

Convenient Features
5-4
Smart Key
ORG3050005
Your Genesis Branded Vehicle uses a
Smart Key, which you can use to lock or
unlock the driver/passenger doors and
open the rear trunk.
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
5. Remote start
6. Lamp on
Locking your vehicle
OIK050096
To lock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure all doors, the hood and the
trunk are closed.
2. Make sure you have the smart key in
your possession.
3. Touch the touch sensor on the door
handle (the engraved part) or press
the Door Lock button (1) on the smart
key. The hazard warning lights will
blink.
4. Make sure the doors are locked by
pulling the door handle.

[When the vehicle is locked by
using the touch sensor, the unlock
sensor of door outside handle is not
operated for around 3seconds.
Information

[The side view mirror will fold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
-6HWXS
:9HKLFOH6HWWLQJV
:
&RQYHQLHQFH
::HOFRPH0LUURU
/LJKW
:(QDEOHRQ'RRU8QORFN

[The door handle touch sensor will only
operate when the smart key is within
28~40 in. (0.7~1 m) from the outside
door handle.

[Touching the door handle touch sensor
does not unlock the doors. To unlock
the doors, refer to the following page.
ACCESSING YOUR VEHICLE

05
5-5
Note that you cannot lock your vehicle
using the door handle touch sensor if any
of the following occurs:

[The Smart Key is in the vehicle.

[The Engine Start/Stop button is in
ACC or ON position.

[Any of the doors are open except for
the trunk.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/ Stop button and may
operate power windows, lock the doors
or other controls, or even make the
vehicle move, which could result in
serious injury or death.
Unlocking your vehicle
(When the Two Press Unlock feature
is off)
OIK030097
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Put your hand in the door handle or
press the Door Unlock button (2) on
the smart key. All doors will unlock
and the hazard warning lights will
blink two times and the chime will
sound.
3. After unlocking the doors, the doors
will automatically relock after 30
seconds unless a door is opened.

[When the vehicle is unlocked by using
the touch sensor, the lock sensor of
door outside handle is not operated
for around 2seconds.

Convenient Features
5-6
Unlocking your vehicle
(When the Two Press Unlock feature
is on)
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Put your hand in the door handle or
press the Door Unlock button (2) on
the smart key.
3. The driver’s door will unlock.
4. If you touch the door unlock sensor
inside of the front door handle to
unlock the doors within 4 seconds, all
of the doors unlock. When the doors
unlock, the hazard warning lights will
blink two times and the chime will
sound.
5. After unlocking the doors, the doors
will automatically relock after 30
seconds unless a door is opened.

[The factory default setting is in
off mode so you should set in the
Settings menu in the infotainment
system screen.

[When the vehicle is unlocked by using
the touch sensor, the lock sensor of
door outside handle is not operated
for around 2 seconds.Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with one
press may be adjusted in the Settings
menu in the infotainment system screen.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
6HWXS

05
5-7
Information

[The side view mirror will unfold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
-6HWXS
:9HKLFOH6HWWLQJV
:
&RQYHQLHQFH
::HOFRPH0LUURU
/LJKW
:(QDEOHRQ'RRU8QORFN

[The door handle touch sensor will only
operate when the smart key is within
28~40 in. (0.7 ~1 m) from the outside
door handle

[The doors may lock or unlock if the
touch sensor of the outer door handle is
recognized while washing your car or
due to heavy rain.

[To prevent unintentional door lock or
unlock:
You may prevent the doors from
locking or unlocking unintentionally.
Press the lock button on the smart
key and immediately press the unlock
button along with the lock button
for more than 4 seconds. The hazard
warning lights will blink four times.
At this time, the doors will not lock or
unlock even though the touch sensor is
touched on the outside door handle.
To deactivate the function, press the
door lock or unlock button on the
smart key.

[The doors may not lock or unlock in
the following situations.
-If the touch sensor is touched with
gloves on
-If the door is suddenly approached
Opening the trunk
OIK050001
To open the trunk:
1. Make sure you have the smart key in
your possession.
2. Press either the trunk open button
on the vehicle or press and hold the
Trunk Unlock button (3) on the smart
key for more than one second. The
hazard warning lights will blink two
times and the trunk will open.
Information
The trunk open button will only operate
when the smart key is within
28 in. (0.7 m) from the trunk.
Panic button
Press and hold the Panic button (4) for
more than one second. The horn sounds
and hazard warning lights blink for about
30 seconds. To cancel the panic mode,
press any button on the Smart Key.
