Convenient Features
5-4
Smart Key
ORG3050005
Your Genesis Branded Vehicle uses a
Smart Key, which you can use to lock or
unlock the driver/passenger doors and
open the rear trunk.
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
5. Remote start
6. Lamp on
Locking your vehicle
OIK050096
To lock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure all doors, the hood and the
trunk are closed.
2. Make sure you have the smart key in
your possession.
3. Touch the touch sensor on the door
handle (the engraved part) or press
the Door Lock button (1) on the smart
key. The hazard warning lights will
blink.
4. Make sure the doors are locked by
pulling the door handle.

[When the vehicle is locked by
using the touch sensor, the unlock
sensor of door outside handle is not
operated for around 3seconds.
Information

[The side view mirror will fold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
-6HWXS
:9HKLFOH6HWWLQJV
:
&RQYHQLHQFH
::HOFRPH0LUURU
/LJKW
:(QDEOHRQ'RRU8QORFN

[The door handle touch sensor will only
operate when the smart key is within
28~40 in. (0.7~1 m) from the outside
door handle.

[Touching the door handle touch sensor
does not unlock the doors. To unlock
the doors, refer to the following page.
ACCESSING YOUR VEHICLE

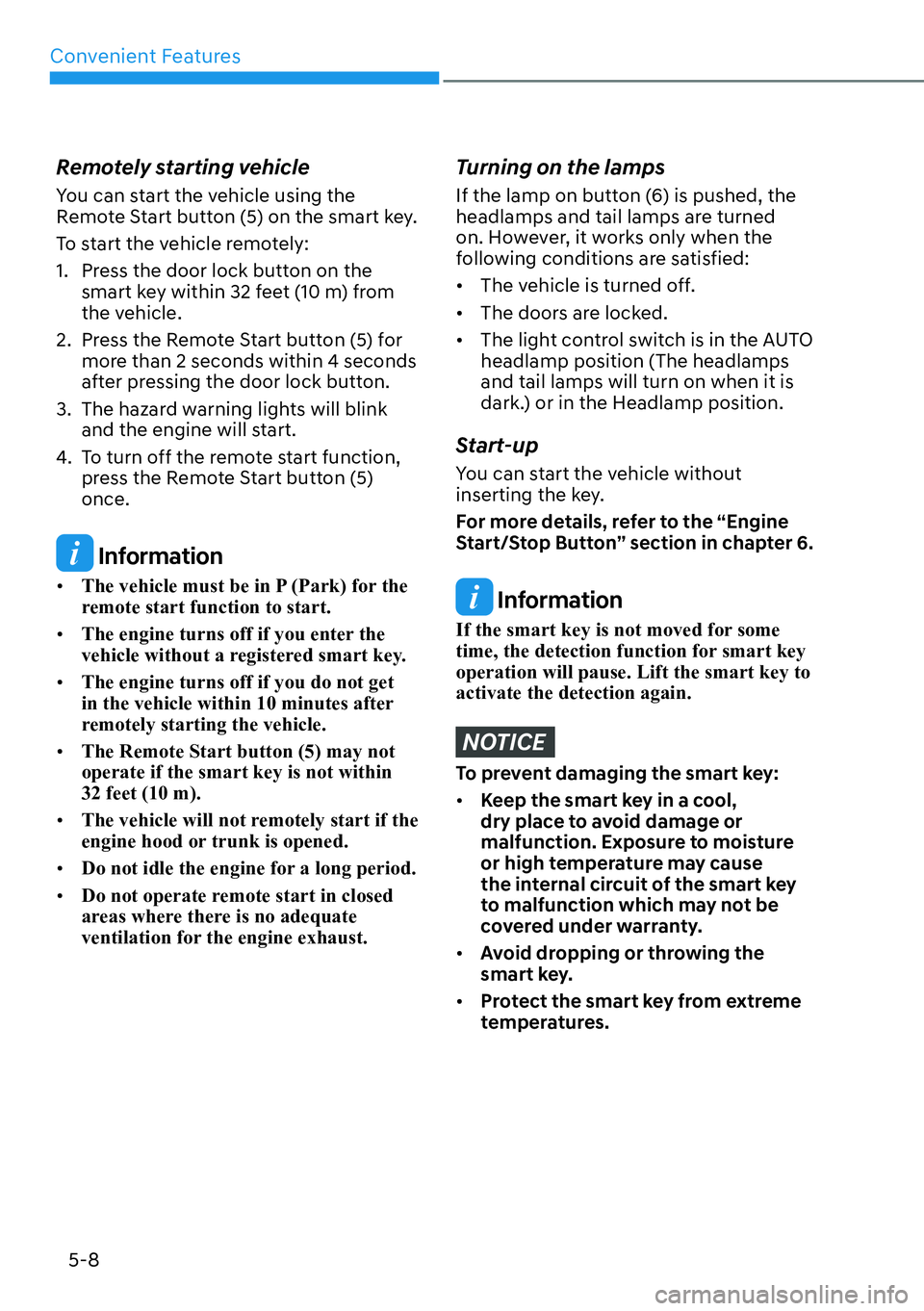

Convenient Features
5-8
Remotely starting vehicle
You can start the vehicle using the
Remote Start button (5) on the smart key.
To start the vehicle remotely:
1. Press the door lock button on the
smart key within 32 feet (10 m) from
the vehicle.
2. Press the Remote Start button (5) for
more than 2 seconds within 4 seconds
after pressing the door lock button.
3. The hazard warning lights will blink
and the engine will start.
4. To turn off the remote start function,
press the Remote Start button (5)
once.
Information

[The vehicle must be in P (Park) for the
remote start function to start.

[The engine turns off if you enter the
vehicle without a registered smart key.

[The engine turns off if you do not get
in the vehicle within 10 minutes after
remotely starting the vehicle.

[The Remote Start button (5) may not
operate if the smart key is not within
32 feet (10 m).

[The vehicle will not remotely start if the
engine hood or trunk is opened.

[Do not idle the engine for a long period.

[Do not operate remote start in closed
areas where there is no adequate
ventilation for the engine exhaust.
Turning on the lamps
If the lamp on button (6) is pushed, the
headlamps and tail lamps are turned
on. However, it works only when the
following conditions are satisfied:

[The vehicle is turned off.

[The doors are locked.

[The light control switch is in the AUTO
headlamp position (The headlamps
and tail lamps will turn on when it is
dark.) or in the Headlamp position.
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[Avoid dropping or throwing the
smart key.

[Protect the smart key from extreme
temperatures.

Convenient Features
5-16
Information

[After the battery has been reconnected
or the battery has been recharged, it
will take time for the digital key (smart
phone) to operate due to remote security
XSGDWH:KHQORFNLQJRUXQORFNLQJWKH
door with the smart phone NFC antenna,
touch and hold the smart phone on the
door handle until the door(s) is locked or
unlocked.

[If the mobile data connection of the
smart phone is weak, remote security
information update may fail. At this
time, use the card key to lock or unlock
WKHGRRUVRUVWDUWWKHHQJLQH:KHQ
you are in a place where the mobile
data connection of your smart phone is
available, place your smart phone on the
in-vehicle authentication pad (wireless
charger pad) and start your vehicle, or
touch the digital key on the door handle
to lock or unlock the door, the remote
security information will be automatically
updated. Even though the engine is not
started, wait until the remote security
information is updated and the in-vehicle
authentication pad (wireless charging
pad) changes to charging mode.
WARNING
The engine can be started when the
registered smart phone is placed on the
in-vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
smart phone with you to prevent
vehicle theft when leaving the vehicle.
Digital key App remote control
Various control functions such as Door
Lock/Unlock, Remote Start, Panic and
Trunk Open/Close are available using the
Digital Key App. To use the Digital Key App
functions, the smart phone’s Bluetooth must
be activated, and must be approximately
within 32 ft. (10 m) from the vehicle.

[Connecting Digital Key App with the
vehicle
1. Open the Genesis Digital Key App in
the smart phone. Select the vehicle
you want to control from the vehicle
list in the App.
2. Approach the vehicle with the Genesis
Digital Key App opened. The Digital
Key App will automatically connect
with the vehicle.
3. When the connection is complete,
the icons in the Digital Key App will
become active.

[Controlling the vehicle with Digital
Key App
OIK050111
Press the icons to remotely control the
vehicle.
1. Lock Doors
2. Unlock Doors
3. Panic On
4. Panic Off
5. Remote Engine On
6. Remote Engine Off
7. Open Trunk

05
5-17
The icon will be highlighted or an alarm
and vibration will also be provided when
the selected icon function is being
performed.
After the Digital Key App and vehicle are
connected, if Digital Key App remote
control is not used over 5 minutes, the
connection between the app and vehicle
will disconnect automatically.
Note that you cannot lock your vehicle
using Genesis Digital Key APP if any of
the following occurs:
- The Engine Start/Stop button is in the
ACC or ON position
- Door(s) is open

[Remotely starting vehicle with the
Digital Key App
1. Press the Door Lock button in Genesis
Digital Key App.
2. Press the Remote Engine On icon
within 4 seconds.
3. The hazard warning lights will blink
and the engine will start.
- Unless the driver puts the
registered digital key (smart phone)
on the in-vehicle authentication
pad (wireless charging pad) when
the Remote Start function is on, the
engine will turn off.
- If the driver does not get in the
vehicle within 10 minutes after
the engine is remotely started, the
engine will turn off.
CAUTION

[If the vehicle windows are tinted
with a film containing metallic
substances, it may cause poor
Bluetooth connection and poor
performance of the Digital Key App.
[If multiple users use the digital key
at the same time, the functions of
the Digital Key App may not work
properly. Only the necessary user
should operate the Digital Key App
remote control.

[When using the Digital Key App
remote control, the driver (the
remote control user) should leave
the vehicle after checking that the
doors are locked. When the doors are
locked, the chime will sound and the
hazard warning lights will blink once.

[The remote functions of the Digital
Key App enables the vehicle to be
controlled when the user is within
operating range. If the digital key
is out of the operating range, the
remote control function may not
operate properly.

[If the smart phone is moved away
from the vehicle while the smart
phone and the vehicle is connected,
Digital Key App remote control may
not operate properly.

[When using Digital Key App
remote control via Bluetooth,
communication may be slow or the
operating range may be reduced in
the following circumstances:
-Smart phone mobile data is weak
-Bluetooth connection is weak due
to many Bluetooth devices
-There is an object such as metal or
concrete between the vehicle and
smart phone
-The smart phone is wrapped in
your hand or other electronic
devices that cause interference is
placed near the smart phone

[If you use a smart phone cover that
uses wireless communication or is
made of metal, the digital key NFC
function may not work properly.
Remove the smart phone cover
before using the digital key NFC
function.

05
5-23
Information

[Use profile cannot be linked to
both Driver 1 and Driver 2 that are
connected to a single smart phone.
Personalization will operate with the
recently linked user profile, and the
previously linked user profile will be
automatically canceled.

[User profile can be linked when digital
NH\LVHQDEOHG6HWXS
:9HKLFOH
:
'LJLWDO.H\
:(QDEOH'LJLWDO.H\
The linked user profile information is
maintained even when the digital key
function is disabled. User profile can be
linked to a smart phone with the Digital
Key App installed.

[User profile can be linked when a
digital key is registered on the smart
phone and the vehicle. The smart
phone with another vehicle’s digital key
cannot be linked.

[If you remove the smart phone from the
in-vehicle authentication pad (wireless
charging pad) before completing the
user profile link, the linking process
will not be completed normally.

[To unlink the user profile, the smart
phone does not need to be on the in-
vehicle authentication pad (wireless
charging pad).

[Once the user profile linked digital
key in the smart phone is deleted, the
digital key should be re-registered and
personalized by linking the user profile
again.
Vehicle personalization operation
The personalization function linked with
digital key works under the following
conditions:

[Touch the driver’s door handle with
the profile linked smart phone to lock
or unlock the doors (Personalization
does not operate when locking or
unlocking the front passenger door.).

[When the remote door unlock with
the profile linked smart phone digital
key app works, the user profile linked
with digital key can be changed
manually from the infotainment
system settings.
Information
User profile operation according to door
ORFNXQORFNV\VWHPLVDVIROORZV
ItemPersonalization
operation
Initial value Guest
Profile linked smart
phone keyLinked profile
Profile unlinked
smart phone key
Recently activated
profile NFC card key
Smart key

[The personalization function using
the digital key can be operated
after linking the digital key in the
infotainment system profile menu.

[The personalization function works
only when the engine is OFF or when
the engine is started remotely. If
the engine is not started remotely,
personalization function does not
work with the digital key.

6
Before Driving ................................................................................................... 6-4Before Entering the Vehicle ........................................................................................ 6-4
Before Starting ............................................................................................................ 6-4
Engine Start/Stop Button ................................................................................. 6-5Engine Stop/Start Button Positions ........................................................................... 6-6
Starting the Engine ...................................................................................................... 6-7
Turning Off the Engine ................................................................................................ 6-8
Remote Start ................................................................................................................ 6-8
Automatic transmission ................................................................................... 6-9Automatic Transmission Operation ............................................................................ 6-9
Paddle Shifter (Manual shift mode) .......................................................................... 6-14
LCD Display Messages ............................................................................................... 6-15
Good Driving Practices .............................................................................................. 6-18
Braking System ............................................................................................... 6-20Power-Assist Brakes .................................................................................................. 6-20
High Performance Brake............................................................................................ 6-21
Disc Brakes Wear Indicator........................................................................................ 6-21
Electronic Parking Brake (EPB) .................................................................................. 6-22
Auto Hold ....................................................................................................................6-26
Anti-Lock Brake System (ABS) .................................................................................. 6-30
Electronic Stability Control (ESC) ............................................................................. 6-31
Vehicle Stability Management (VSM) .......................................................................6-34
Hill-Start Assist Control (HAC) ...................................................................................6-35
Good Braking Practices .............................................................................................6-35
All Wheel Drive (AWD) .................................................................................... 6-36For Safe AWD Operation ............................................................................................ 6-37
Emergency Precautions ............................................................................................ 6-38
Limited Slip Differential ..................................................................................6-40
Electronic Control Suspension .......................................................................6-40
System Malfunction .................................................................................................. 6-40
Launch Control .................................................................................................6-41Prerequisite for Activation ......................................................................................... 6-41
Launch Control Activation ......................................................................................... 6-41
Limited Use of Launch Control ................................................................................. 6-42
Coasting .......................................................................................................... 6-43Coasting Setting ........................................................................................................ 6-43
Coasting Operating Conditions ................................................................................ 6-43
Coasting Release Conditions ................................................................................... 6-44
6. Driving Your Vehicle

Driving Your Vehicle
6-8
Turning Off the Engine
1. Stop the vehicle and depress the
brake pedal fully.
2. Press the P button to shift to P (Park).
3. Press the Engine Start/Stop button
to the OFF position and apply the
parking brake.
Remote Start
OIK060074N
You can start the vehicle using the
Remote Start button of the smart key.
To start the vehicle remotely:
1. Press the door lock button within 32
feet (10 m) from the vehicle.
2. Press the remote start (
) button for
over 2 seconds within 4 seconds after
locking the doors. The hazard warning
lights will blink.
3. To turn off the remote start function,
press the remote start (
) button
once.

[The remote start (
) button may not
operate if the smart key is not within
32 feet (10 m).

[The vehicle will not remotely start if
the engine hood or trunk is opened.

[The vehicle must be in P (Park) for the
remote start function to start.

[The engine turns off if you get in the
vehicle without a registered smart key.

[The engine turns off if you do not get
in the vehicle within 10 minutes after
remotely starting the vehicle.

[Do not idle the engine for a long
period.

08
8-11
TPMS (Tire Pressure
Monitoring System)
Malfunction Indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System.
Have the system checked by an
authorized retailer of Genesis Branded
products as soon as possible.
NOTICE
If there is a malfunction with the TPMS,
the Low Tire Pressure Position Telltale
will not be displayed even though the
vehicle has an under-inflated tire.
NOTICE
The TPMS Malfunction Indicator may
illuminate after blinking for one minute
if the vehicle is near electric power
supply cables or radio transmitters
such as police stations, government
and public offices, broadcasting
stations, military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow chains
are used or electronic devices such as
computers, chargers, remote starters,
navigation, etc. This may interfere with
normal operation of the TPMS.
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will come
on. Have the flat tire repaired by an
authorized retailer of Genesis Branded
products as soon as possible or replace
the flat tire with the spare tire.
NOTICE
It is recommended that you do not use a
puncture-repairing agent not approved
by an authorized retailer of Genesis
Branded products to repair and/or
inflate a low pressure tire. Tire sealant
not approved by an authorized retailer
of Genesis Branded products may
damage the tire pressure sensor.
The spare tire does not come with a
tire pressure monitoring sensor. When
the low pressure tire or the flat tire is
replaced with the spare tire, the Low
Tire Pressure LCD position indicator will
remain on. Also, the TPMS Malfunction
Indicator will illuminate after blinking
for one minute if the vehicle is driven
at speed above 15.5 mph (25 km/h) for
approximately 20 minutes.
Once the original wheel equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the
Low Tire Pressure Telltale and TPMS
Malfunction Indicator will go off within a
few minutes of driving.
