2016 HONDA CIVIC COUPE Owners Manual

296
uuCustomized Featuresu
Features

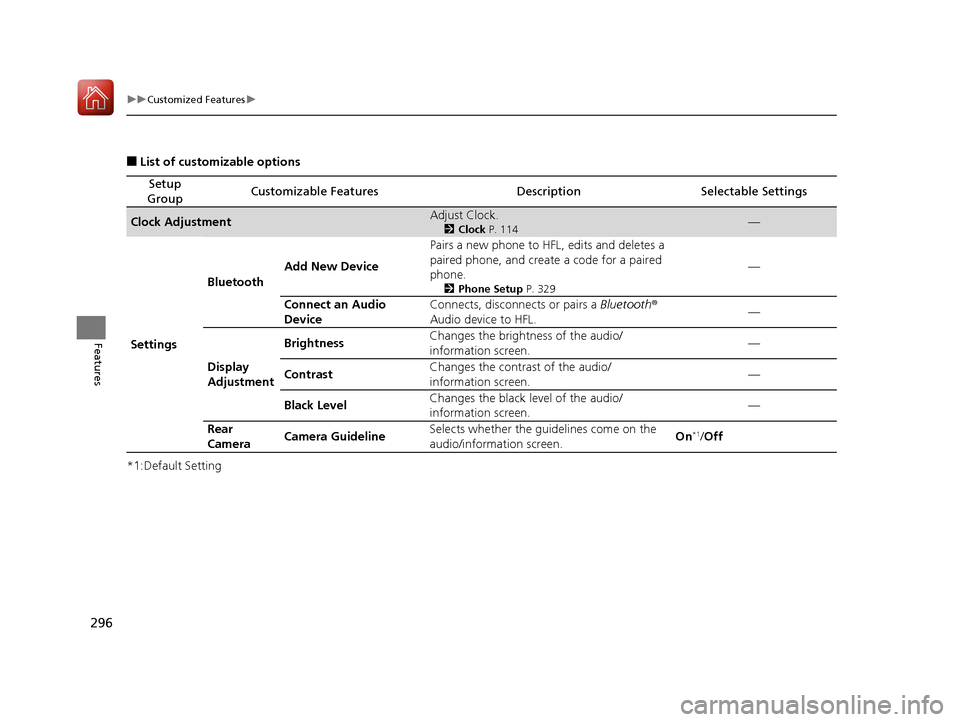

■List of customizable options
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Clock AdjustmentAdjust Clock. 2Clock P. 114—
Settings Bluetooth
Add New Device Pairs a new phone to HFL, edits and deletes a
paired phone, and create a code for a paired
phone.
2Phone Setup P. 329 —
Connect an Audio
Device Connects, disconnects or pairs a
Bluetooth®
Audio device to HFL. —
Display
Adjustment Brightness
Changes the brightness of the audio/
information screen.
—
Contrast Changes the contrast of the audio/
information screen. —
Black Level Changes the black level of the audio/
information screen. —
Rear
Camera Camera Guideline Selects whether the guidelines come on the
audio/information screen.
On
*1
/Off
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 296 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

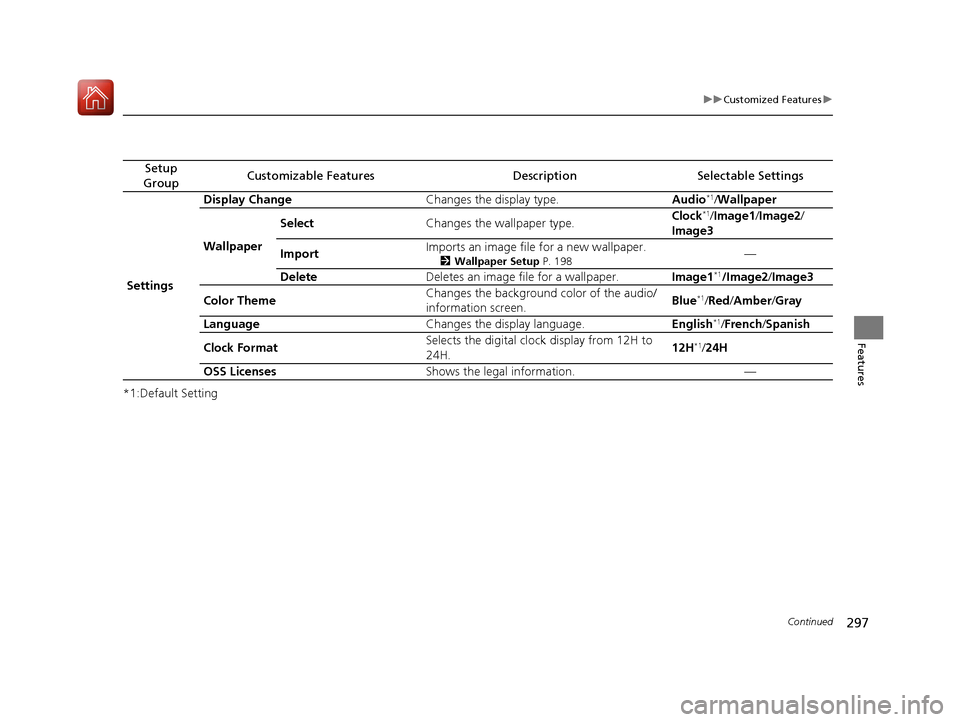

297
uuCustomized Featuresu
Continued
Features
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Settings Display Change
Changes the display type. Audio*1
/Wallpaper
Wallpaper Select
Changes the wallpaper type. Clock
*1
/Image1 /Image2 /
Import Imports an image file for a new wallpaper.
2Wallpaper Setup P. 198 —
Delete Deletes an image file for a wallpaper. Image1*1
/Image2 /Image3
Color Theme Changes the background color of the audio/
information screen.
Blue
*1
/Red /Amber /Gray
Language Changes the display language. English*1
/French /Spanish
Clock Format Selects the digital clock display from 12H to
24H.
12H
*1
/24H
OSS Licenses Shows the legal information. —
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 297 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

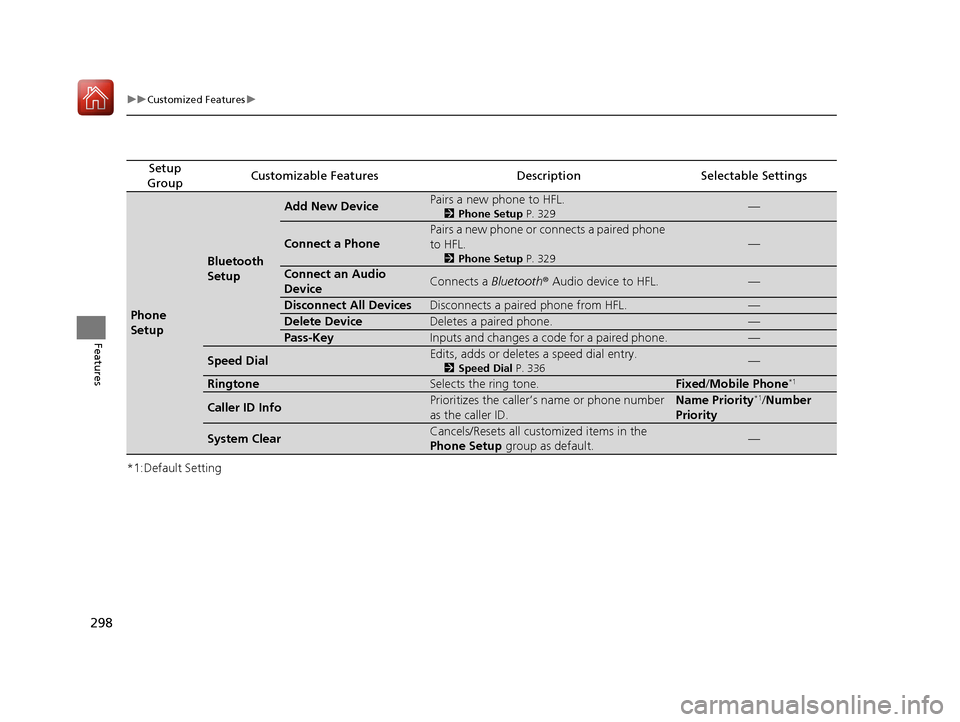

298
uuCustomized Featuresu
Features
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Phone
Setup
Bluetooth Setup
Add New DevicePairs a new phone to HFL. 2Phone Setup P. 329—
Connect a Phone
Pairs a new phone or connects a paired phone to HFL.
2Phone Setup P. 329
—
Connect an Audio
DeviceConnects a Bluetooth® Audio device to HFL.—
Disconnect All DevicesDisconnects a paired phone from HFL.—
Delete DeviceDeletes a paired phone.—
Pass-KeyInputs and changes a code for a paired phone.—
Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 336—
RingtoneSelects the ring tone.Fixed/Mobile Phone *1
Caller ID InfoPrioritizes the caller’s name or phone number
as the caller ID.Name Priority*1
/Number
Priority
System ClearCancels/Resets all customized items in the
Phone Setup group as default.—
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 298 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued299
uuCustomized Featuresu
Features

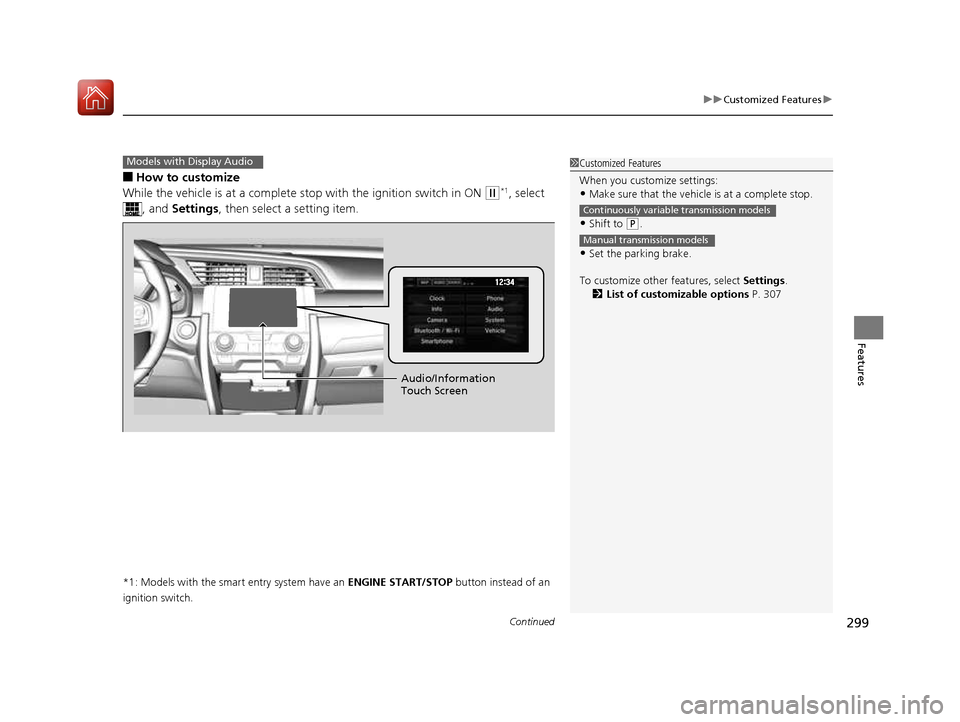

■How to customize
While the vehicle is at a complete st op with the ignition switch in ON
(w*1
, select
, and Settings , then select a setting item.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with Display Audio1Customized Features
When you customize settings: • Make sure that the vehicle is at a complete stop.
• Shift to
(P .
• Set the parking brake.
To customize other features, select Settings.
2 List of customizable options P. 307
Continuously variable transmission models
Manual transmission models
Audio/Information
Touch Screen
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 299 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

300
uuCustomized Featuresu
Features

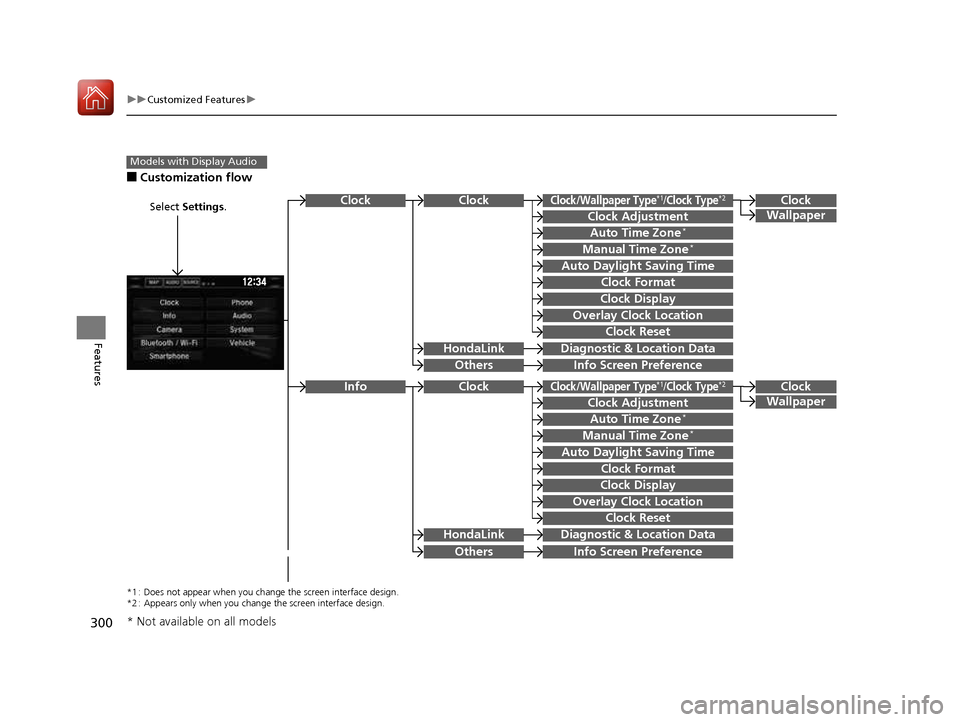

■Customization flow
Models with Display Audio
Select Settings .Clock
Wallpaper
Others
Clock/Wallpaper Type*1/Clock Type*2
Clock Adjustment
Clock Format
ClockClock
Auto Time Zone *
Manual Time Zone *
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info Screen Preference
Clock
Wallpaper
Others
Clock/Wallpaper Type*1/Clock Type*2
Clock Adjustment
Clock Format
Clock
Auto Time Zone*
Manual Time Zone *
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info Screen Preference
Info
HondaLinkDiagnostic &
Location Data
HondaLinkDiagnostic & Location Data
*1 : Does not appear when you chang e the screen interface design.
*2 : Appears only when you change the screen interface design.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 300 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

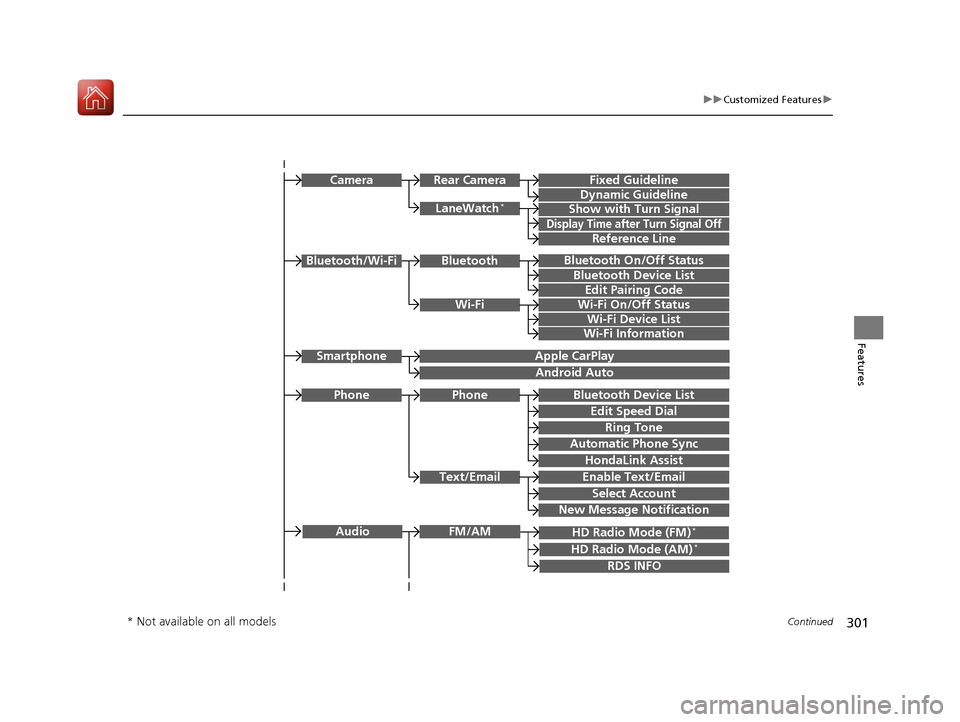

301
uuCustomized Featuresu
Continued
Features
Bluetooth On/Off Status
Bluetooth Device List
Edit Pairing Code
Wi-Fi On/Off Status
Wi-Fi Device List
Wi-Fi
BluetoothBluetooth/Wi-Fi
Wi-Fi Information
Text/Email
Bluetooth Device List
Edit Speed Dial
Ring Tone
Phone
Automatic Phone Sync
HondaLink Assist
Enable Text/Email
Select Account
New Message Notification
Phone
LaneWatch*
Fixed Guideline
Dynamic Guideline
Show with Turn Signal
Rear CameraCamera
Display Time after Turn Signal Off
Reference Line
HD Radio Mode (FM) *
RDS INFO
AudioFM/AM
HD Radio Mode (AM) *
Apple CarPlay
Android Auto
Smartphone
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 301 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

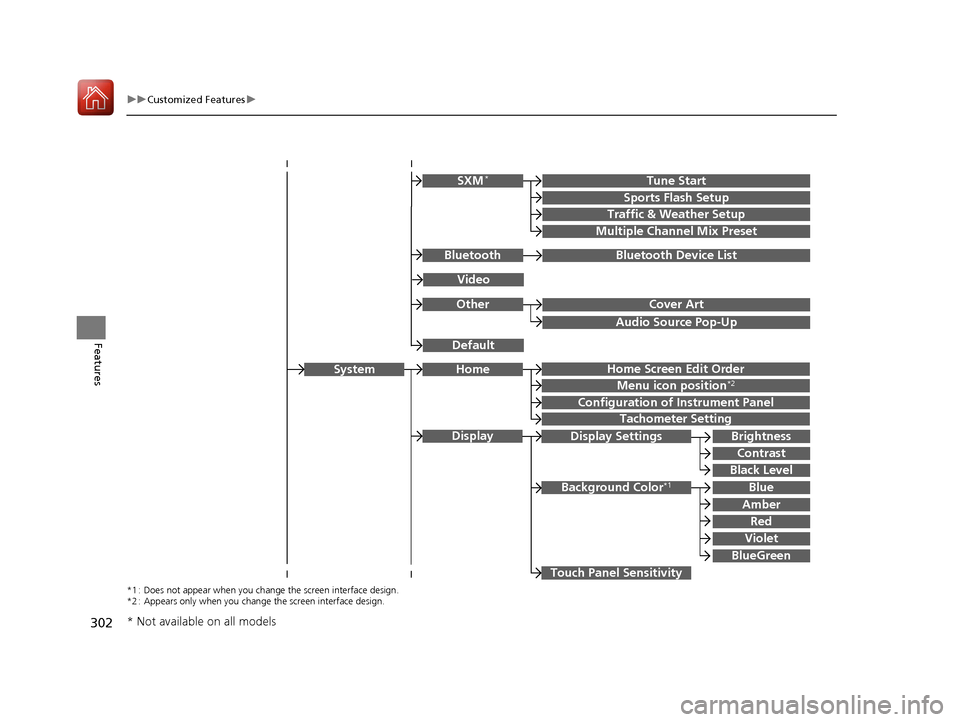

302
uuCustomized Featuresu
Features
Audio Source Pop-Up
Cover Art
Tune Start
Sports Flash Setup
Traffic & Weather Setup
Other
SXM*
Default
Bluetooth Device ListBluetooth
Video
Multiple Channel Mix Preset
Home Screen Edit Order
Configuration of Instrument Panel
Tachometer Setting
Display Settings
Background Color *1
Display
System
Touch Panel Sensitivity
Brightness
Contrast
Black Level
Blue
Amber
Red
Violet
BlueGreen
Home
Menu icon position *2
*1 : Does not appear when you chang
e the screen interface design.
*2 : Appears only when you change the screen interface design.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 302 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

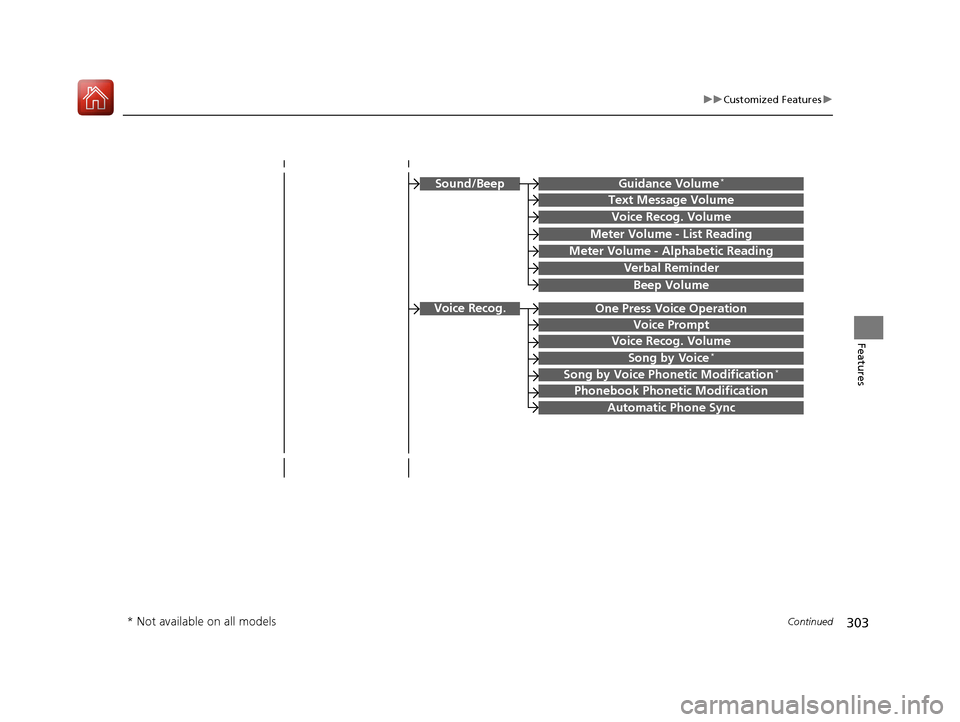

303
uuCustomized Featuresu
Continued
Features
Guidance Volume*
Text Message Volume
Sound/Beep
Voice Recog. Volume
Verbal Reminder
Beep Volume
Meter Volume - List Reading
Meter Volume - Alphabetic Reading
Voice Prompt
Voice Recog. Volume
Song by Voice*
Song by Voice Phonetic Modification *
Phonebook Phonet
ic Modification
Automatic Phone Sync
One Press Voice OperationVoice Recog.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 303 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
