2016 HONDA CIVIC COUPE Owners Manual

168
Controls
Interior Lights/Interior Convenience Items

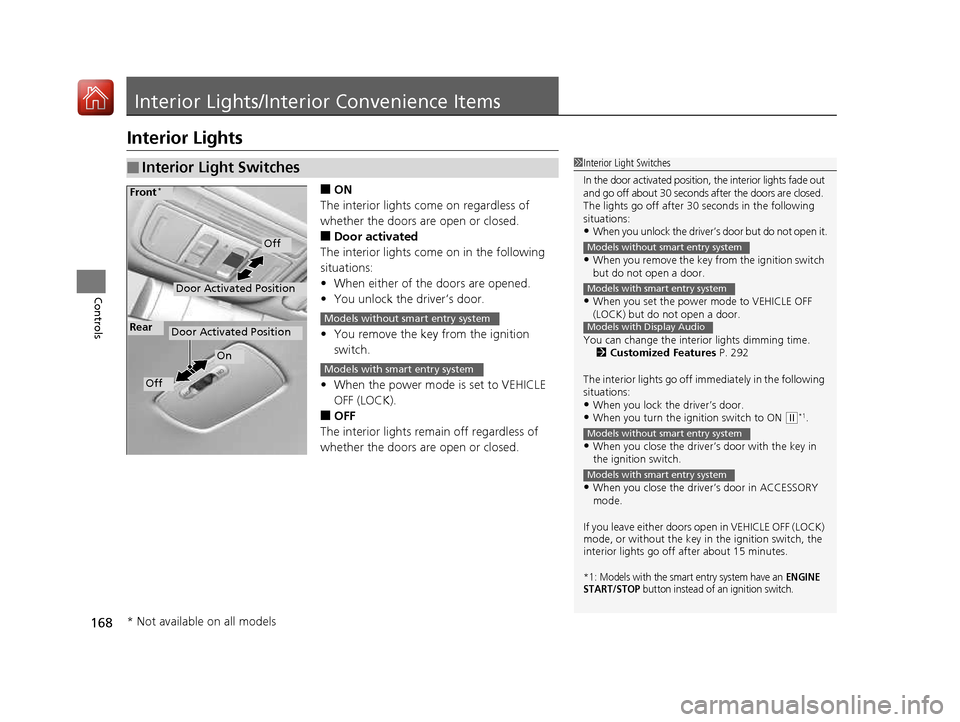

Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed. ■ Door activated
The interior lights come on in the following
situations: • When either of the doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition switch.
• When the power mode is set to VEHICLE OFF (LOCK).
■ OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
• When you unlock the driver’s door but do not open it.
• When you remove the key from the ignition switch
but do not open a door.
• When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 292
The interior lights go off i mmediately in the following
situations:
• When you lock the driver’s door.
• When you turn the ignition switch to ON
(w *1
.
• When you close the driver’s door with the key in
the ignition switch.
• When you close the driver’s door in ACCESSORY mode.
If you leave either doors open in VEHICLE OFF (LOCK) mode, or without the key in the ignition switch, the
interior lights go off after about 15 minutes.
*1: Models with the smart entry system have an ENGINE
START/STOP button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models with Display Audio
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Front *
Door Activated Position
On
Off
RearModels without smart entry system
Models with smart entry system
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 168 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

169
uuInterior Lights/Interior Convenience ItemsuInterior Lights
Controls

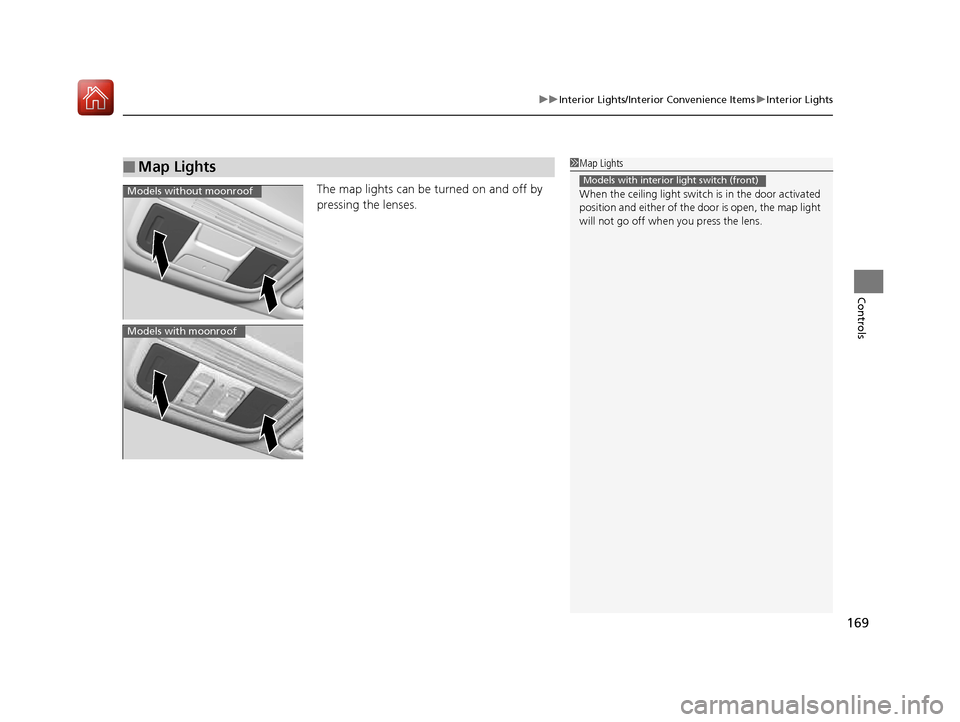

The map lights can be turned on and off by
pressing the lenses.
■Map Lights1Map Lights
When the ceiling light switch is in the door activated
position and either of the door is open, the map light
will not go off when you press the lens.
Models with interior light switch (front)Models without moonroof
Models with moonroof
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 169 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

170
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls

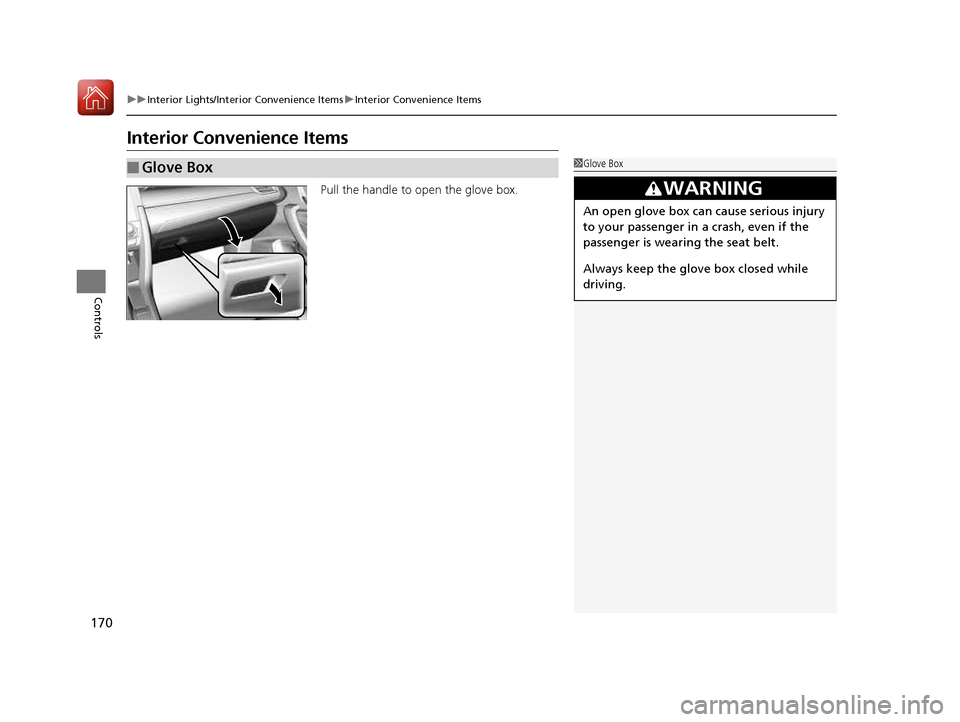

Interior Convenience ItemsPull the handle to open the glove box.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 170 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

171
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Continued
Controls

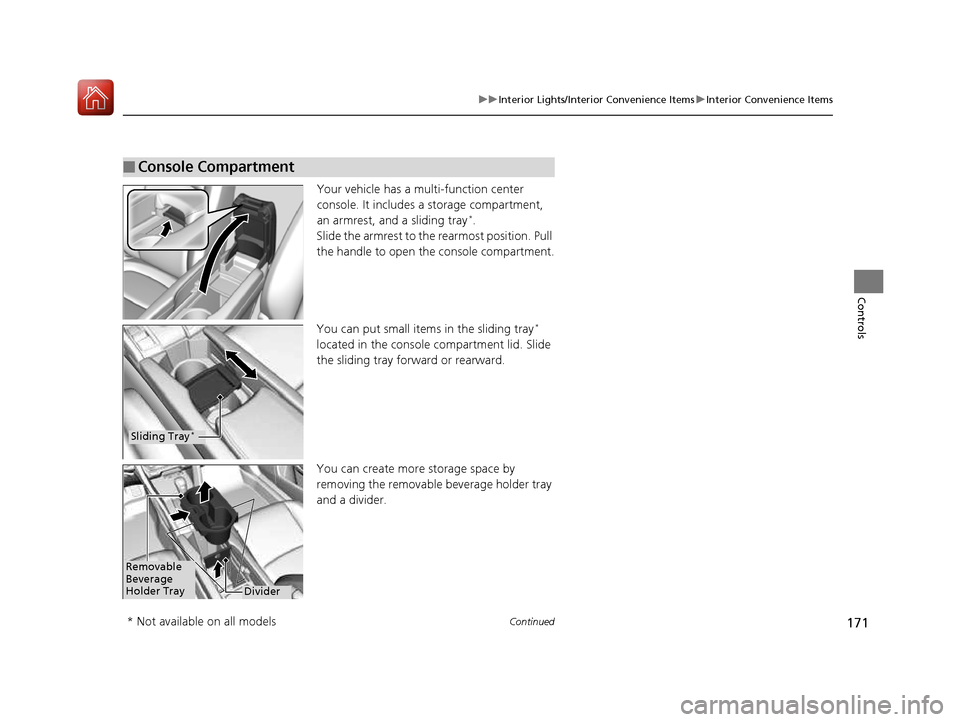

Your vehicle has a multi-function center
console. It includes a storage compartment,
an armrest, and a sliding tray*
.
Slide the armrest to the rearmost position. Pull
the handle to open the console compartment.
You can put small items in the sliding tray *

located in the console compartment lid. Slide
the sliding tray forward or rearward.
You can create more storage space by
removing the removable beverage holder tray
and a divider.
■Console Compartment
Sliding Tray *
Removable
Beverage
Holder Tray
Divider
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 171 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
172
Controls

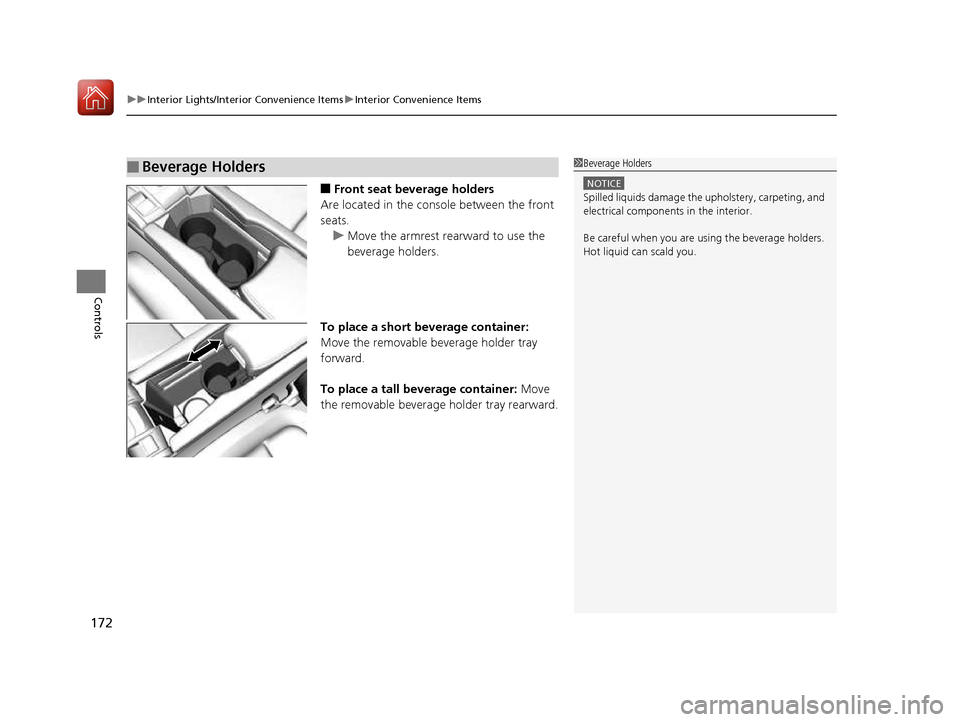

■ Front seat beverage holders
Are located in the console between the front seats.
uMove the armrest rearward to use the
beverage holders.
To place a short beverage container:
Move the removable beverage holder tray forward.
To place a tall beverage container: Move
the removable beverage holder tray rearward.
■Beverage Holders1Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 172 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

173
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Continued
Controls

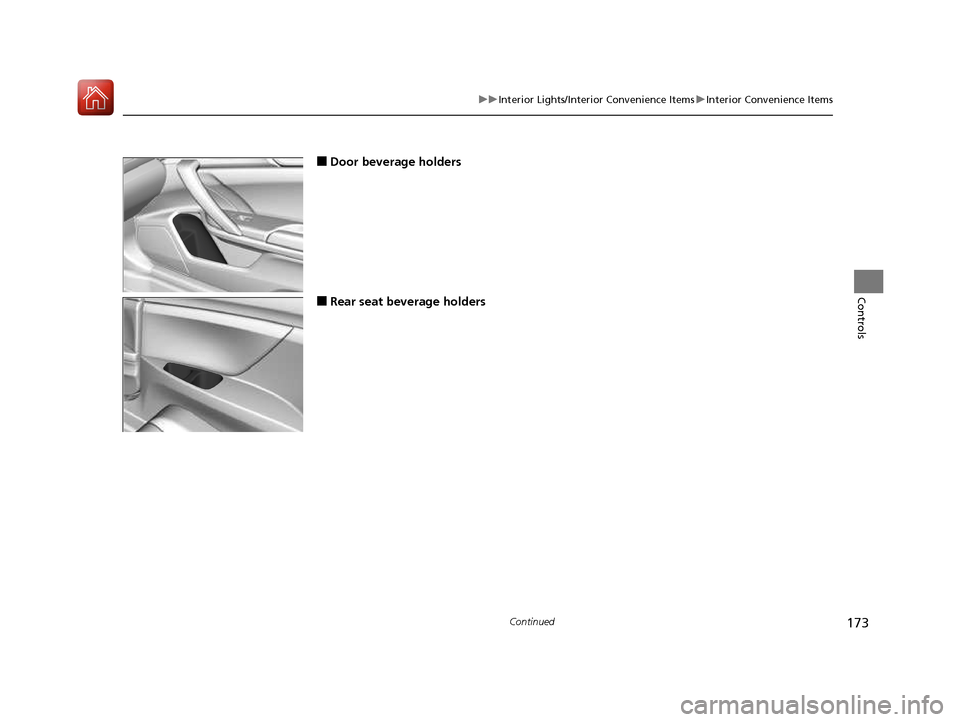

■Door beverage holders
■ Rear seat beverage holders
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 173 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
174
Controls

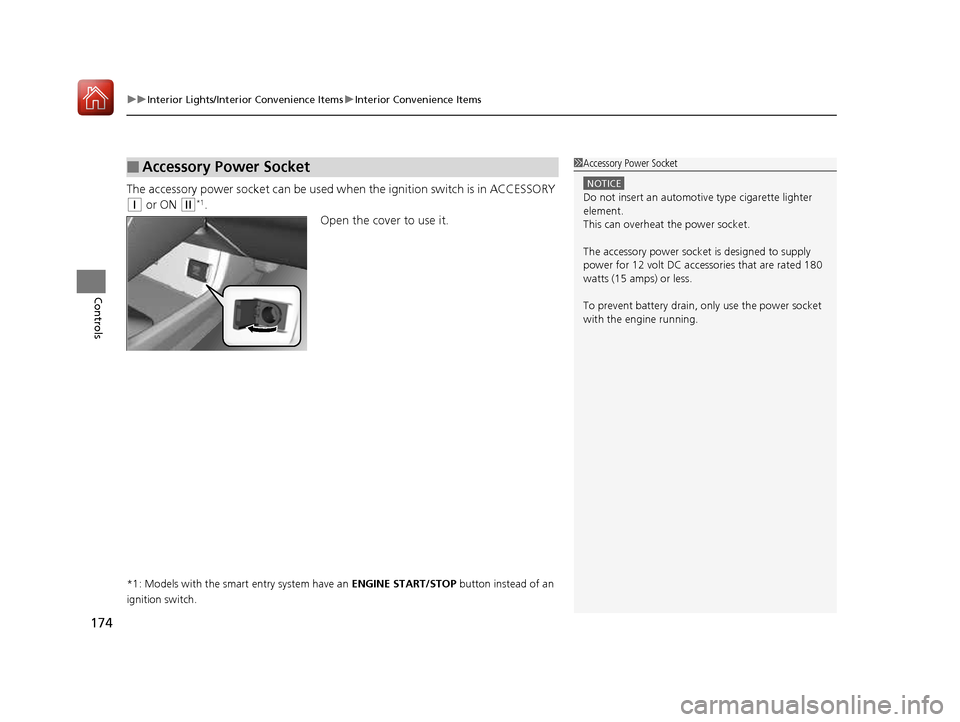

The accessory power socket can be used wh en the ignition switch is in ACCESSORY
(q or ON (w *1
.
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Socket1Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 174 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued175
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. To turn the system on and off, press and
hold the (power) button.
uWhen the system is activated, the green
indicator light comes on.
2. Place the device you want to charge on the charging area.
uThe system will au tomatically start
charging the device, and the amber
indicator light will come on.
uMake sure that the device is compatible
with the system, and placed with the
rechargeable side in the center of the
charging area.
3. When charging is completed, the green
indicator light will come on.
uDepending on the device, the amber
indicator light will stay on.
■Wireless Charger *
Canadian models1Wireless Charger
*
This system consumes a lot of power. Do not use the system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s manual
that came with the compatible device you want to charge.
3CAUTION
Metal objects between the charge pad
and the device to be charged will get
hot and can burn you. • Always remove foreign objects from
the charge pad before charging the
device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol,
benzine or thinner for cleaning the
charge pad.
• Do not cover the system with towels,
clothing, or other objects while
charging etc.
• Avoid spraying aerosols which may
come in contact with the charge pad surface.
Green Indicator
Amber Indicator
Charging Area (Power) Button
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 175 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分
