2016 HONDA CIVIC COUPE Owners Manual

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P483)
❙Windshield Wipers (P152, 507)
❙Tires (P510, 531)
❙Fog Lights *
(P151, 500)
❙Power Door Mirrors (P158)
❙How to Refuel (P465)
❙High-Mount Brake Light (P506)
❙Emergency Trunk Release Lever (P135)
❙Opening/Closing the Trunk (P133)
❙Multi-View Rear Camera (P462)
❙Door Lock/Unlock Control (P119)
❙Side Turn Signal Lights*
(P148, 504)
❙Headlights (P148, 498)
❙Front Turn Signal Lights (P148, 502)
❙Parking/Daytime Running Lights (P148, 504)
❙Front Side Marker Lights (P503)
❙Taillight (P506)
❙Back-Up Lights (P505)
❙Brake Lights (P505)
❙Rear Turn Signal Lights (P505)
❙Tail/Rear Side Marker Lights (P505)
❙Trunk Release Button*
(P133)
❙License Plate Light (P506)
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 8 ページ >0>.>/６年>0月>/>0日　金曜日　午後４時>/６分

9
Quick Reference Guide

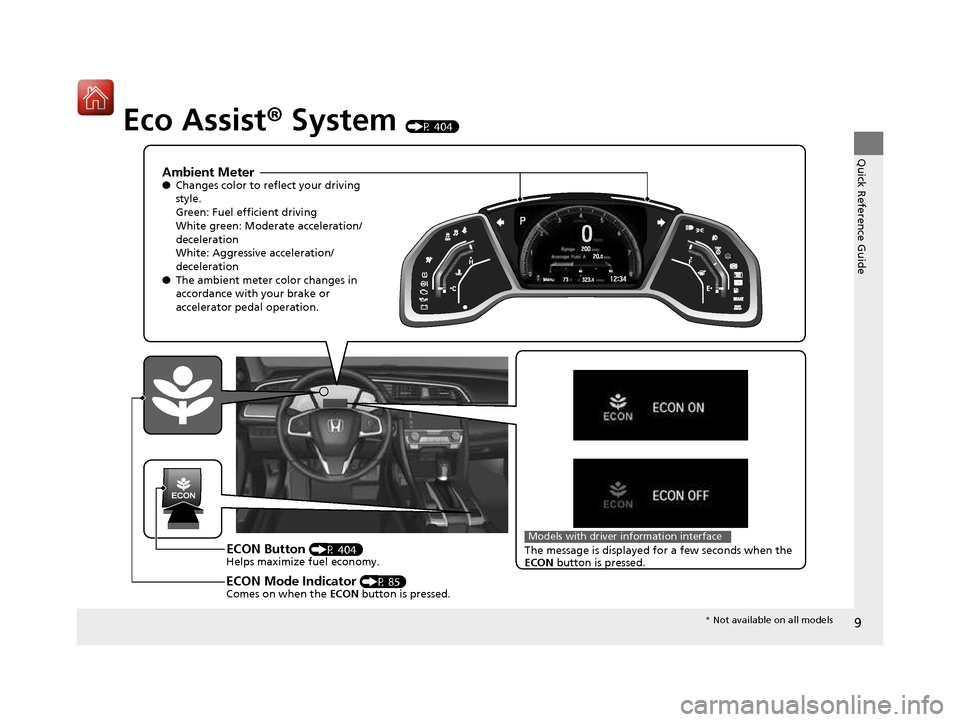

Eco Assist® System (P 404)
200
323. 4
12‰34
P
Menu 40 80
Ambient Meter ●
Changes color to re flect your driving
style.
Green: Fuel efficient driving
White green: Moderate acceleration/deceleration
White: Aggressive acceleration/ deceleration
● The ambient meter color changes in
accordance with your brake or
accelerator pedal operation.
ECON Button (P 404)
Helps maximize fuel economy.
ECON Mode Indicator (P 85)
Comes on when the ECON button is pressed.
Models with driver information interface
The message is displayed for a few seconds when the ECON button is pressed.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 9 ページ >0>.>/６年>0月>/>0日　金曜日　午後４時>/６分

10
Quick Reference Guide
Safe Driving (P 31)
Airbags (P 44)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 58)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 70)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 35)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted. Seat Belts
(P 36)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 10 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

11
Quick Reference Guide

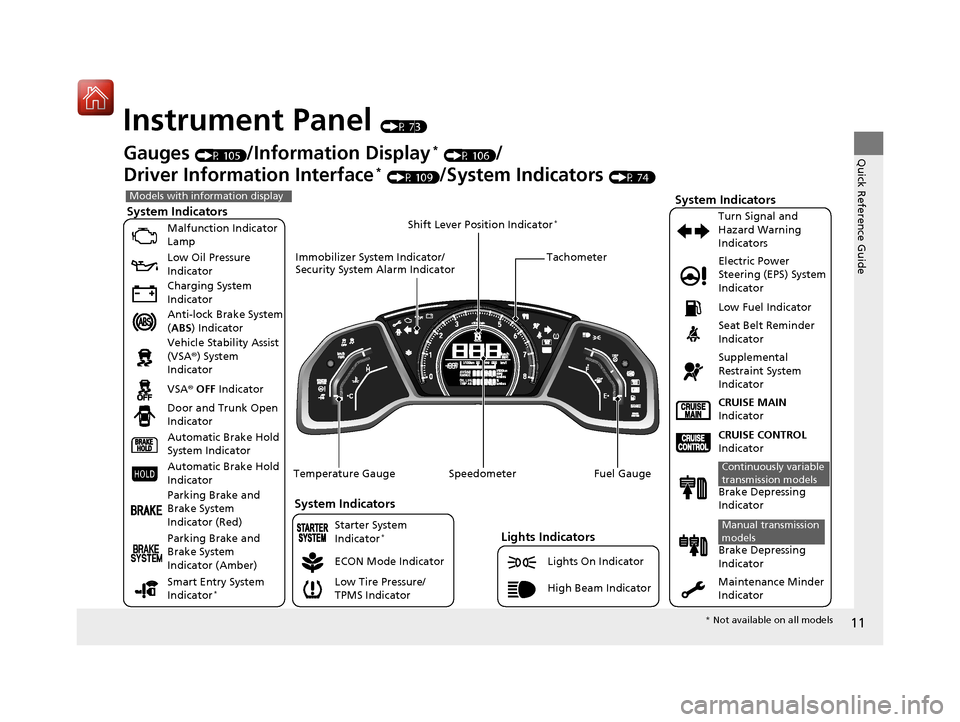

Instrument Panel (P 73)
System Indicators
Malfunction Indicator Lamp Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System (ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Lights Indicators Lights On Indicator
High Beam Indicator Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door and Trunk Open
Indicator CRUISE MAIN

Indicator
Tachometer
Speedometer Fuel Gauge
Immobilizer System Indicator/
Security System Alarm Indicator
Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges
(P 105)/Information Display *
(P 106) /
Driver Information Interface *
(P 109) /System Indicators (P 74)
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Models with info
rmation display
Parking Brake and
Brake System
Indicator (Amber) System Indicators
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
Temperature Gauge
Brake Depressing
Indicator
Continuously variable
transmission models
Brake Depressing
Indicator
Manual transmission
models
Smart Entry System
Indicator
*
Starter System
Indicator
*
*
Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 11 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

12

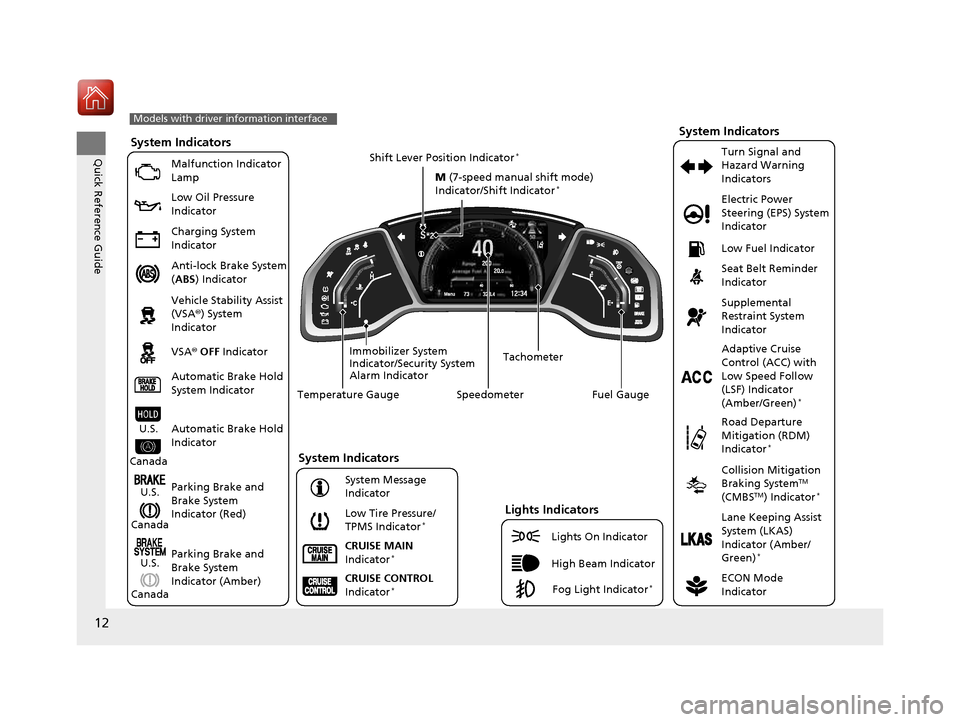

Quick Reference GuideSystem IndicatorsMalfunction Indicator Lamp Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System (ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator* Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Speedometer Fuel Gauge
Immobilizer System
Indicator/Security System
Alarm Indicator Shift Lever Position Indicator
*
Low Fuel Indicator
ECON Mode
Indicator
Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator *Adaptive Cruise
Control (ACC) with
Low Speed Follow
(LSF) Indicator
(Amber/Green)
*
System Message
Indicator Collision Mitigation
Braking System
TM

(CMBS TM
) Indicator *
Road Departure Mitigation (RDM)
Indicator*
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)*
CRUISE CONTROL

Indicator *
CRUISE MAIN

Indicator *M
(7-speed manual shift mode)
Indicator/Shift Indicator *
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 12 ページ >0>.>/６年>0月>/>0日　金
曜日　午後４時>/６分

13
Quick Reference Guide

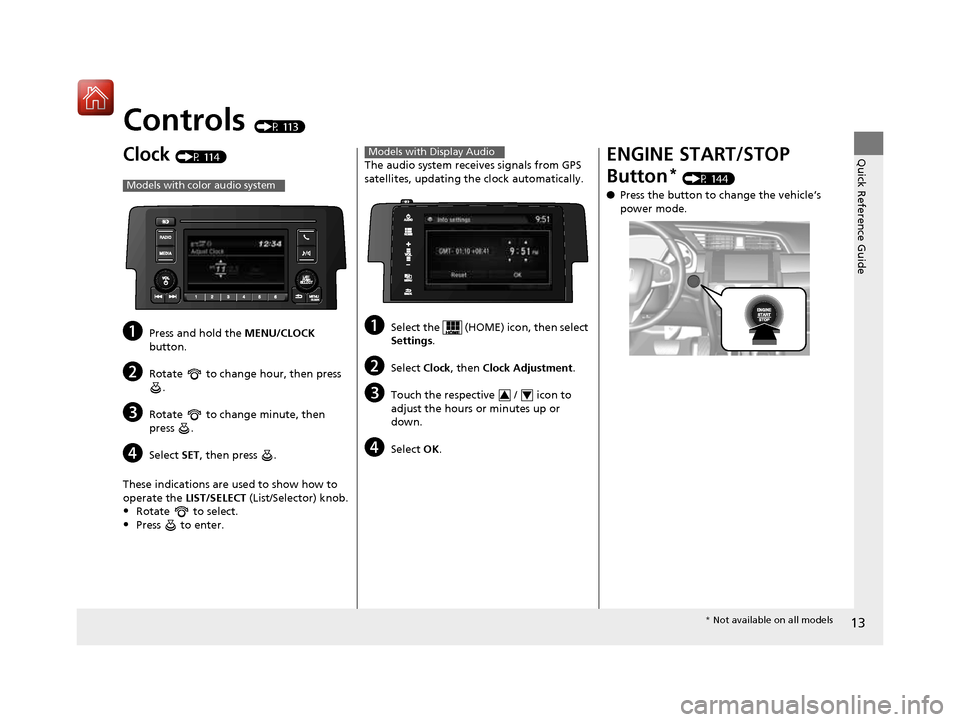

Controls (P 113)
Clock (P 114)
a Press and hold the MENU/CLOCK
button.
b Rotate to change hour, then press
.
c Rotate to change minute, then press .
d Select SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
• Rotate to select.
• Press to enter.
Models with color audio system
The audio system receives signals from GPS
satellites, updating the clock automatically. a Select the (HOME) icon, then select Settings .
b Select Clock, then Clock Adjustment .
c Touch the respective / icon to
adjust the hours or minutes up or
down.
d Select OK.
Models with Display Audio
34
ENGINE START/STOP Button *
(P 144)
● Press the button to change the vehicle’s
power mode.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 13 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

14
Quick Reference Guide

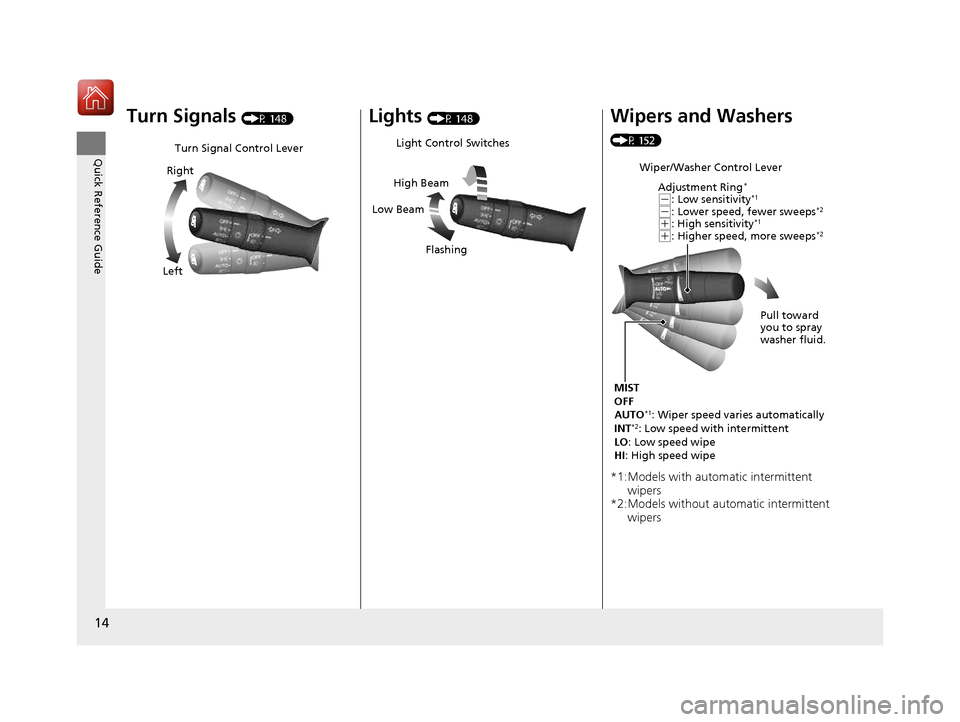

Turn Signals (P 148)
Turn Signal Control Lever
Right
Left
Lights (P 148)
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 152)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring *
(-
: Low sensitivity *1(-
: Lower speed, fewer sweeps *2(+
: High sensitivity *1(+
: Higher speed, more sweeps *2
MIST OFF
AUTO *1
: Wiper speed varies automatically
INT *2
: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 14 ページ >0>.>/６年>0月>/>0日　金
曜日　午後４時>/６分

15
Quick Reference Guide

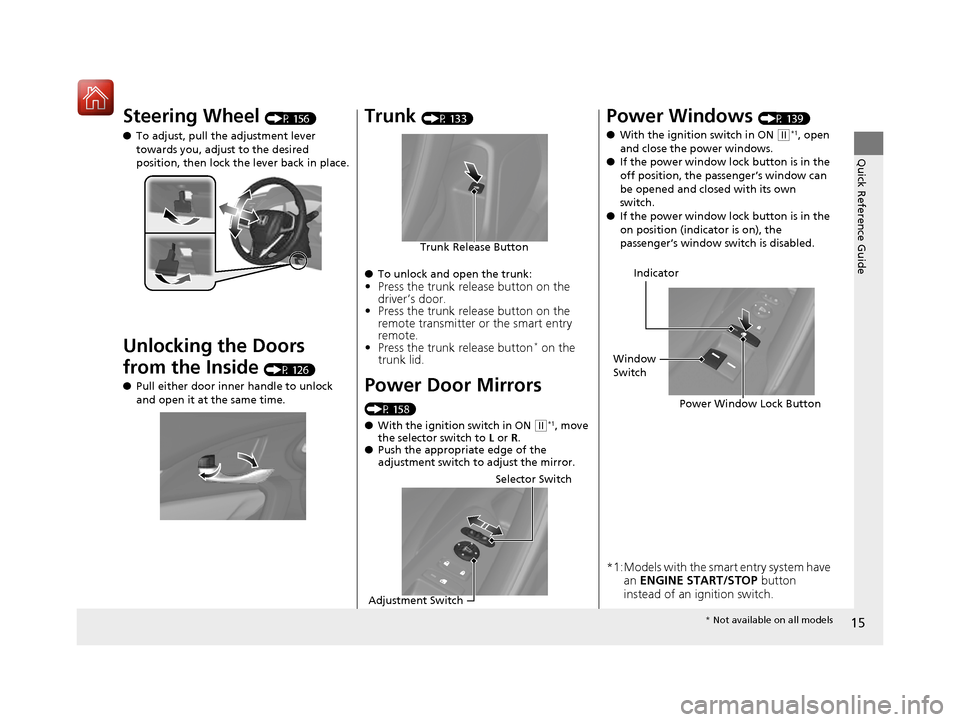

Steering Wheel (P 156)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Doors
from the Inside (P 126)
● Pull either door inner handle to unlock
and open it at the same time.Trunk (P 133)
● To unlock and open the trunk:
• Press the trunk release button on the
driver’s door.
• Press the trunk release button on the
remote transmitter or the smart entry
remote.
• Press the trunk release button *
on the
trunk lid.
Power Door Mirrors
(P 158) ● With the ignition switch in ON
(w*1
, move
the selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release Button
Selector Switch
Adjustment Switch
Power Windows (P 139)
● With the ignition switch in ON
(w*1
, open
and close the power windows.
● If the power window lock button is in the
off position, the passenger’s window can
be opened and closed with its own switch.
● If the power window lock button is in the
on position (indicator is on), the
passenger’s window switch is disabled.
*1:Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models
