2016 HONDA CIVIC COUPE Owners Manual

184
uuClimate Control SystemuSynchronized Mode*
Controls

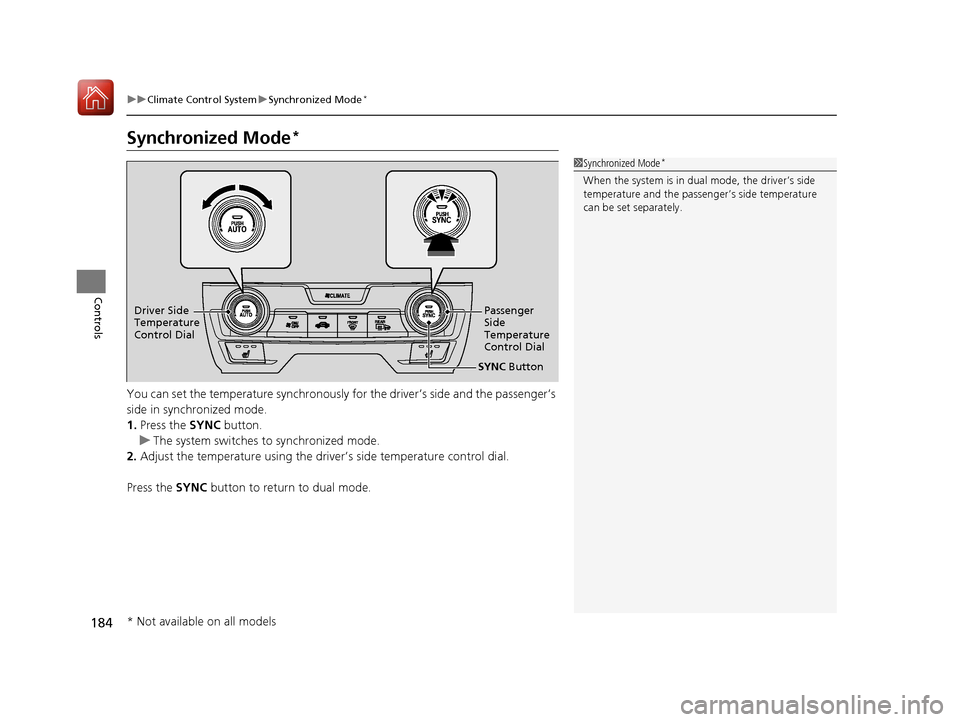

Synchronized Mode *
You can set the temperature synchronously fo r the driver’s side and the passenger’s
side in synchronized mode. 1. Press the SYNC button.
uThe system switches to synchronized mode.
2. Adjust the temperature using the driv er’s side temperature control dial.
Press the SYNC button to return to dual mode.
1Synchronized Mode *
When the system is in dua l mode, the driver’s side
temperature and the passe nger’s side temperature
can be set separately.
SYNC Button
Driver Side
Temperature
Control Dial
Passenger Side
Temperature
Control Dial
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 184 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

185
uuClimate Control SystemuAutomatic Climate Control Sensors
Controls

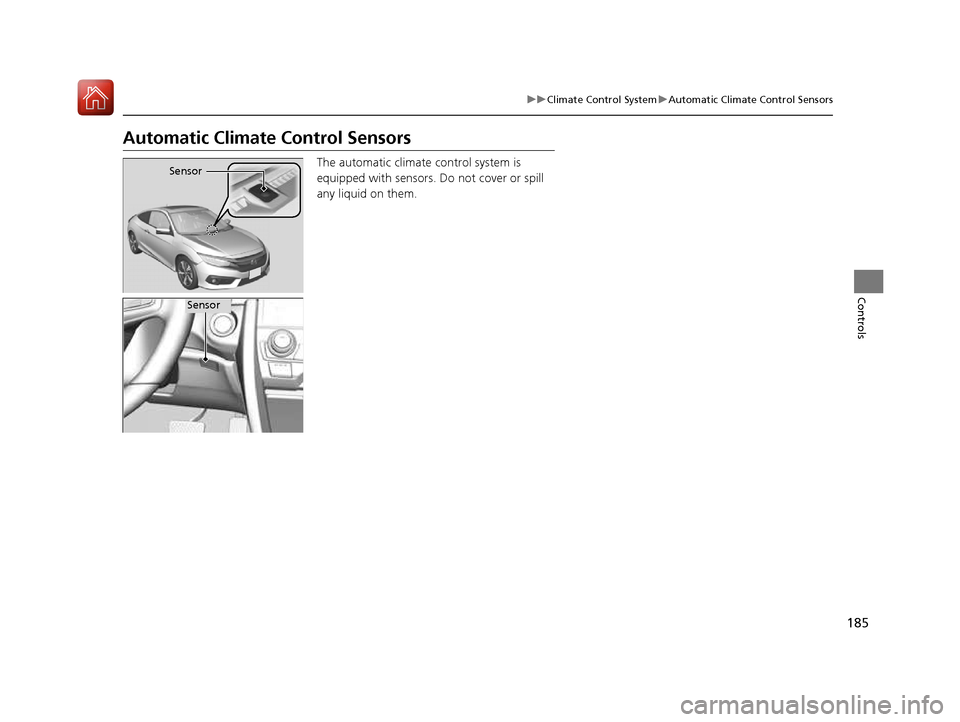

Automatic Climate Control SensorsThe automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Sensor
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 185 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

186
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 186 ページ >0>.>/６年>0月>/>0日　金曜日　午後４時>/６分

187

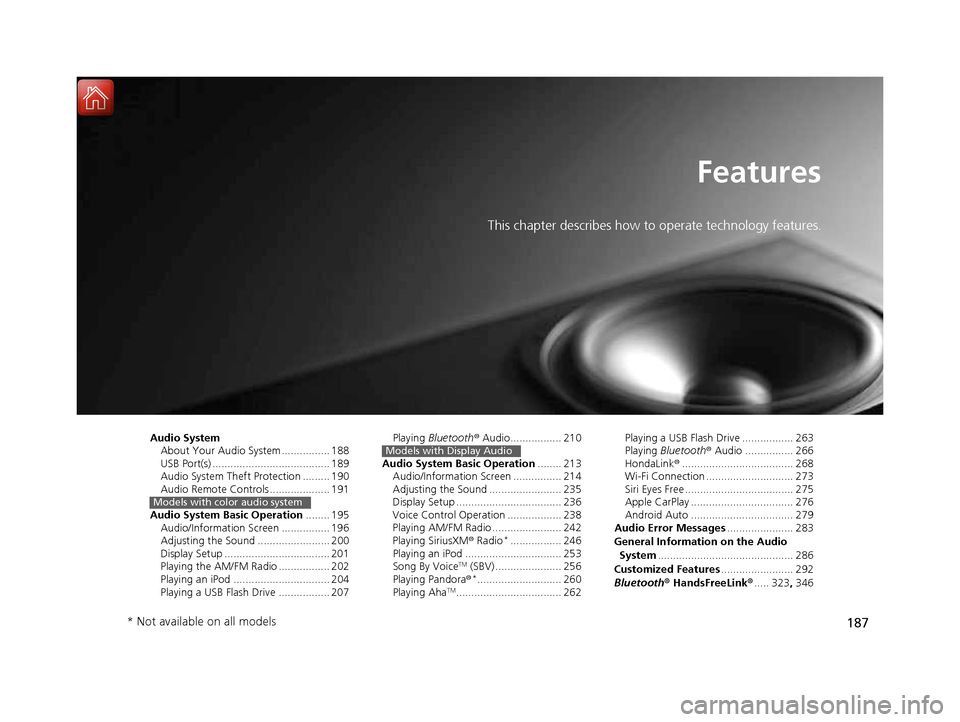

Features
This chapter describes how to operate technology features.
Audio System About Your Audio System ................ 188
USB Port(s) ....................................... 189
Audio System Theft Protection ......... 190
Audio Remote Controls .................... 191
Audio System Basic Operation ........ 195
Audio/Information Screen ................ 196
Adjusting the Sound ........................ 200
Display Setup ................................... 201
Playing the AM/FM Radio ................. 202
Playing an iPod ................................ 204
Playing a USB Flash Drive ................. 207
Models with color audio system
Playing Bluetooth ® Audio................. 210
Audio System Basic Operation ........ 213
Audio/Information Screen ................ 214
Adjusting the Sound ........................ 235
Display Setup ................................... 236
Voice Control Operation .................. 238
Playing AM/FM Radio ....................... 242
Playing SiriusXM ® Radio *
................. 246
Playing an iPod ................................ 253
Song By Voice TM
(SBV) ...................... 256
Playing Pandora ®*
............................ 260
Playing Aha TM
................................... 262Models with Display AudioPlaying a USB Flash Drive ................. 263
Playing Bluetooth ® Audio ................ 266
HondaLink ®..................................... 268
Wi-Fi Connection ............................. 273
Siri Eyes Free .................................... 275
Apple CarPlay .................................. 276
Android Auto .................................. 279
Audio Error Messages ...................... 283
General Information on the Audio System ............................................. 286
Customized Features ........................ 292
Bluetooth ® HandsFreeLink ®..... 323 , 346
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 187 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

188
Features
Audio System

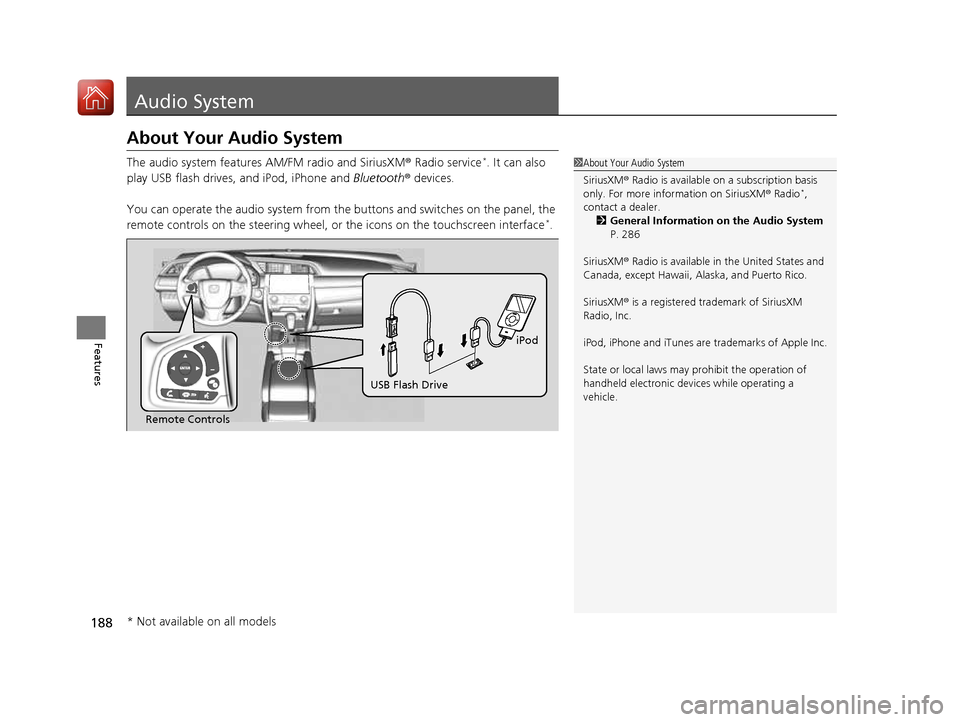

About Your Audio System
The audio system features AM/FM radio and SiriusXM ® Radio service *
. It can also
play USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface *
.
1About Your Audio System
SiriusXM ® Radio is available on a subscription basis
only. For more information on SiriusXM ® Radio *
,
contact a dealer.
2 General Information on the Audio System
P. 286
SiriusXM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ® is a registered trademark of SiriusXM
Radio, Inc.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
Remote Controls iPod
USB Flash Drive
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 188 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

189
uuAudio SystemuUSB Port(s)
Features

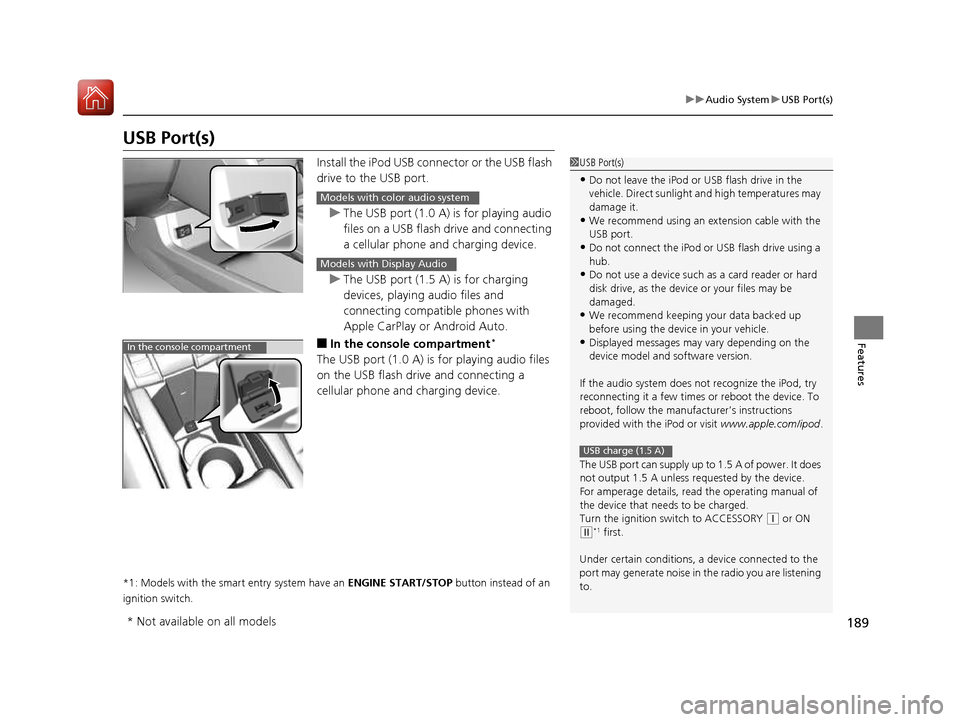

USB Port(s)Install the iPod USB connector or the USB flash
drive to the USB port.
uThe USB port (1.0 A) is for playing audio
files on a USB flash drive and connecting
a cellular phone and charging device.
uThe USB port (1.5 A) is for charging
devices, playing audio files and connecting compatible phones with
Apple CarPlay or Android Auto.
■ In the consol e compartment *
The USB port (1.0 A) is for playing audio files
on the USB flash drive and connecting a
cellular phone and charging device.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1USB Port(s)
• Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may damage it.
• We recommend using an ex tension cable with the
USB port.
• Do not connect the iPod or USB flash drive using a
hub.
• Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
• We recommend k eeping your data backed up
before using the device in your vehicle.
• Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.5 A of power. It does
not output 1.5 A unless re quested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Turn the ignition switch to ACCESSORY
(q or ON
(w *1
first.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge (1.5 A)
Models with color audio system
Models with Display Audio
In the console compartment
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 189 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

190
uuAudio SystemuAudio System Theft Protection
Features

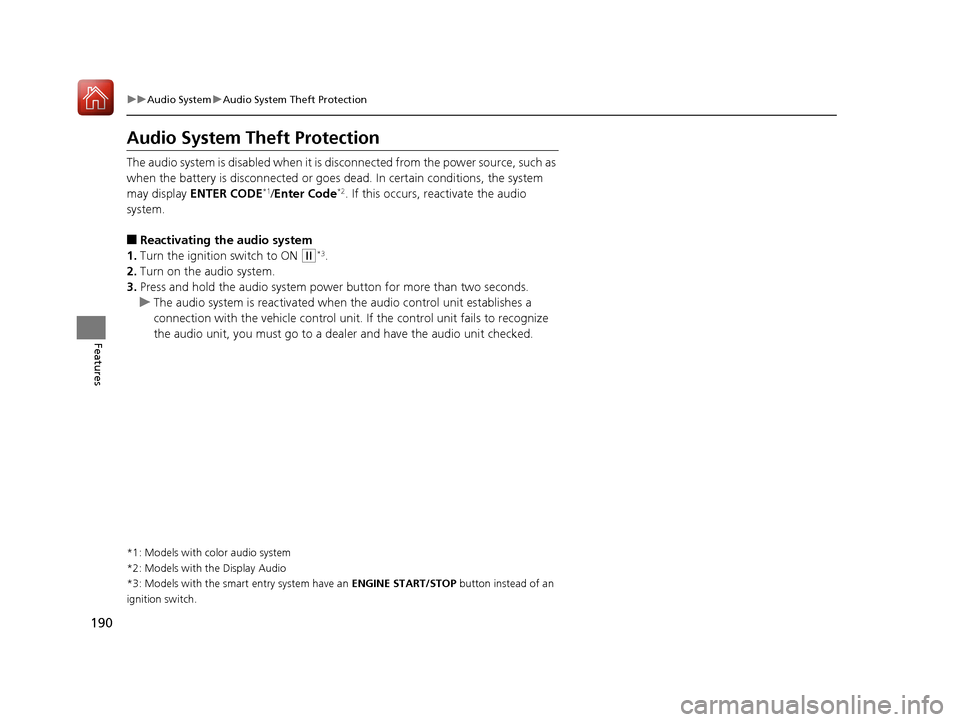

Audio System Theft Protection The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system may display ENTER CODE *1
/Enter Code *2
. If this occurs, reactivate the audio
system. ■ Reactivating th e audio system
1. Turn the ignition switch to ON
(w*3
.
2. Turn on the audio system.
3. Press and hold the audio system power button for more than two seconds.
uThe audio system is reactivated when the audio co ntrol unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.
*1: Models with color audio system
*2: Models with the Display Audio
*3: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 190 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

191
uuAudio SystemuAudio Remote Controls
Continued
Features

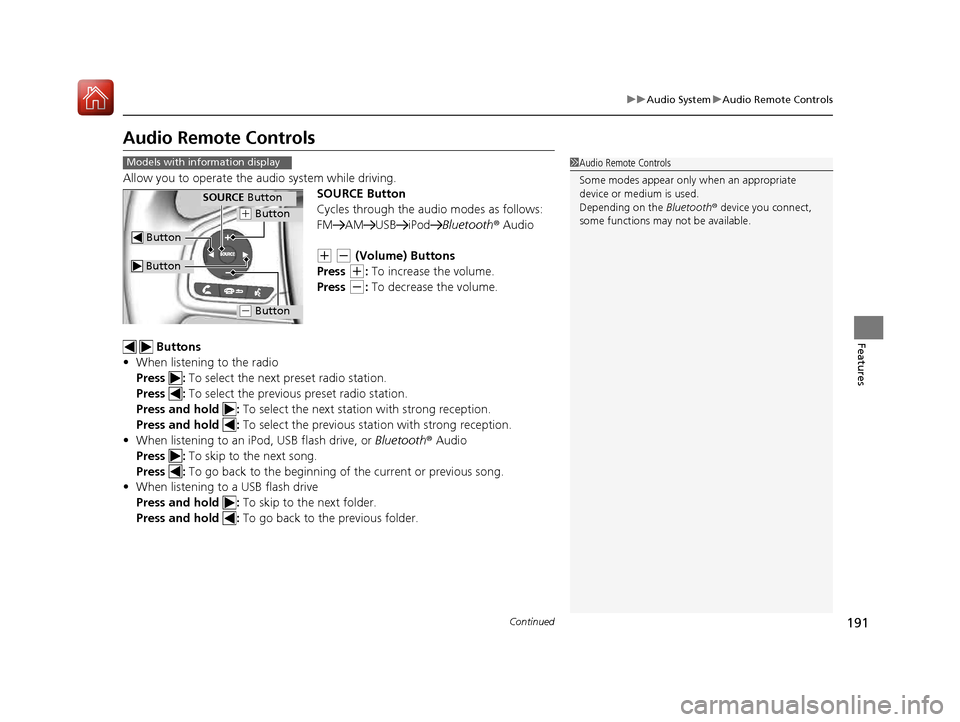

Audio Remote Controls
Allow you to operate the audio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM AM USB iPod Bluetooth® Audio
(+ (- (Volume) Buttons
Press
(+ : To increase the volume.
Press
(- : To decrease the volume.
Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next station with strong reception.
Press and hold : To select the previous station with strong reception.
• When listening to an iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used. Depending on the Bluetooth® device you connect,
some functions may not be available.Models with information display
Button
SOURCE Button
Button
(+ Button
(- Button
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 191 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
