2016 HONDA CIVIC COUPE Owners Manual

152
uuOperating the Switches Around the Steering WheeluWipers and Washers
Controls
Wipers and WashersThe windshield wipers and washers can be
used when the ignition switch is in ON
(w*1
.
■ MIST
The wipers run at high speed until you release the lever. ■ Wiper switch (OFF, INT *
, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■ AUTO *
2 Automatic Intermittent Wipers *
P. 153
■ Adjusting wiper operation *
Turn the adjustment ring to adjust the wiper
delay. ■ Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Windshield Wiper/Washer1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens. When the vehicle starts moving, the
wipers make a single sweep.
When the vehicle speeds up, the wiper operation’s shortest
delay setting ( ) and the LO setting become the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the wiper stops operating due to any obstacle such as
the build-up of snow, park the vehicle in a safe place.
Rotate the wiper switch to OFF, and turn the ignition
switch to ACCESSORY (q or LOCK (0*1
, then
remove the obstacle.
Models with adjustment ring
All models
Intermittent Time Adjustment Ring *
MIST INT *
:
OFF LO
: Low speed wipe
HI : High speed wipe Pull to use washer.
Low speed with intermittent
Auto *
: Automatic intermittent
operation
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 152 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

153
uuOperating the Switches Around the Steering WheeluWipers and Washers
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the amount of rainfall the
rainfall sensor detects.
■ AUTO sensitivity adjustment
When in AUTO, you can also adjust the
rainfall sensor sensitivity using the intermittent
time adjustment ring.
Sensor sensitivity
■Automatic Intermittent Wipers *1Automatic Intermittent Wipers
*
The rainfall sensor is in the location shown below.
AUTO should always be turned OFF before the
following situation: • Cleaning the windshield
• Driving through a car wash
Sensor
Adjustment Ring
Low sensitivity:
Wipers will operate when more
rainfall is detected.
High sensitivity:
Wipers will operate when less
rainfall is detected.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 153 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

154
uuOperating the Switches Around the Steering WheeluBrightness Control
Controls

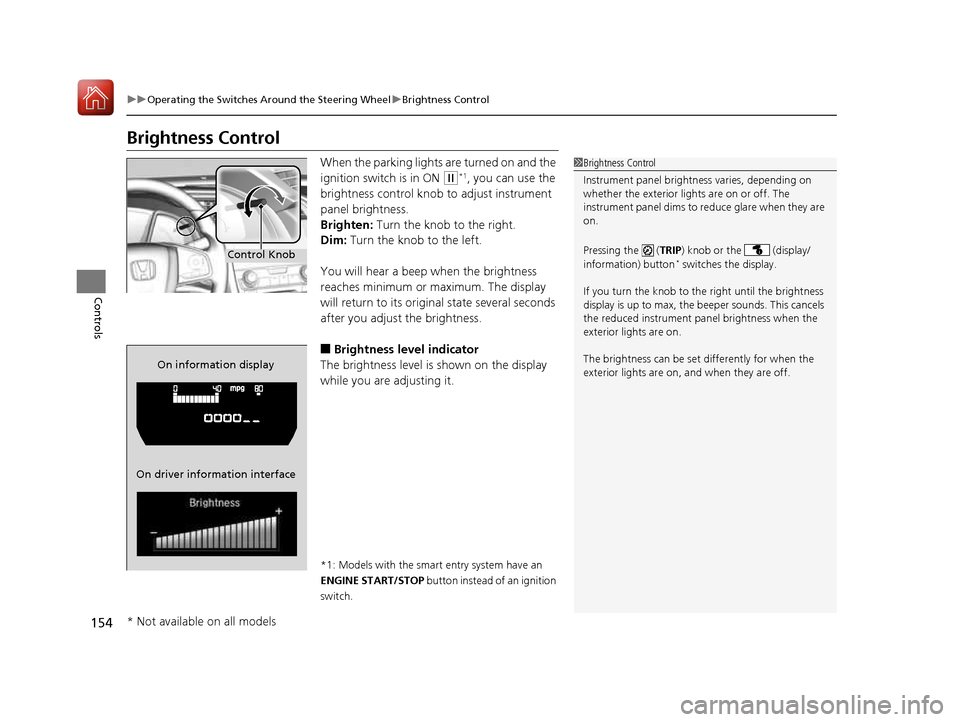

Brightness ControlWhen the parking lights are turned on and the
ignition switch is in ON
(w*1
, you can use the
brightness control knob to adjust instrument
panel brightness.
Brighten: Turn the knob to the right.
Dim: Turn the knob to the left.
You will hear a beep when the brightness
reaches minimum or maximum. The display
will return to its original state several seconds
after you adjust the brightness. ■ Brightness level indicator
The brightness level is shown on the display
while you are adjusting it.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
1Brightness Control
Instrument panel brightne ss varies, depending on
whether the exterior lights are on or off. The
instrument panel dims to reduce glare when they are
on.
Pressing the ( TRIP) knob or the (display/
information) button *
switches the display.
If you turn the knob to the right until the brightness
display is up to max, the beeper sounds. This cancels
the reduced instrument panel brightness when the
exterior lights are on.
The brightness can be set differently for when the
exterior lights are on, and when they are off.
Control Knob
On information display
On driver information interface
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 154 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

155
uuOperating the Switches Around the Steering WheeluRear Defogger/Heated Door Mirror*
Button
Controls

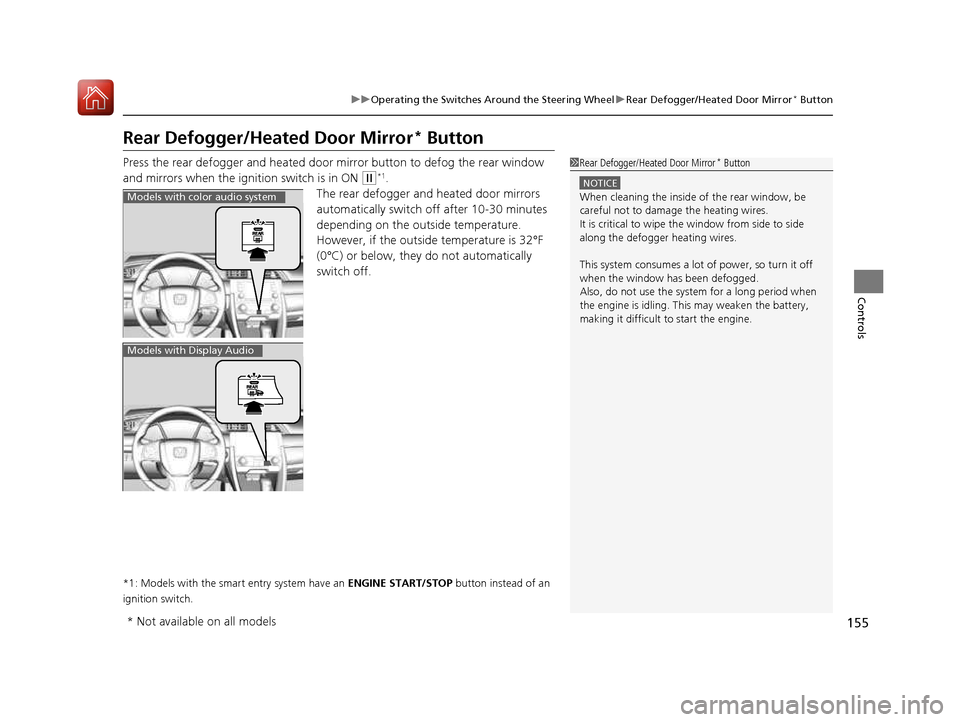

Rear Defogger/Heated Door Mirror *
Button
Press the rear defogger and heated door mirror button to defog the rear window
and mirrors when the ignition switch is in ON
(w *1
.
The rear defogger and heated door mirrors
automatically switch of f after 10-30 minutes
depending on the outside temperature.
However, if the outsid e temperature is 32°F
(0°C) or below, they do not automatically switch off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Rear Defogger/Heated Door Mirror *
Button
NOTICE
When cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe th e window from side to side
along the defogger heating wires.
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery, making it difficult to start the engine.Models with color audio system
Models with Display Audio
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 155 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

156
uuOperating the Switches Around the Steering WheeluAdjusting the Steering Wheel
Controls

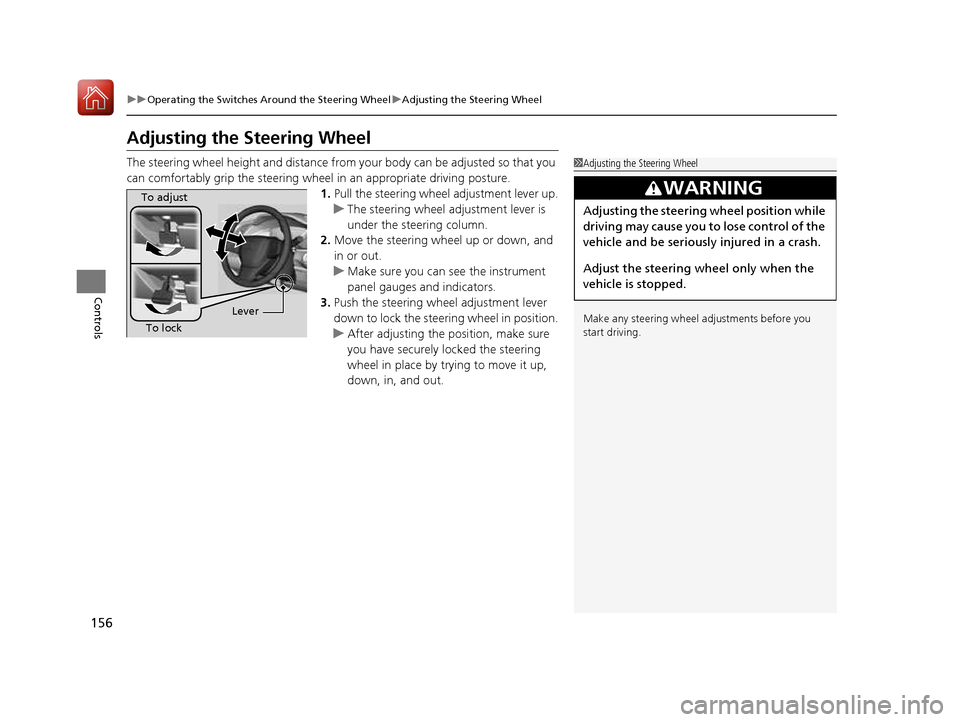

Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you
can comfortably grip the steering wheel in an appropriate driving posture.1.Pull the steering wheel adjustment lever up.
uThe steering wheel adjustment lever is
under the steering column.
2. Move the steering wheel up or down, and
in or out.
uMake sure you can see the instrument
panel gauges and indicators.
3. Push the steering wheel adjustment lever
down to lock the steering wheel in position.
uAfter adjusting the position, make sure
you have securely locked the steering
wheel in place by trying to move it up,
down, in, and out.
1Adjusting the Steering Wheel
Make any steering wheel adjustments before you
start driving.
3WARNING
Adjusting the steering wheel position while
driving may cause you to lose control of the
vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the
vehicle is stopped.
To adjust
To lock Lever
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 156 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

157
Controls

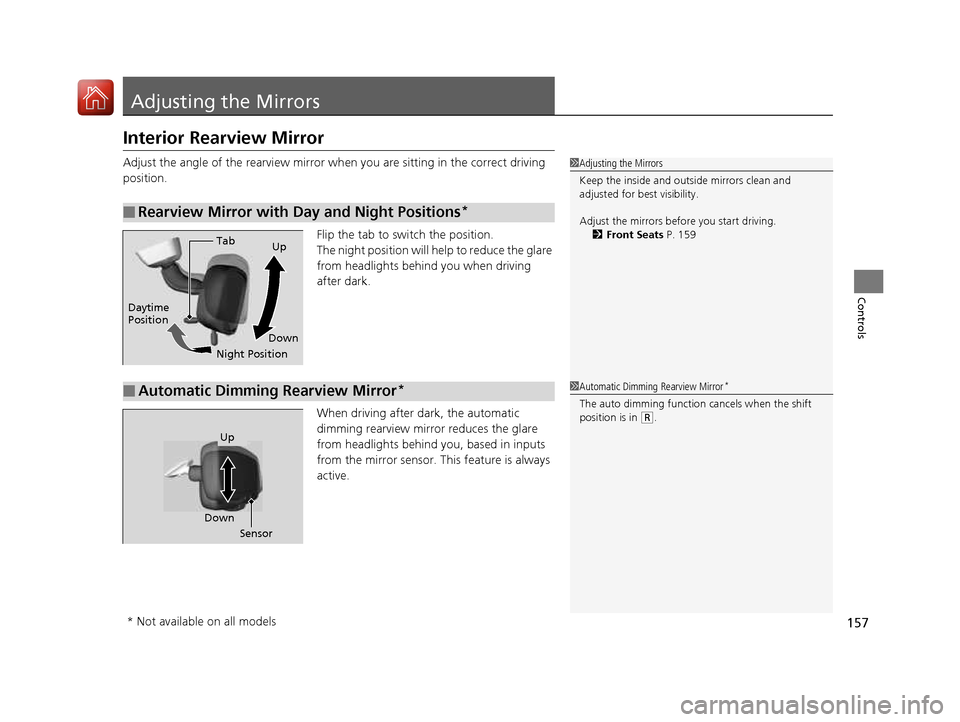

Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you, based in inputs
from the mirror sensor. This feature is always active.
■Rearview Mirror with Day and Night Positions *
1Adjusting the Mirrors
Keep the inside and out
side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Front Seats P. 159
Tab
Daytime Position
Night PositionUp
Down
■Automatic Dimming Rearview Mirror *1Automatic Dimming Rearview Mirror
*
The auto dimming function cancels when the shift
position is in
(R .
Sensor
Down
Up
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 157 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

158
uuAdjusting the MirrorsuPower Door Mirrors
Controls
Power Door MirrorsYou can adjust the door mirrors when the
ignition switch is in ON
(w*1
.
■ Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the mirror.
The driver’s side door mirror has outer and
inner segments.
The outer segment is slightly curved to provide
a wider angle view than a standard flat mirror.
This wider view may help you check areas that
are not visible using a standard door mirror.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Selector
SwitchAdjustment Switch
■Expanded View Driver’s Mirror1Expanded View Driver

159
Continued
Controls

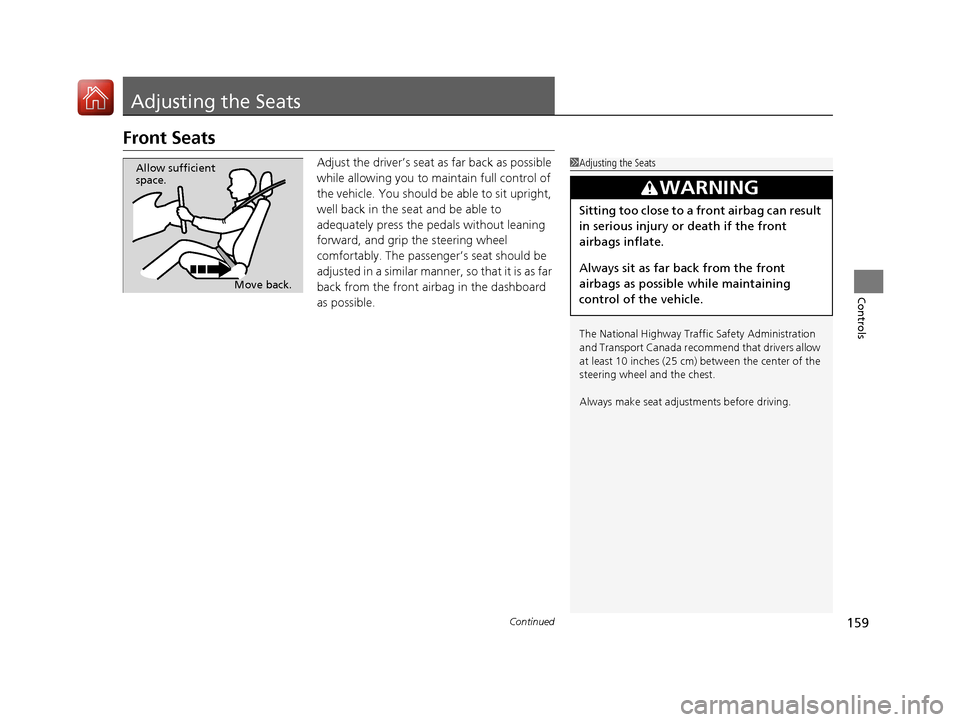

Adjusting the Seats
Front Seats
Adjust the driver’s seat as far back as possible
while allowing you to ma intain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.
1Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Cana da recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
Always make seat adjustments before driving.
3WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back.
Allow sufficient
space.
