2016 HONDA CIVIC COUPE Owners Manual

144

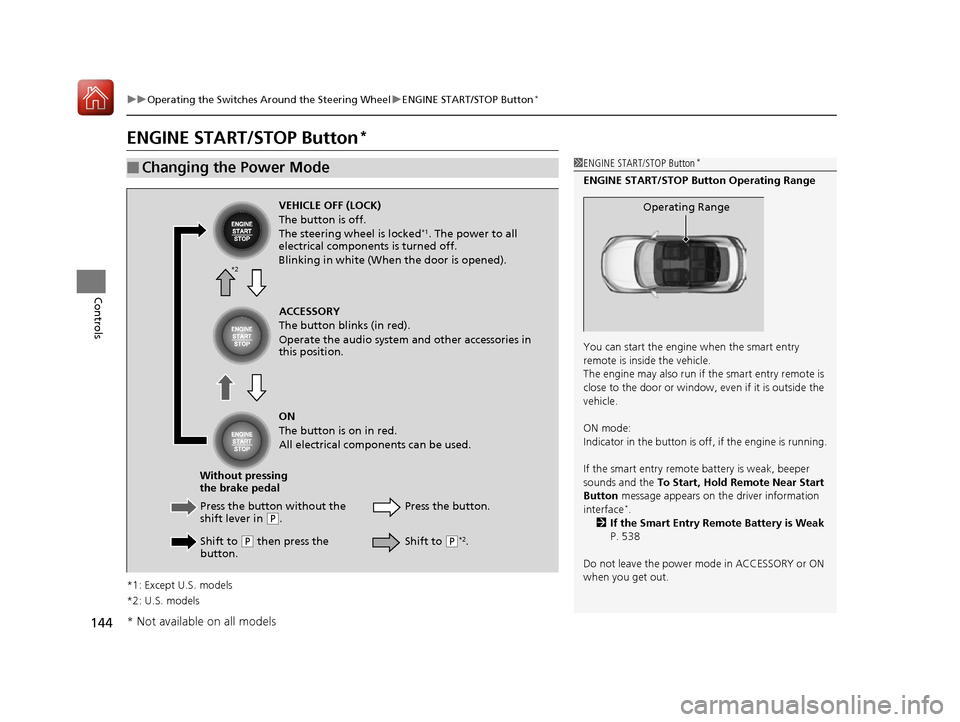

uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*
Controls
ENGINE START/STOP Button *
*1: Except U.S. models *2: U.S. models
■Changing the Power Mode1ENGINE START/STOP Button *
ENGINE START/STOP Button Operating Range
You can start the engine when the smart entry
remote is inside the vehicle.
The engine may also run if the smart entry remote is
close to the door or window, ev en if it is outside the
vehicle. ON mode:
Indicator in the button is of f, if the engine is running.
If the smart entry remote battery is weak, beeper sounds and the To Start, Hold Remote Near Start
Button message appears on th e driver information
interface *
.
2 If the Smart Entry Remote Battery is Weak
P. 538
Do not leave the power mode in ACCESSORY or ON
when you get out.
Operating RangeVEHICLE OFF (LOCK) The button is off.
The steering wheel is locked *1
. The power to all
electrical components is turned off.
Blinking in white (When the door is opened).
Press the butto n without the
shift lever in
(P .
Shift to
(P then press the
button. Press the button.
Without pressing
the brake pedal ACCESSORY
The button blinks (in red).
Operate the audio system and other accessories in this position. ON
The button is on in red.
All electrical components can be used.
Shift to (P*2
.
*2
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 144 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

Continued145

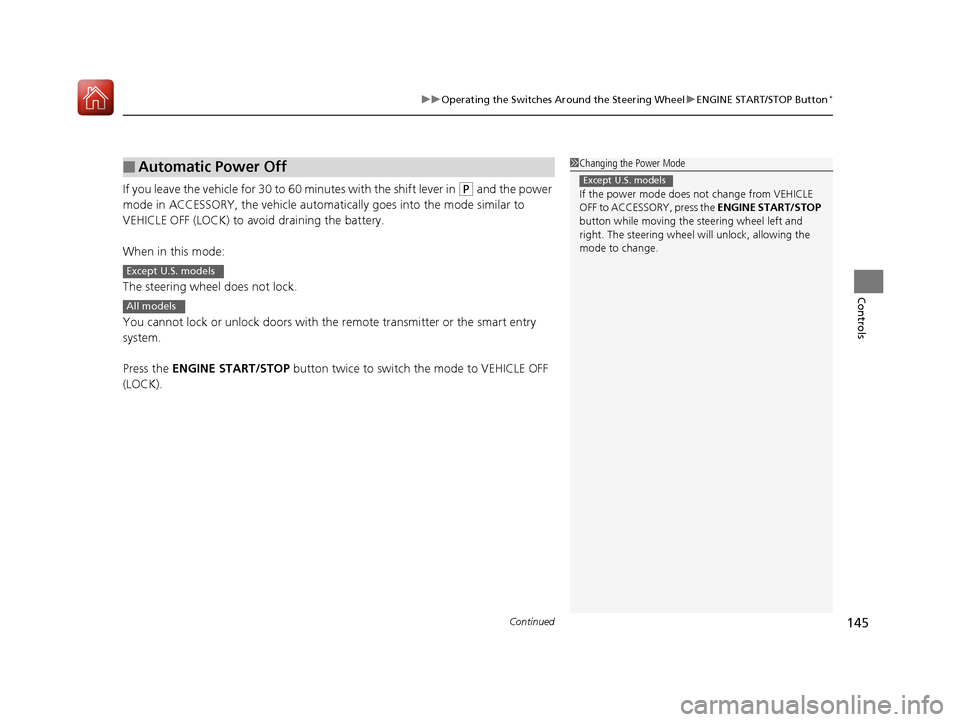

uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*
Controls
If you leave the vehicle for 30 to
60 minutes with the shift lever in (P and the power
mode in ACCESSORY, the vehicle automati cally goes into the mode similar to
VEHICLE OFF (LOCK) to avoid draining the battery.
When in this mode:
The steering wheel does not lock.
You cannot lock or unlock doors with th e remote transmitter or the smart entry
system.
Press the ENGINE START/STOP button twice to switch the mode to VEHICLE OFF
(LOCK).
■Automatic Power Off1Changing the Power Mode If the power mode does not change from VEHICLE
OFF to ACCESSORY, press the ENGINE START/STOP
button while moving the st eering wheel left and
right. The steering wheel will unlock, allowing the
mode to change.
Except U.S. models
Except U.S. models
All models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 145 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

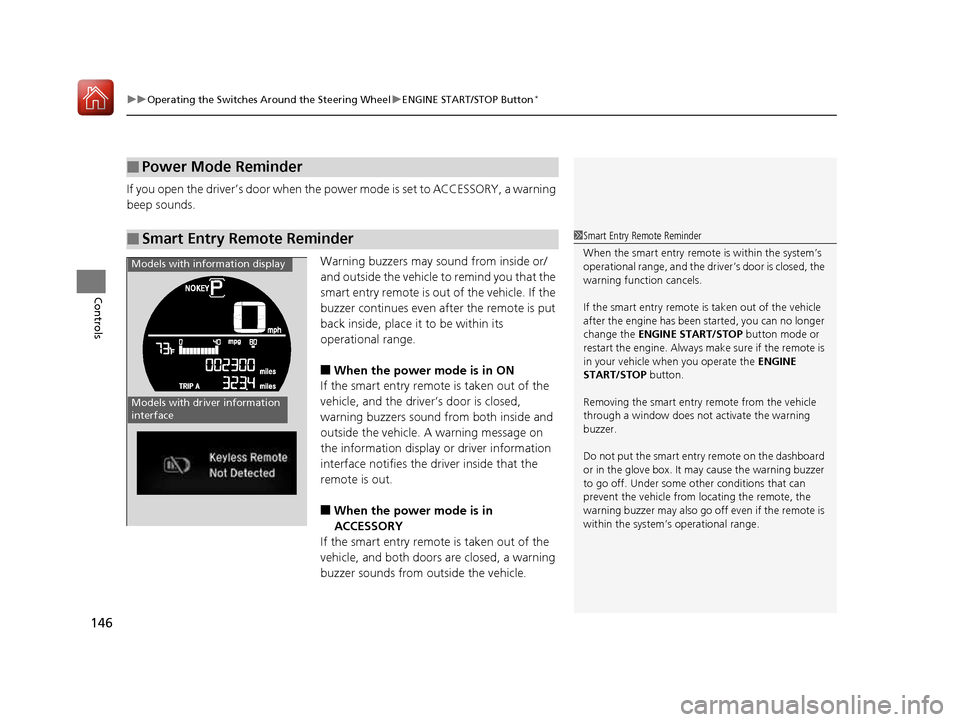

uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*
146
Controls
If you open the driver’s doo r when the power mode is set to ACCESSORY, a warning
beep sounds.
Warning buzzers may sound from inside or/
and outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it to be within its
operational range.
■ When the power mode is in ON
If the smart entry remote is taken out of the
vehicle, and the driver’s door is closed,
warning buzzers sound from both inside and
outside the vehicle. A warning message on
the information display or driver information
interface notifies the driver inside that the
remote is out. ■ When the power mode is in
ACCESSORY
If the smart entry remote is taken out of the
vehicle, and both doors are closed, a warning
buzzer sounds from outside the vehicle.
■Power Mode Reminder
■Smart Entry Remote Reminder1Smart Entry Remote Reminder
When the smart entry remote is within the system’s
operational range, and the driv er’s door is closed, the
warning function cancels.
If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the smart entry remote from the vehicle through a window does not activate the warning
buzzer.
Do not put the smart entr y remote on the dashboard
or in the glove box. It may cause the warning buzzer
to go off. Under some other conditions that can
prevent the vehicle from locating the remote, the
warning buzzer may al so go off even if the remote is
within the system’s operational range.
Models with driver information
interface
Models with information display
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 146 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

147
uuOperating the Switches Around the Steering WheeluIgnition Switch and Power Mode Comparison
Controls

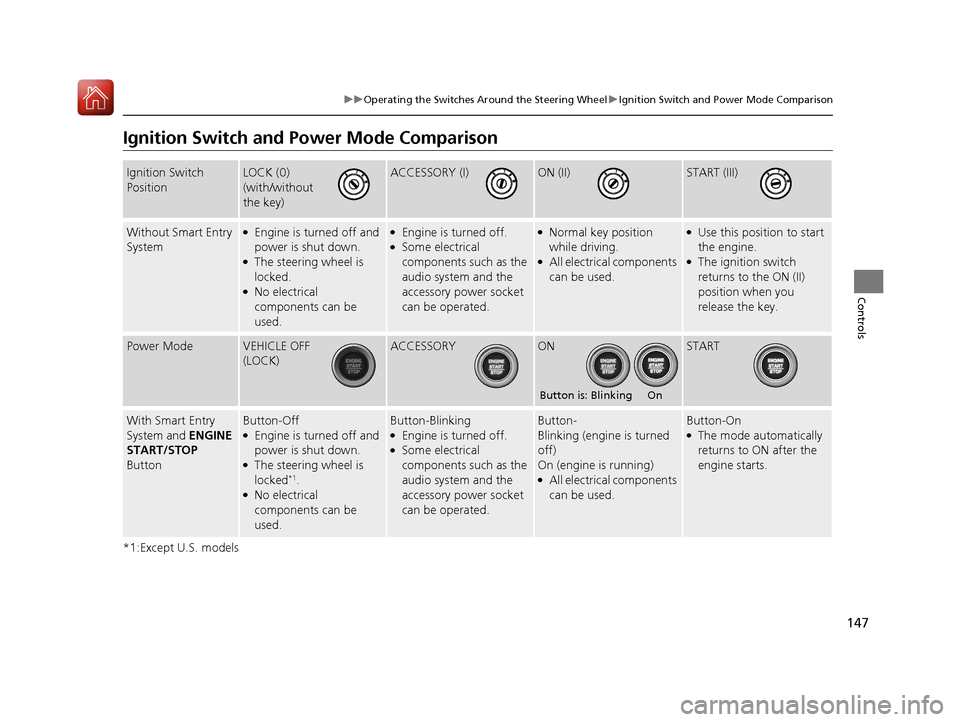

Ignition Switch and Power Mode Comparison
*1:Except U.S. models
Ignition Switch PositionLOCK (0)
(with/without
the key)ACCESSORY (I)ON (II)START (III)
Without Smart Entry
System● Engine is turned off and
power is shut down.
● The steering wheel is locked.
● No electrical
components can be used.●
Engine is turned off.
● Some electrical
components such as the
audio system and the
accessory power socket
can be operated.●
Normal key position
while driving.
● All electrical components
can be used.●
Use this position to start
the engine.
● The ignition switch
returns to the ON (II)
position when you
release the key.
Power ModeVEHICLE OFF
(LOCK)ACCESSORYONSTART
With Smart Entry
System and ENGINE
START/STOP
ButtonButton-Off ● Engine is turned off and
power is shut down.
● The steering wheel is locked *1
.
● No electrical
components can be used.Button-Blinking ●
Engine is turned off.
● Some electrical
components such as the
audio system and the
accessory power socket
can be operated.Button-
Blinking (engine is turned off)
On (engine is running) ●
All electrical components
can be used.Button-On ●The mode automatically
returns to ON after the
engine starts.
Button is: Blinking On
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 147 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

148

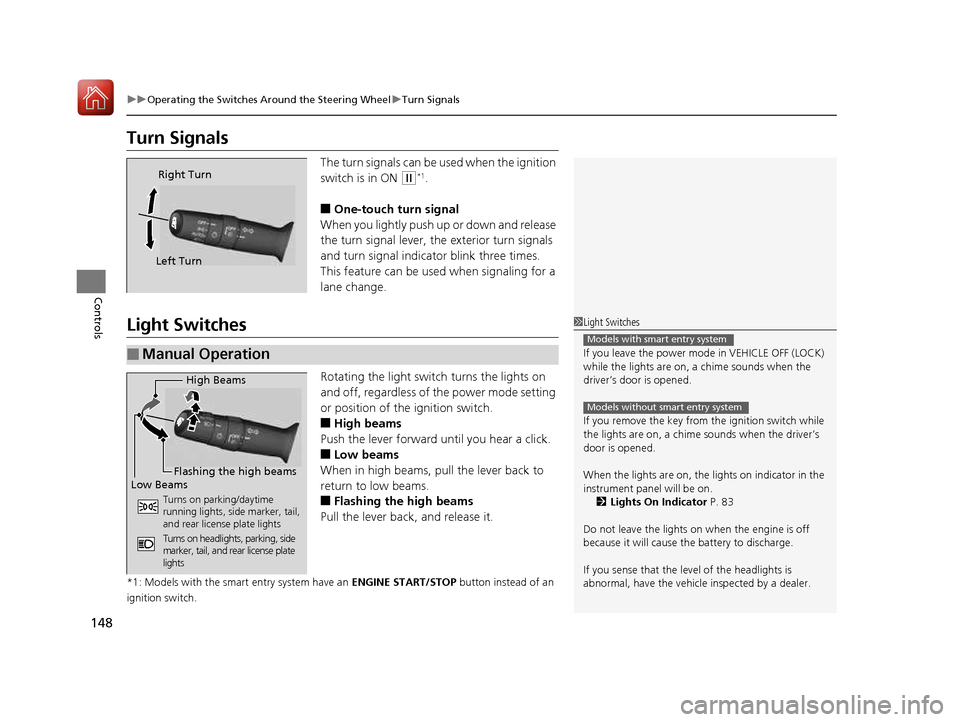

uuOperating the Switches Around the Steering WheeluTurn Signals
Controls
Turn SignalsThe turn signals can be used when the ignition
switch is in ON
(w*1
.
■ One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indicator blink three times.
This feature can be used when signaling for a
lane change.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the power mode setting
or position of the ignition switch. ■High beams
Push the lever forward until you hear a click. ■ Low beams
When in high beams, pull the lever back to
return to low beams. ■ Flashing the high beams
Pull the lever back, and release it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Right Turn
Left Turn
■Manual Operation
1Light Switches
If you leave the power mode in VEHICLE OFF (LOCK)
while the lights are on, a chime sounds when the driver’s door is opened.
If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 83
Do not leave the lights on when the engine is off because it will cause the battery to discharge.
If you sense that the le vel of the headlights is
abnormal, have the vehicl e inspected by a dealer.
Models with smart entry system
Models without smart entry system
High Beams
Flashing the high beams
Low Beams
Turns on parking/daytime
running lights, side marker, tail,
and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 148 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued149

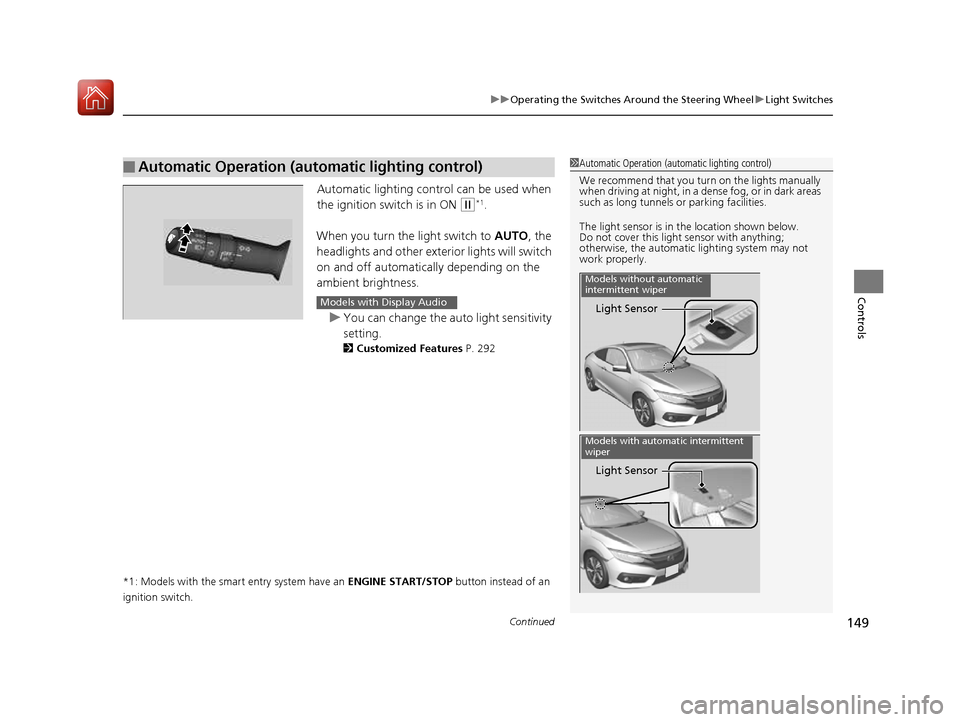

uuOperating the Switches Around the Steering WheeluLight Switches
Controls
Automatic lighting control can be used when
the ignition switch is in ON
(w*1
.
When you turn the light switch to AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
uYou can change the auto light sensitivity
setting.
2 Customized Features P. 292
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Automatic Operation (automatic lighting control)1Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models without automatic
intermittent wiper
Light Sensor
Models with automatic intermittent
wiper
Models with Display Audio
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 149 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

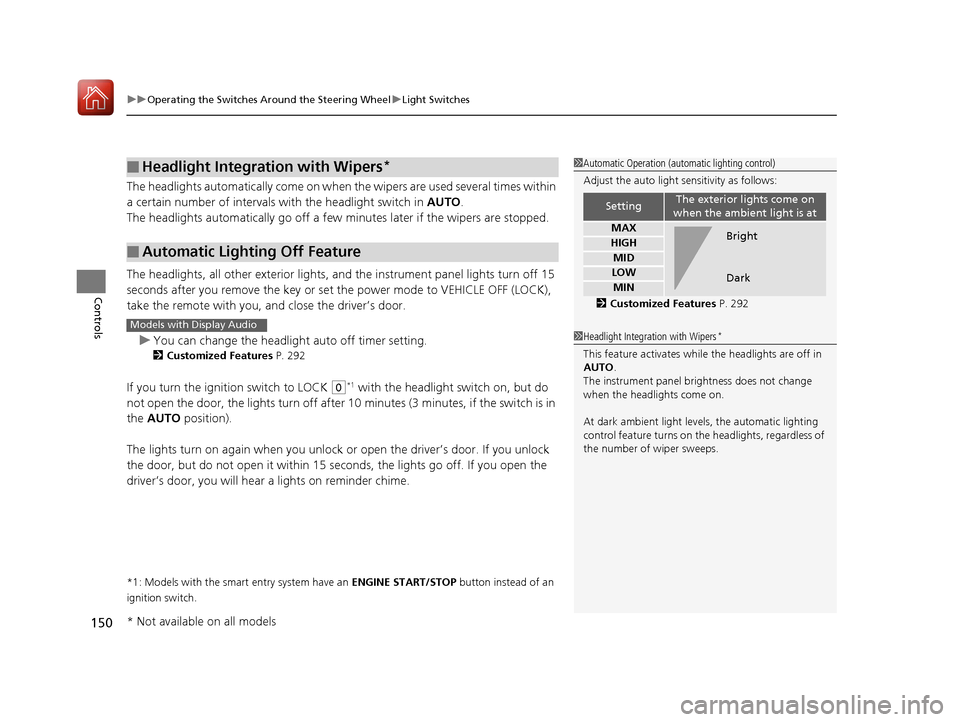

uuOperating the Switches Around the Steering WheeluLight Switches
150
Controls
The headlights automatically co me on when the wipers are used several times within
a certain number of intervals wi th the headlight switch in AUTO.
The headlights automatically go off a few minutes later if the wipers are stopped.
The headlights, all other exterior lights, an d the instrument panel lights turn off 15
seconds after you remove the key or set the power mode to VEHICLE OFF (LOCK),
take the remote with you, and close the driver’s door.
uYou can change the headlight auto off timer setting.
2 Customized Features P. 292
If you turn the igniti on switch to LOCK
(0*1
with the headlight switch on, but do
not open the door, the lights turn off after 10 minutes (3 minutes, if the switch is in
the AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a lights on reminder chime.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Headlight Integration with Wipers *
■Automatic Lighting Off Feature
1Automatic Operation (aut
omatic lighting control)
Adjust the auto light sensitivity as follows:
2 Customized Features P. 292
SettingThe exterior lights come on
when the ambient light is at
MAX
HIGH
MID
LOW
MIN
Bright Dark
1Headlight Integration with Wipers *
This feature activates while the headlights are off in AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.Models with Display Audio
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 150 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

151
uuOperating the Switches Around the Steering WheeluFog Lights*
Controls

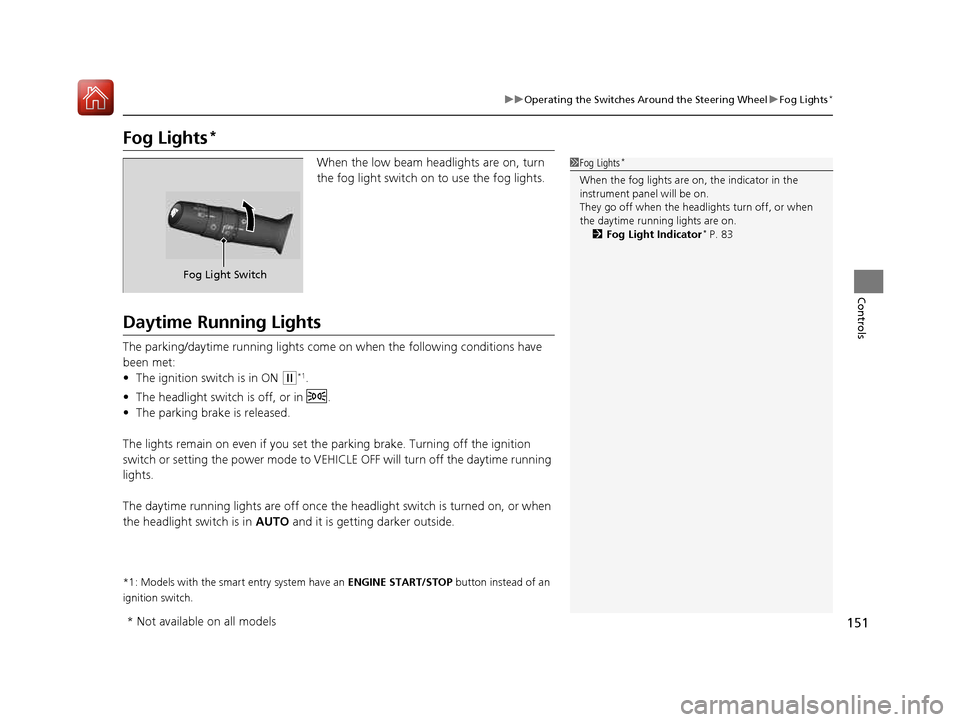

Fog Lights *
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
Daytime Running Lights
The parking/daytime running lights come on when the following conditions have
been met: •The ignition switch is in ON
(w *1
.
• The headlight switch is off, or in .
• The parking brake is released.
The lights remain on even if you set th e parking brake. Turning off the ignition
switch or setting the power mode to VEHI CLE OFF will turn off the daytime running
lights.
The daytime running lights are off once the h eadlight switch is turned on, or when
the headlight switch is in AUTO and it is getting darker outside.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Fog Lights *
When the fog lights are on, the indicator in the
instrument pane l will be on.
They go off when the headlights turn off, or when
the daytime running lights are on. 2 Fog Light Indicator *
P. 83
Fog Light Switch
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 151 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
