2016 HONDA CIVIC COUPE Owners Manual

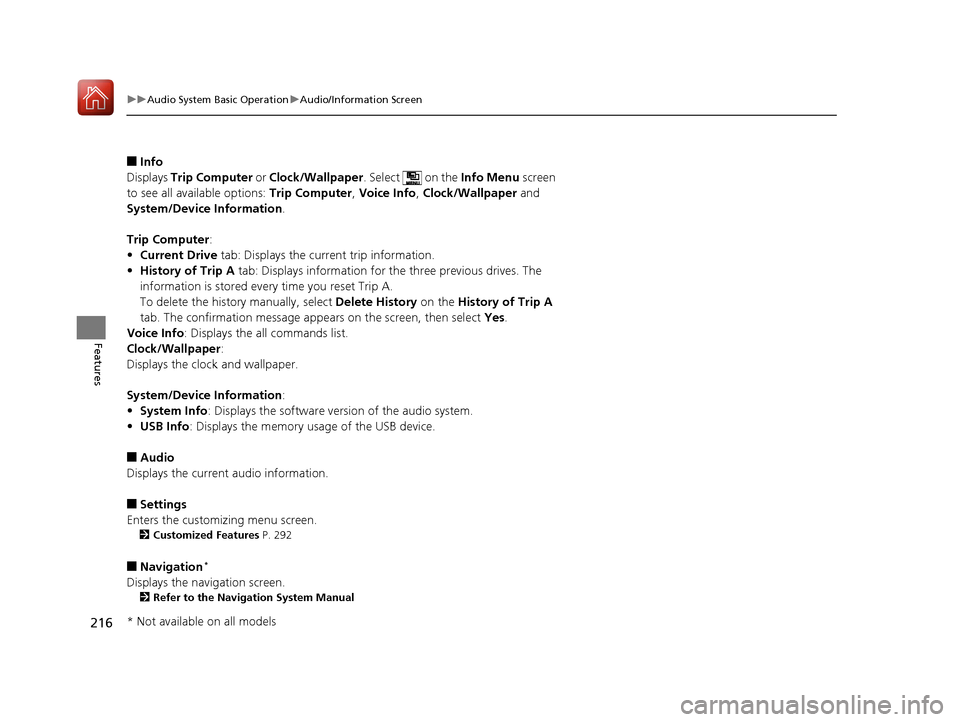

216
uuAudio System Basic OperationuAudio/Information Screen
Features
■Info
Displays Trip Computer or Clock/Wallpaper . Select on the Info Menu screen
to see all available options: Trip Computer, Voice Info , Clock/Wallpaper and
System/Device Information .
Trip Computer :
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
To delete the history manually, select Delete History on the History of Trip A
tab. The confirmation message ap pears on the screen, then select Yes.
Voice Info : Displays the all commands list.
Clock/Wallpaper :
Displays the cloc k and wallpaper.
System/Device Information :
• System Info : Displays the software version of the audio system.
• USB Info : Displays the memory usage of the USB device.
■ Audio
Displays the current audio information.
■ Settings
Enters the customiz ing menu screen.
2 Customized Features P. 292
■ Navigation *
Displays the navigation screen. 2 Refer to the Navigation System Manual
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 216 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

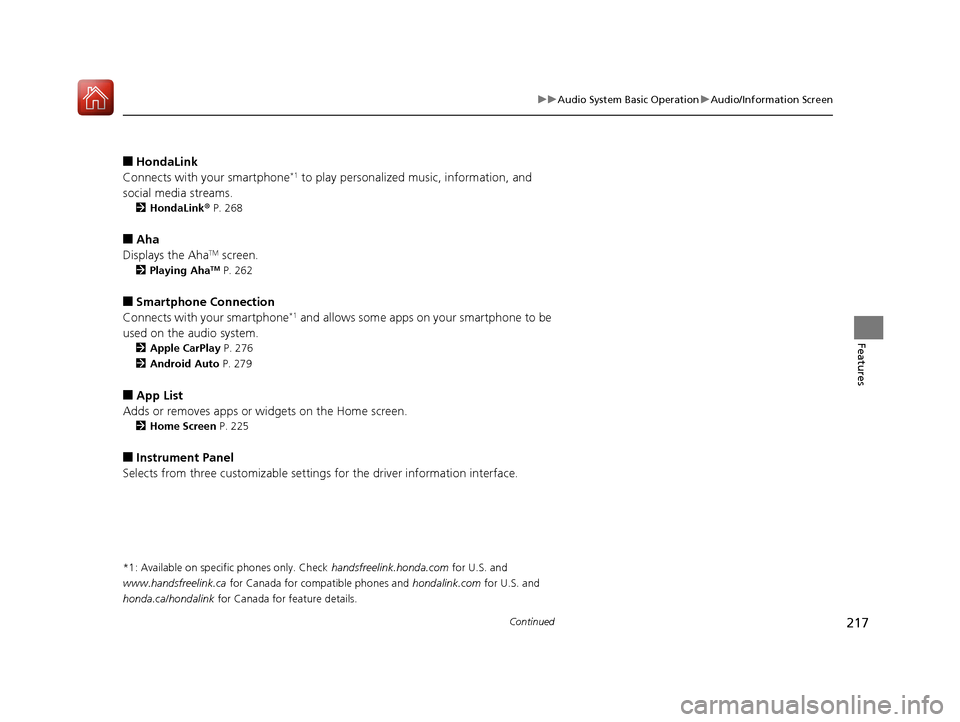

217
uuAudio System Basic OperationuAudio/Information Screen
Continued
Features
■HondaLink
Connects with your smartphone *1
to play personalized music, information, and
social media streams. 2 HondaLink ® P. 268
■ Aha
Displays the Aha TM
screen.
2 Playing Aha TM
P. 262
■ Smartphone Connection
Connects with your smartphone *1
and allows some apps on your smartphone to be
used on the audio system. 2 Apple CarPlay P. 276
2 Android Auto P. 279
■ App List
Adds or removes apps or widgets on the Home screen. 2 Home Screen P. 225
■ Instrument Panel
Selects from three customizable settings for the driver information interface.
*1: Available on specific phones only. Check handsfreelink.honda.com for U.S. and
www.handsfreelink.ca for Canada for compatible phones and hondalink.com for U.S. and
honda.ca/hondalink for Canada for feature details.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 217 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

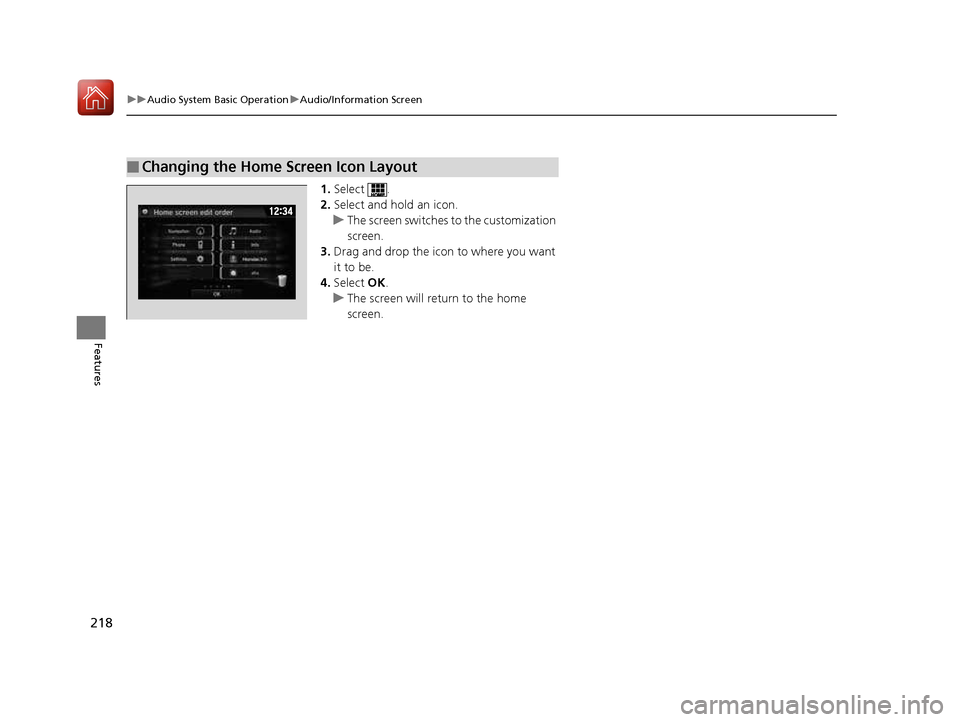

218
uuAudio System Basic OperationuAudio/Information Screen
Features
1.Select .
2. Select and hold an icon.
uThe screen switches to the customization
screen.
3. Drag and drop the icon to where you want it to be.
4. Select OK.
uThe screen will return to the home screen.
■Changing the Home Screen Icon Layout
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 218 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

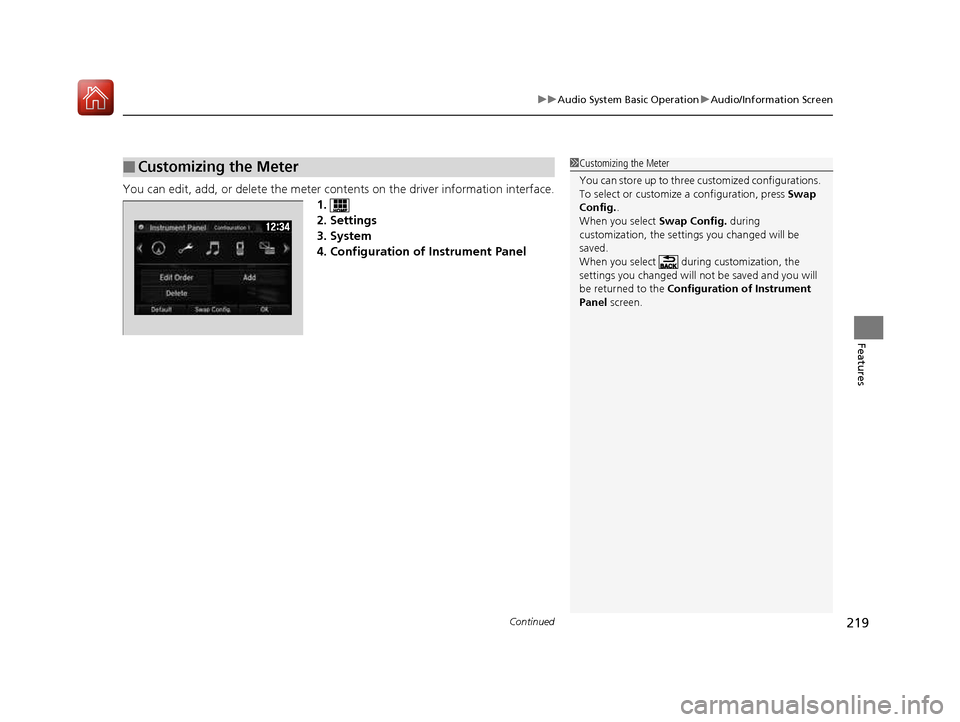

Continued219
uuAudio System Basic OperationuAudio/Information Screen
Features
You can edit, add, or delete the meter contents on the driver information interface.
1.
2. Settings
3. System
4. Configuration of Instrument Panel
■Customizing the Meter1Customizing the Meter
You can store up to three cu stomized configurations.
To select or customize a configuration, press Swap
Config. .
When you select Swap Config. during
customization, the settings you changed will be
saved.
When you select during customization, the settings you changed will not be saved and you will
be returned to the Configuration of Instrument
Panel screen.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 219 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

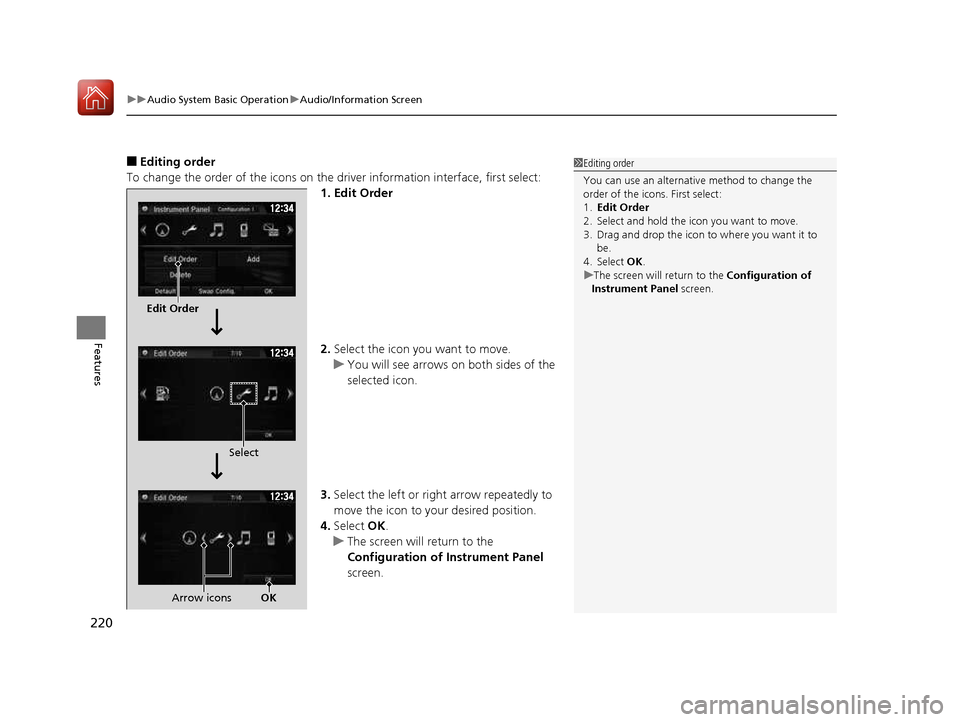

uuAudio System Basic OperationuAudio/Information Screen
220
Features
■ Editing order
To change the order of the icons on the driver information interface, first select:
1. Edit Order 2. Select the icon you want to move.
uYou will see arrows on both sides of the selected icon.
3. Select the left or right arrow repeatedly to
move the icon to your desired position.
4. Select OK.
uThe screen will return to the
Configuration of Instrument Panel
screen.
1Editing order
You can use an alternative method to change the
order of the icons. First select: 1. Edit Order
2. Select and hold the icon you want to move.
3. Drag and drop the icon to where you want it to be.
4. Select OK.
uThe screen will return to the Configuration of
Instrument Panel screen.
Edit Order
Select
Arrow icons OK
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 220 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

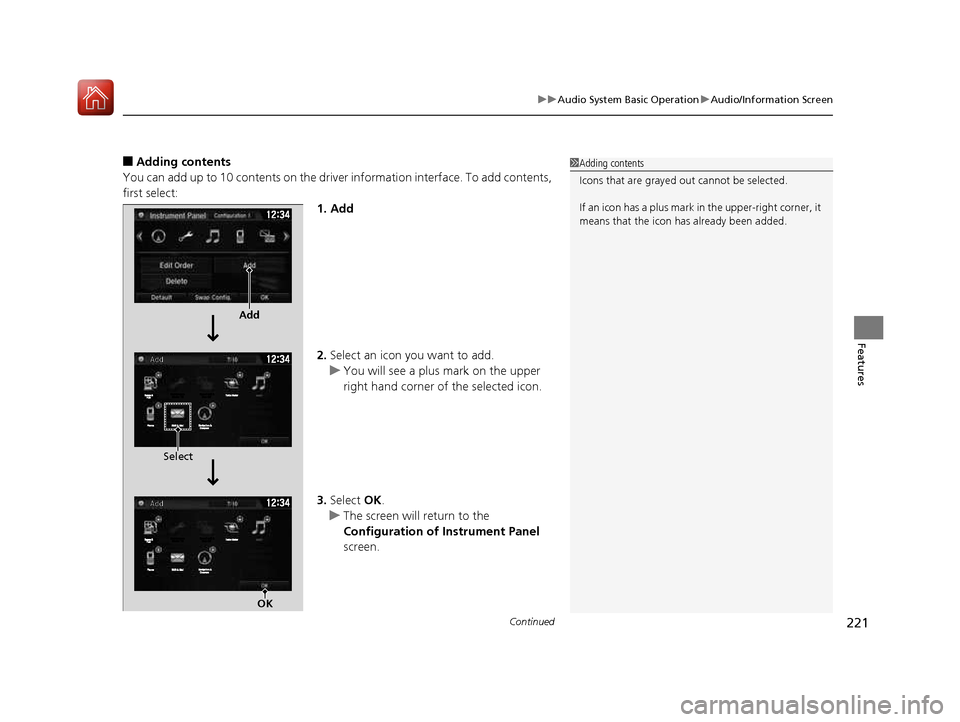

Continued221
uuAudio System Basic OperationuAudio/Information Screen
Features
■Adding contents
You can add up to 10 contents on the driver information interface. To add contents, first select: 1. Add 2.Select an icon you want to add.
uYou will see a plus mark on the upper
right hand corner of the selected icon.
3. Select OK.
uThe screen will return to the
Configuration of Instrument Panel
screen.
1Adding contents
Icons that are grayed out cannot be selected.
If an icon has a plus mark in the upper-right corner, it
means that the icon ha s already been added.
Add
Select
OK
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 221 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

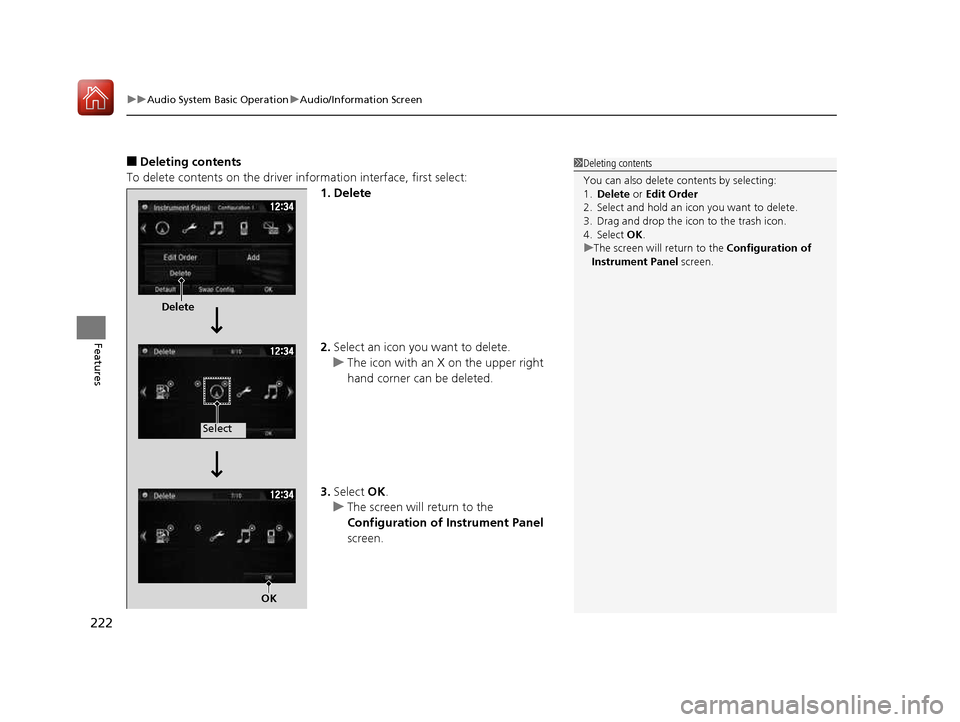

uuAudio System Basic OperationuAudio/Information Screen
222
Features
■ Deleting contents
To delete contents on the driver information interface, first select:
1. Delete 2.Select an icon you want to delete.
uThe icon with an X on the upper right
hand corner can be deleted.
3. Select OK.
uThe screen will return to the
Configuration of Instrument Panel
screen.
1Deleting contents
You can also delete c ontents by selecting:
1. Delete or Edit Order
2. Select and hold an icon you want to delete.
3. Drag and drop the icon to the trash icon.
4. Select OK.
uThe screen will return to the Configuration of
Instrument Panel screen.
Delete
Select
OK
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 222 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

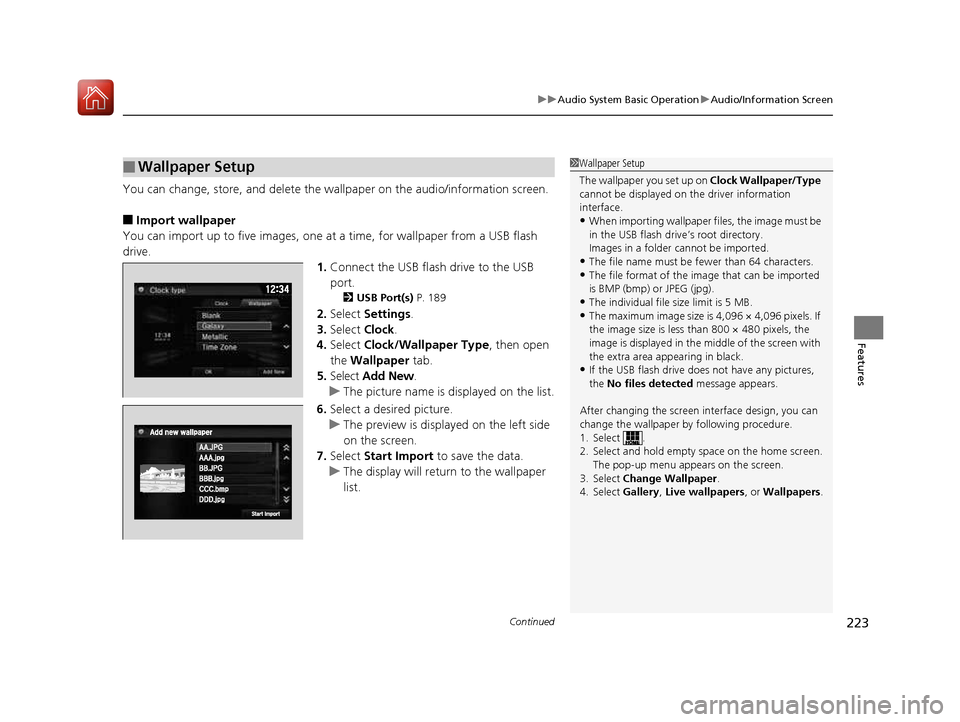

Continued223
uuAudio System Basic OperationuAudio/Information Screen
Features
You can change, store, and delete the wallpaper on the audio/information screen.
■ Import wallpaper
You can import up to five images, one at a time, for wallpaper from a USB flash
drive. 1.Connect the USB flash drive to the USB
port.
2 USB Port(s) P. 189
2. Select Settings .
3. Select Clock.
4. Select Clock/Wallpaper Type , then open
the Wallpaper tab.
5. Select Add New .
uThe picture name is displayed on the list.
6. Select a desired picture.
uThe preview is displayed on the left side
on the screen.
7. Select Start Import to save the data.
uThe display will return to the wallpaper
list.
■Wallpaper Setup1Wallpaper Setup
The wallpaper you set up on Clock Wallpaper/Type
cannot be displayed on th e driver information
interface. • When importing wallpaper files, the image must be
in the USB flash driv e’s root directory.
Images in a folder cannot be imported.
• The file name must be fewer than 64 characters.
• The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
• The individual file size limit is 5 MB.
• The maximum image size is 4,096 × 4,096 pixels. If
the image size is less than 800 × 480 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
• If the USB flash drive doe s not have any pictures,
the No files detected message appears.
After changing the screen interface design, you can change the wallpaper by following procedure.
1. Select .
2. Select and hold empty space on the home screen. The pop-up menu appears on the screen.
3. Select Change Wallpaper .
4. Select Gallery, Live wallpapers , or Wallpapers .
