2016 HONDA CIVIC COUPE Owners Manual

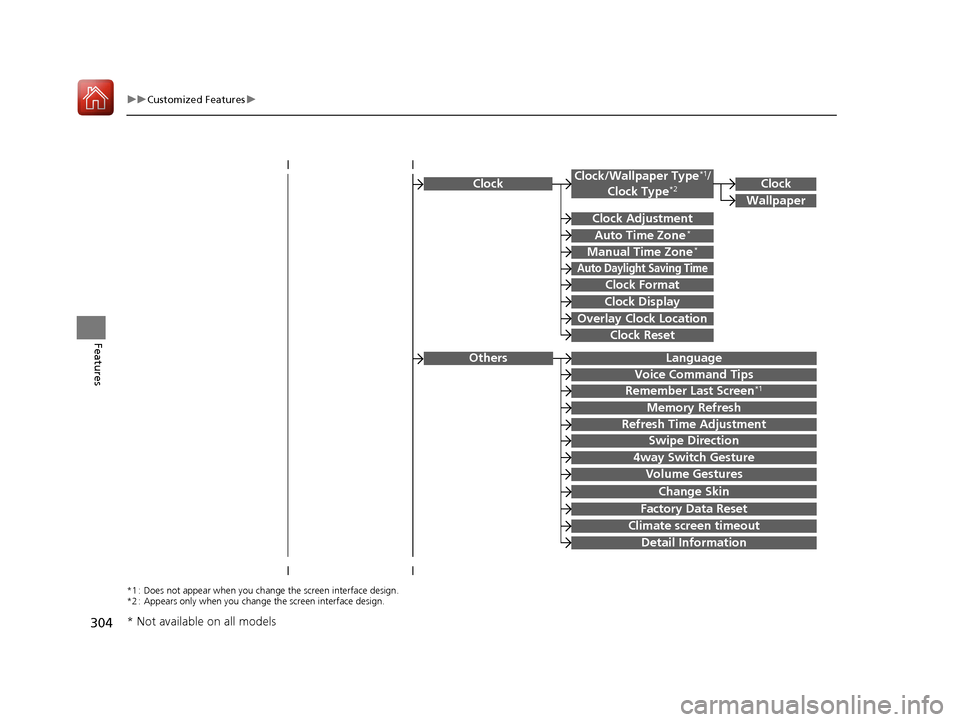

304
uuCustomized Featuresu
Features
ClockClock/Wallpaper Type*1
/
Clock Type *2
Clock Adjustment
Clock Format
Auto Time Zone *
Manual Time Zone *
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Clock
Wallpaper
*1 : Does not appear when you chang
e the screen interface design.
*2 : Appears only when you change the screen interface design.
Language
Voice Command Tips
Remember Last Screen *1
Memory Refresh
Refresh Time Adjustment
Swipe Direction
Change Skin
Factory Data Reset
Climate screen timeout
4way Switch Gesture
Volume Gestures
Detail Information
Others
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 304 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

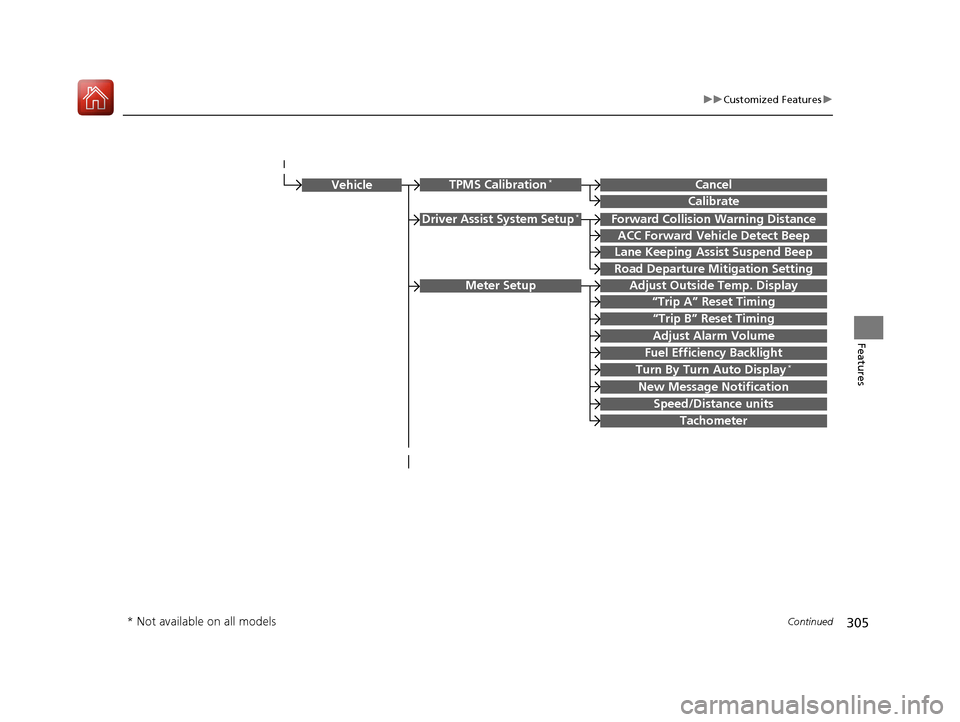

305
uuCustomized Featuresu
Continued
Features
Driver Assist System Setup*Forward Collision
Warning Distance
ACC Forward Vehicle Detect Beep
Lane Keeping Assist Suspend Beep
Road Departure Mi tigation Setting
Adjust Outside Temp. Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Vehicle
Meter Setup
Adjust Alarm Volume
Speed/Distance units
Fuel Efficiency Backlight
New Message Notification
Tachometer
CancelTPMS Calibration*
Calibrate
Turn By Turn Auto Display *
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 305 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

306
uuCustomized Featuresu
Features
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Auto Interior Illumination Sensitivity
Auto Door Lock
Key and Remote Unlock Mode
Door/Window Setup
Maintenance Info.
Auto Headlight ON With Wiper ON
Keyless Lock Answer Back
Security Relock Timer
Walk Away Auto Lock
Keyless Access Setup*
Door Unlock Mode
Keyless Access Light Flash
Keyless Access Beep
Remote Start System ON/OFF *
Auto Door Unlock
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 306 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

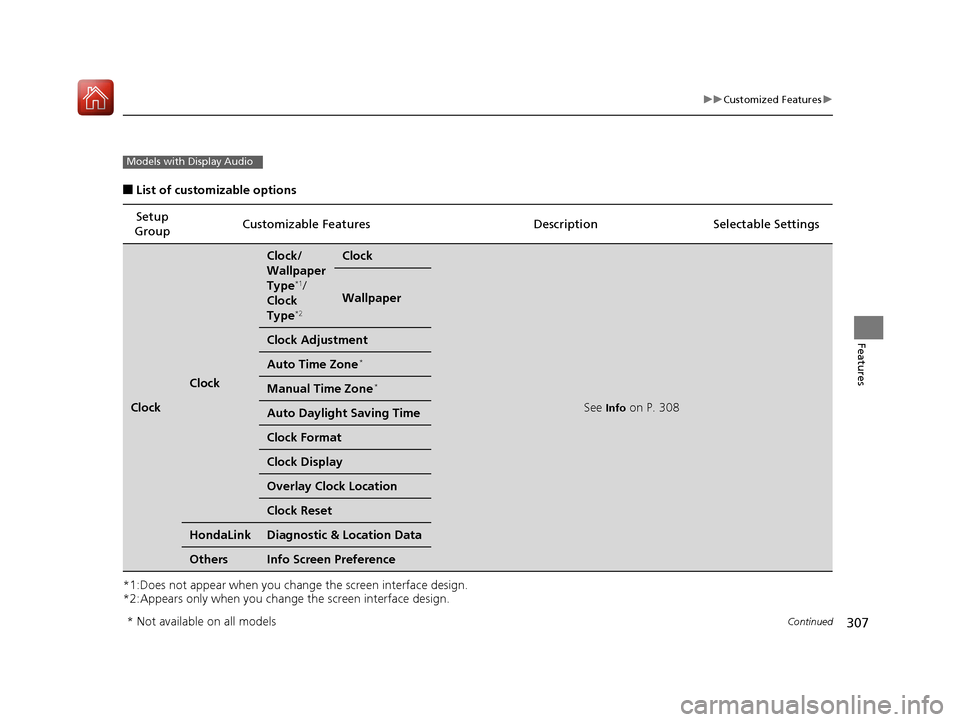

307
uuCustomized Featuresu
Continued
Features
■List of customizable options
*1:Does not appear when you chan ge the screen interface design.
*2:Appears only when you change the screen interface design. Setup
Group Customizable Features Desc
ription Selectable Settings
Clock
Clock
Clock/
Wallpaper
Type*1
/
Clock
Type *2Clock
See
Info on P. 308
Wallpaper
Clock Adjustment
Auto Time Zone *
Manual Time Zone *
Auto Daylight
Saving Time
Clock Format
Clock Display
Overlay Clock Location
Clock Reset
HondaLinkDiagnostic & Location Data
OthersInfo Screen Preference
Models with Display Audio
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 307 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

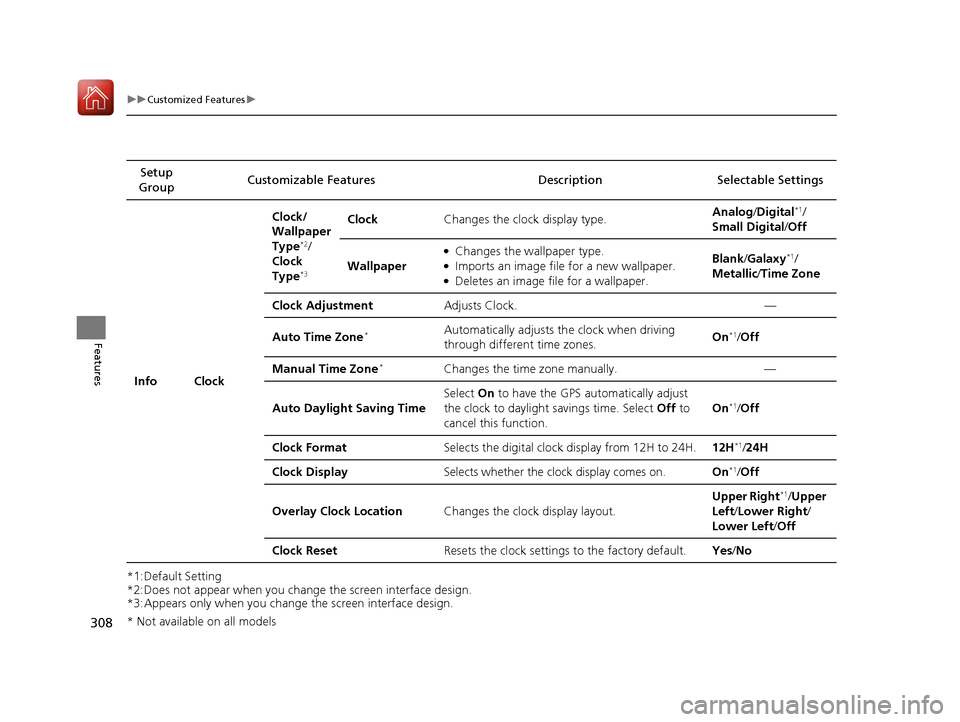

308
uuCustomized Featuresu
Features
*1:Default Setting
*2:Does not appear when you change the screen interface design.
*3:Appears only when you change the screen interface design.Setup
Group Customizable Features Desc
ription Selectable Settings
Info Clock Clock/
Wallpaper
Type
*2
/
Clock
Type *3 Clock
Changes the clock display type. Analog
/Digital *1
/
Small Digital /Off
Wallpaper ●
Changes the wallpaper type.
● Imports an image file for a new wallpaper.
● Deletes an image file for a wallpaper. Blank
/Galaxy *1
/
Metallic /Time Zone
Clock Adjustment Adjusts Clock. —
Auto Time Zone *Automatically adjusts th
e clock when driving
through different time zones. On
*1
/Off
Manual Time Zone *
Changes the time zone manually. —
Auto Daylight Saving Time Select
On to have the GPS automatically adjust
the clock to daylight savings time. Select Off to
cancel this function. On
*1
/Off
Clock Format Selects the digital clock display from 12H to 24H. 12H*1
/24H
Clock Display Selects whether the clock display comes on. On*1
/Off
Overlay Clock Location Changes the clock display layout. Upper Right
*1
/Upper
Left /Lower Right /
Lower Left /Off
Clock Reset Resets the clock settings to the factory default. Yes/No
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 308 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

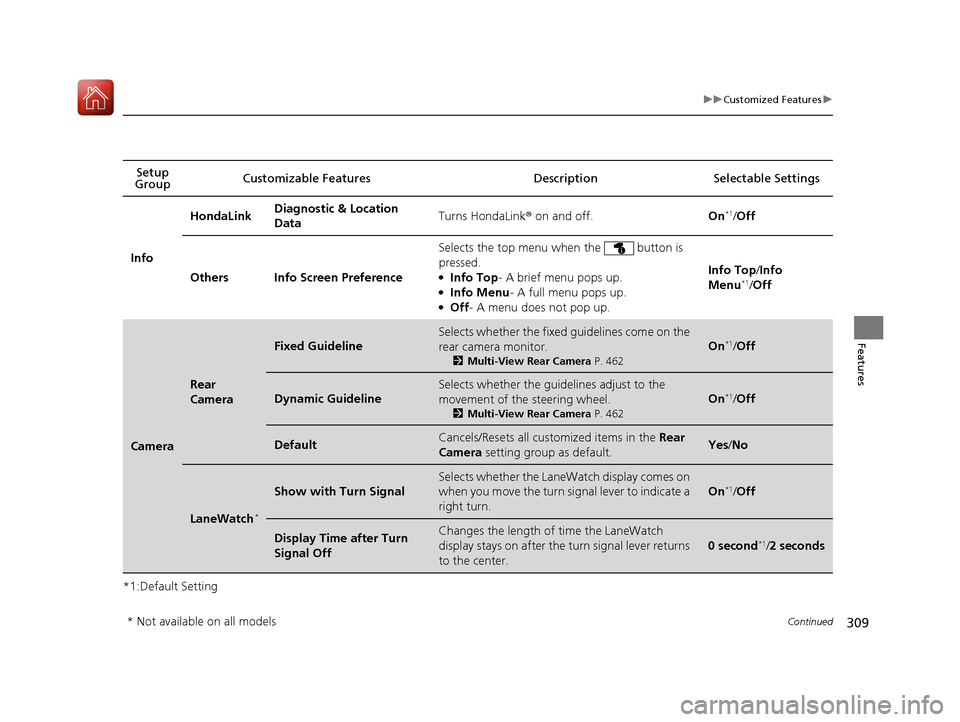

309
uuCustomized Featuresu
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Info HondaLink
Diagnostic & Location
Data
Turns HondaLink
® on and off. On*1
/Off
Others Info Screen Preference Selects the top menu when the button is pressed. ●
Info Top - A brief menu pops up.
● Info Menu - A full menu pops up.
● Off - A menu does not pop up. Info Top
/Info
Menu *1
/Off
Camera
Rear
Camera
Fixed Guideline
Selects whether the fixed guidelines come on the
rear camera monitor.
2Multi-View Rear Camera P. 462
On*1
/Off
Dynamic Guideline
Selects whether the guidelines adjust to the
movement of the steering wheel.
2Multi-View Rear Camera P. 462
On*1
/Off
DefaultCancels/Resets all cust omized items in the Rear
Camera setting group as default.Yes/No
LaneWatch *
Show with Turn Signal
Selects whether the LaneWatch display comes on
when you move the turn signal lever to indicate a
right turn.
On*1
/Off
Display Time after Turn Signal OffChanges the length of time the LaneWatch
display stays on after the turn signal lever returns
to the center.
0 second *1
/2 seconds
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 309 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

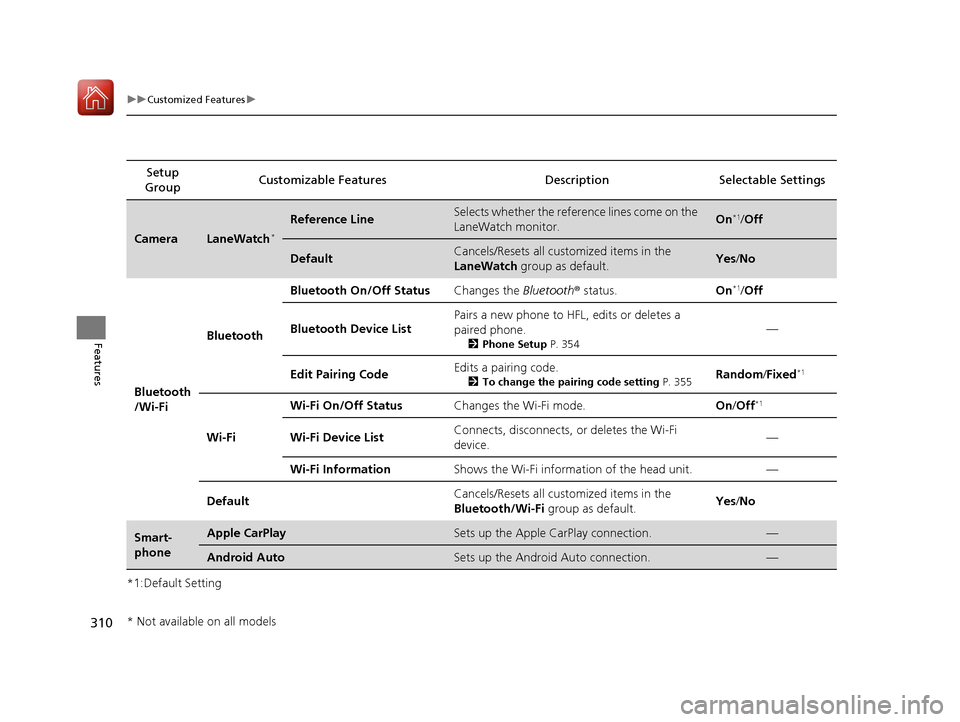

310
uuCustomized Featuresu
Features
*1:Default SettingSetup
Group Customizable Featur
es Description Sel ectable Settings
CameraLaneWatch*
Reference LineSelects whether the reference lines come on the LaneWatch monitor.On*1
/Off
DefaultCancels/Resets all customized items in the LaneWatch group as default.Yes/No
Bluetooth
/Wi-Fi Bluetooth
Bluetooth On/Off Status
Changes the Bluetooth® status. On*1
/Off
Bluetooth Device List Pairs a new phone to HFL, edits or deletes a
paired phone.
2Phone Setup P. 354 —
Edit Pairing Code Edits a pairing code.
2To change the pairing code setting P. 355Random
/Fixed *1
Wi-Fi Wi-Fi On/Off Status
Changes the Wi-Fi mode. On/Off *1
Wi-Fi Device List Connects, disconnects, or deletes the Wi-Fi
device.
—
Wi-Fi Information Shows the Wi-Fi information of the head unit. —
Default Cancels/Resets all customized items in the
Bluetooth/Wi-Fi
group as default. Yes
/No
Smart-
phoneApple CarPlaySets up the Apple CarPlay connection.—
Android AutoSets up the Android Auto connection.—
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 310 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

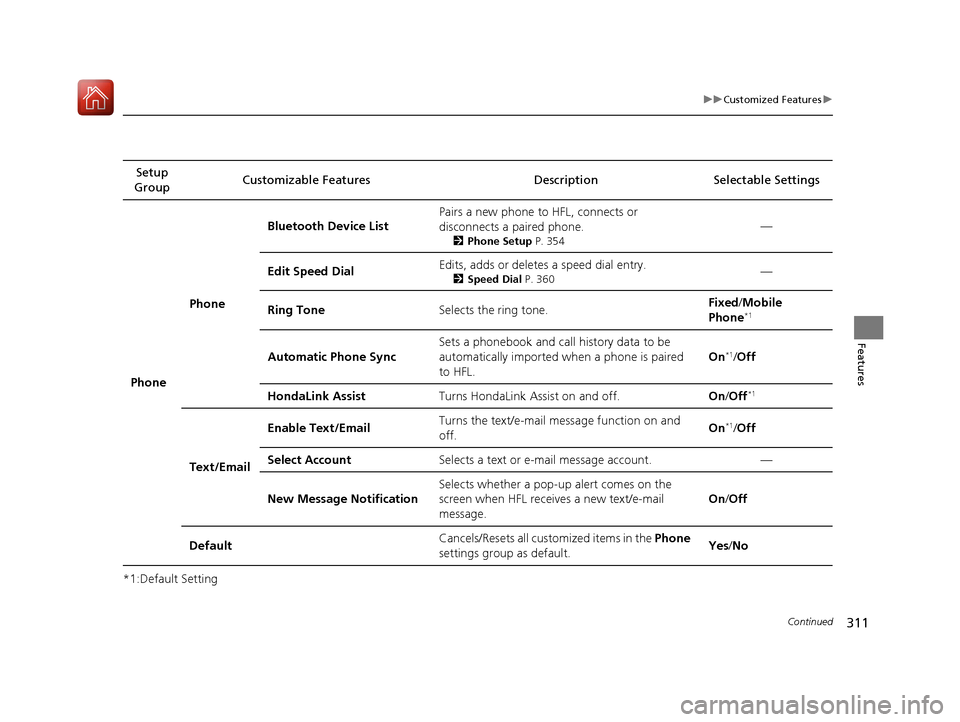

311
uuCustomized Featuresu
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Phone Phone
Bluetooth Device List
Pairs a new phone to HFL, connects or
disconnects a paired phone.
2Phone Setup P. 354 —
Edit Speed Dial Edits, adds or deletes a speed dial entry.
2Speed Dial P. 360 —
Ring Tone Selects the ring tone. Fixed
/Mobile
Phone *1
Automatic Phone Sync Sets a phonebook and call history data to be
automatically imported when a phone is paired to HFL. On
*1
/Off
HondaLink Assist Turns HondaLink Assist on and off. On/Off *1
Text/Email Enable Text/Email
Turns the text/e-mail
message function on and
off. On
*1
/Off
Select Account Selects a text or e-mail message account. —
New Message Notification Selects whether a pop-up
alert comes on the
screen when HFL receives a new text/e-mail
message. On
/Off
Default Cancels/Resets all customized items in the
Phone
settings group as default. Yes
/No
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 311 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
