2016 HONDA CIVIC COUPE Owners Manual

uuBluetooth® HandsFreeLink ®uHFL Menus
344
Features

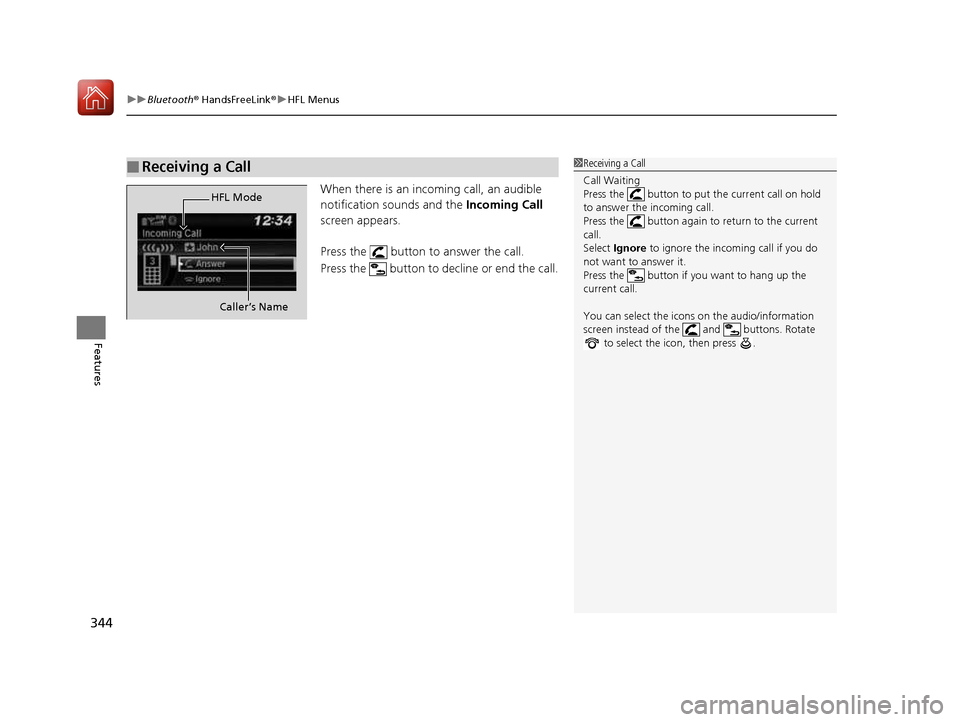

When there is an incoming call, an audible
notification sounds and the Incoming Call
screen appears.
Press the button to answer the call.
Press the button to decline or end the call.
■Receiving a Call1Receiving a Call
Call Waiting
Press the button to put the current call on hold
to answer the incoming call.
Press the button again to return to the current call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons. Rotate
to select the icon, then press .
HFL Mode
Caller’s Name
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 344 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

345
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

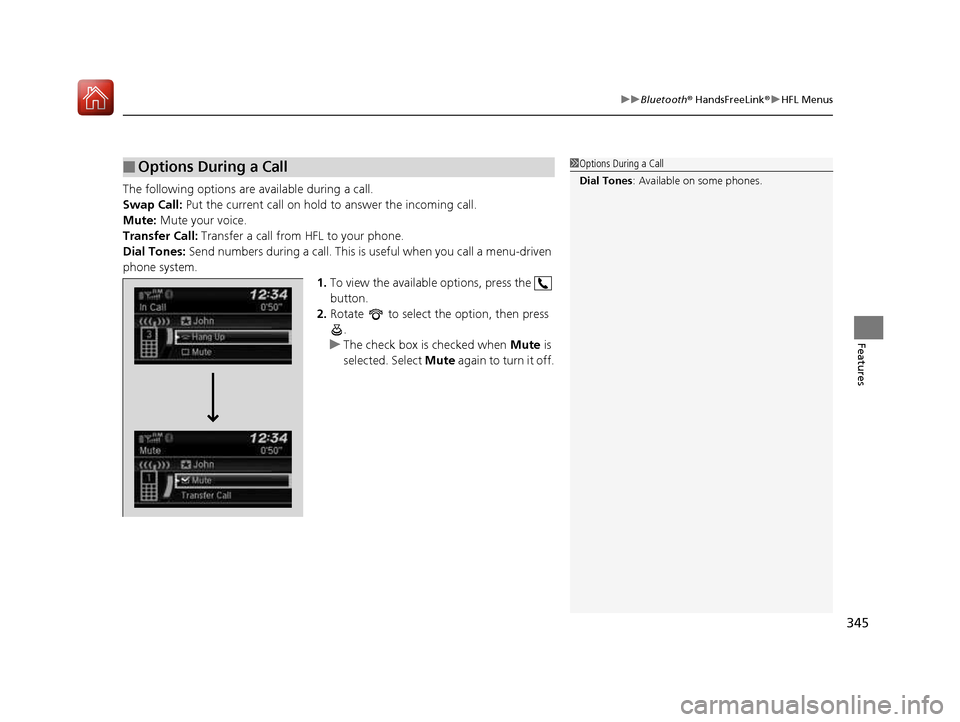

The following options ar e available during a call.
Swap Call: Put the current call on hold to answer the incoming call.
Mute: Mute your voice.
Transfer Call: Transfer a call from HFL to your phone.
Dial Tones: Send numbers during a call. This is useful when you call a menu-driven
phone system. 1.To view the available options, press the
button.
2. Rotate to select the option, then press
.
uThe check box is checked when Mute is
selected. Select Mute again to turn it off.
■Options During a Call1Options During a Call
Dial Tones : Available on some phones.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 345 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

346
Features

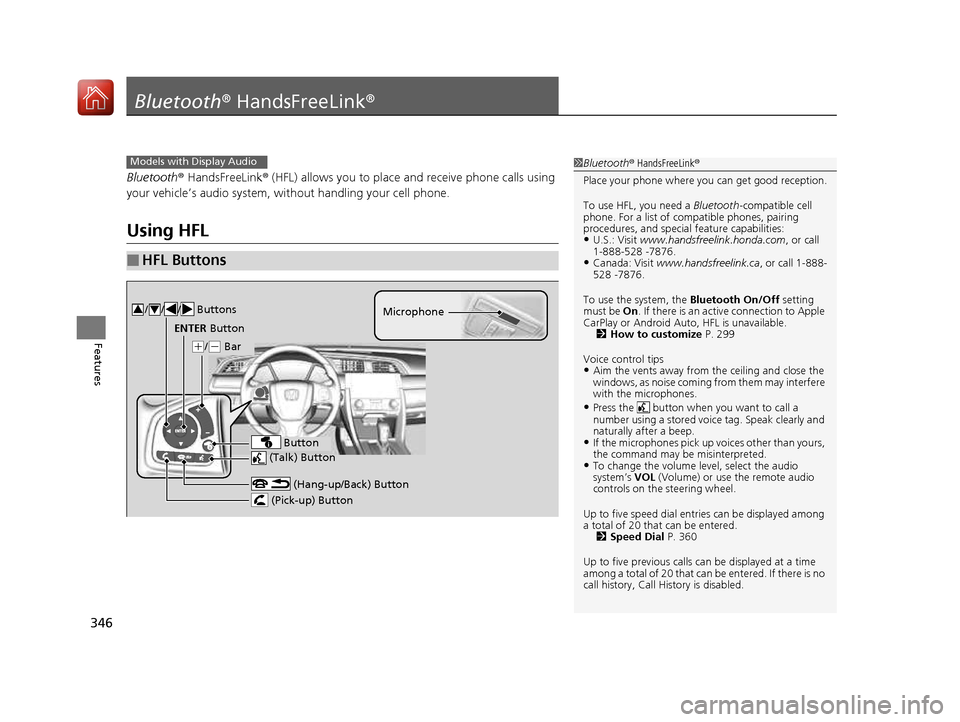

Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
• U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528 -7876.
• Canada: Visit www.handsfreelink.ca , or call 1-888-
528 -7876.
To use the system, the Bluetooth On/Off setting
must be On. If there is an acti ve connection to Apple
CarPlay or Android Auto , HFL is unavailable.
2 How to customize P. 299
Voice control tips • Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphones.
• Press the button when you want to call a
number using a stored voic e tag. Speak clearly and
naturally after a beep.
• If the microphones pick up vo ices other than yours,
the command may be misinterpreted.
• To change the volume level, select the audio system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
Up to five speed dial en tries can be displayed among
a total of 20 that can be entered.
2 Speed Dial P. 360
Up to five previous calls can be displayed at a time
among a total of 20 that can be entered. If there is no
call history, Call History is disabled.Models with Display Audio
(Talk) Button
(+ /(- Bar Microphone
(Hang-up/Back) Button
(Pick-up) Button
ENTER Button
Button
/ / / Buttons34
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 346 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued347
uuBluetooth® HandsFreeLink ®uUsing HFL
Features

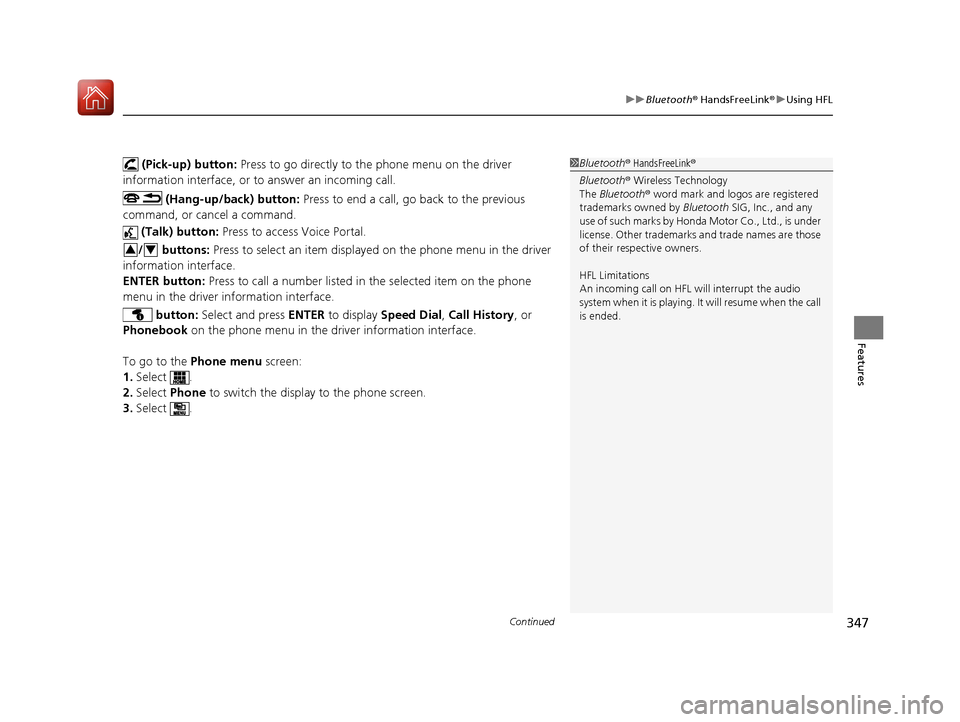

(Pick-up) button: Press to go directly to the phone menu on the driver
information interface, or to answer an incoming call.
(Hang-up/back) button: Press to end a call, go back to the previous
command, or cancel a command.
(Talk) button: Press to access Voice Portal.
/ buttons: Press to select an item displayed on the phone menu in the driver
information interface.
ENTER button: Press to call a number listed in the selected item on the phone
menu in the driver information interface.
button: Select and press ENTER to display Speed Dial , Call History , or
Phonebook on the phone menu in the driver information interface.
To go to the Phone menu screen:
1. Select .
2. Select Phone to switch the displa y to the phone screen.
3. Select .1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call is ended.
34
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 347 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuBluetooth® HandsFreeLink ®uUsing HFL
348
Features

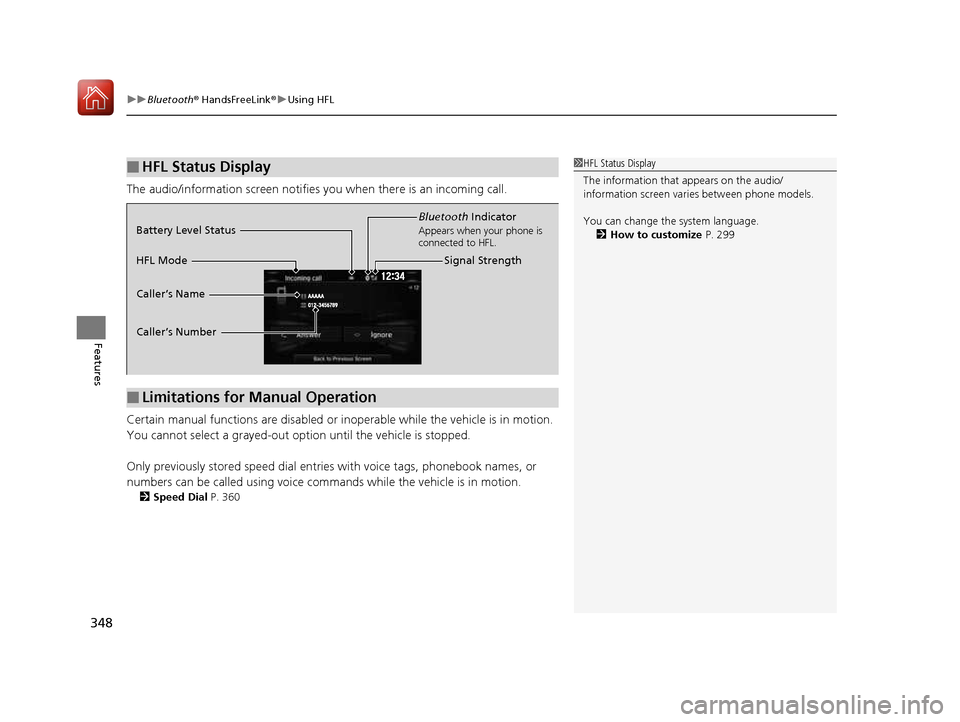

The audio/information screen notifies you when there is an incoming call.
Certain manual functions are disabled or i noperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phonebook names, or
numbers can be called using voice commands while the vehicle is in motion. 2 Speed Dial P. 360
■HFL Status Display1HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language. 2 How to customize P. 299
■Limitations for Manual Operation
Bluetooth Indicator
Appears when your phone is
connected to HFL.
Signal Strength
HFL Mode
Battery Level Status
Caller’s Name
Caller’s Number
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 348 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

349
uuBluetooth® HandsFreeLink ®uHFL Menus
Continued
Features

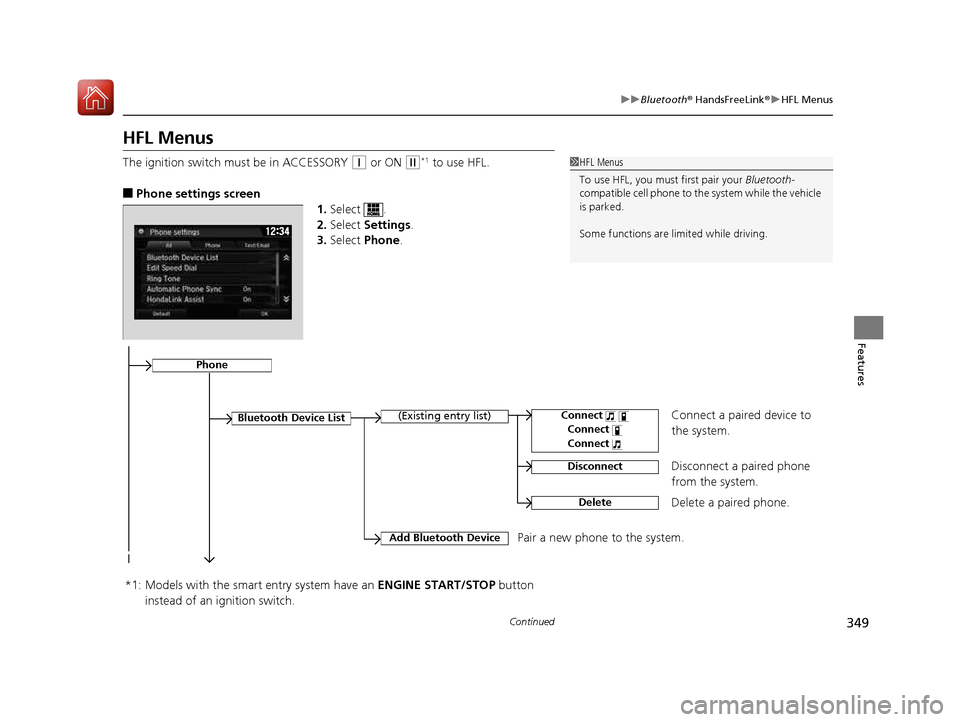

HFL Menus
The ignition switch mu st be in ACCESSORY
(q or ON (w*1
to use HFL.
■ Phone settings screen
1.Select .
2. Select Settings .
3. Select Phone .1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are limited while driving.
Disconnect a paired phone
from the system.
Bluetooth Device List
(Existing entry list)
Disconnect
DeleteDelete a paired phone.
Add Bluetooth Device
Pair a new phone to the system.
Phone
Connect a paired device to
the system.Connect
Connect
Connect
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 349 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

350
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
Manual InputNew Entry
Import from Call History
Import from Phonebook
Edit
Delete
(Existing entry list)Edit Speed Dial
Delete All
Enter a phone number to store as a speed
dial number.
Select a phone number from the call history
to store as a speed dial number.
Delete all of the previously stored speed dial numbers. Select a phone number from the phonebook
to store as a speed dial number.
Edit a previously stored speed dial number. ●
Change a name.
● Change a number.
● Create or delete a voice tag.
Delete a previously stored speed dial number.
Ring ToneSelect the fixed or mobile phone.
Automatic Phone Sync
Set phonebook and call history data to be automa tically imported when a phone is paired to HFL.
Turn HondaLink Assist on and off.HondaLink Assist
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 350 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

351
uuBluetooth® HandsFreeLink ®uHFL Menus
Continued
Features

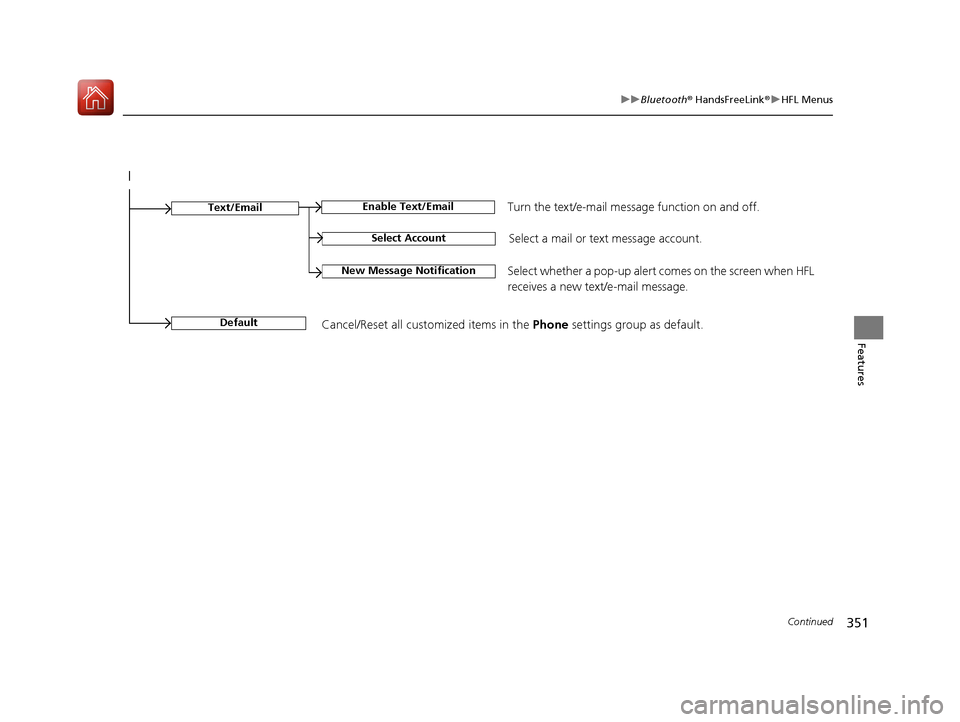

Select Account
Enable Text/EmailText/Email
New Message NotificationSelect whether a pop-up alert co mes on the screen when HFL
receives a new text/e-mail message.
Turn the text/e-mail message function on and off.
Select a mail or te xt message account.
DefaultCancel/Reset all customized items in the Phone settings group as default.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 351 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
