2016 HONDA CIVIC COUPE Owners Manual

272
uuAudio System Basic OperationuHondaLink®
Features

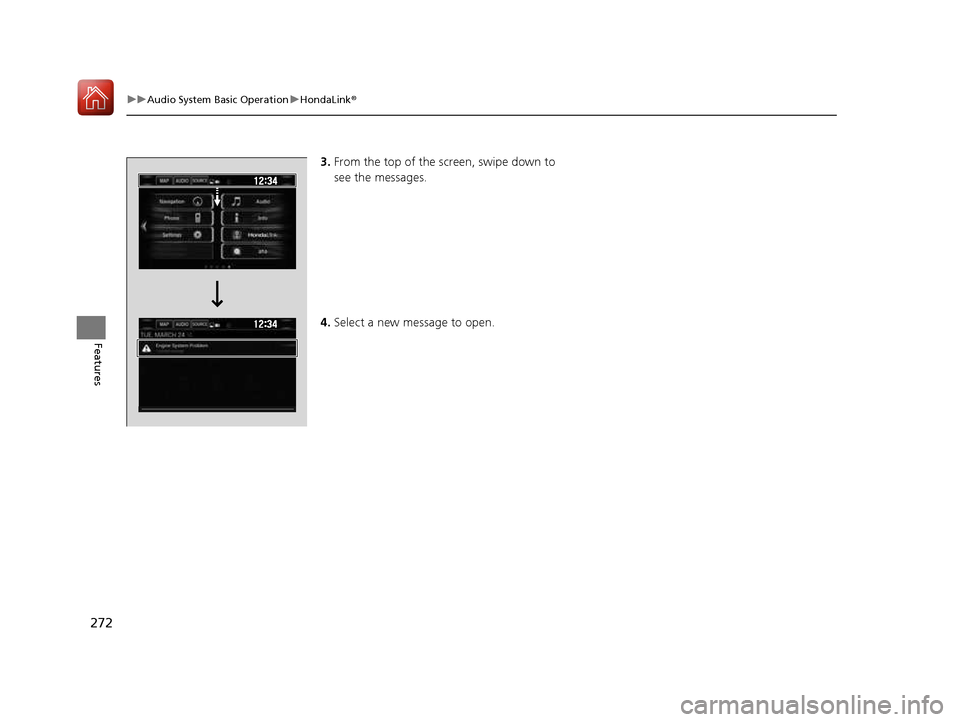

3.From the top of the screen, swipe down to
see the messages.
4. Select a new message to open.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 272 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

273
uuAudio System Basic OperationuWi-Fi Connection
Continued
Features

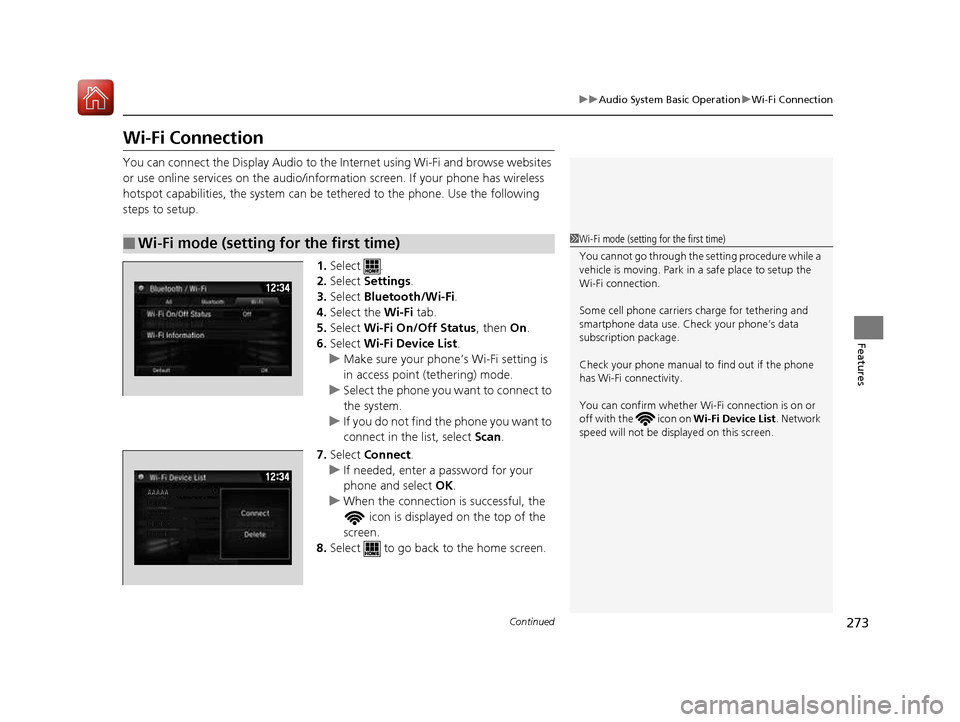

Wi-Fi Connection
You can connect the Display Audio to the Internet using Wi-Fi and browse websites
or use online services on the audio/information screen. If your phone has wireless
hotspot capabilities, the system can be tethered to the phone. Use the following steps to setup.1.Select .
2. Select Settings .
3. Select Bluetooth/Wi-Fi .
4. Select the Wi-Fi tab.
5. Select Wi-Fi On/Off Status , then On.
6. Select Wi-Fi Device List .
uMake sure your phone’ s Wi-Fi setting is
in access point (tethering) mode.
uSelect the phone you want to connect to
the system.
uIf you do not find the phone you want to
connect in the list, select Scan.
7. Select Connect .
uIf needed, enter a password for your
phone and select OK.
uWhen the connection is successful, the
icon is displayed on the top of the
screen.
8. Select to go back to the home screen.
■Wi-Fi mode (setting for the first time)1Wi-Fi mode (setting for the first time)
You cannot go through the setting procedure while a
vehicle is moving. Park in a safe place to setup the
Wi-Fi connection.
Some cell phone carriers charge for tethering and
smartphone data use. Check your phone’s data subscription package.
Check your phone manual to find out if the phone
has Wi-Fi connectivity.
You can confirm whether Wi -Fi connection is on or
off with the icon on Wi-Fi Device List. Network
speed will not be displayed on this screen.
12 ‰34
AAAAABBBBB CCCCC DDDDD EEEEE
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 273 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuAudio System Basic OperationuWi-Fi Connection
274
Features

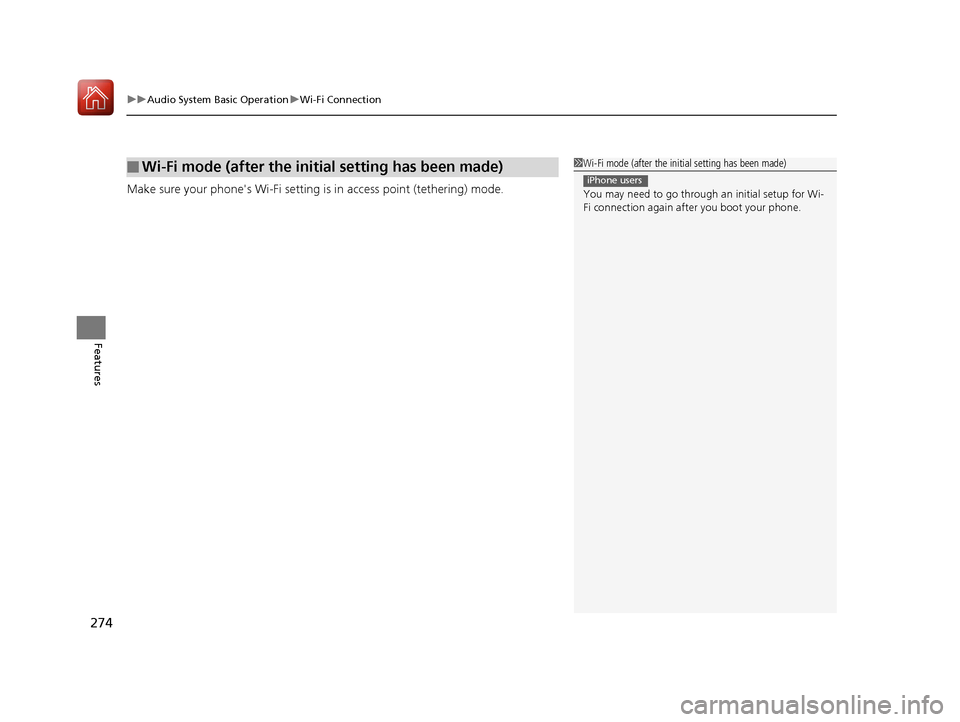

Make sure your phone's Wi-Fi setting is in access point (tethering) mode.
■Wi-Fi mode (after the initial setting has been made)1Wi-Fi mode (after the initial setting has been made)
You may need to go through an initial setup for Wi- Fi connection again af ter you boot your phone.
iPhone users
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 274 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

275
uuAudio System Basic OperationuSiri Eyes Free
Features

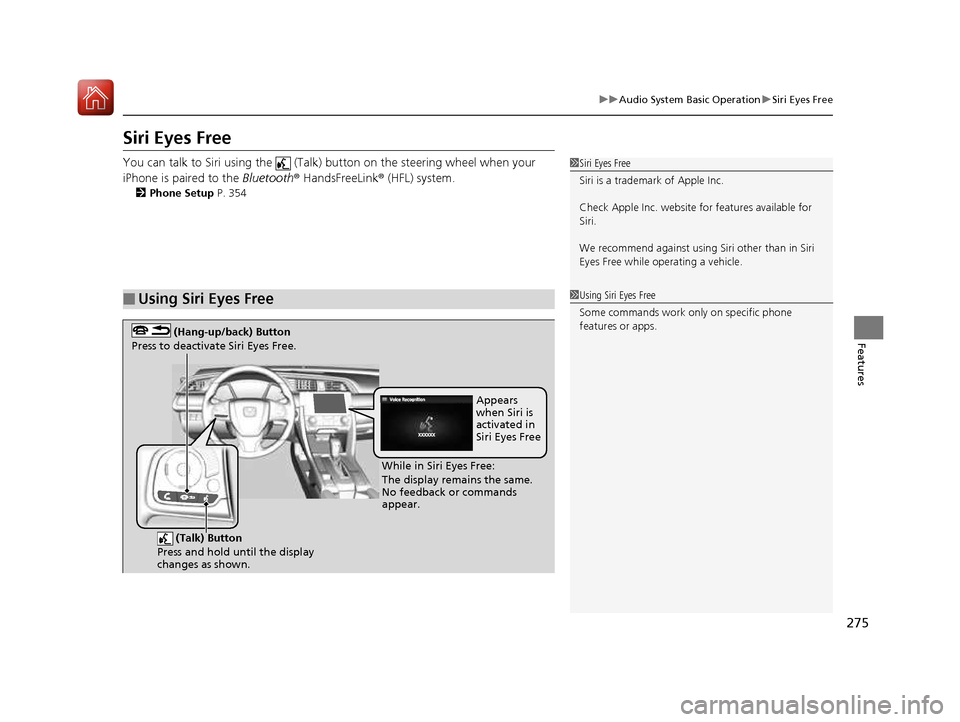

Siri Eyes Free
You can talk to Siri using the (Talk) button on the steering wheel when your
iPhone is paired to the Bluetooth® HandsFreeLink ® (HFL) system.
2 Phone Setup P. 354
■Using Siri Eyes Free
1Siri Eyes Free
Siri is a trademark of Apple Inc.
Check Apple Inc. website for features available for
Siri.
We recommend against using Si ri other than in Siri
Eyes Free while operating a vehicle.
1Using Siri Eyes Free
Some commands work only on specific phone features or apps.
(Talk) Button
Press and hold until the display
changes as shown.
(Hang-up/back) Button
Press to deactivate Siri Eyes Free.
While in Siri Eyes Free:
The display remains the same.
No feedback or commands
appear. Appears
when Siri is
activated in
Siri Eyes Free
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 275 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

276
uuAudio System Basic OperationuApple CarPlay
Features

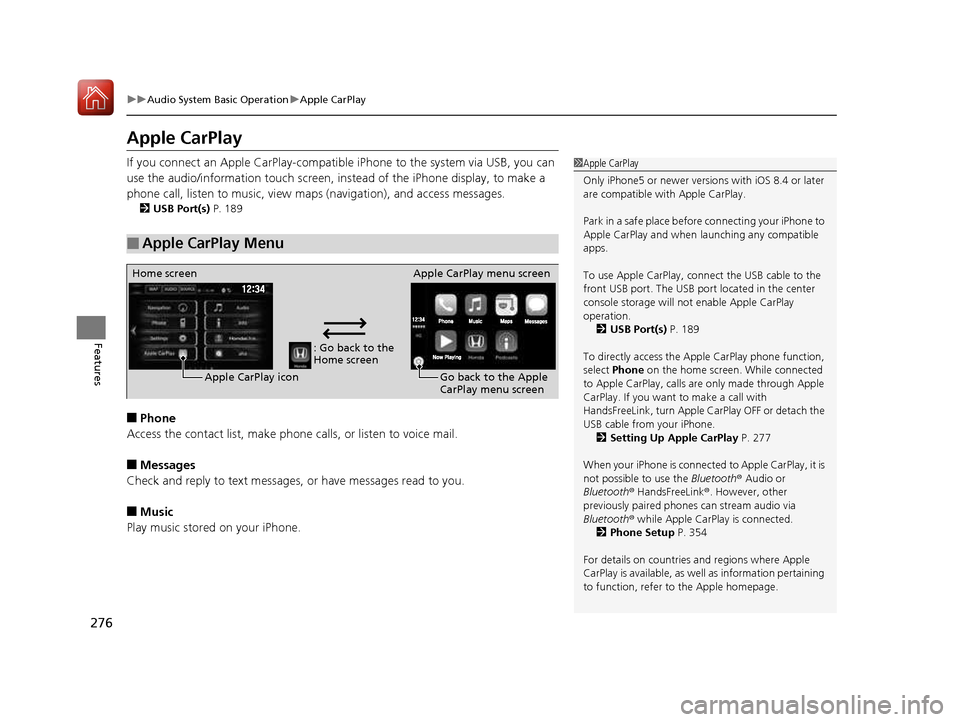

Apple CarPlay
If you connect an Apple CarPlay-compatible iPhone to the system via USB, you can
use the audio/information touch screen, instead of the iPhone display, to make a
phone call, listen to musi c, view maps (navigation), and access messages.
2 USB Port(s) P. 189
■ Phone
Access the contact list, make phone calls, or listen to voice mail.
■ Messages
Check and reply to text messages , or have messages read to you.
■ Music
Play music stored on your iPhone.
■Apple CarPlay Menu
1Apple CarPlay Only iPhone5 or newer versio ns with iOS 8.4 or later
are compatible with Apple CarPlay. Park in a safe place before connecting your iPhone to
Apple CarPlay and when launching any compatible
apps.
To use Apple CarPlay, connect the USB cable to the front USB port. The USB por t located in the center
console storage will not enable Apple CarPlay
operation.
2 USB Port(s) P. 189
To directly access the Appl e CarPlay phone function,
select Phone on the home screen. While connected
to Apple CarPlay, calls are only made through Apple
CarPlay. If you want to make a call with
HandsFreeLink, turn Apple CarPlay OFF or detach the
USB cable from your iPhone. 2 Setting Up Apple CarPlay P. 277
When your iPhone is connected to Apple CarPlay, it is
not possible to use the Bluetooth® Audio or
Bluetooth ® HandsFreeLink ®. However, other
previously paired phones can stream audio via
Bluetooth ® while Apple CarPlay is connected.
2 Phone Setup P. 354
For details on c ountries and regions where Apple
CarPlay is available, as well as information pertaining
to function, refer to the Apple homepage.
12 ‰34
Phone Music Maps Messages
Now Playing
: Go back to the Home screen
Home screen
Apple CarPlay icon Apple CarPlay menu screen
Go back to the Apple
CarPlay menu screen
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 276 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued277
uuAudio System Basic OperationuApple CarPlay
Features

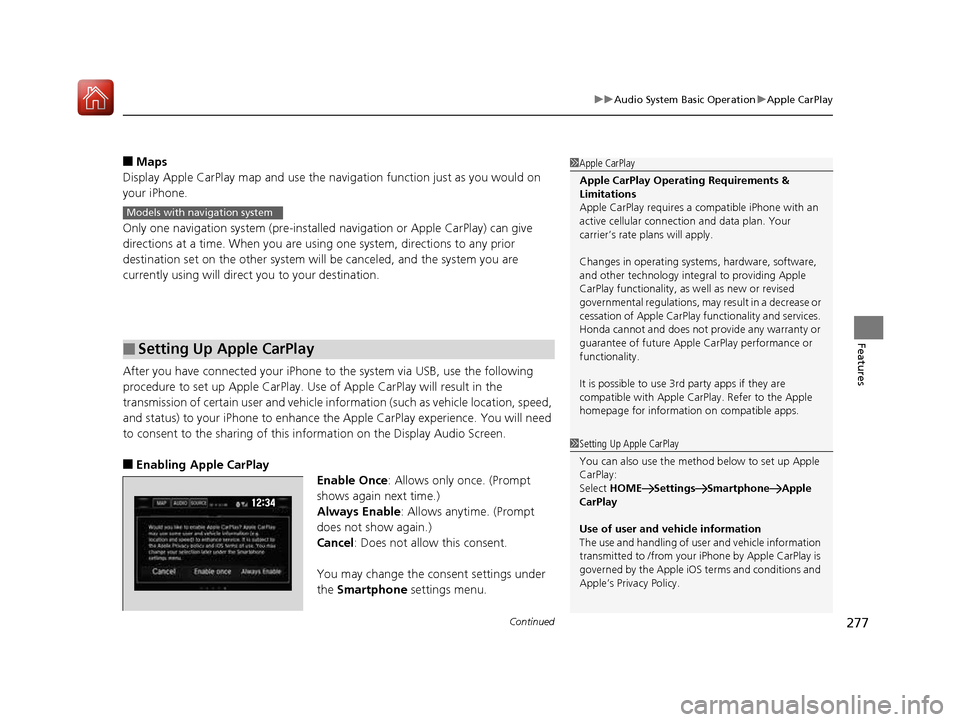

■Maps
Display Apple CarPlay map and use the navi gation function just as you would on
your iPhone.
Only one navigation system (pre-installed navigation or Apple CarPlay) can give
directions at a time. When you are using one system, directions to any prior
destination set on the other system will be canceled, and the system you are
currently using will direct you to your destination.
After you have connected your iPhone to the system via USB, use the following
procedure to set up Apple CarPlay. Us e of Apple CarPlay will result in the
transmission of certain user and vehicle information (such as vehicle location, speed,
and status) to your iPhone to enhance the Apple CarPlay experience. You will need
to consent to the sharing of this in formation on the Display Audio Screen.
■ Enabling Apple CarPlay
Enable Once: Allows only once. (Prompt
shows again next time.)
Always Enable : Allows anytime. (Prompt
does not show again.)
Cancel : Does not allow this consent.
You may change the consent settings under the Smartphone settings menu.
■Setting Up Apple CarPlay
1Apple CarPlay
Apple CarPlay Operating Requirements &
Limitations Apple CarPlay requi res a compatible iPhone with an
active cellular connecti on and data plan. Your
carrier’s rate plans will apply.
Changes in operating system s, hardware, software,
and other technology integral to providing Apple
CarPlay functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Apple CarPlay functionality and services.
Honda cannot and does not pr ovide any warranty or
guarantee of future Appl e CarPlay performance or
functionality.
It is possible to use 3r d party apps if they are
compatible with Apple CarPlay. Refer to the Apple
homepage for information on compatible apps.
Models with navigation system
1Setting Up Apple CarPlay
You can also use the method below to set up Apple
CarPlay:
Select HOME Settings Smartphone Apple
CarPlay
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to /from your iPhone by Appl e CarPlay is
governed by the Apple iOS terms and conditions and
Apple’s Privacy Policy.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 277 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuAudio System Basic OperationuApple CarPlay
278
Features

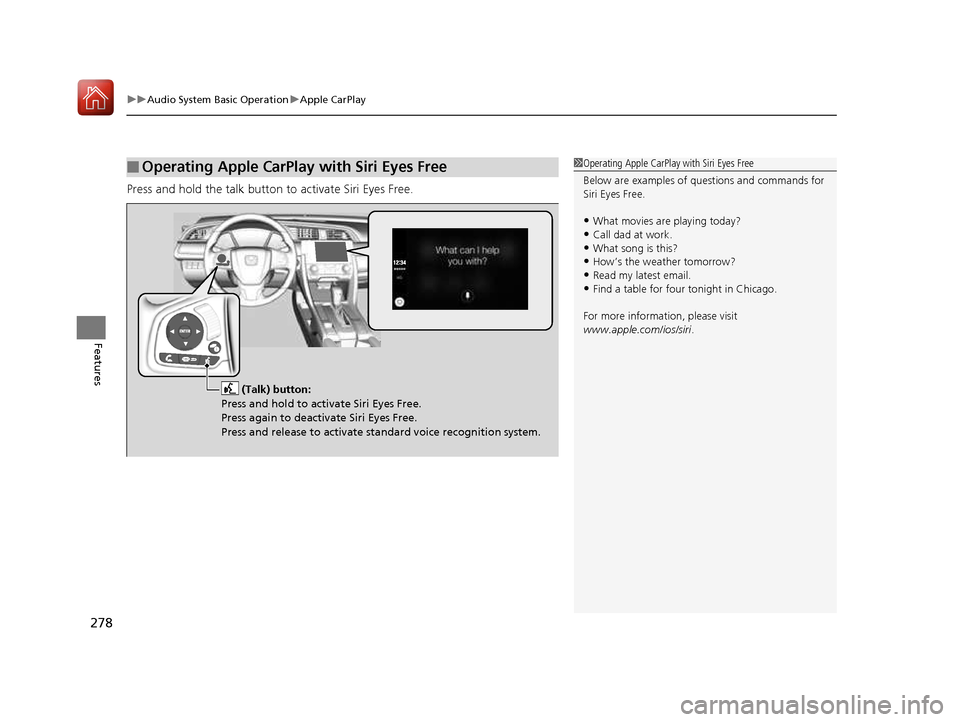

Press and hold the talk button to activate Siri Eyes Free.
■Operating Apple CarPlay with Siri Eyes Free1Operating Apple CarPlay with Siri Eyes Free
Below are examples of questions and commands for
Siri Eyes Free. • What movies are playing today?
• Call dad at work.
• What song is this?
• How’s the weather tomorrow?
• Read my latest email.
• Find a table for four tonight in Chicago.
For more information, please visit
www.apple.com/ios/siri .
(Talk) button:
Press and hold to activate Siri Eyes Free.
Press again to deactivate Siri Eyes Free.
Press and release to activate standard voice recognition system.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 278 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

279
uuAudio System Basic OperationuAndroid Auto
Continued
Features

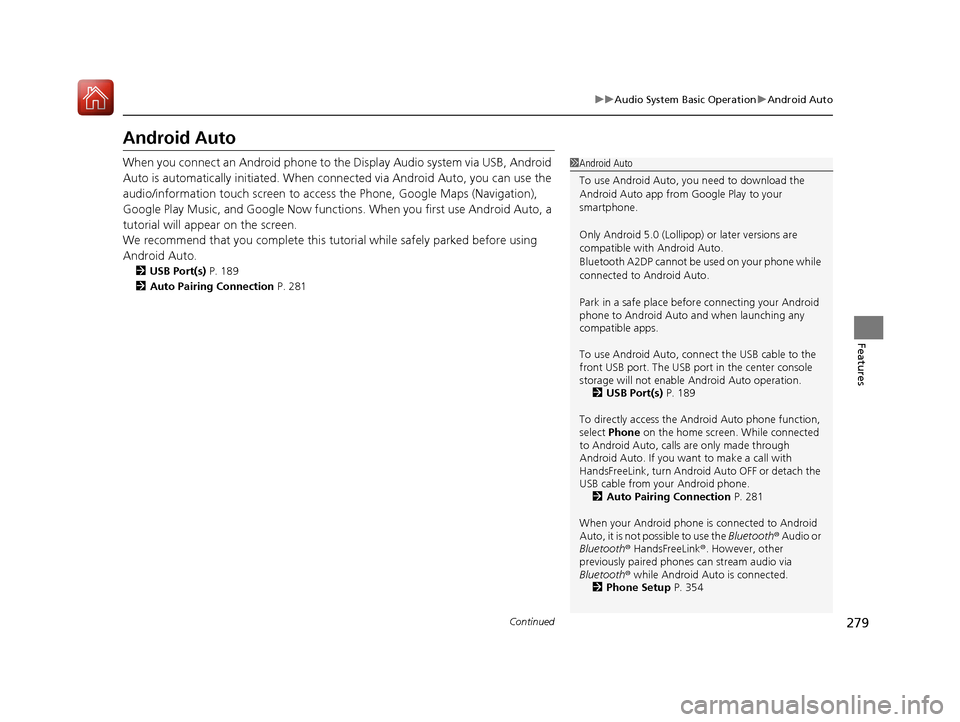

Android Auto
When you connect an Android phone to the Display Audio system via USB, Android
Auto is automatically initiated. When connected via Android Auto, you can use the
audio/information touch screen to access the Phone, Google Maps (Navigation),
Google Play Music, and Google Now functions. When you first use Android Auto, a tutorial will appear on the screen.
We recommend that you complete this tutorial while safely parked before using
Android Auto. 2 USB Port(s) P. 189
2 Auto Pairing Connection P. 281
1Android Auto
To use Android Auto, you need to download the
Android Auto app from Google Play to your smartphone.
Only Android 5.0 (Lollipop) or later versions are
compatible with Android Auto.
Bluetooth A2DP cannot be used on your phone while
connected to Android Auto.
Park in a safe place befo re connecting your Android
phone to Android Auto and when launching any
compatible apps.
To use Android Auto, connect the USB cable to the
front USB port. The USB port in the center console
storage will not enable Android Auto operation.
2 USB Port(s) P. 189
To directly access the Android Auto phone function,
select Phone on the home screen. While connected
to Android Auto, calls are only made through
Android Auto. If you want to make a call with
HandsFreeLink, turn Android Auto OFF or detach the
USB cable from your Android phone. 2 Auto Pairing Connection P. 281
When your Android phone is connected to Android
Auto, it is not possible to use the Bluetooth® Audio or
Bluetooth ® HandsFreeLink ®. However, other
previously paired phones can stream audio via
Bluetooth ® while Android Auto is connected.
2 Phone Setup P. 354
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 279 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
