2016 HONDA CIVIC COUPE headlight aiming

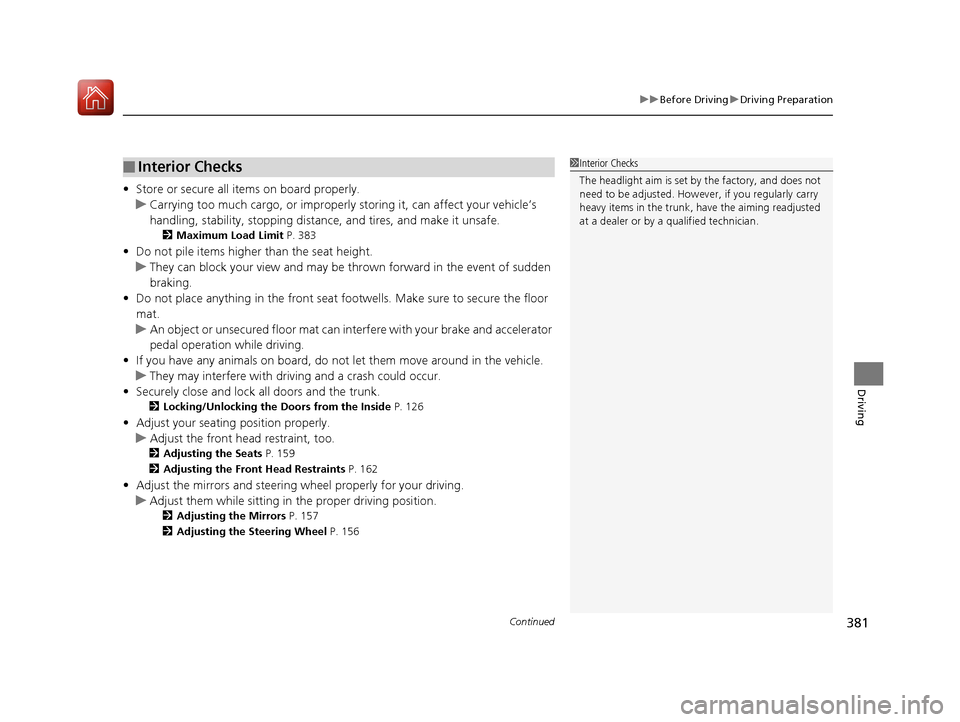

Continued381
uuBefore DrivinguDriving Preparation
Driving
•Store or secure all items on board properly.
uCarrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2 Maximum Load Limit P. 383
• Do not pile items higher than the seat height.
uThey can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
uAn object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
uThey may interfere with driving and a crash could occur.
• Securely close and lock all doors and the trunk.
2 Locking/Unlocking the Doors from the Inside P. 126
• Adjust your seating position properly.
uAdjust the front h ead restraint, too.
2 Adjusting the Seats P. 159
2 Adjusting the Front Head Restraints P. 162
• Adjust the mirrors and steering wh eel properly for your driving.
uAdjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 157
2 Adjusting the Steering Wheel P. 156
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted at a dealer or by a qualified technician.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 381 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

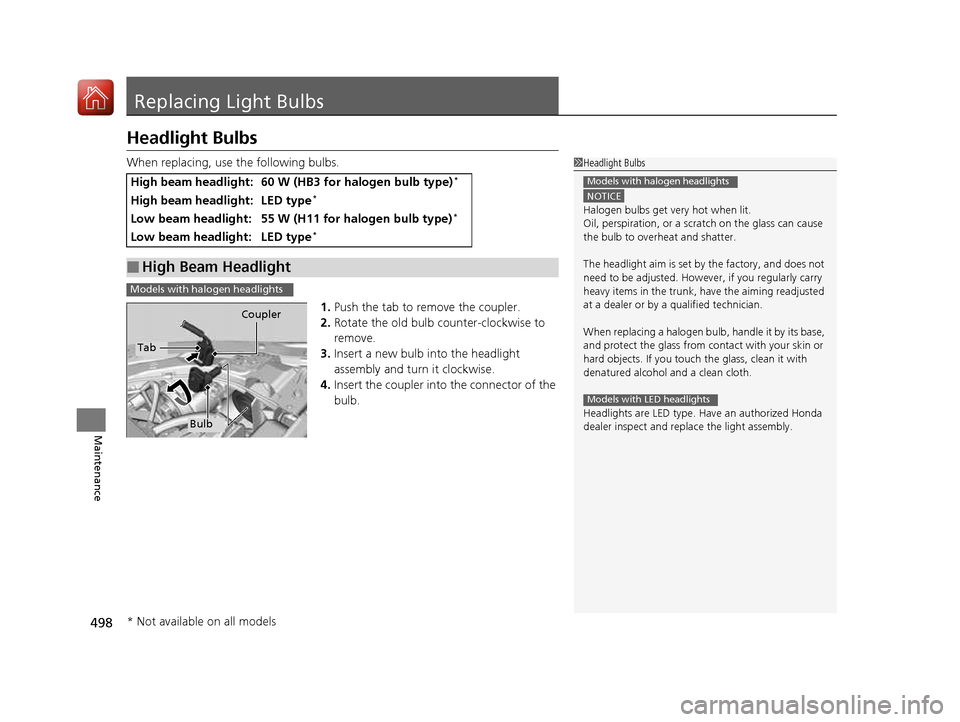

498
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
High beam headlight:60 W (HB3 for halogen bulb type) *
High beam headlight:LED type*
Low beam headlight:55 W (H11 for halogen bulb type) *
Low beam headlight:LED type*
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted at a dealer or by a qualified technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Headlights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with halogen headlights
Models with LED headlights
Models with halogen headlights
Tab Coupler
Bulb
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 498 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

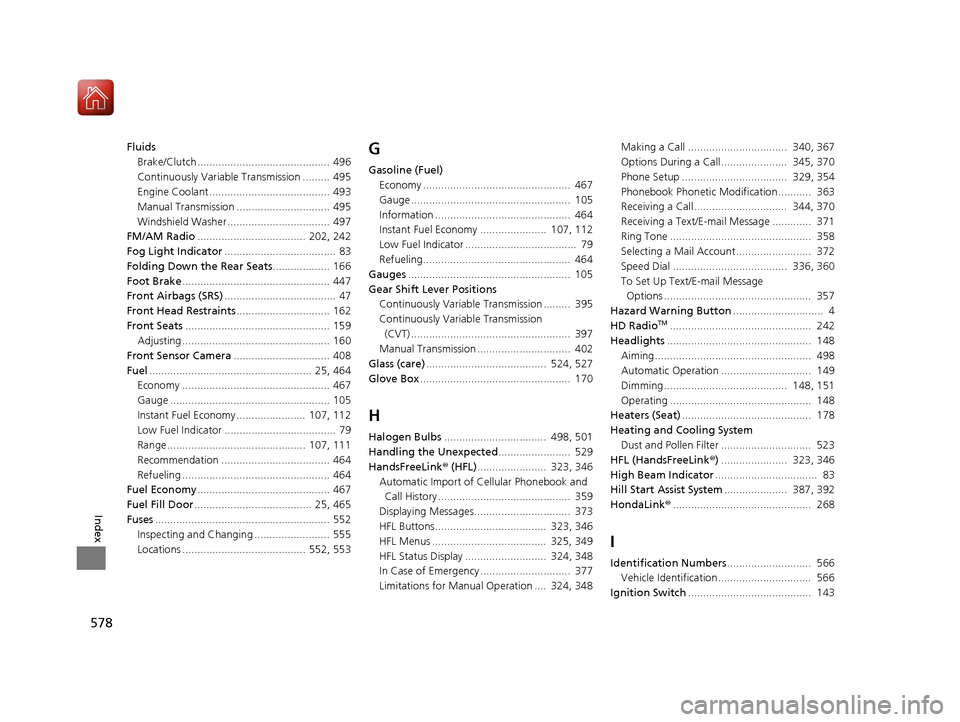

578
Index
FluidsBrake/Clutch ............................................ 496
Continuously Variable Transmission ......... 495
Engine Coolant ........................................ 493
Manual Transmission ............................... 495
Windshield Washer .................................. 497
FM/AM Radio .................................... 202, 242
Fog Light Indicator ..................................... 83
Folding Down the Rear Seats ................... 166
Foot Brake ................................................. 447
Front Airbags (SRS) ..................................... 47
Front Head Restraints ............................... 162
Front Seats ................................................ 159
Adjusting ................................................. 160
Front Sensor Camera ................................ 408
Fuel ...................................................... 25, 464
Economy ................................................. 467
Gauge ..................................................... 105
Instant Fuel Economy ....................... 107, 112
Low Fuel Indicator ..................................... 79
Range .............................................. 107, 111
Recommendation .................................... 464
Refueling ................................................. 464
Fuel Economy ............................................ 467
Fuel Fill Door ....................................... 25, 465
Fuses .......................................................... 552
Inspecting and Changing ......................... 555
Locations ......................................... 552, 553 G
Gasoline (Fuel)
Economy ................................................. 467
Gauge ..................................................... 105
Information ............................................. 464
Instant Fuel Economy ...................... 107, 112
Low Fuel Indicator ..................................... 79
Refueling................................................. 464
Gauges ...................................................... 105
Gear Shift Lever Positions Continuously Variable Transmission ......... 395
Continuously Variab le Transmission
(CVT) ..................................................... 397
Manual Transmission ............................... 402
Glass (care) ........................................ 524, 527
Glove Box .................................................. 170
H
Halogen Bulbs .................................. 498, 501
Handling the Unexpected ........................ 529
HandsFreeLink ® (HFL) ....................... 323, 346
Automatic Import of Ce llular Phonebook and
Call History ............................................ 359
Displaying Messages................................ 373
HFL Buttons..................................... 323, 346
HFL Menus ...................................... 325, 349
HFL Status Display ........................... 324, 348
In Case of Emergency .............................. 377
Limitations for Manual Operation .... 324, 348 Making a Call ................................. 340, 367
Options During a Call...................... 345, 370
Phone Setup ................................... 329, 354
Phonebook Phonetic M
odification........... 363
Receiving a Call............................... 344, 370
Receiving a Text/E-mail Message ............. 371
Ring Tone ............................................... 358
Selecting a Mail Account......................... 372
Speed Dial ...................................... 336, 360
To Set Up Text/E-mail Message Options ................................................. 357
Hazard Warning Button .............................. 4
HD Radio TM
............................................... 242
Headlights ................................................ 148
Aiming.................................................... 498
Automatic Operation .............................. 149
Dimming......................................... 148, 151
Operating ............................................... 148
Heaters (Seat) ........................................... 178
Heating and Cooling System Dust and Pollen Filter .............................. 523
HFL (HandsFreeLink ®) ...................... 323, 346
High Beam Indicator .................................. 83
Hill Start Assist System ..................... 387, 392
HondaLink ®.............................................. 268
I
Identification Numbers ............................ 566
Vehicle Identification............................... 566
Ignition Switch ......................................... 143
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 578 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
