2016 HONDA CIVIC COUPE Owners Manual

136
Controls

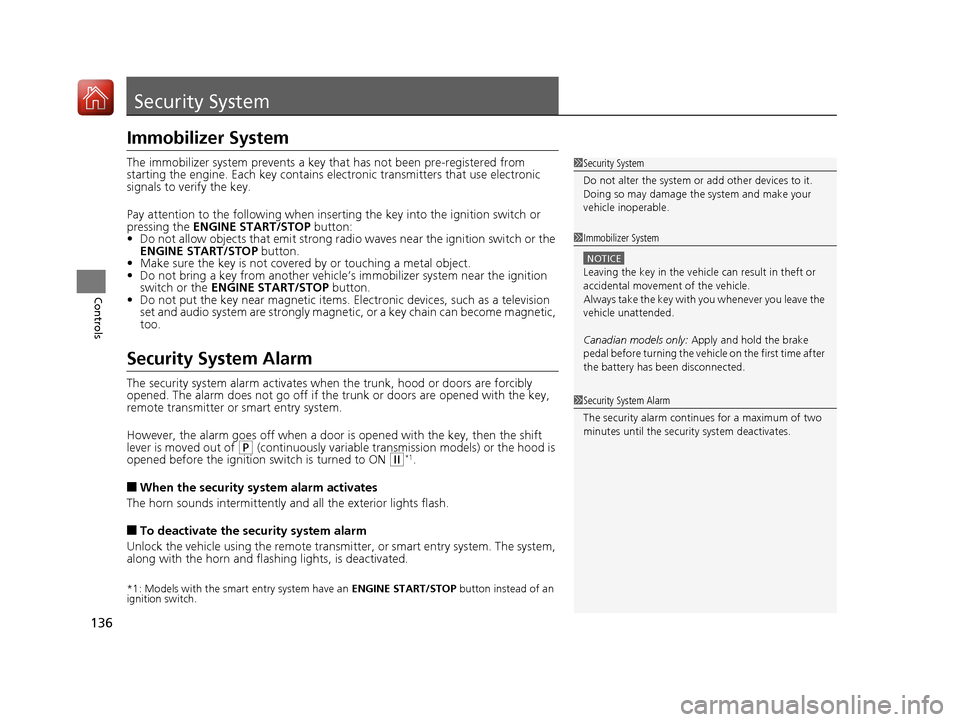

Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains el ectronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserti ng the key into the ignition switch or
pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ignition switch or the
ENGINE START/STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from anot her vehicle’s immobilizer system near the ignition
switch or the ENGINE START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as a television
set and audio system are strongly magneti c, or a key chain can become magnetic,
too.
Security System Alarm
The security system alarm activates wh en the trunk, hood or doors are forcibly
opened. The alarm does not go off if the trunk or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm goes off when a door is opened with the key, then the shift
lever is moved out of
(P (continuously variable transmission models) or the hood is
opened before the ignition switch is turned to ON (w*1
.
■ When the security sy stem alarm activates
The horn sounds intermittently and all the exterior lights flash. ■ To deactivate the security system alarm
Unlock the vehicle using the remote transmi tter, or smart entry system. The system,
along with the horn and flashing lights, is deactivated.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Security System
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
1Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 136 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued137
uuSecurity SystemuSecurity System Alarm
Controls

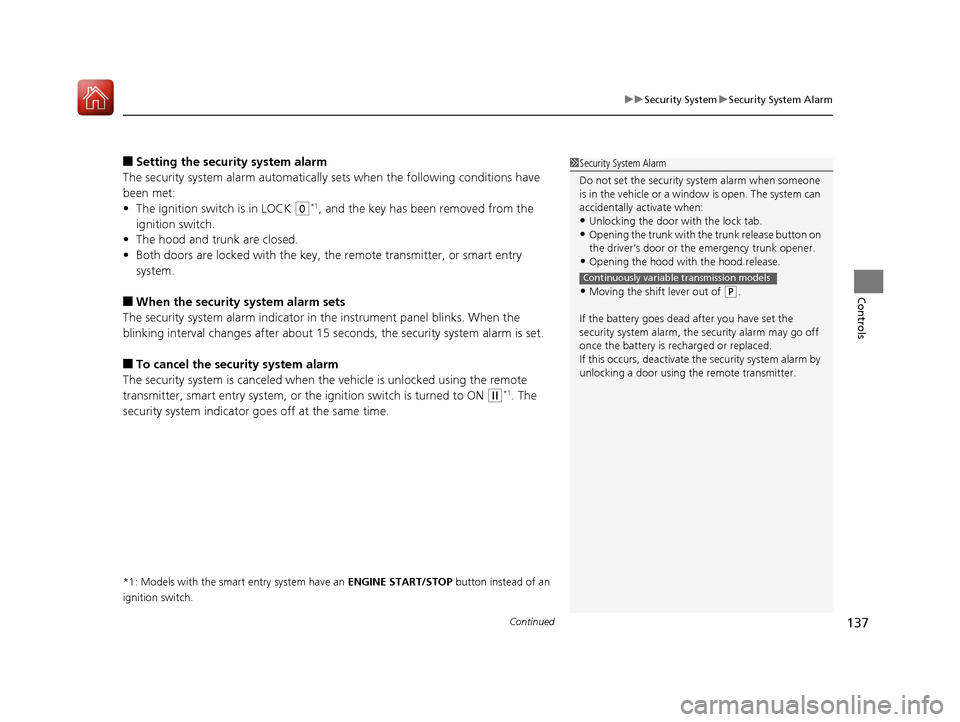

■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met: • The ignition switch is in LOCK
(0 *1
, and the key has been removed from the
ignition switch.
• The hood and trunk are closed.
• Both doors are locked with the key, the remote transmitter, or smart entry
system.
■ When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 se conds, the security system alarm is set.
■ To cancel the security system alarm
The security system is canc eled when the vehicle is unlocked using the remote
transmitter, smart entry system, or th e ignition switch is turned to ON
(w*1
. The
security system indicator go es off at the same time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when: • Unlocking the door with the lock tab.
• Opening the trunk with th e trunk release button on
the driver’s door or the emergency trunk opener.
• Opening the hood with the hood release.
• Moving the shift lever out of
(P .
If the battery goes dead after you have set the
security system alarm, the security alarm may go off once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using th e remote transmitter.
Continuously variable transmission models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 137 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

138
uuSecurity SystemuSecurity System Alarm
Controls

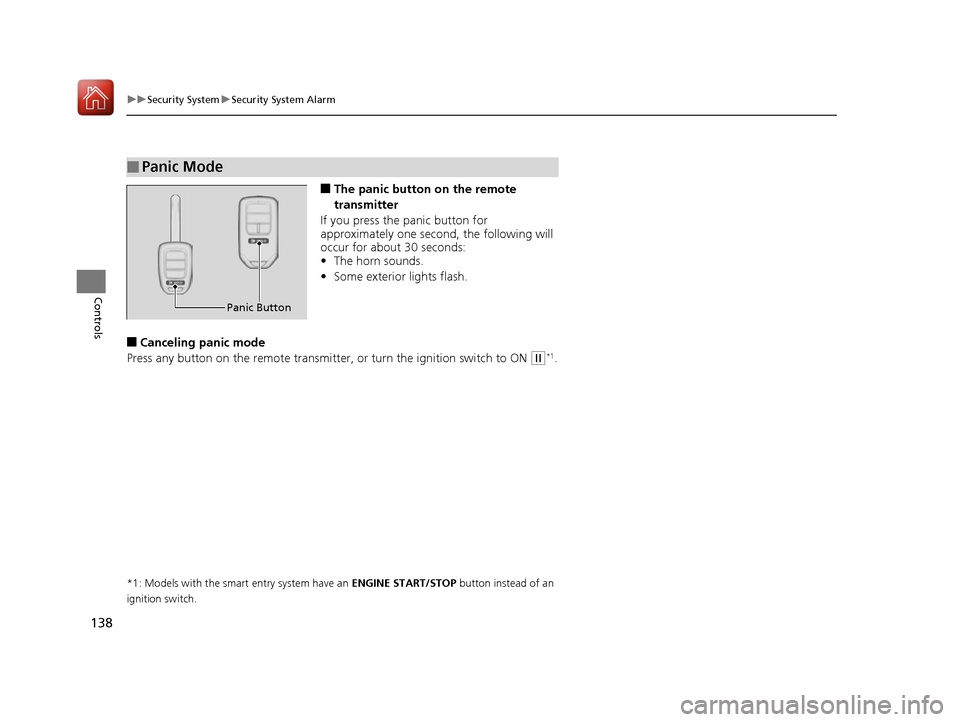

■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds:• The horn sounds.
• Some exterior lights flash.
■ Canceling panic mode
Press any button on the remote transmitter, or turn the ignition switch to ON
(w*1
.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Panic Mode
Panic Button
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 138 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

139
Continued
Controls

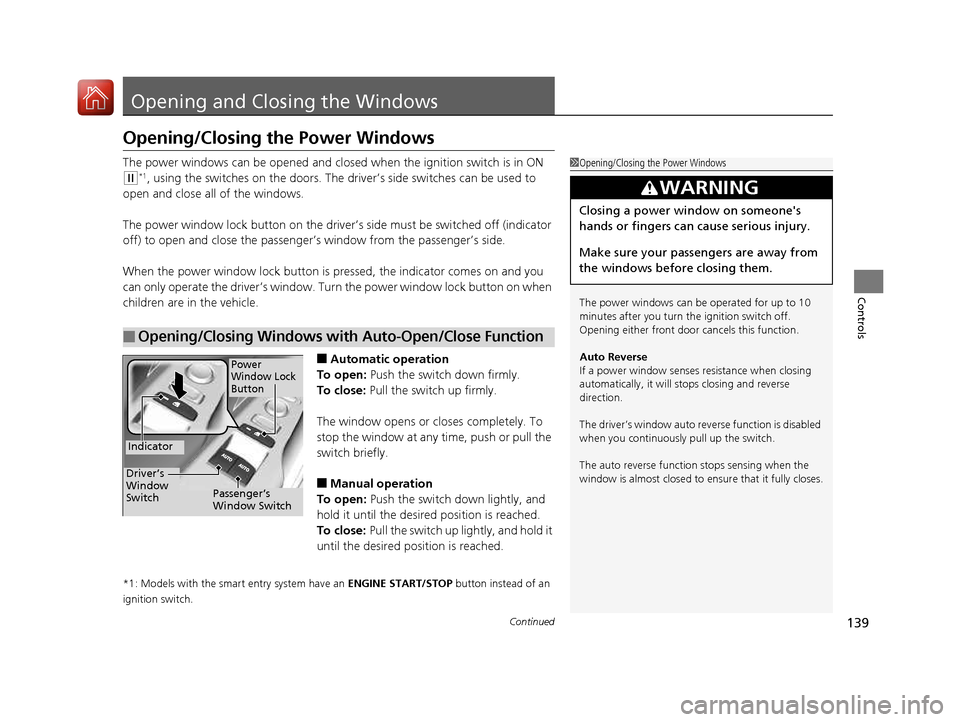

Opening and Clos
ing the Windows
Opening/Closing the Power Windows
The power windows can be opened and clos ed when the ignition switch is in ON
(w*1
, using the switches on the doors. The dr iver’s side switches can be used to
open and close all of the windows.
The power window lock button on the driver’s side must be switched off (indicator
off) to open and close the passenger’ s window from the passenger’s side.
When the power window lock button is pressed, the indicator comes on and you
can only operate the driver’s window. Turn the power window lock button on when
children are in the vehicle.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly. ■ Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Opening/Closing Windows with Auto-Open/Close Function
1Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you turn the ignition switch off.
Opening either front door cancels this function.
Auto Reverse If a power window senses resistance when closing
automatically, it will st ops closing and reverse
direction.
The driver’s window auto re verse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to en sure that it fully closes.
3WARNING
Closing a power window on someone's
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
Power
Window Lock
Button
Indicator
Driver’s
Window Switch
Passenger’s
Window Switch
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 139 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

140
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Controls
To open: Press the unlock button twice
within 10 seconds and hold it down for the
second time. If the windows stop midway,
repeat the procedure.

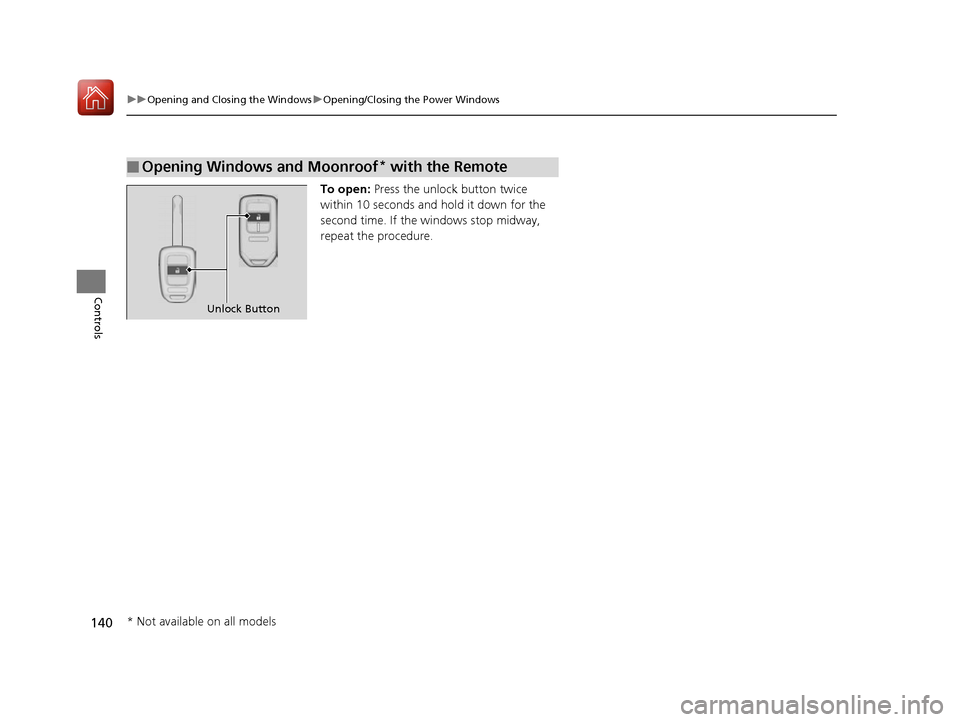

■Opening Windows and Moonroof *
with the Remote
Unlock Button
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 140 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

141
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Controls
To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of re turning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows/
moonroof at the desired position. If you want
further adjustment, repeat the same
operation.

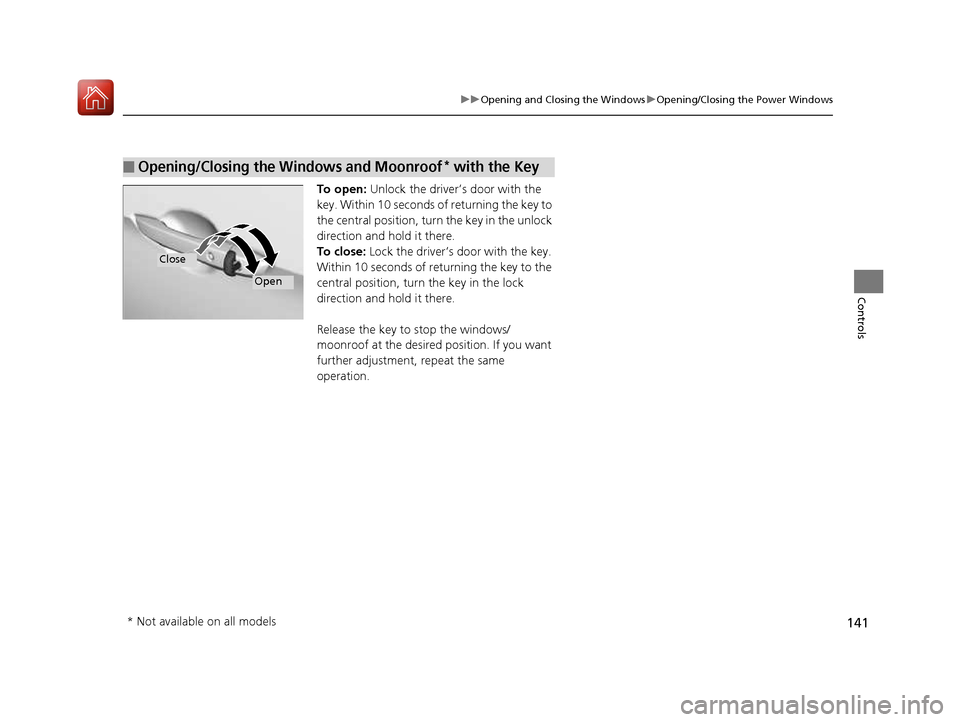

■Opening/Closing the Windows and Moonroof* with the Key
Close
Open
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 141 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

142
Controls

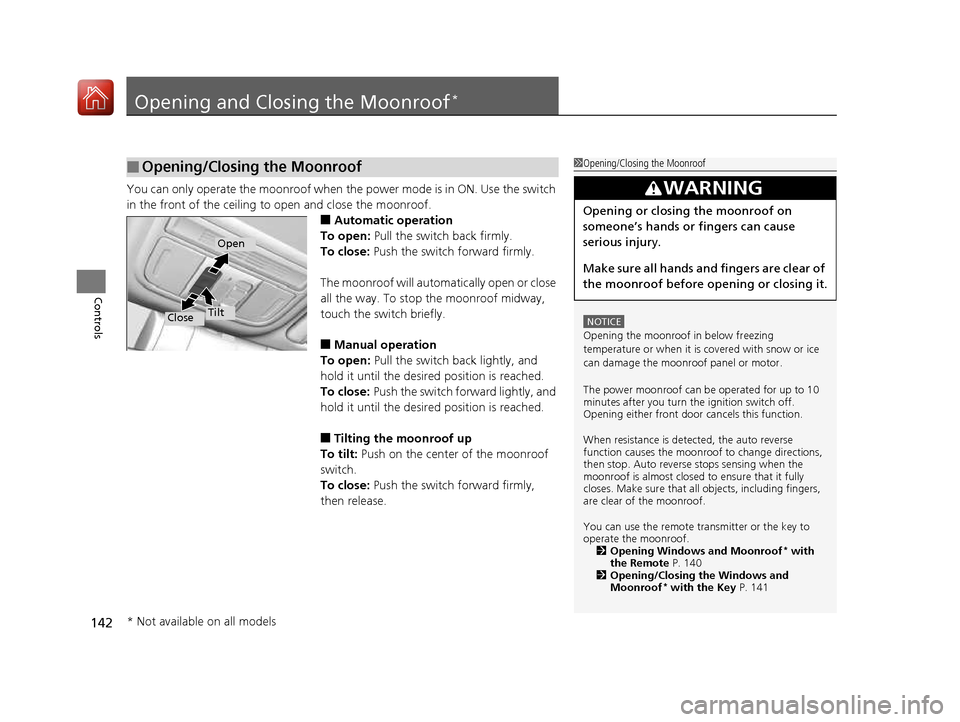

Opening and Closing the Moonroof*
You can only operate the moonroof when th
e power mode is in ON. Use the switch
in the front of the ceiling to open and close the moonroof. ■Automatic operation
To open: Pull the switch back firmly.
To close: Push the switch forward firmly.
The moonroof will automatically open or close
all the way. To stop the moonroof midway,
touch the switch briefly. ■ Manual operation
To open: Pull the switch back lightly, and
hold it until the desired position is reached.
To close: Push the switch fo rward lightly, and
hold it until the desired position is reached.
■ Tilting the moonroof up
To tilt: Push on the center of the moonroof
switch.
To close: Push the switch forward firmly,
then release.
■Opening/Closing the Moonroof1Opening/Closing the Moonroof
NOTICE
Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonr oof panel or motor.
The power moonroof can be operated for up to 10
minutes after you turn the ignition switch off.
Opening either front door cancels this function.
When resistance is detected, the auto reverse
function causes the moonroof to change directions,
then stop. Auto reverse stops sensing when the moonroof is almost closed to ensure that it fully
closes. Make sure that al l objects, including fingers,
are clear of the moonroof.
You can use the remote transmitter or the key to operate the moonroof. 2 Opening Windows and Moonroof *
with
the Remote P. 140
2 Opening/Closing the Windows and
Moonroof *
with the Key P. 141
3WARNING
Opening or closing the moonroof on
someone’s hands or fingers can cause
serious injury.
Make sure all hands and fingers are clear of
the moonroof before opening or closing it.
Open
CloseTilt
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 142 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

143
Controls

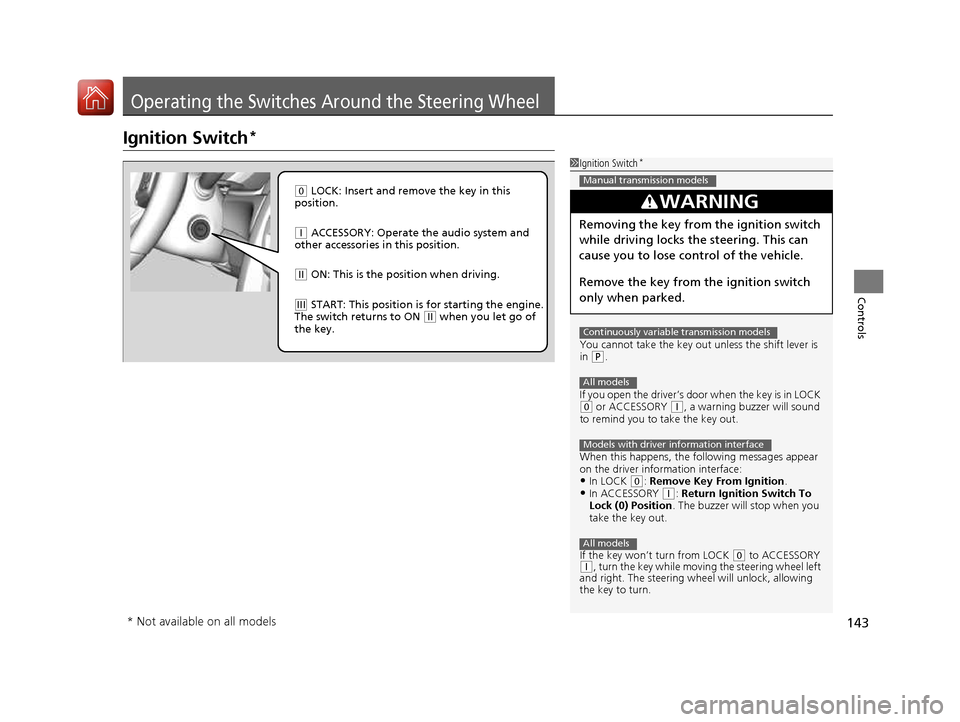

Operating the Switches Around the Steering Wheel
Ignition Switch*
1Ignition Switch
*
You cannot take the key out unless the shift lever is
in
(P .
If you open the driver’s door when the key is in LOCK
(0 or ACCESSORY (q, a warning buzzer will sound
to remind you to take the key out.
When this happens, the fo llowing messages appear
on the driver information interface:
• In LOCK
(0 : Remove Key From Ignition .
• In ACCESSORY (q : Return Ignition Switch To
Lock (0) Position . The buzzer will stop when you
take the key out.
If the key won’t turn from LOCK
(0 to ACCESSORY (q , turn the key while moving the steering wheel left
and right. The steering wh eel will unlock, allowing
the key to turn.
3WARNING
Removing the key from the ignition switch
while driving locks the steering. This can
cause you to lose control of the vehicle.
Remove the key from the ignition switch
only when parked.
Manual transmission models
Continuously variable transmission models
All models
Models with driver information interface
All models
(0 LOCK: Insert and remove the key in this
position.
(q ACCESSORY: Operate the audio system and
other accessories in this position.
(w ON: This is the position when driving.
(e START: This position is for starting the engine.
The switch returns to ON (w when you let go of
the key.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 143 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
