2016 HONDA CIVIC COUPE Owners Manual

376
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

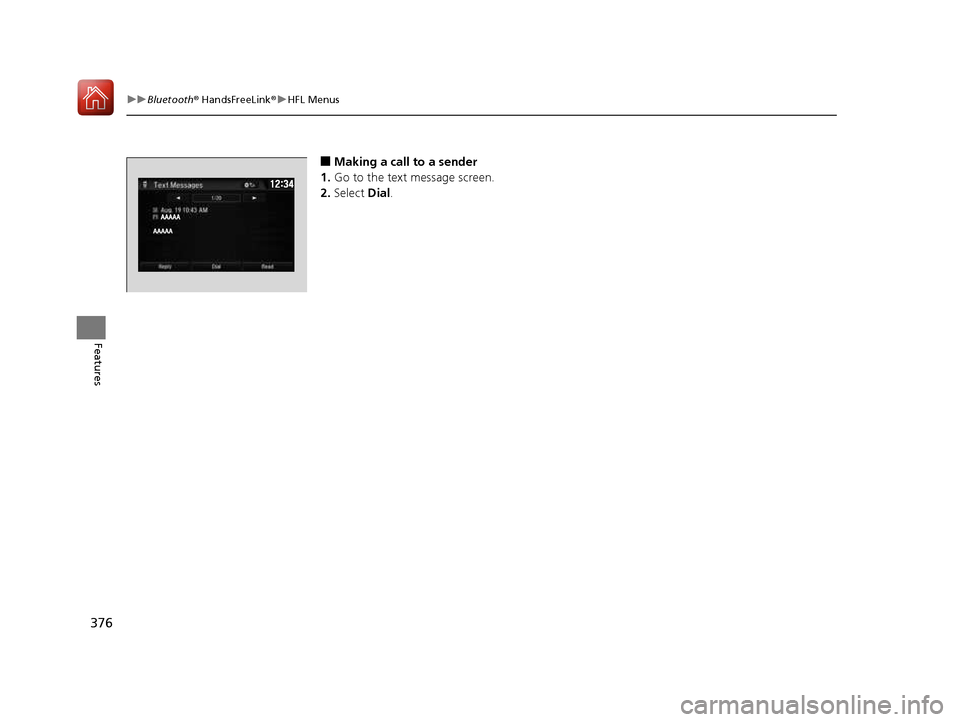

■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 376 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued377
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

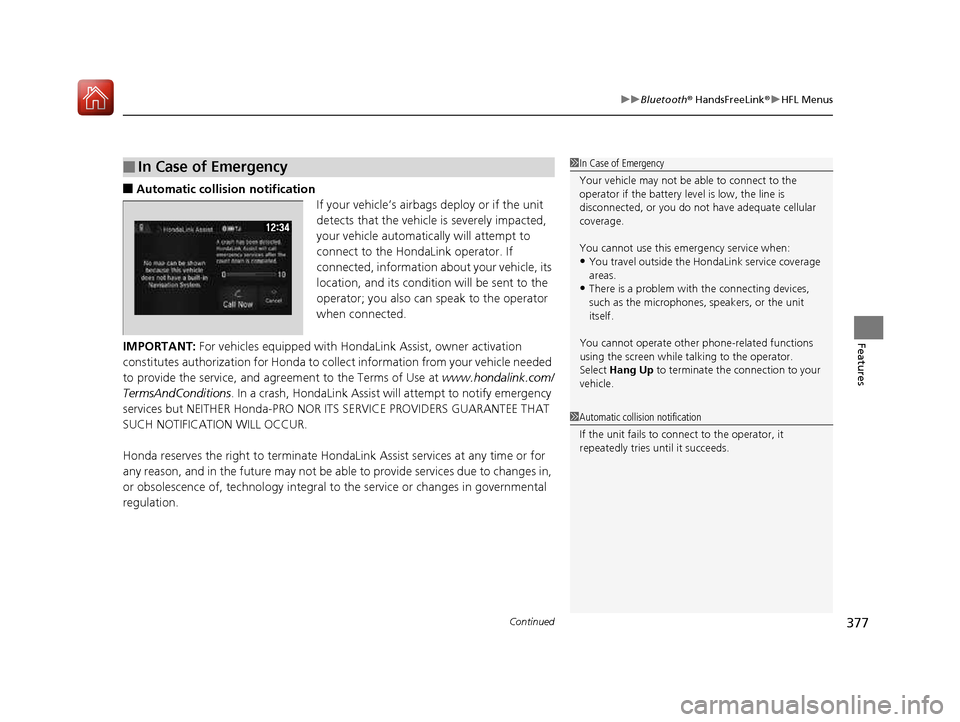

■Automatic collis ion notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition will be sent to the
operator; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with HondaLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist will attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
■In Case of Emergency1In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when: • You travel outside the H ondaLink service coverage
areas.
• There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 377 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuBluetooth® HandsFreeLink ®uHFL Menus
378
Features

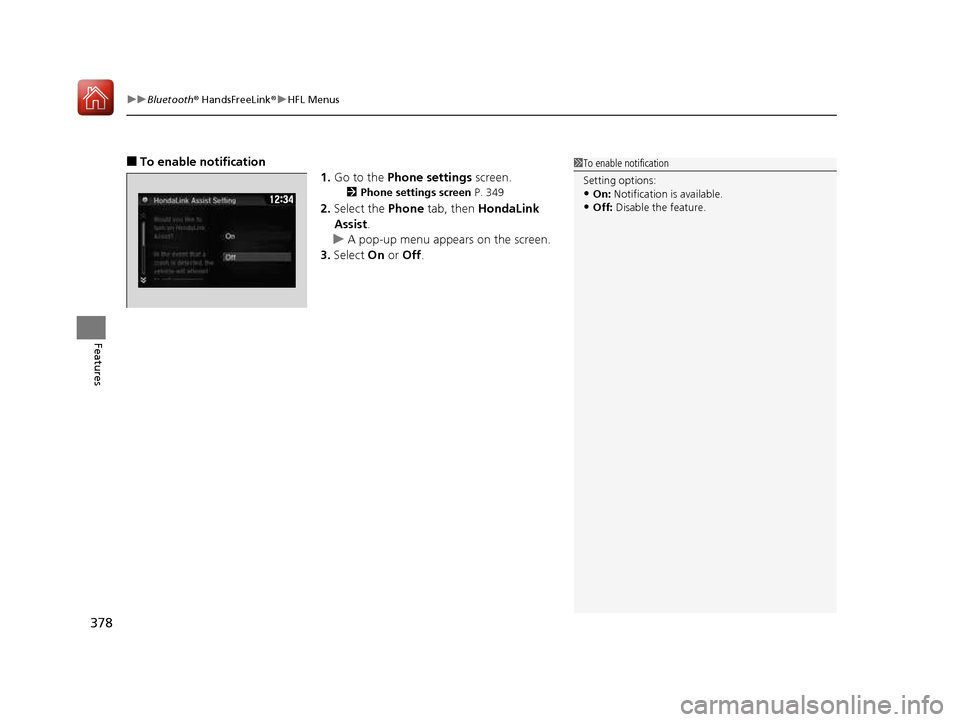

■ To enable notification
1.Go to the Phone settings screen.
2 Phone settings screen P. 349
2. Select the Phone tab, then HondaLink
Assist .
uA pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
• On: Notification is available.
• Off: Disable the feature.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 378 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

379

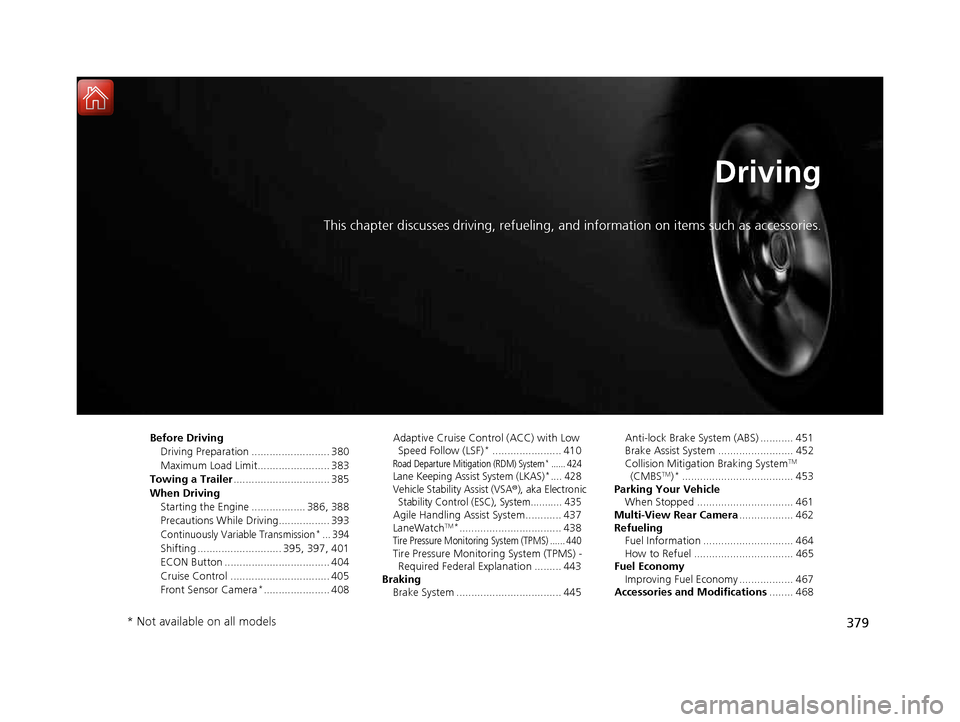

Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 380
Maximum Load Limit........................ 383
Towing a Trailer ................................ 385
When Driving Starting the Engine .................. 386, 388
Precautions While Driving................. 393
Continuously Variable Transmission*... 394
Shifting ............................ 395, 397, 401
ECON Button ................................... 404
Cruise Control ................................. 405Front Sensor Camera *
...................... 408 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) *
....................... 410
Road Departure Mitigation (RDM) System*...... 424Lane Keeping Assist System (LKAS)*.... 428
Vehicle Stabilit y Assist (VSA®), aka Electronic
Stability Control (ESC), System........... 435
Agile Handling Assist System............ 437
LaneWatch TM
*
.................................. 438
Tire Pressure Monitoring System (TPMS) ...... 440Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 443
Braking
Brake System ................................... 445 Anti-lock Brake System (ABS) ........... 451
Brake Assist System ......................... 452
Collision Mitigation Braking System
TM

(CMBS TM
)*
..................................... 453
Parking Your Vehicle When Stopped ................................ 461
Multi-View Rear Camera .................. 462
Refueling
Fuel Information .............................. 464
How to Refuel ................................. 465
Fuel Economy
Improving Fuel Economy .................. 467
Accessories and Modifications ........ 468
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 379 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

380
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
uRemove any frost, snow, or ice.
uRemove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
uWhen removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
uIf the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
uCheck air pressure, check for damage and excessive wear.
2 Checking and Maintaining Tires P. 510
• Make sure there are no people or ob jects behind or around the vehicle.
uThere are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen shut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert key if the water freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 380 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued381
uuBefore DrivinguDriving Preparation
Driving
•Store or secure all items on board properly.
uCarrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2 Maximum Load Limit P. 383
• Do not pile items higher than the seat height.
uThey can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
uAn object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
uThey may interfere with driving and a crash could occur.
• Securely close and lock all doors and the trunk.
2 Locking/Unlocking the Doors from the Inside P. 126
• Adjust your seating position properly.
uAdjust the front h ead restraint, too.
2 Adjusting the Seats P. 159
2 Adjusting the Front Head Restraints P. 162
• Adjust the mirrors and steering wh eel properly for your driving.
uAdjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 157
2 Adjusting the Steering Wheel P. 156
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted at a dealer or by a qualified technician.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 381 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

382
uuBefore DrivinguDriving Preparation
Driving

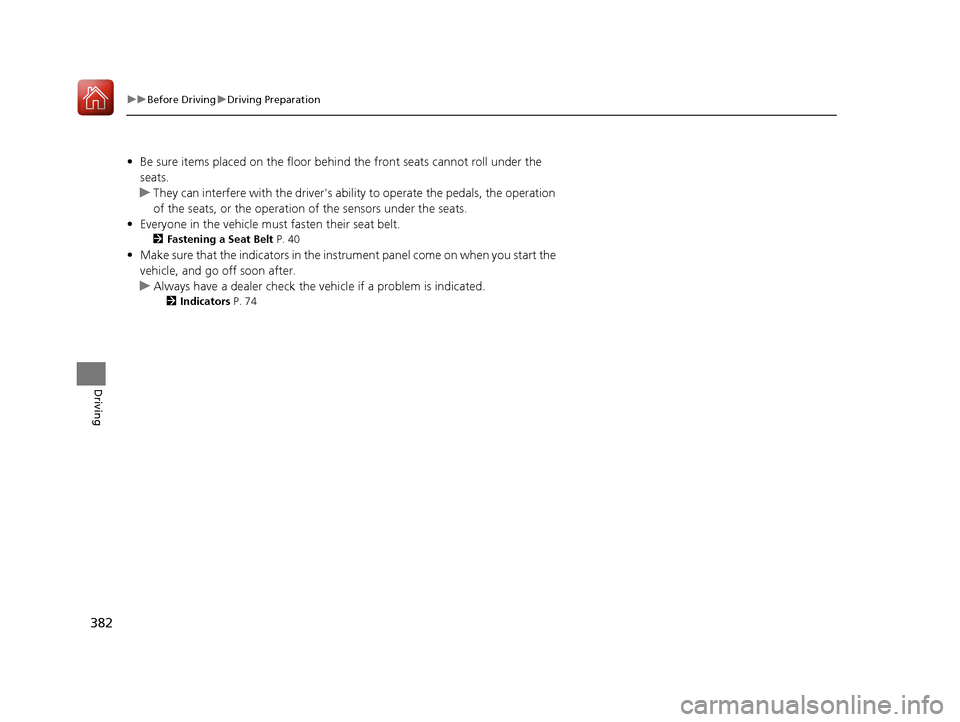

•Be sure items placed on the floor behind the front seats cannot roll under the
seats.
uThey can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2 Fastening a Seat Belt P. 40
• Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
uAlways have a dealer check the ve hicle if a problem is indicated.
2 Indicators P. 74
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 382 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

383
uuBefore DrivinguMaximum Load Limit
Continued
Driving

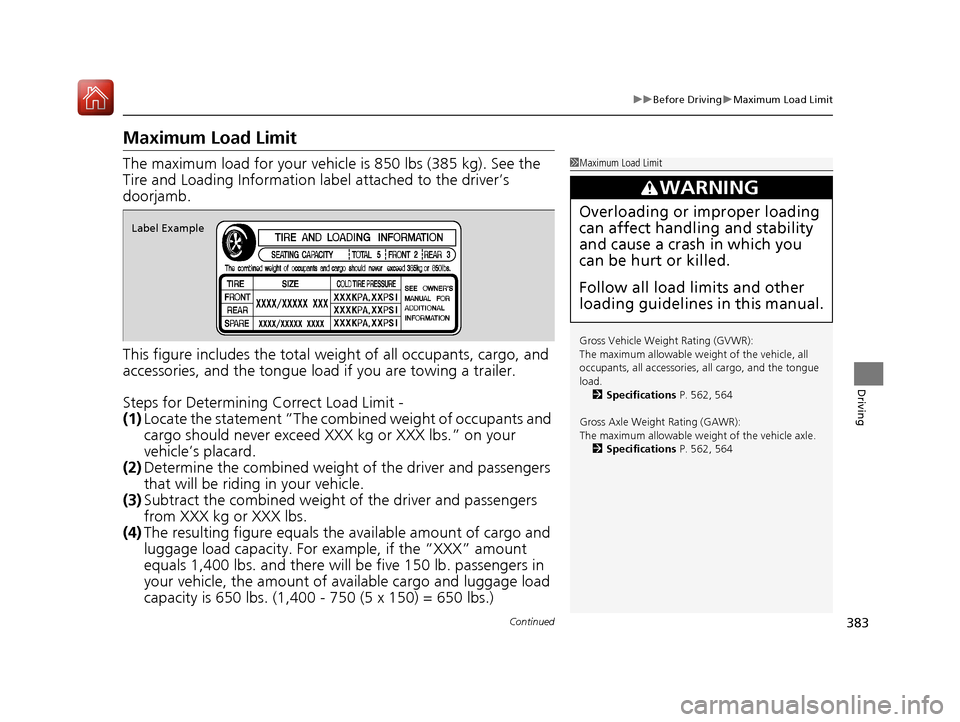

Maximum Load Limit
The maximum load for your vehicle is 850 lbs (385 kg). See the
Tire and Loading Information la bel attached to the driver’s
doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer. Steps for Determining Correct Load Limit -
(1) Locate the statement “The comb ined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capaci ty. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the am ount of available cargo and luggage load
capacity is 650 lbs. (1,400 - 750 (5 x 150) = 650 lbs.)
1Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all a ccessories, all cargo, and the tongue
load. 2 Specifications P. 562, 564
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 562, 564
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other loading guidelines in this manual.
Label Example
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 383 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
