2016 HONDA CIVIC COUPE Owners Manual

16
Quick Reference Guide

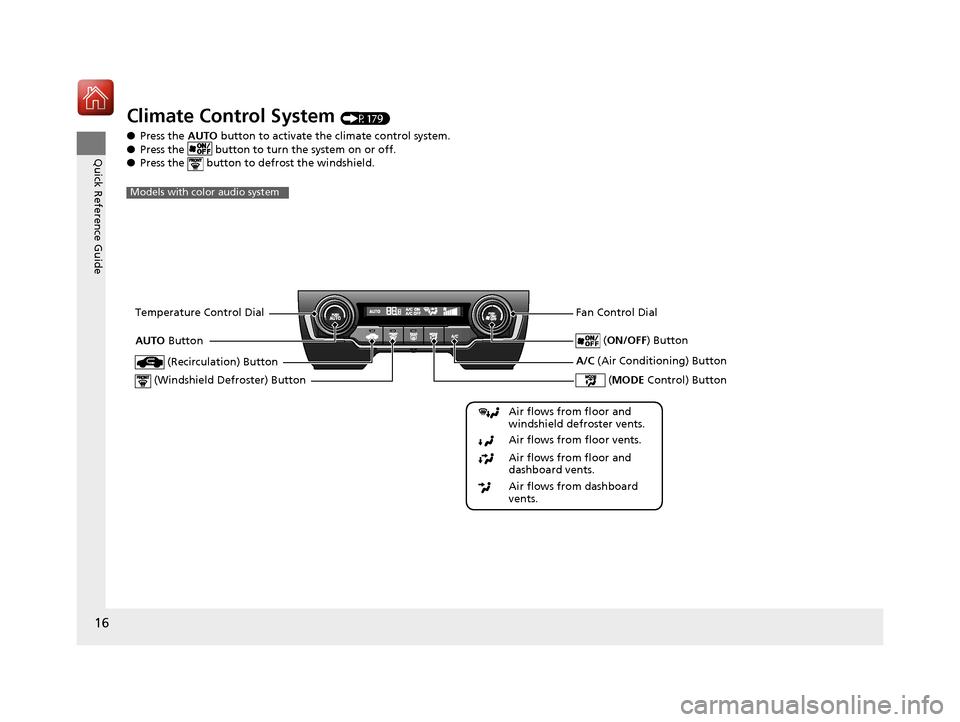

Climate Control System (P179)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
Models with color audio system
Fan Control Dial
(Windshield Defroster) ButtonTemperature Control Dial
Air flows from floor and windshield defroster vents.
Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard
vents.
(Recirculation) Button
(MODE Control) Button
(ON/OFF ) ButtonAUTO Button
A/C (Air Conditioning) Button
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 16 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

17
Quick Reference Guide

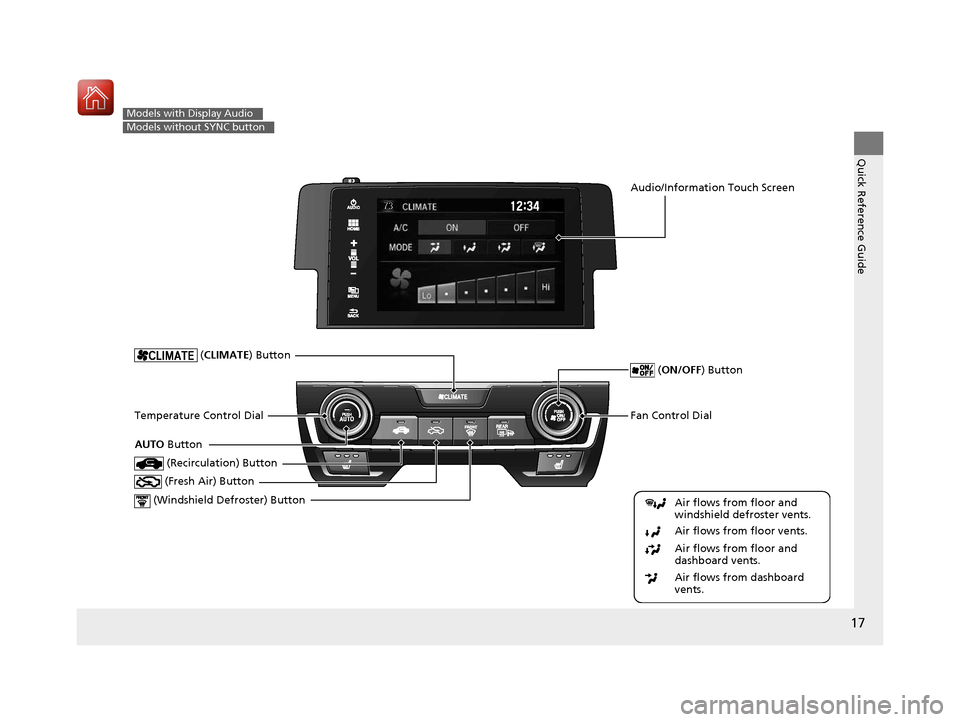

Models with Display Audio
Models without SYNC button
Fan Control Dial
(Windshield Defroster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(CLIMATE ) Button
(Fresh Air) Button
(ON/OFF ) Button
AUTO Button
Audio/Information Touch Screen
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 17 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

18
Quick Reference Guide

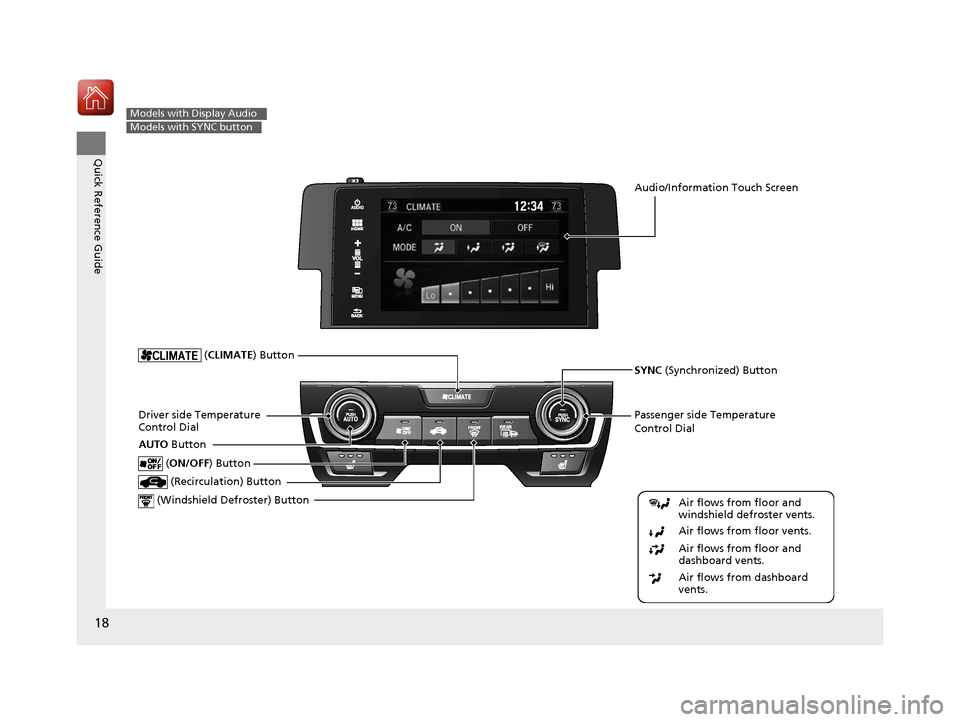

Models with Display Audio
Models with SYNC button
Passenger side Temperature Control Dial
(Windshield Defroster) ButtonDriver side Temperature
Control Dial (Recirculation) Button
(CLIMATE ) Button
(ON/OFF ) Button
AUTO Button
Audio/Information Touch Screen
SYNC (Synchronized) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 18 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

Quick Reference Guide
19

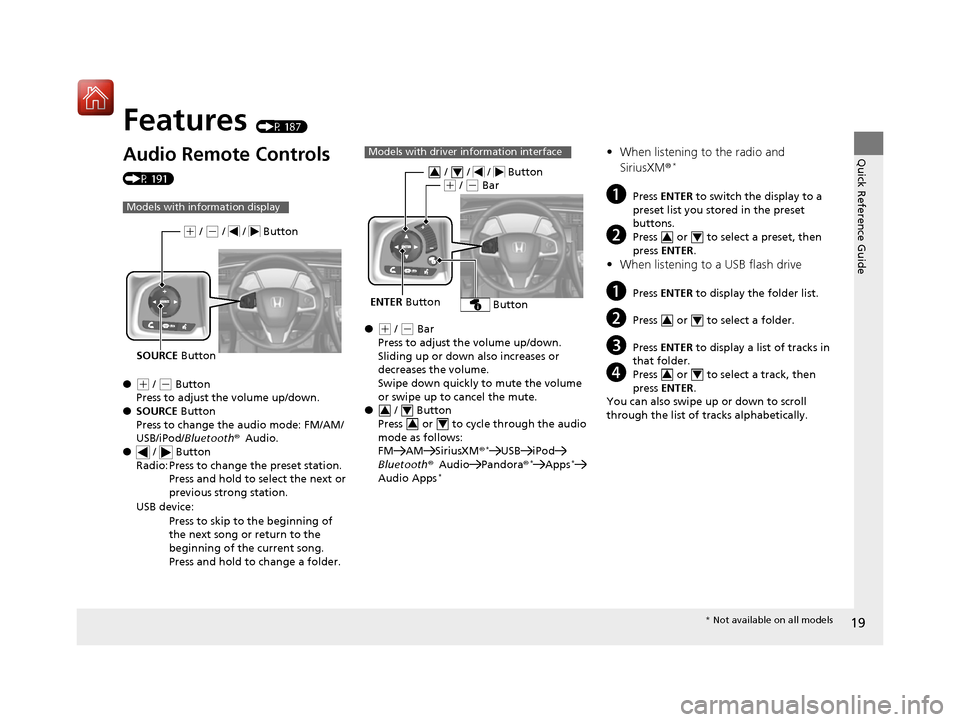

Features
(P 187)
Audio Remote Controls
(P 191) ●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
USB/iPod/ Bluetooth ®Audio.
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with info rmation display
SOURCE Button
(+ / (- / / Button
●(+ / (- Bar
Press to adjust the volume up/down.
Sliding up or down also increases or
decreases the volume.
Swipe down quickly to mute the volume
or swipe up to cancel the mute.
● / Button
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM ®*
USB iPod
Bluetooth ®Audio Pandora ®*
Apps *
Audio Apps *
Models with driver information interface
ENTER
Button
/ / / Button34(+ / (- Bar
Button
34
34
• When listening to the radio and SiriusXM ®*
a Press ENTER to switch the display to a
preset list you stored in the preset
buttons.
b Press or to select a preset, then press ENTER .
• When listening to a USB flash drive
a Press ENTER to display the folder list.
b Press or to select a folder.
c Press ENTER to display a list of tracks in
that folder.
d Press or to select a track, then press ENTER .
You can also swipe up or down to scroll
through the list of tracks alphabetically.
34
34
34
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 19 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

20
Quick Reference Guide

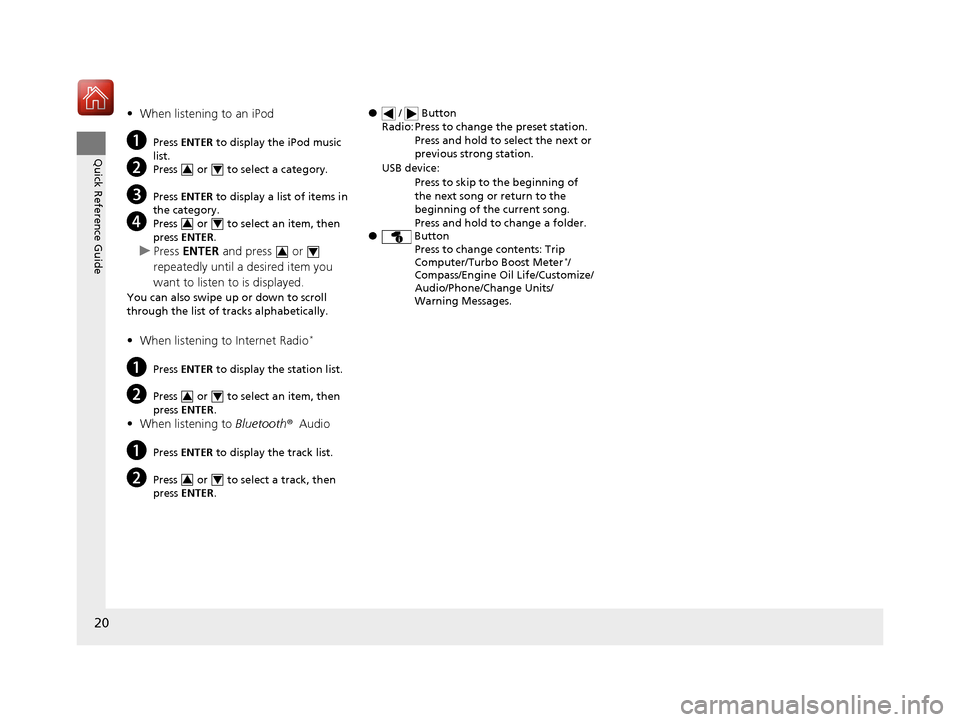

•When listening to an iPod
a Press ENTER to display the iPod music
list.
b Press or to select a category.
c Press ENTER to display a list of items in
the category.
d Press or to select an item, then press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen to is displayed.
You can also swipe up or down to scroll through the list of tra cks alphabetically.
• When listening to Internet Radio *
a Press ENTER to display the station list.
b Press or to select an item, then press ENTER .
• When listening to Bluetooth®Audio
a Press ENTER to display the track list.
b Press or to select a track, then press ENTER .
34
34
34
34
34
● / Button
● Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Press to change contents: Trip
Computer/Turbo Boost Meter *
/
Compass/Engine Oil Life/Customize/
Audio/Phone/Change Units/
Warning Messages.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 20 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

21
Quick Reference Guide

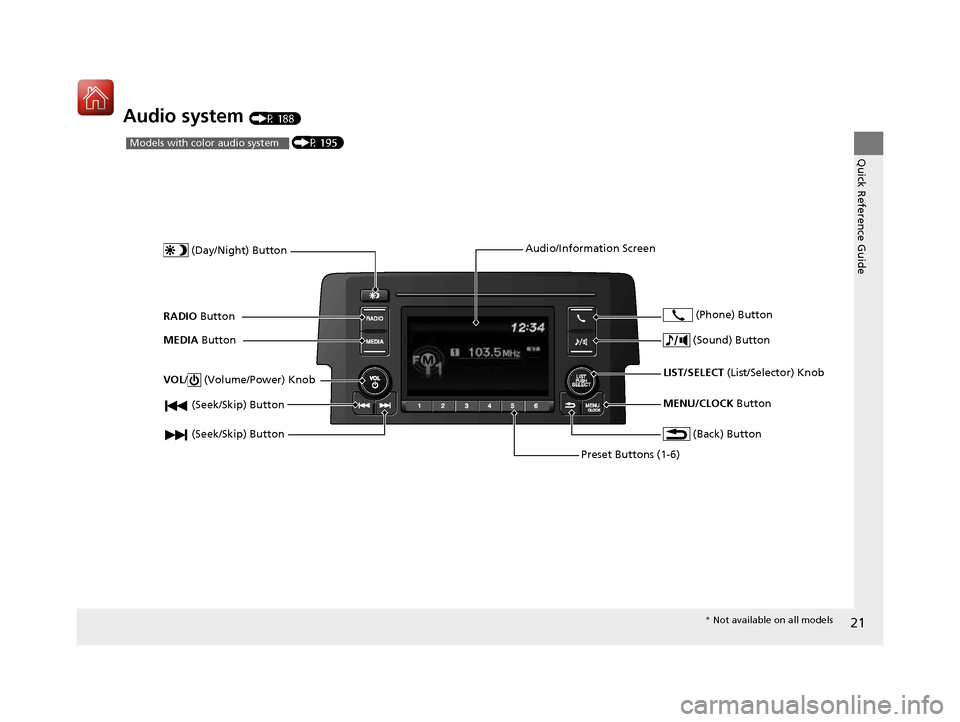

Audio system (P 188)
(P 195)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
LIST/SELECT
(List/Selector) Knob
(Phone) Button
*
Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 21 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

22
Quick Reference Guide

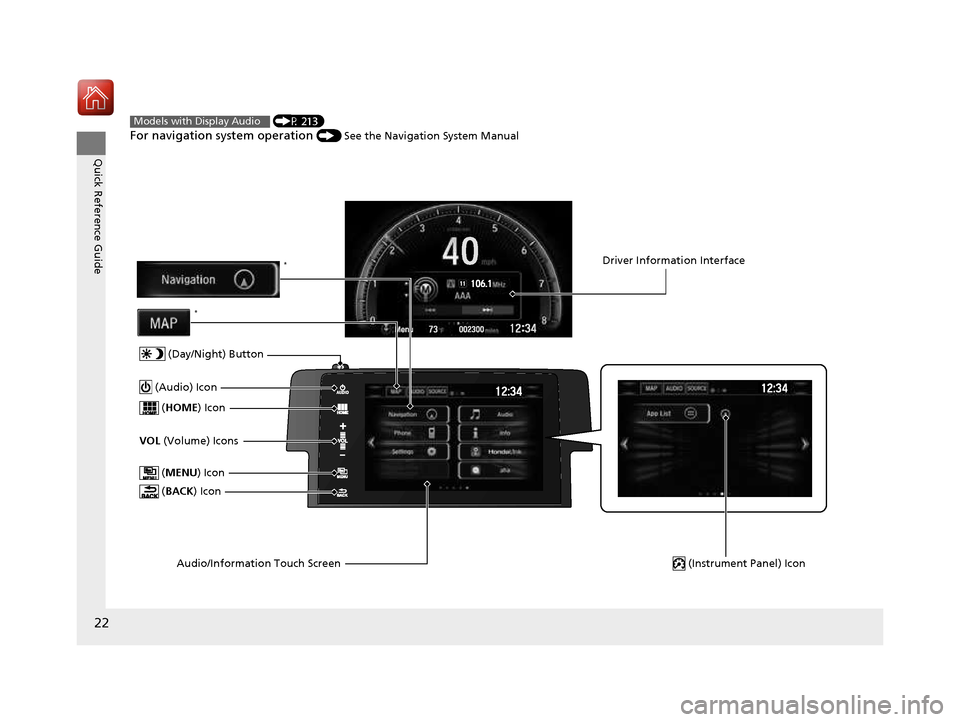

Menu
(P 213)
For navigation system operation () See the Navigation System ManualModels with Display Audio
(MENU ) Icon
VOL (Volume) Icons
(
HOME ) Icon
(BACK ) Icon
Audio/Information Touch Screen
(Audio) Icon
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
*
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 22 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

23
Quick Reference Guide
Driving (P 379)
M Indicator
Shift Indicator
Park
Turn off or start the engine.
Transmission is locked. Neutral
Transmission is not locked. Drive (S)●
Better acceleration.
● Increased engine braking.
● Going up or down hills.
● On models with paddle
shifter, 7-speed manual
shift mode can be used.
Models without
paddle shifterModels with
paddle shifter
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
Reverse
Used when reversing. Drive ● Normal driving.
● On models with paddle
shifter, 7-speed mode can
be used temporarily. Low
*
● Further increased engine
braking.
● Going up or down hills. Shift Down
(-

Paddle Shifter Shift Up (+

Paddle Shifter
7-Speed Manual Shift Mode
*
(P399)
● Allows you to manually shift
the transmission up or down
without removing your hands
from the steering wheel.
When the shift lever is in (S
● Pulling a paddle shifter
changes the mode from
Continuously Variable Transmission to 7-speed manual shift mode.
● The M indicator and the
selected speed number are
displayed in the shift indicator.
When the shift lever is in
(D
● Pulling a paddle shifter
temporarily changes the mode
from continuously variable
transmission to 7-speed manual
shift mode. The selected speed
number is displayed in the shift indicator.
Manual Transmission
*
(P 401)
Continuously Variable Transmission* (P 395, 397)
●Shift to (P and depress the brake pedal when starting the engine.
● Shifting
Release Button Shift Lever
*
Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 23 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分
