2016 HONDA CIVIC COUPE Owners Manual

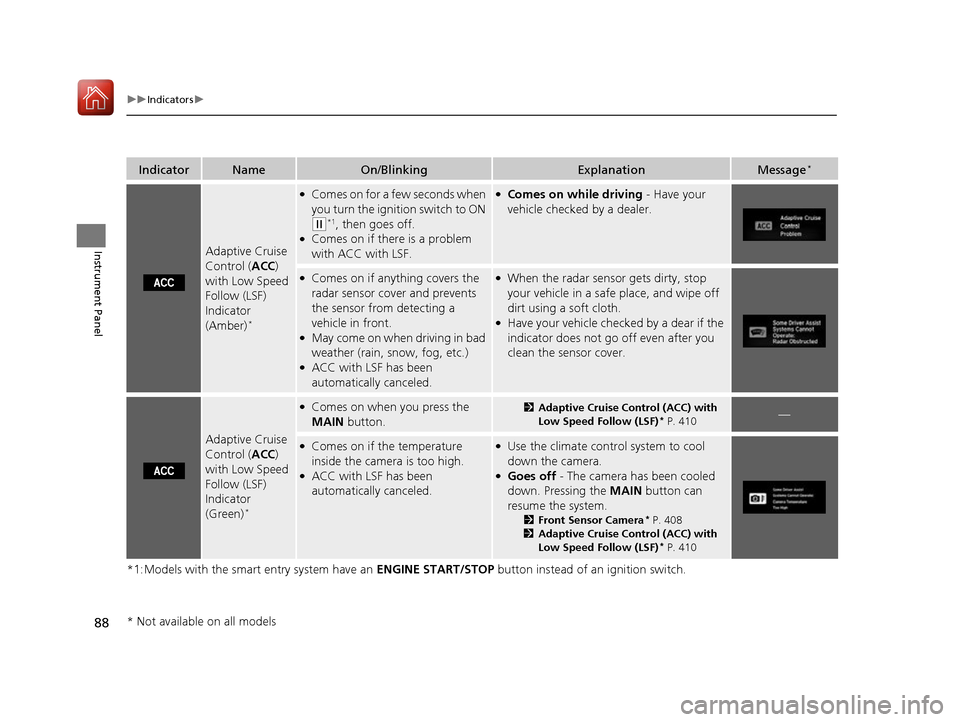

88
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Adaptive Cruise Control (
ACC)
with Low Speed
Follow (LSF) Indicator (Amber) *
●
Comes on for a few seconds when you turn the ignition switch to ON
(w *1
, then goes off.
● Comes on if there is a problem
with ACC with LSF.
●Comes on while driving - Have your
vehicle checked by a dealer.
● Comes on if anything covers the
radar sensor cover and prevents
the sensor from detecting a
vehicle in front.
● May come on when driving in bad
weather (rain, snow, fog, etc.)
● ACC with LSF has been
automatically canceled.●When the radar sensor gets dirty, stop
your vehicle in a safe place, and wipe off
dirt using a soft cloth.
● Have your vehicle checked by a dear if the
indicator does not go off even after you
clean the sensor cover.
Adaptive Cruise Control ( ACC)
with Low Speed
Follow (LSF) Indicator
(Green) *
●
Comes on when you press the
MAIN button.2Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) *
P. 410—
● Comes on if the temperature
inside the camera is too high.
● ACC with LSF has been
automatically canceled.●Use the climate control system to cool
down the camera.
● Goes off - The camera has been cooled
down. Pressing the MAIN button can
resume the system. 2Front Sensor Camera *
P. 408
2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) *
P. 410
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 88 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

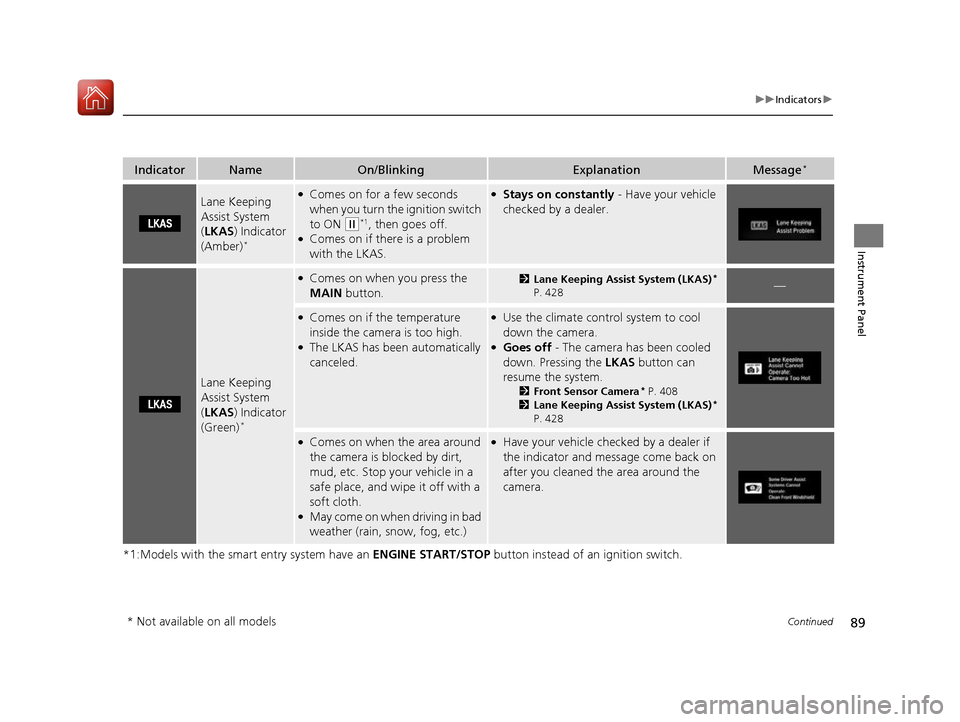

89
uuIndicatorsu
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Lane Keeping Assist System (
LKAS ) Indicator
(Amber) *●
Comes on for a few seconds
when you turn the ignition switch
to ON
(w *1
, then goes off.
● Comes on if there is a problem
with the LKAS.
● Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping Assist System ( LKAS ) Indicator
(Green) *
●
Comes on when you press the
MAIN button.2Lane Keeping Assist System (LKAS) *

P. 428—
● Comes on if the temperature
inside the camera is too high.
● The LKAS has been automatically canceled.●
Use the climate control system to cool
down the camera.
● Goes off - The camera has been cooled
down. Pressing the LKAS button can
resume the system. 2Front Sensor Camera *
P. 408
2 Lane Keeping Assist System (LKAS) *

P. 428
● Comes on when the area around
the camera is blocked by dirt,
mud, etc. Stop your vehicle in a
safe place, and wipe it off with a
soft cloth.
● May come on when driving in bad
weather (rain, snow, fog, etc.)● Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 89 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

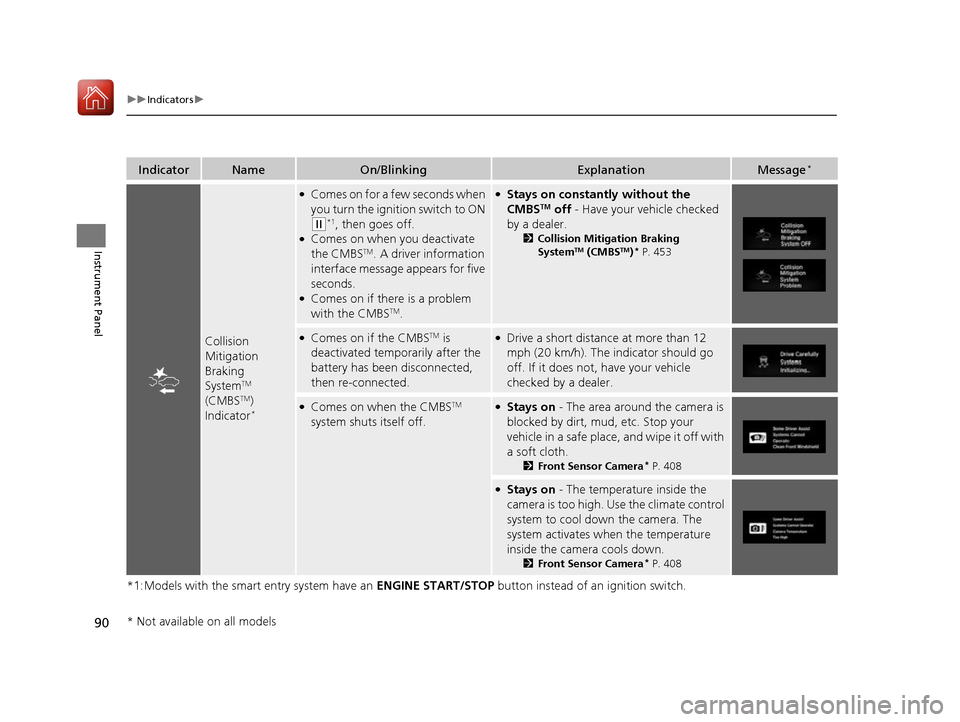

90
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Collision
Mitigation Braking
SystemTM

(CMBS TM
)
Indicator *
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w *1
, then goes off.
● Comes on when you deactivate the CMBS TM
. A driver information
interface message appears for five
seconds.
● Comes on if there is a problem
with the CMBS TM
.
● Stays on constantly without the
CMBS TM
off - Have your vehicle checked
by a dealer. 2Collision Mitigation Braking System TM
(CMBS TM
)*
P. 453
● Comes on if the CMBS TM
is
deactivated temporarily after the
battery has been disconnected,
then re-connected.● Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle checked by a dealer.
●Comes on when the CMBS TM

system shuts itself off.● Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth. 2Front Sensor Camera *
P. 408
● Stays on - The temperature inside the
camera is too high. Use the climate control
system to cool down the camera. The
system activates when the temperature
inside the camera cools down. 2Front Sensor Camera *
P. 408
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 90 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

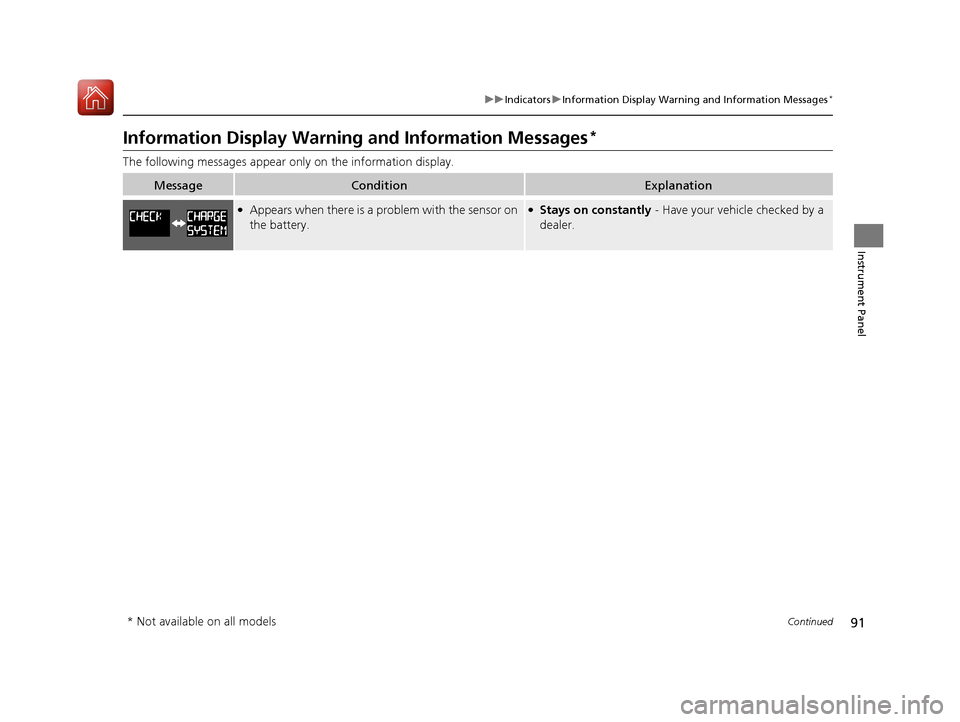

91
uuIndicatorsuInformation Display Warning and Information Messages*
Continued
Instrument Panel
Information Display Warning
and Information Messages*
The following messages appear only on the information display.
MessageConditionExplanation
●
Appears when there is a pr oblem with the sensor on
the battery.● Stays on constantly - Have your vehicle checked by a
dealer.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 91 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

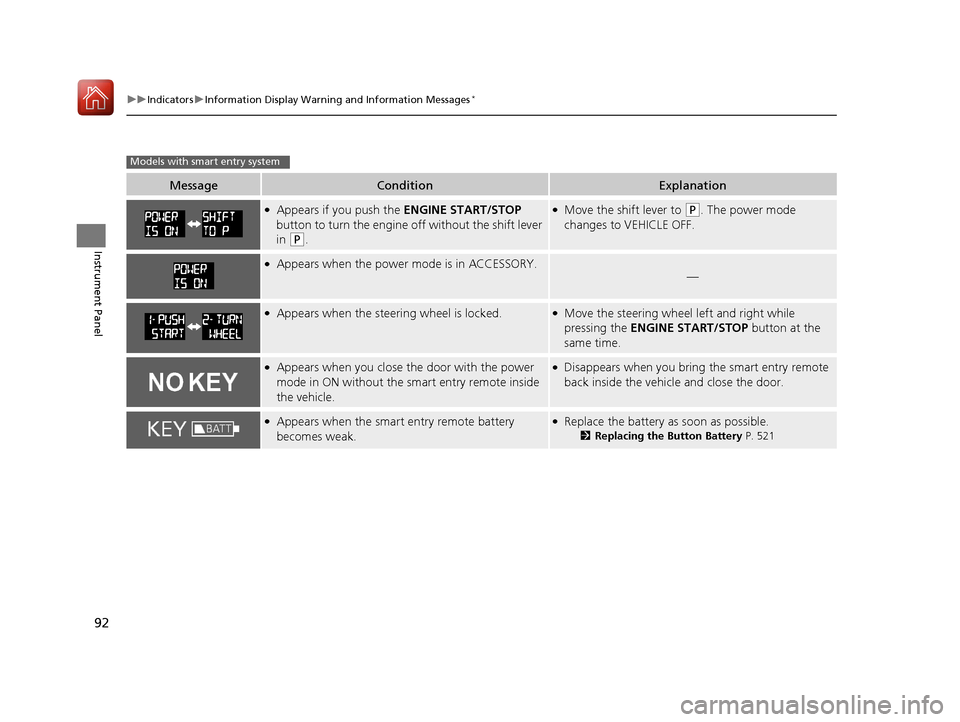

92
uuIndicatorsuInformation Display Warning and Information Messages *
Instrument Panel
MessageConditionExplanation
●
Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P .
●
Move the shift lever to (P . The power mode
changes to VEHICLE OFF.
● Appears when the power mode is in ACCESSORY.
—
●Appears when the steering wheel is locked.●Move the steering wheel left and right while
pressing the ENGINE START/STOP button at the
same time.
● Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote
back inside the vehicle and close the door.
●
Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 521
Models with smart entry system
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 92 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

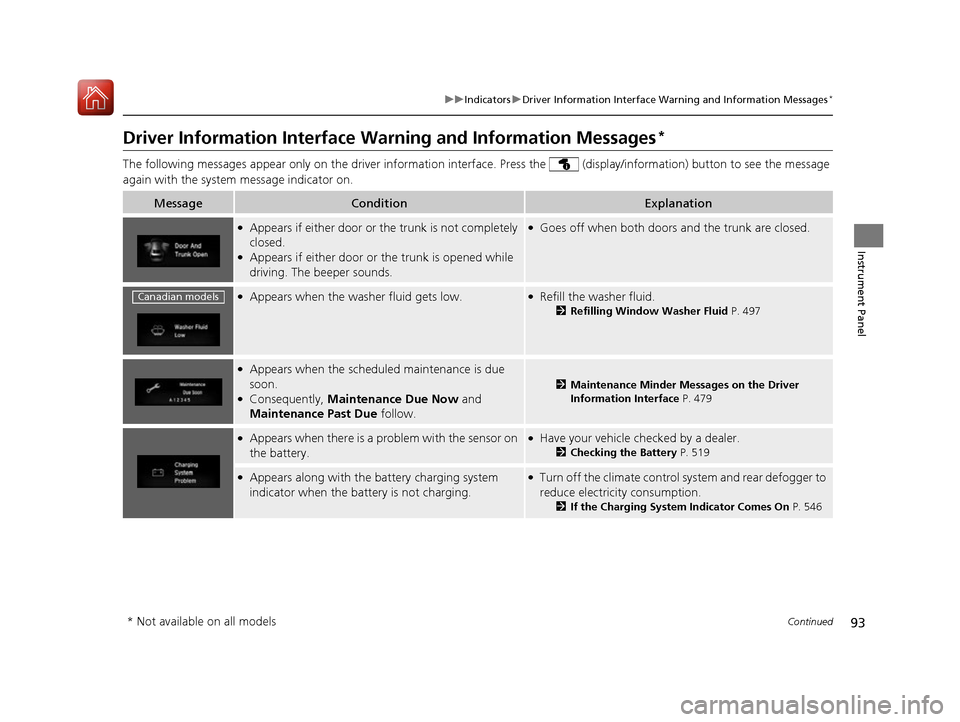

93
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages *
The following messages appear only on the driver information interface. Press the (d isplay/information) button to see the message
again with the system message indicator on.
MessageConditionExplanation
● Appears if either door or th e trunk is not completely
closed.
● Appears if either door or the trunk is opened while
driving. The beeper sounds.●
Goes off when both doors and the trunk are closed.
●
Appears when the washer fluid gets low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 497
●
Appears when the schedul ed maintenance is due
soon.
● Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 479
●
Appears when there is a pr oblem with the sensor on
the battery.● Have your vehicle checked by a dealer.
2Checking the Battery P. 519
●
Appears along with the ba ttery charging system
indicator when the battery is not charging.● Turn off the climate control system and rear defogger to
reduce electricity consumption.
2If the Charging System Indicator Comes On P. 546
Canadian models
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 93 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

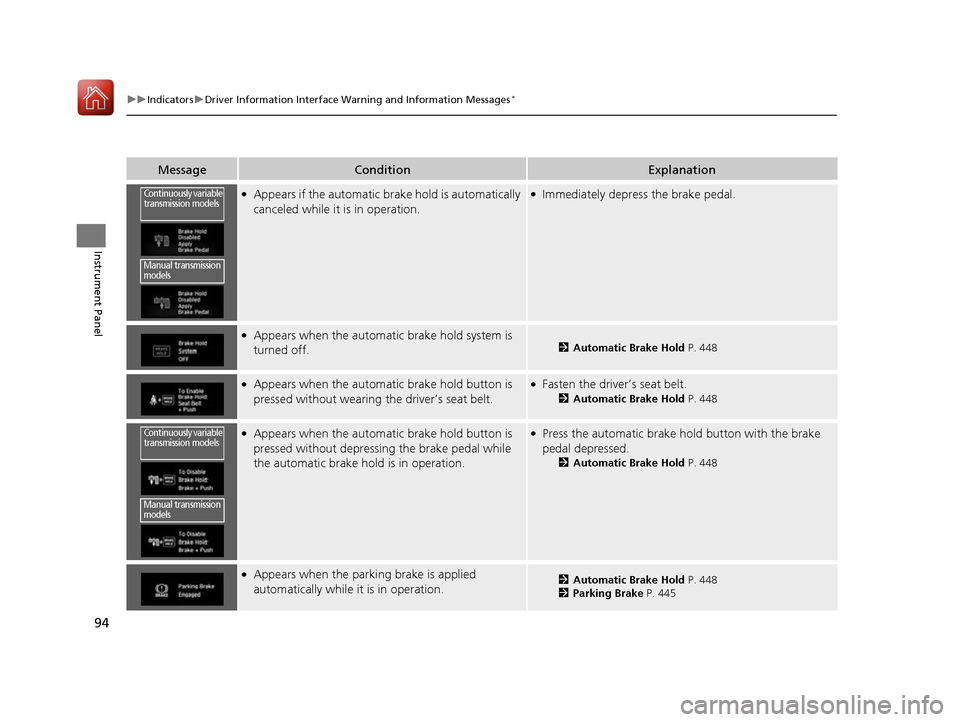

94
uuIndicatorsuDriver Information Interface Warning and Information Messages *
Instrument Panel
MessageConditionExplanation
●
Appears if the automatic br ake hold is automatically
canceled while it is in operation.● Immediately depress the brake pedal.
●
Appears when the automa tic brake hold system is
turned off.
2 Automatic Brake Hold P. 448
●
Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.● Fasten the driver’s seat belt.
2Automatic Brake Hold P. 448
●
Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.● Press the automatic brake ho ld button with the brake
pedal depressed. 2Automatic Brake Hold P. 448
●
Appears when the parking brake is applied
automatically while it is in operation.2 Automatic Brake Hold P. 448
2 Parking Brake P. 445
Continuously variable
transmission models
Manual transmission
models
Continuously variable
transmission models
Manual transmission
models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 94 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

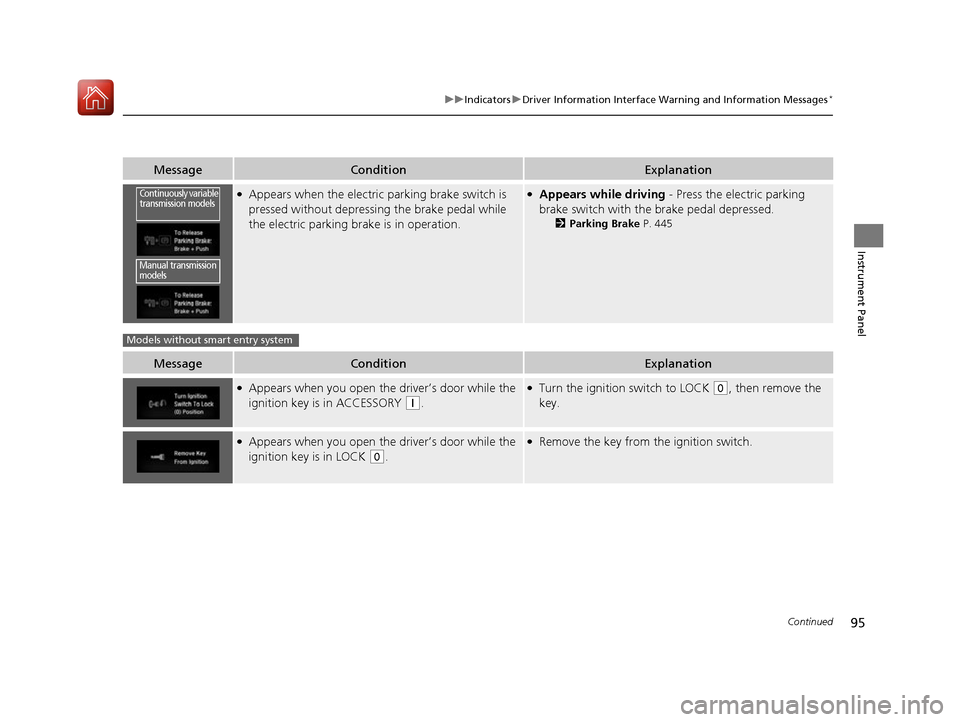

95
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●
Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.● Appears while driving - Press the electric parking
brake switch with the brake pedal depressed. 2Parking Brake P. 445
MessageConditionExplanation
●
Appears when you open the driver’s door while the
ignition key is in ACCESSORY
(q .
●
Turn the ignition switch to LOCK (0 , then remove the
key.
● Appears when you open the driver’s door while the
ignition key is in LOCK
(0 .
●
Remove the key from the ignition switch.
Continuously variable
transmission models
Manual transmission
models
Models without smart entry system
