2016 HONDA CIVIC COUPE Owners Manual

uuAudio System Basic OperationuAudio/Information Screen
232
Features

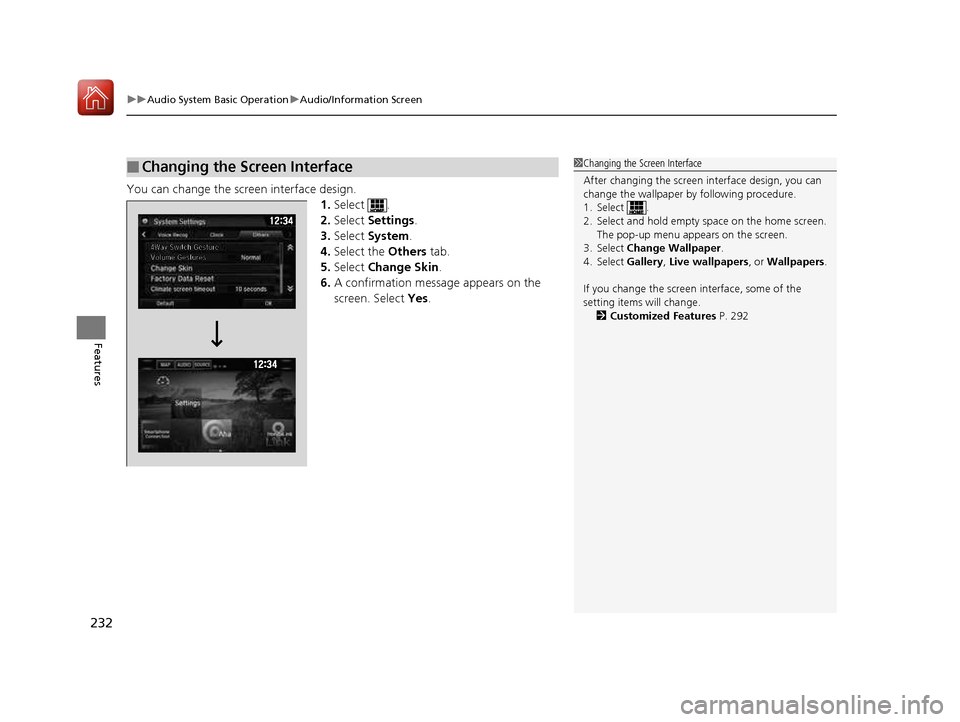

You can change the screen interface design. 1.Select .
2. Select Settings .
3. Select System .
4. Select the Others tab.
5. Select Change Skin .
6. A confirmation message appears on the screen. Select Yes.
■Changing the Screen Interface1Changing the Screen Interface
After changing the screen interface design, you can change the wallpaper by following procedure.
1. Select .
2. Select and hold empty space on the home screen. The pop-up menu appears on the screen.
3. Select Change Wallpaper .
4. Select Gallery, Live wallpapers , or Wallpapers .
If you change the screen interface, some of the
setting items will change. 2 Customized Features P. 292
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 232 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued233
uuAudio System Basic OperationuAudio/Information Screen
Features

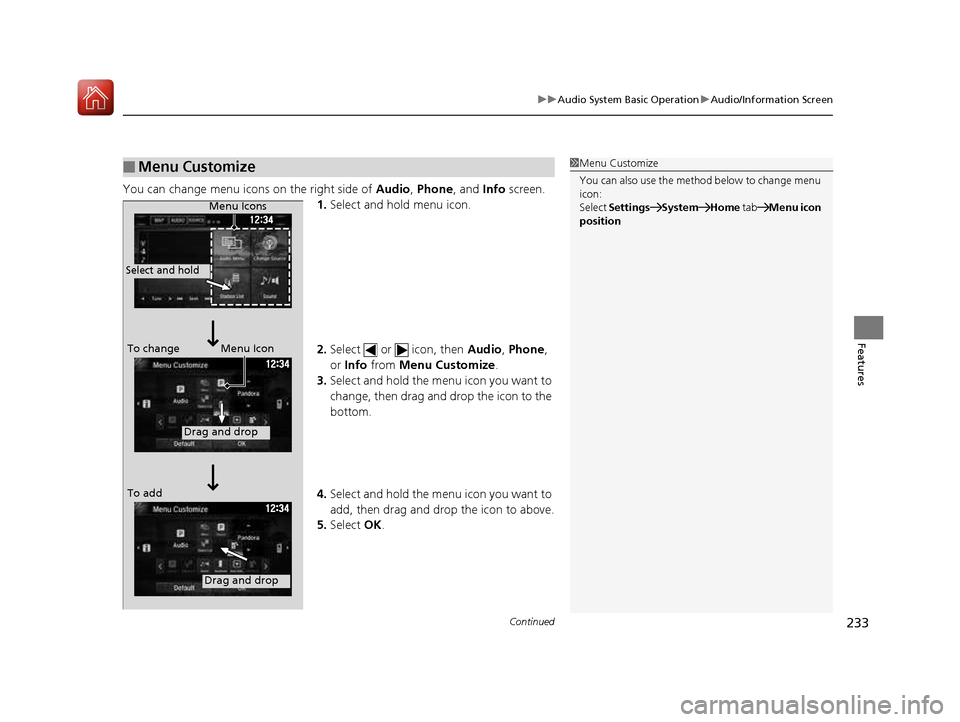

You can change menu icons on the right side of Audio, Phone , and Info screen.
1. Select and hold menu icon.
2. Select or icon, then Audio, Phone ,
or Info from Menu Customize .
3. Select and hold the menu icon you want to
change, then drag and drop the icon to the
bottom.
4. Select and hold the menu icon you want to
add, then drag and drop the icon to above.
5. Select OK.
■Menu Customize1Menu Customize
You can also use the method below to change menu
icon:
Select Settings System Home tabMenu icon
position
Select and hold
Menu Icons
To change Menu Icon
To add
Drag and drop
Drag and drop
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 233 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuAudio System Basic OperationuAudio/Information Screen
234
Features

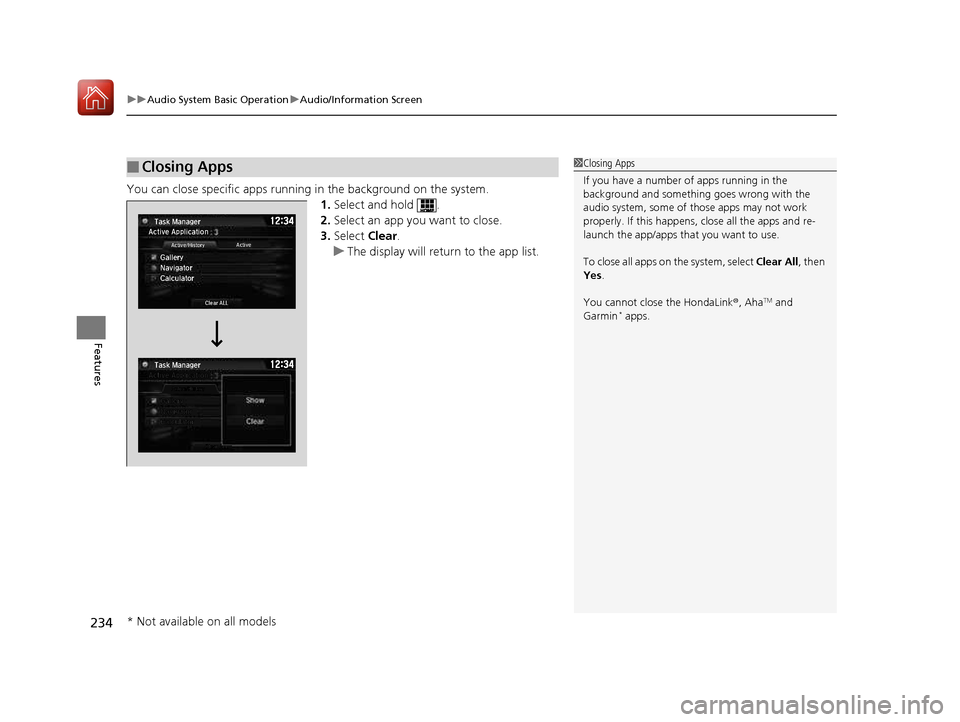

You can close specific apps running in the background on the system. 1.Select and hold .
2. Select an app you want to close.
3. Select Clear.
uThe display will return to the app list.
■Closing Apps1Closing Apps
If you have a number of apps running in the
background and somethi ng goes wrong with the
audio system, some of t hose apps may not work
properly. If this happens, close all the apps and re-
launch the app/apps that you want to use.
To close all apps on the system, select Clear All, then
Yes .
You cannot close the HondaLink ®, Aha TM
and
Garmin *
apps.
Active Application
Gallery Navigator CalculatorActive/History Active
Clear ALL
Task Manager
Task Manager
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 234 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

235
uuAudio System Basic OperationuAdjusting the Sound
Features

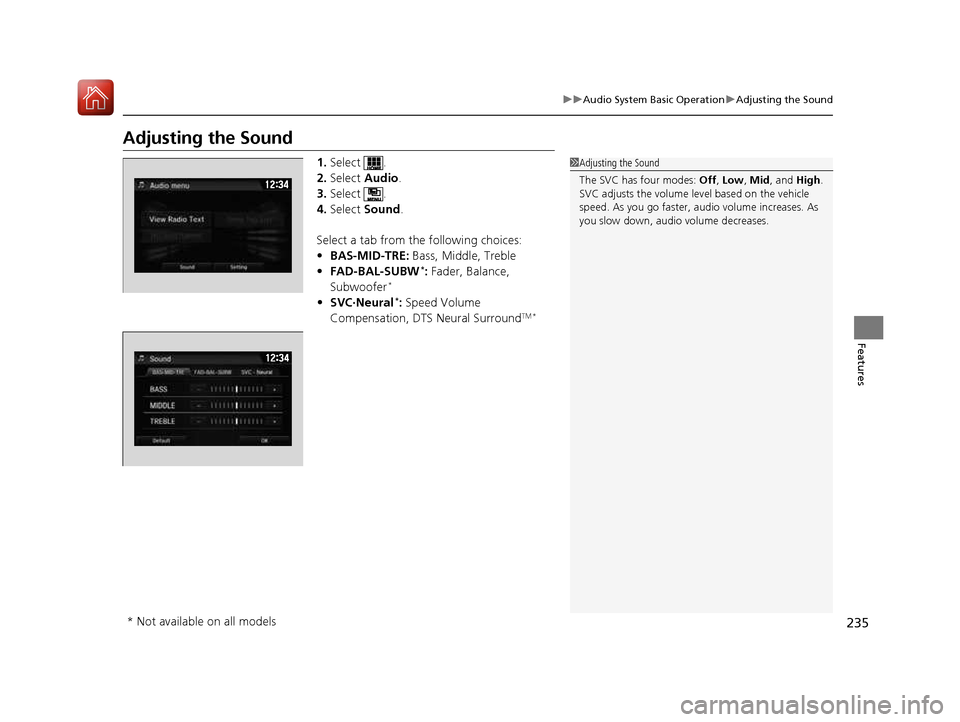

Adjusting the Sound1.Select .
2. Select Audio .
3. Select .
4. Select Sound .
Select a tab from the following choices: • BAS-MID-TRE: Bass, Middle, Treble
• FAD-BAL-SUBW *
: Fader, Balance,
Subwoofer *
• SVC∙Neural *
: Speed Volume
Compensation, DTS Neural Surround TM *
1Adjusting the Sound
The SVC has four modes:
Off, Low , Mid , and High.
SVC adjusts the volume level based on the vehicle
speed. As you go faster, audio volume increases. As
you slow down, audi o volume decreases.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 235 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

236
uuAudio System Basic OperationuDisplay Setup
Features

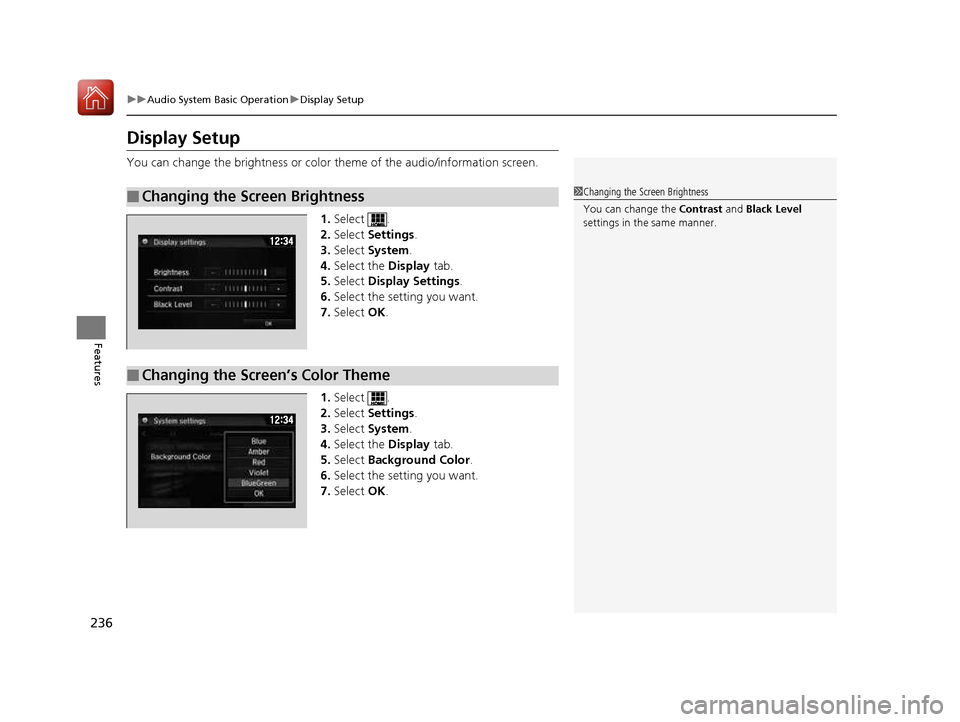

Display Setup
You can change the brightness or color theme of the audio/information screen.1.Select .
2. Select Settings .
3. Select System .
4. Select the Display tab.
5. Select Display Settings .
6. Select the setting you want.
7. Select OK.
1. Select .
2. Select Settings .
3. Select System .
4. Select the Display tab.
5. Select Background Color .
6. Select the setting you want.
7. Select OK.
■Changing the Screen Brightness1Changing the Screen Brightness
You can change the Contrast and Black Level
settings in the same manner.
12 ‰34
■Changing the Screen’s Color Theme
12 ‰34
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 236 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

237
uuAudio System Basic OperationuDisplay Setup

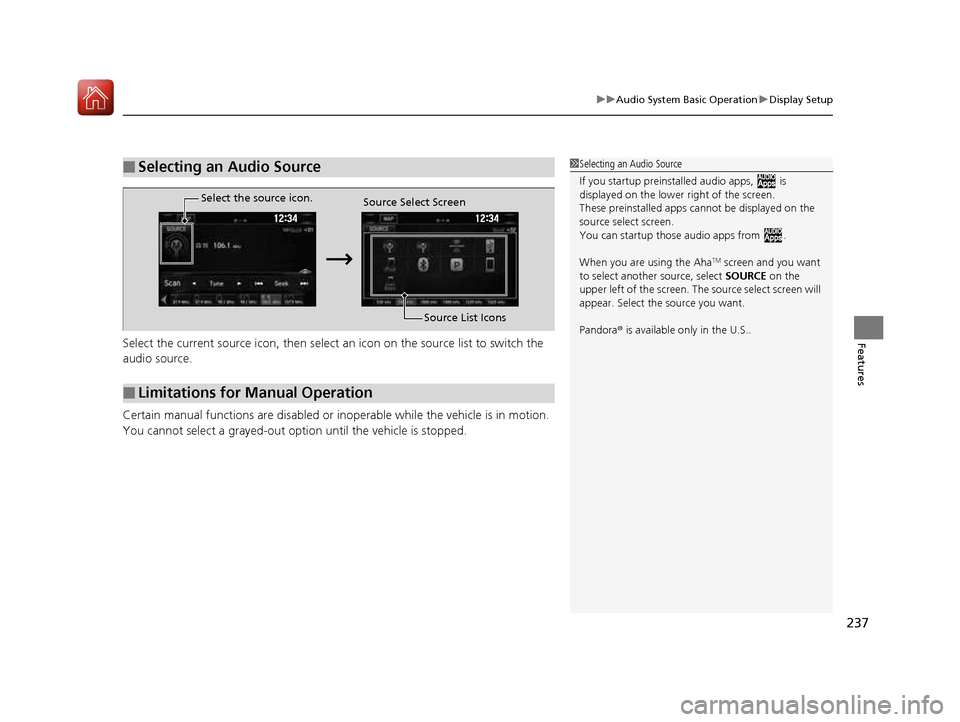

FeaturesSelect the current source icon, then select an icon on the source list to switch the
audio source.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
■Selecting an Audio Source1Selecting an Audio Source If you startup preinstalled audio apps, is
displayed on the lower right of the screen.
These preinstalled apps ca nnot be displayed on the
source select screen.
You can startup thos e audio apps from .
When you are using the Aha TM
screen and you want
to select anothe r source, select SOURCE on the
upper left of the screen. The source select screen will
appear. Select the source you want. Pandora ® is available only in the U.S..
■Limitations for Manual Operation
Select the source icon.
Source Select Screen
Source List Icons
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 237 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

238
uuAudio System Basic OperationuVoice Control Operation
Features

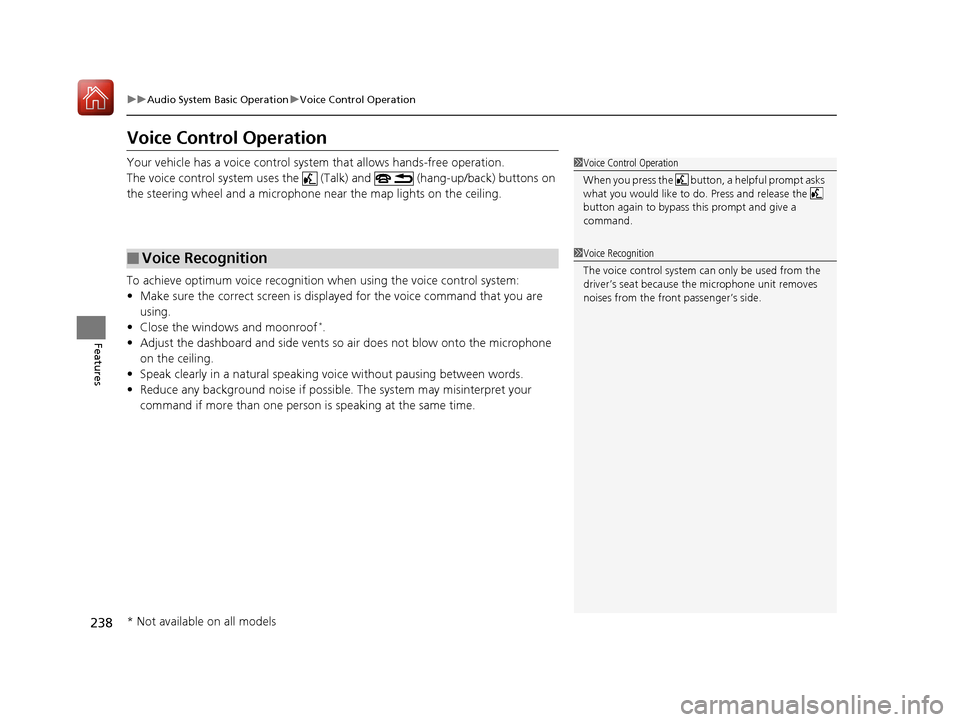

Voice Control Operation
Your vehicle has a voice control system that allows hands-free operation.
The voice control system uses the (Talk) and (hang-up/back) buttons on
the steering wheel and a microphone near the map lights on the ceiling.
To achieve optimum voice recognition when using the voice control system: • Make sure the correct screen is displa yed for the voice command that you are
using.
• Close the windows and moonroof *
.
• Adjust the dashboard and side vents so air does not blow onto the microphone
on the ceiling.
• Speak clearly in a natural speaking vo ice without pausing between words.
• Reduce any background noise if possible. The system may misinterpret your
command if more than one person is speaking at the same time.
■Voice Recognition
1Voice Control Operation
When you press the button, a helpful prompt asks what you would like to do. Press and release the
button again to bypass th is prompt and give a
command.
1Voice Recognition
The voice control system can only be used from the driver’s seat because the microphone unit removes
noises from the front passenger’s side.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 238 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

239
uuAudio System Basic OperationuVoice Control Operation
Continued

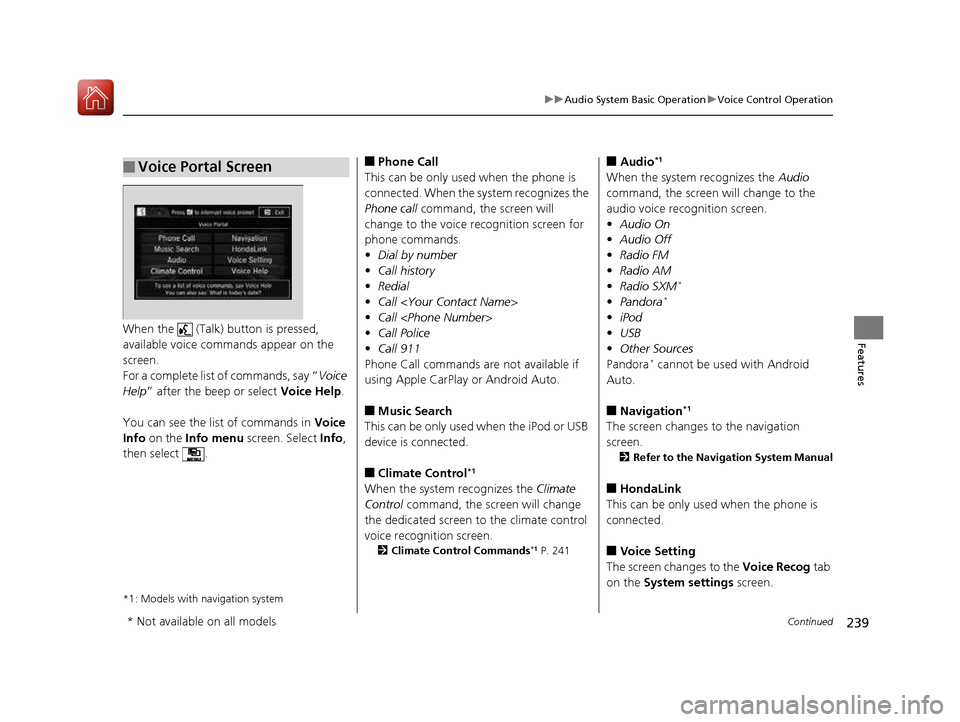

FeaturesWhen the (Talk) button is pressed,
available voice comma nds appear on the
screen.
For a complete list of commands, say “ Voice
Help ” after the beep or select Voice Help.
You can see the list of commands in Voice
Info on the Info menu screen. Select Info,
then select .
*1: Models with navigation system
■Voice Portal Screen■ Phone Call
This can be only used when the phone is
connected. When the sy stem recognizes the
Phone call command, the screen will
change to the voice re cognition screen for
phone commands. • Dial by number
• Call history
• Redial
• Call
• Call
• Call Police
• Call 911
Phone Call commands are not available if
using Apple CarPlay or Android Auto. ■ Music Search
This can be only used when the iPod or USB
device is connected. ■ Climate Control *1
When the system recognizes the Climate
Control command, the screen will change
the dedicated screen to the climate control
voice recognition screen. 2 Climate Control Commands *1
P. 241 ■
Audio *1
When the system recognizes the Audio
command, the screen will change to the
audio voice recognition screen.• Audio On
• Audio Off
• Radio FM
• Radio AM
• Radio SXM *
• Pandora *
• iPod
• USB
• Other Sources
Pandora *
cannot be used with Android
Auto.
■ Navigation *1
The screen changes to the navigation screen. 2 Refer to the Navigation System Manual
■ HondaLink
This can be only used when the phone is
connected. ■ Voice Setting
The screen changes to the Voice Recog tab
on the System settings screen.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 239 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
