2016 HONDA CIVIC COUPE Owners Manual

80
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Vehicle Stability
Assist (VSA
®)
System Indicator
● Comes on for a few seconds when
you turn the ignition switch to ON
(w *1
, then goes off.
● Blinks when VSA ® is active.
● Comes on if there is a problem with the VSA ® system or hill start
assist system.
● Stays on constantly - Have your vehicle
checked by a dealer. 2Vehicle Stability Assist (VSA ®), aka
Electronic Stability Control (ESC), System P. 435
●
Comes on if the VSA ® system is
deactivated temporarily after the
battery has been disconnected,
then re-connected.● Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
Vehicle Stability
Assist (VSA ®)
OFF Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w *1
, then goes off.
● Comes on when you partially disable VSA ®.2 VSA ® On and Off P. 436
●
Comes on if the VSA ® system is
deactivated temporarily after the
battery has been disconnected,
then re-connected.● Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 80 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

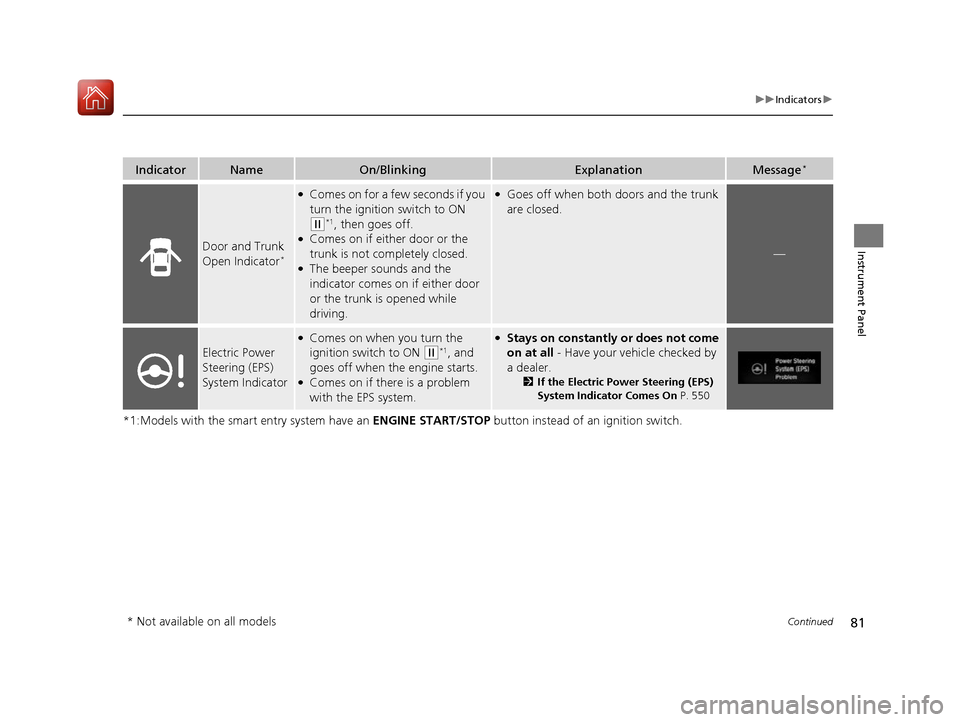

81
uuIndicatorsu
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Door and Trunk
Open Indicator *
●
Comes on for a few seconds if you
turn the ignition switch to ON
(w *1
, then goes off.
● Comes on if either door or the
trunk is not completely closed.
● The beeper sounds and the
indicator comes on if either door
or the trunk is opened while
driving.
●Goes off when both doors and the trunk are closed.
—
Electric Power Steering (EPS) System Indicator
●
Comes on when you turn the
ignition switch to ON
(w *1
, and
goes off when the engine starts.
● Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer. 2If the Electric Power Steering (EPS)
System Indicator Comes On P. 550
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 81 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

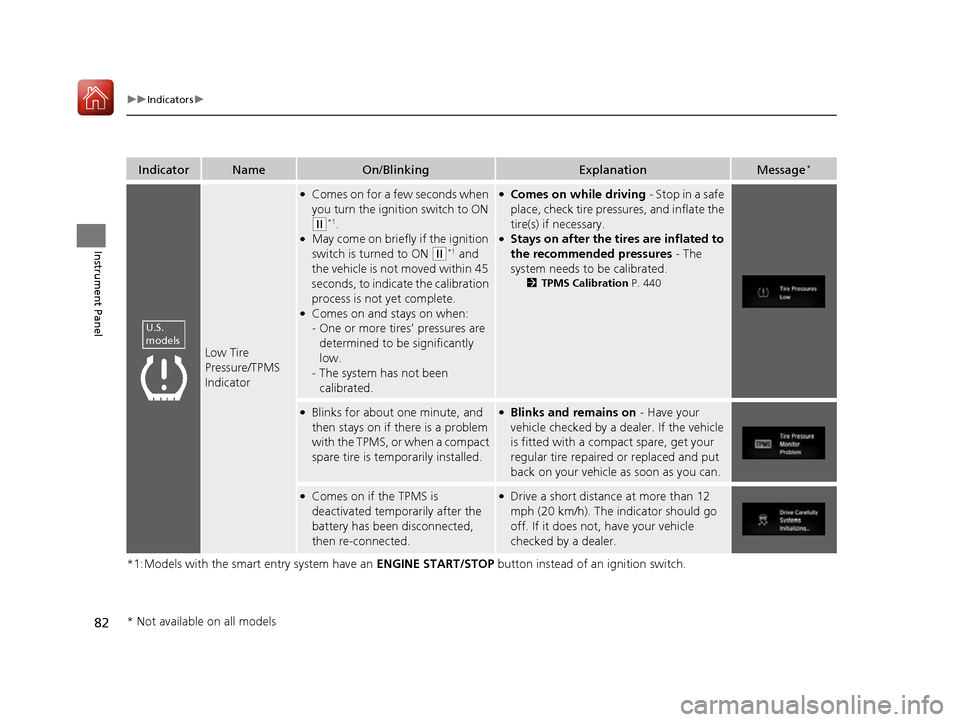

82
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Low Tire
Pressure/TPMS
Indicator
●
Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1
.
● May come on briefly if the ignition switch is turned to ON
(w *1
and
the vehicle is not moved within 45
seconds, to indicate the calibration
process is not yet complete.
● Comes on and stays on when:-One or more tires’ pressures are
determined to be significantly low.
- The system has not been calibrated.
●
Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the tire(s) if necessary.
● Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated. 2TPMS Calibration P. 440
●
Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire is temporarily installed.● Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
● Comes on if the TPMS is
deactivated temporarily after the
battery has been disconnected,
then re-connected.● Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
U.S.
models
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 82 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

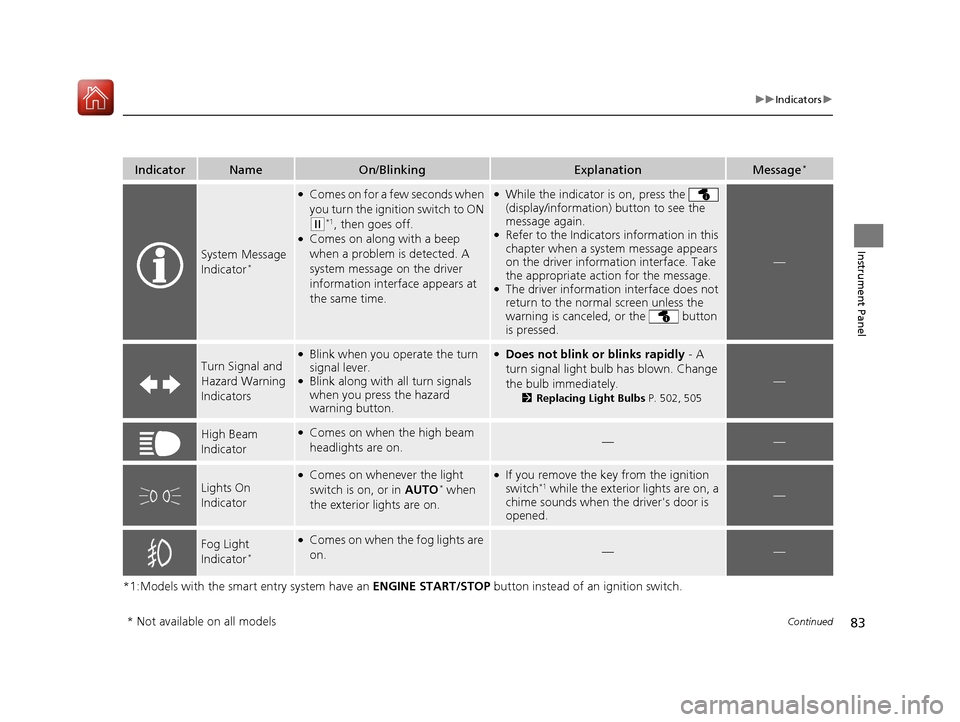

83
uuIndicatorsu
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System Message
Indicator*
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w *1
, then goes off.
● Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.
●While the indicator is on, press the
(display/information) button to see the
message again.
● Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
● The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning Indicators
●Blink when you operate the turn
signal lever.
● Blink along with all turn signals
when you press the hazard
warning button.●
Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately. 2Replacing Light Bulbs P. 502, 505
—
High Beam
Indicator●
Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO*
when
the exterior lights are on.● If you remove the key from the ignition
switch *1
while the exterior lights are on, a
chime sounds when the driver's door is
opened.
—
Fog Light
Indicator *●
Comes on when the fog lights are on.
——
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 83 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

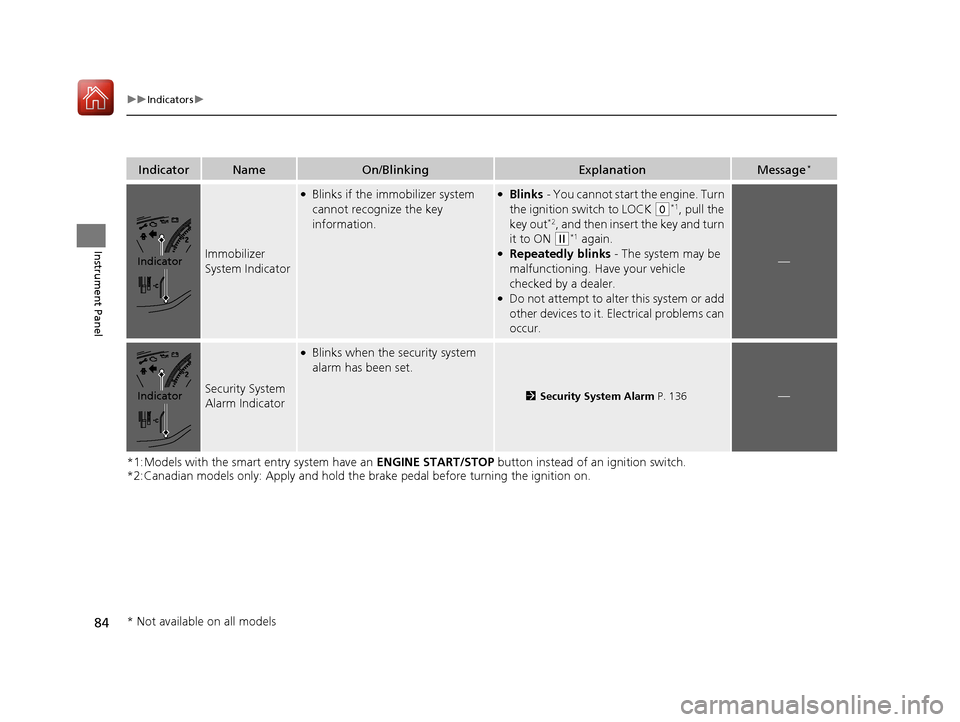

84
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Canadian models only: Apply and hold the brake pedal before turning the ignition on.
IndicatorNameOn/BlinkingExplanationMessage *
Immobilizer
System Indicator
●
Blinks if the immobilizer system
cannot recognize the key information.● Blinks - You cannot start the engine. Turn
the ignition switch to LOCK
(0 *1
, pull the
key out *2
, and then insert the key and turn
it to ON
(w *1
again.
● Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
● Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
Security System Alarm Indicator
●Blinks when the security system
alarm has been set.
2 Security System Alarm P. 136—
Indicator
Indicator
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 84 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

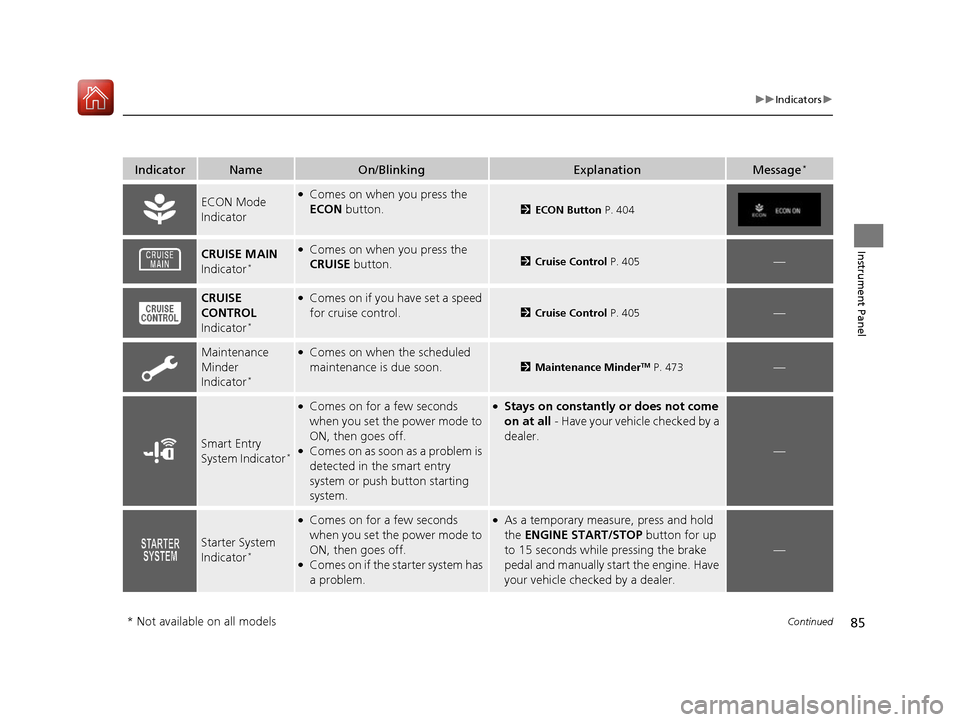

85
uuIndicatorsu
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
ECON Mode
Indicator●
Comes on when you press the ECON button.
2ECON Button P. 404
CRUISE MAIN
Indicator *●
Comes on when you press the
CRUISE button.
2Cruise Control P. 405—
CRUISE
CONTROL
Indicator *●
Comes on if you have set a speed for cruise control.
2 Cruise Control P. 405—
Maintenance Minder
Indicator*●
Comes on when the scheduled
maintenance is due soon.
2 Maintenance Minder TM
P. 473—
Smart Entry System Indicator *
●
Comes on for a few seconds
when you set the power mode to
ON, then goes off.
● Comes on as soon as a problem is
detected in the smart entry
system or push button starting system.●Stays on constantly or does not come on at all - Have your vehicle checked by a
dealer.
—
Starter System
Indicator *
●
Comes on for a few seconds
when you set the power mode to
ON, then goes off.
● Comes on if the starter system has
a problem.●As a temporary measure, press and hold the ENGINE START/STOP button for up
to 15 seconds while pressing the brake
pedal and manually start the engine. Have
your vehicle checked by a dealer.
—
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 85 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

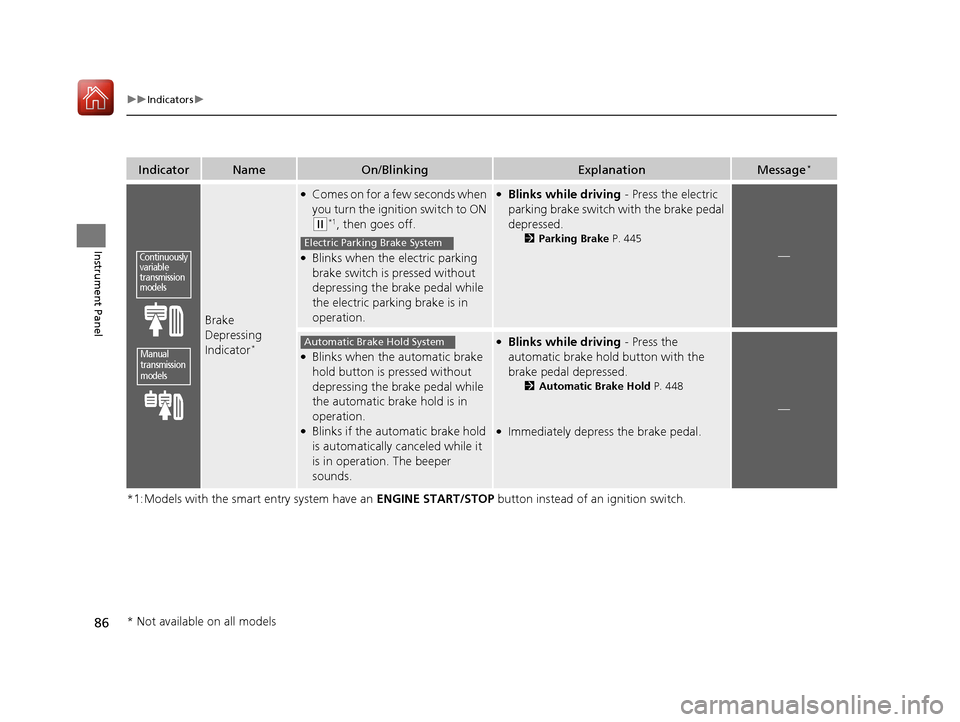

86
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Brake
Depressing
Indicator*
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w *1
, then goes off.
● Blinks when the electric parking
brake switch is pressed without
depressing the brake pedal while
the electric parking brake is in operation.
● Blinks while driving - Press the electric
parking brake switch with the brake pedal
depressed. 2Parking Brake P. 445
—
●
Blinks when the automatic brake
hold button is pressed without
depressing the brake pedal while
the automatic brake hold is in operation.
● Blinks if the automatic brake hold
is automatically canceled while it is in operation. The beeper
sounds.
● Blinks while driving - Press the
automatic brake hold button with the
brake pedal depressed. 2Automatic Brake Hold P. 448
● Immediately depress the brake pedal.
—
Continuously
variable
transmission
models
Manual
transmission
models
Electric Parking Brake System
Automatic Brake Hold System
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 86 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

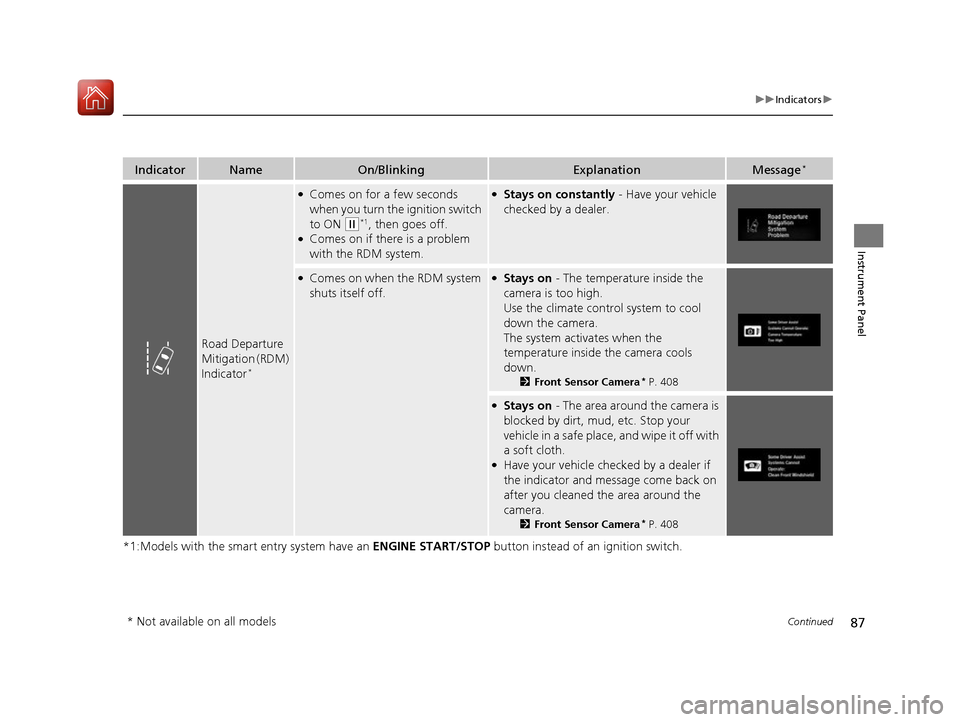

87
uuIndicatorsu
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Road Departure Mitigation (RDM)
Indicator*
●
Comes on for a few seconds
when you turn the ignition switch
to ON
(w *1
, then goes off.
● Comes on if there is a problem
with the RDM system.
●Stays on constantly - Have your vehicle
checked by a dealer.
● Comes on when the RDM system
shuts itself off.●Stays on - The temperature inside the
camera is too high.
Use the climate contro l system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down. 2Front Sensor Camera *
P. 408
● Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe place, and wipe it off with
a soft cloth.
● Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2Front Sensor Camera *
P. 408
* Not available on all models
