2016 HONDA CIVIC COUPE Owners Manual

552
Handling the Unexpected

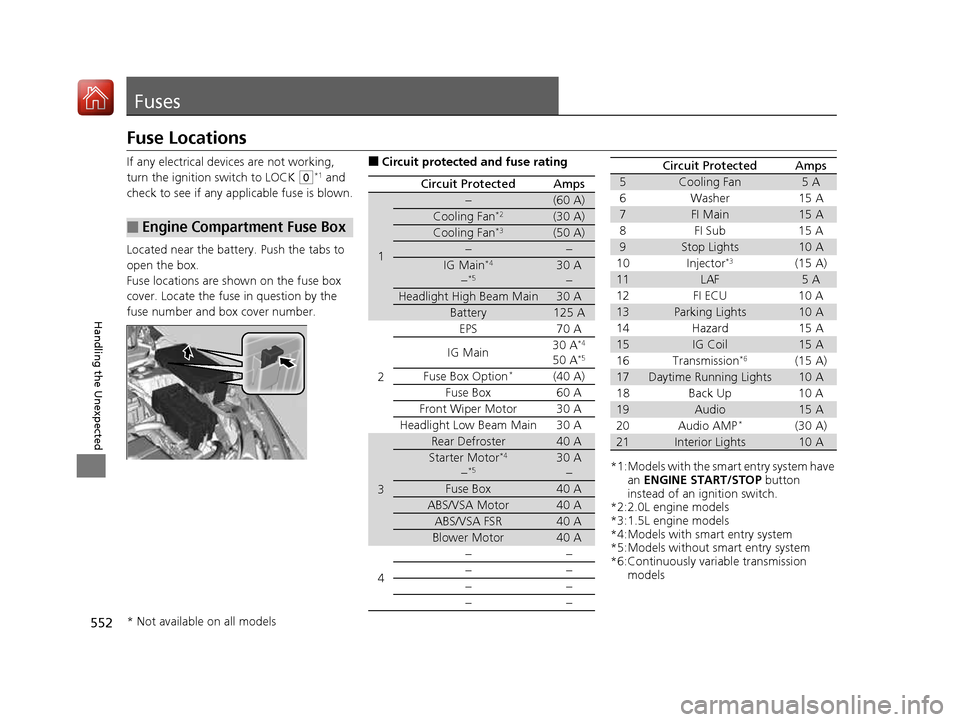

Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1
and
check to see if any appl icable fuse is blown.
Located near the battery. Push the tabs to
open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
■ Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(60 A)
Cooling Fan *2(30 A)
Cooling Fan*3(50 A)
−−
IG Main*4
− *530 A
−
Headlight High Beam Main30 A
Battery125 A
2
EPS70 A
IG Main 30 A
*4
50 A *5
Fuse Box Option *(40 A)
Fuse Box 60 A
Front Wiper Motor30 A
Headlight Low Beam Main 30 A
3
Rear Defroster40 A
Starter Motor *4
− *530 A
−
Fuse Box40 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
4 −− −− −−−−
*1:Models with the sma
rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:2.0L engine models
*3:1.5L engine models
*4:Models with smart entry system
*5:Models without smart entry system
*6:Continuously variable transmission
models
5Cooling Fan5A
6W ash er 1 5A
7FI Main15 A
8F I S ub 1 5A
9Stop Lights10 A
10 Injector *3
(15 A)
11LAF5A
12 FI ECU 10 A
13Parking Lights10 A
14 Hazard 15 A
15IG Coil15 A
16 Transmission *6
(15 A)
17Daytime Running Lights10 A
18 Back Up 10 A
19Audio15 A
20 Audio AMP *
(30 A)
21Interior Lights10 A
Circuit ProtectedAmps
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 552 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

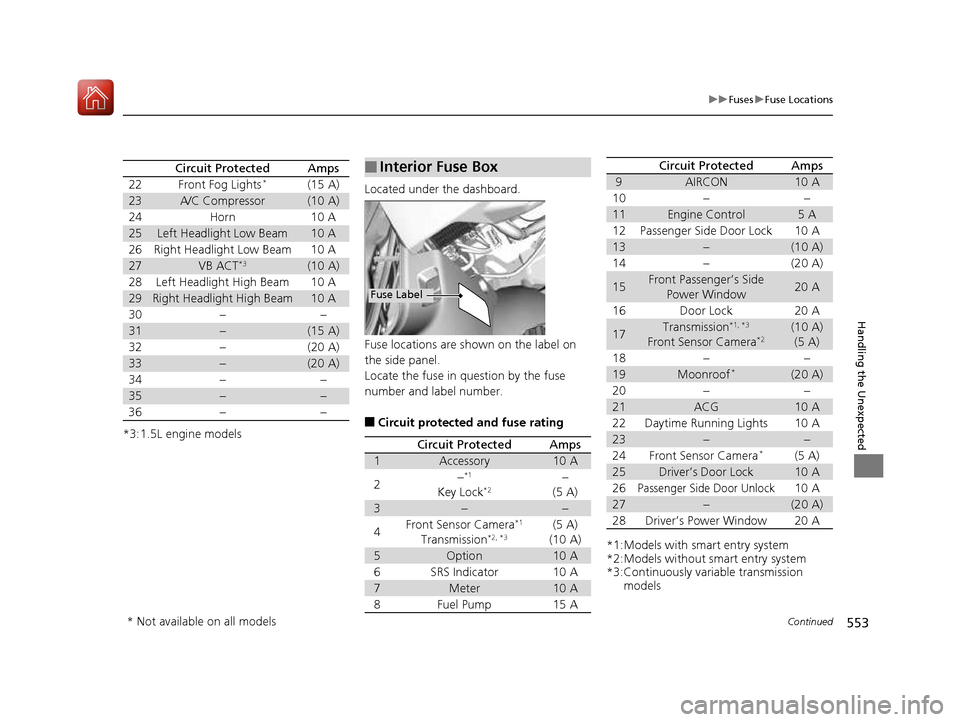

553
uuFusesuFuse Locations
Continued
Handling the Unexpected
*3:1.5L engine models
Circuit ProtectedAmps
22 Front Fog Lights *
(15 A)
23A/C Compressor(10 A)
24 Horn 10 A
25Left Headlight Low Beam10 A
26 Right Headlight Low Beam 10 A
27VB ACT *3(10 A)
28 Left Headlight High Beam 10 A
29Right Headlight High Beam10 A
30 − −
31−(15 A)
32 − (20 A)
33−(20 A)
34 − −
35−−
36 − −
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number. ■ Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1Accessory10 A
2−*1
Key Lock *2−
(5 A)
3−−
4Front Sensor Camera *1
Transmission *2, *3(5 A)
(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
9AIRCON10 A
10−−
11Engine Control5A
12Passenger Side Door Lock10 A
13−(10 A)
14−(20 A)
15Front Passenger’s Side
Power Window20 A
16Door Lock20 A
17Transmission *1, *3
Front Sensor Camera *2(10 A)
(5 A)
18−−
19Moonroof *(20 A)
20−−
21ACG10 A
22Daytime Running Lights10 A
23−−
24Front Sensor Camera *(5 A)
25Driver’s Door Lock10 A
26Passenger Side Door Unlock10 A
27−(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 553 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

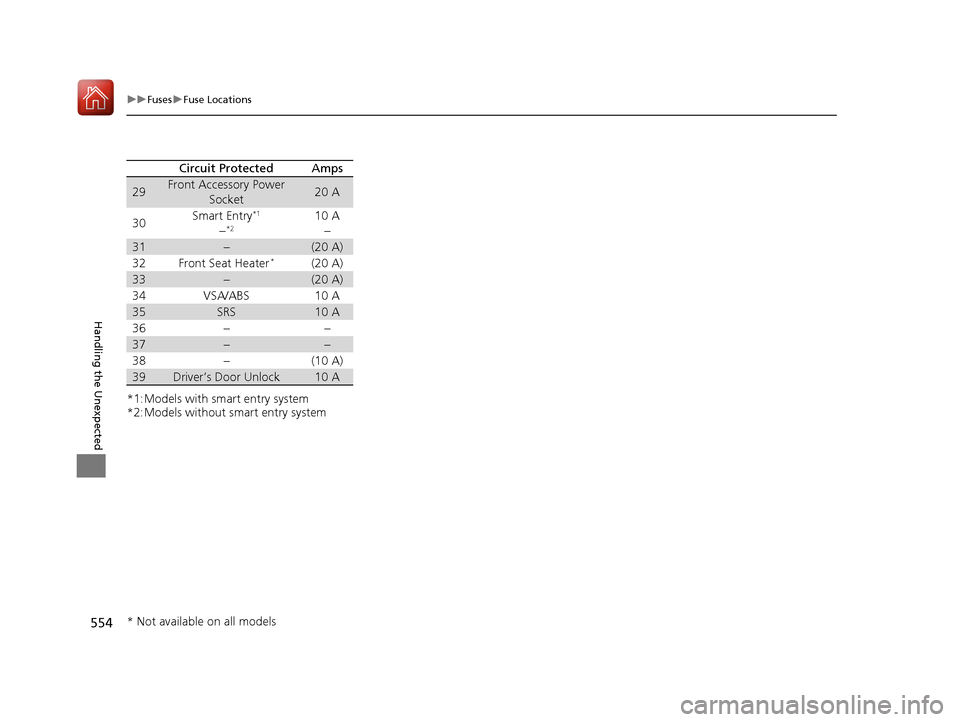

554
uuFusesuFuse Locations
Handling the Unexpected
*1:Models with smart entry system
*2:Models without smart entry system
Circuit ProtectedAmps
29Front Accessory Power Socket20 A
30Smart Entry *1
− *210 A
−
31−(20 A)
32Front Seat Heater *(20 A)
33−(20 A)
34VSA/ABS10 A
35SRS10 A
36−−
37−−
38−(10 A)
39Driver’s Door Unlock10 A
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 554 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

555
uuFusesuInspecting and Changing Fuses
Handling the Unexpected

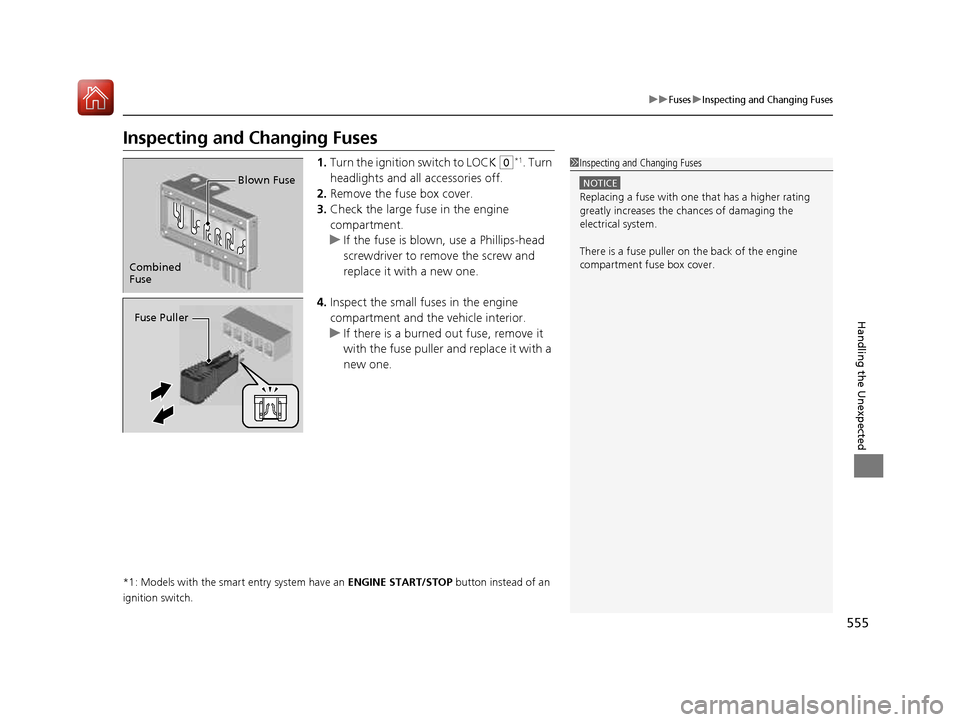

Inspecting and Changing Fuses1.Turn the ignition switch to LOCK
(0 *1
. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
uIf the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 555 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

556
Handling the Unexpected

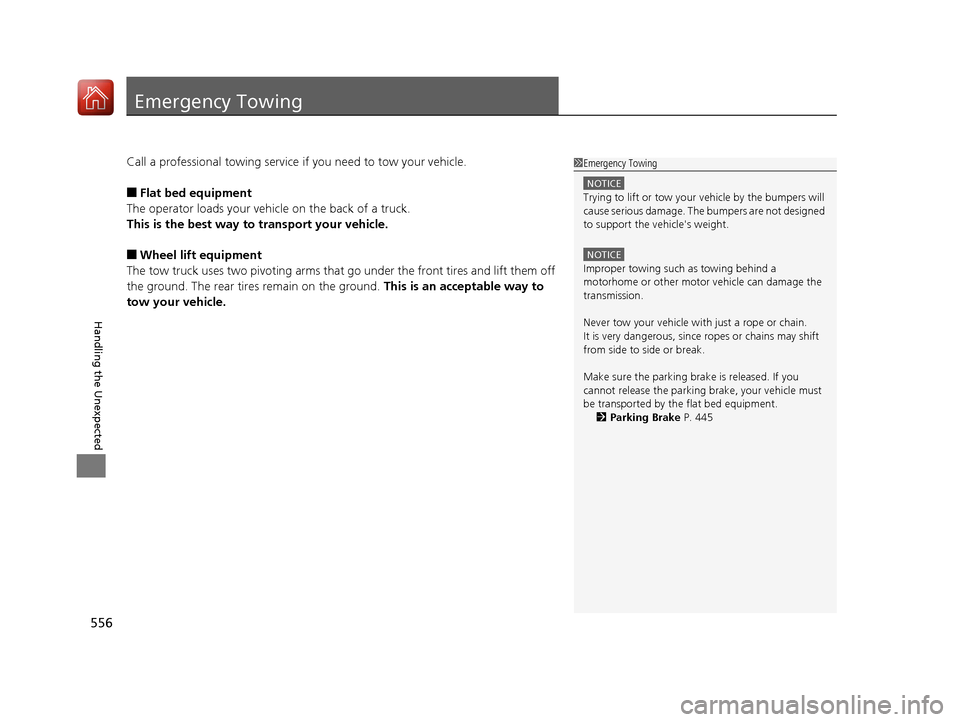

Emergency Towing
Call a professional towing service if you need to tow your vehicle. ■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle. ■ Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2 Parking Brake P. 445
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 556 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

557
Handling the Unexpected

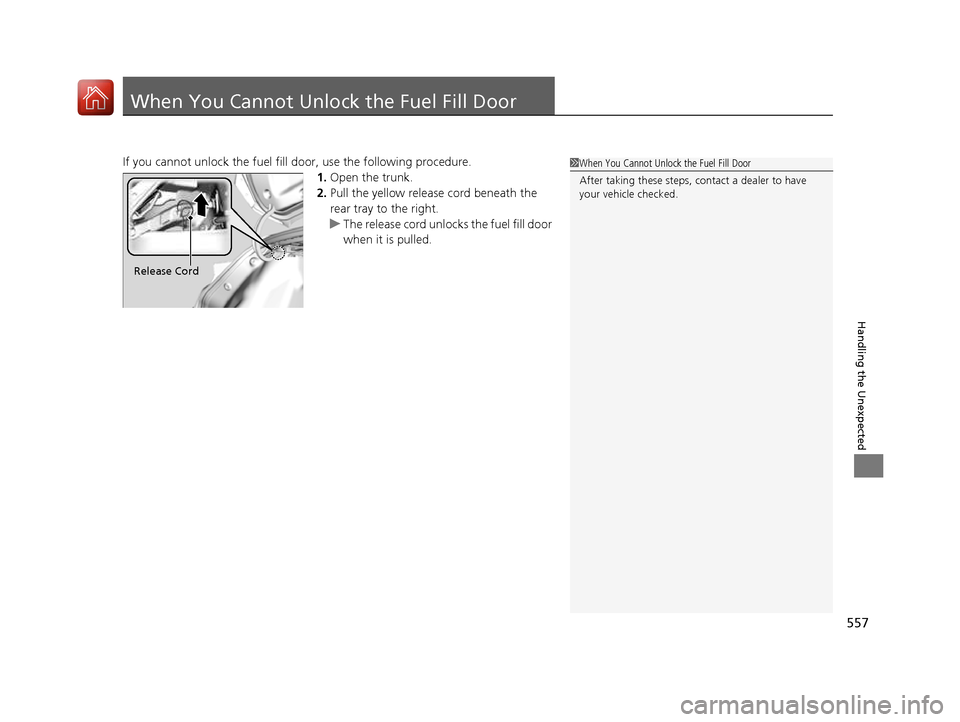

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the trunk.
2. Pull the yellow release cord beneath the
rear tray to the right.
uThe release cord unlocks the fuel fill door
when it is pulled.
1When You Cannot Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release Cord
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 557 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

558
Handling the Unexpected

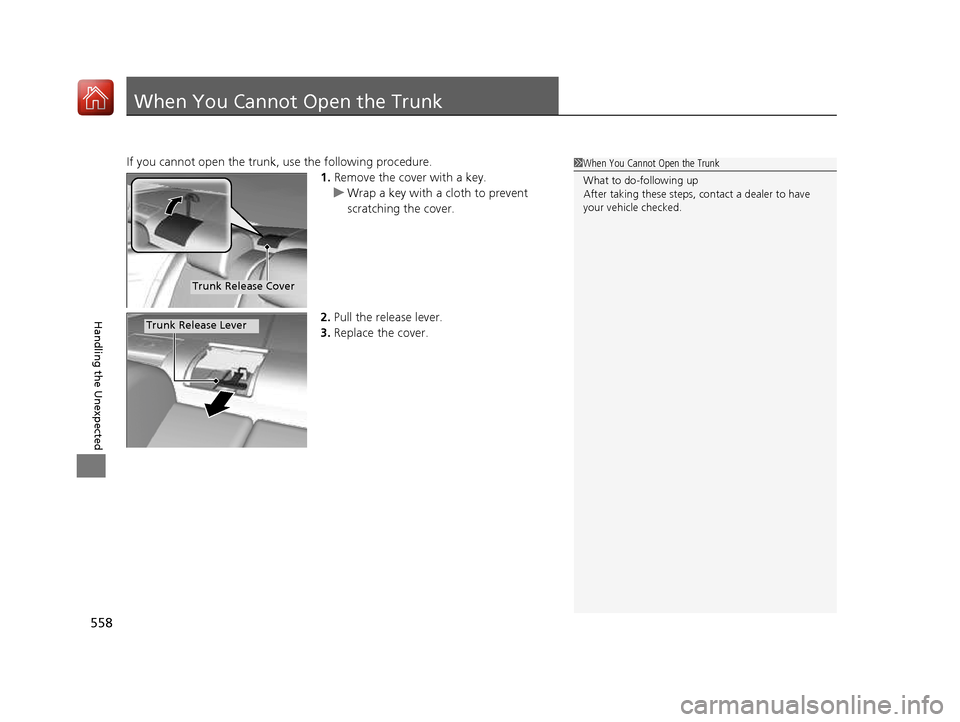

When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the cover with a key.
uWrap a key with a cloth to prevent
scratching the cover.
2. Pull the release lever.
3. Replace the cover.
1When You Cannot Open the Trunk
What to do-following up
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Release Cover
Trunk Release Lever
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 558 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

559
Handling the Unexpected

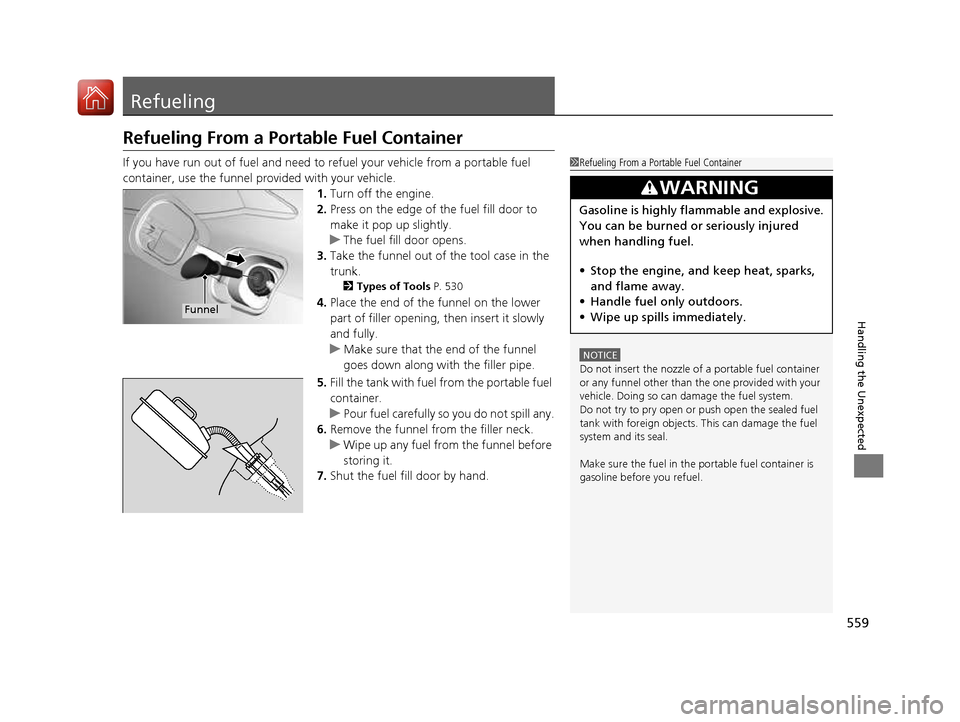

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
uThe fuel fill door opens.
3. Take the funnel out of the tool case in the trunk.
2 Types of Tools P. 530
4. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
uMake sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
uPour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
uWipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel. • Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
