2016 HONDA CIVIC COUPE Owners Manual

104

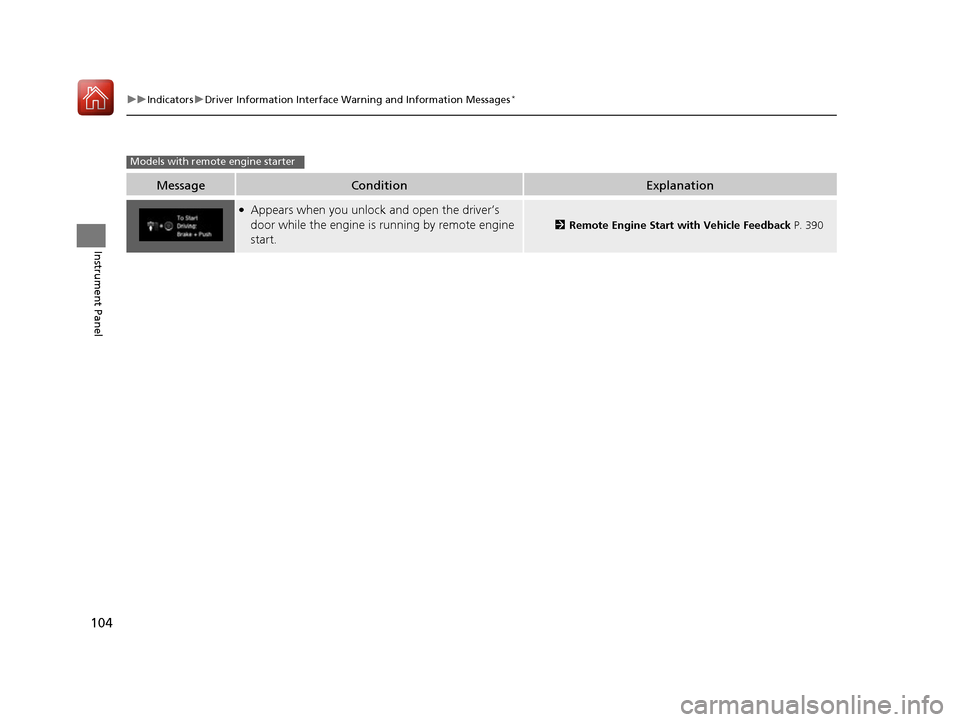

uuIndicatorsuDriver Information Interface Warning and Information Messages *
Instrument Panel
MessageConditionExplanation
●
Appears when you unlock and open the driver’s
door while the engine is running by remote engine start.
2 Remote Engine Start with Vehicle Feedback P. 390
Models with remote engine starter
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 104 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

105
Instrument Panel

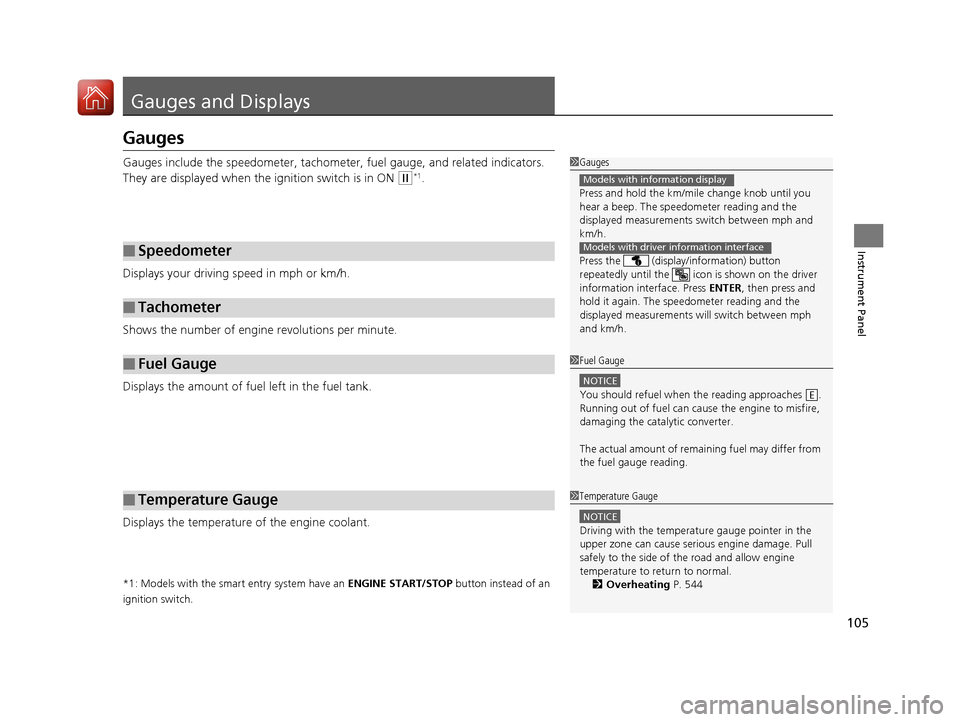

Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1
.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1Gauges
Press and hold the km/mil e change knob until you
hear a beep. The speedometer reading and the
displayed measurements switch between mph and
km/h.
Press the (display /information) button
repeatedly until the ic on is shown on the driver
information interface. Press ENTER, then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
Models with information display
Models with driver information interface
1Fuel Gauge
NOTICE
You should refuel when the reading approaches . Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 544
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 105 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

106
uuGauges and DisplaysuInformation Display*
Instrument Panel

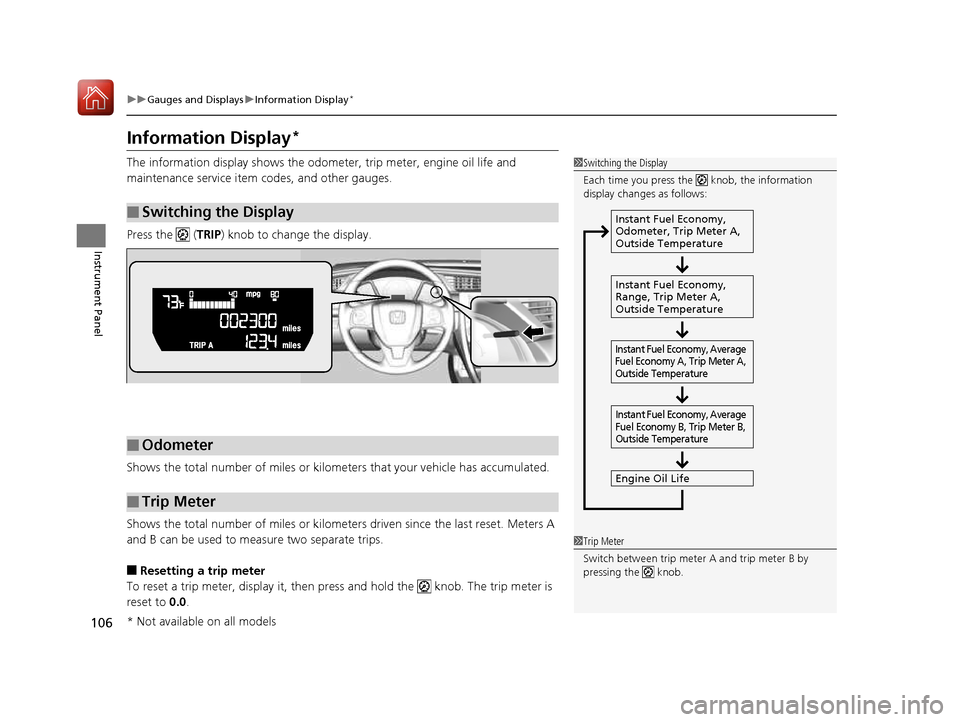

Information Display *
The information display shows the odome ter, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips. ■ Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
Engine Oil Life
Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature
■Odometer
■Trip Meter
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 106 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued107
uuGauges and DisplaysuInformation Display*
Instrument Panel

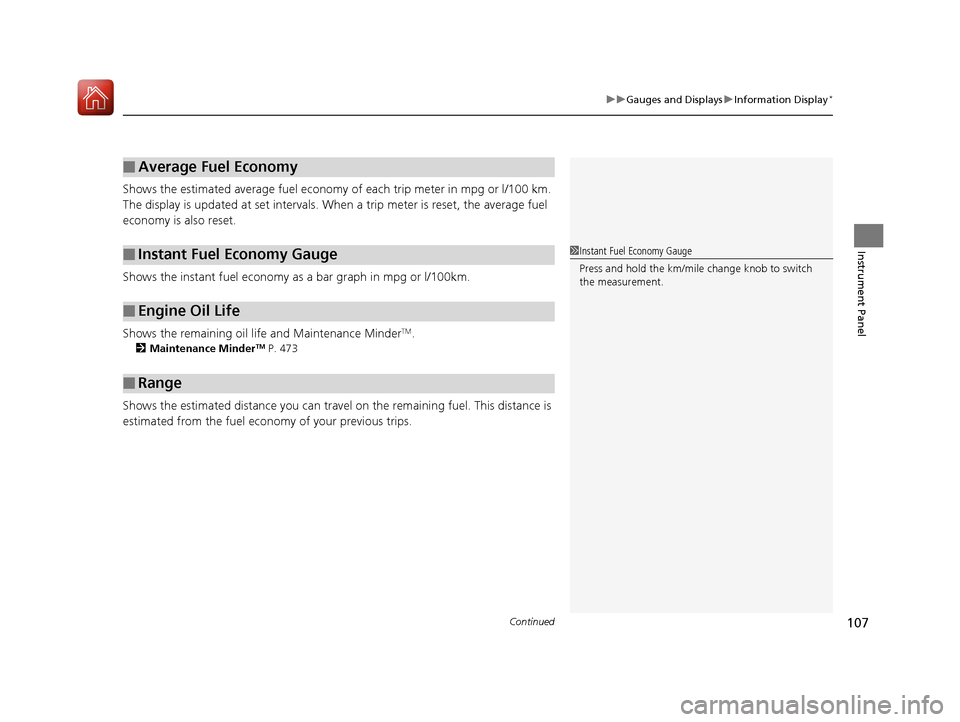

Shows the estimated average fuel economy
of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the instant fuel economy as a bar graph in mpg or l/100km.
Shows the remaining oil life and Maintenance Minder TM
.
2 Maintenance Minder TM
P. 473
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
■Average Fuel Economy
■Instant Fuel Economy Gauge
■Engine Oil Life
■Range
1Instant Fuel Economy Gauge
Press and hold the km/mile change knob to switch
the measurement.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 107 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuGauges and DisplaysuInformation Display*
108
Instrument Panel

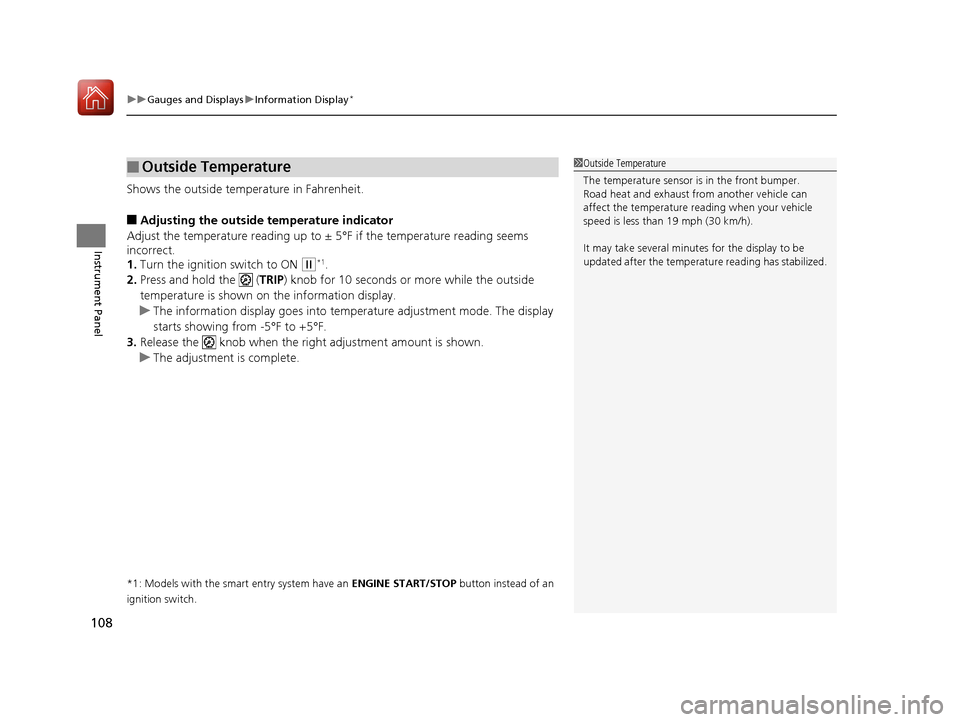

Shows the outside temperature in Fahrenheit. ■ Adjusting the outside temperature indicator
Adjust the temperature reading up to ± 5°F if the temperature reading seems incorrect.1. Turn the ignition switch to ON
(w*1
.
2. Press and hold the ( TRIP) knob for 10 seconds or more while the outside
temperature is shown on the information display.
uThe information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F.
3. Release the knob when the righ t adjustment amount is shown.
uThe adjustment is complete.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Outside Temperature1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 108 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

109
uuGauges and DisplaysuDriver Information Interface*
Continued
Instrument Panel

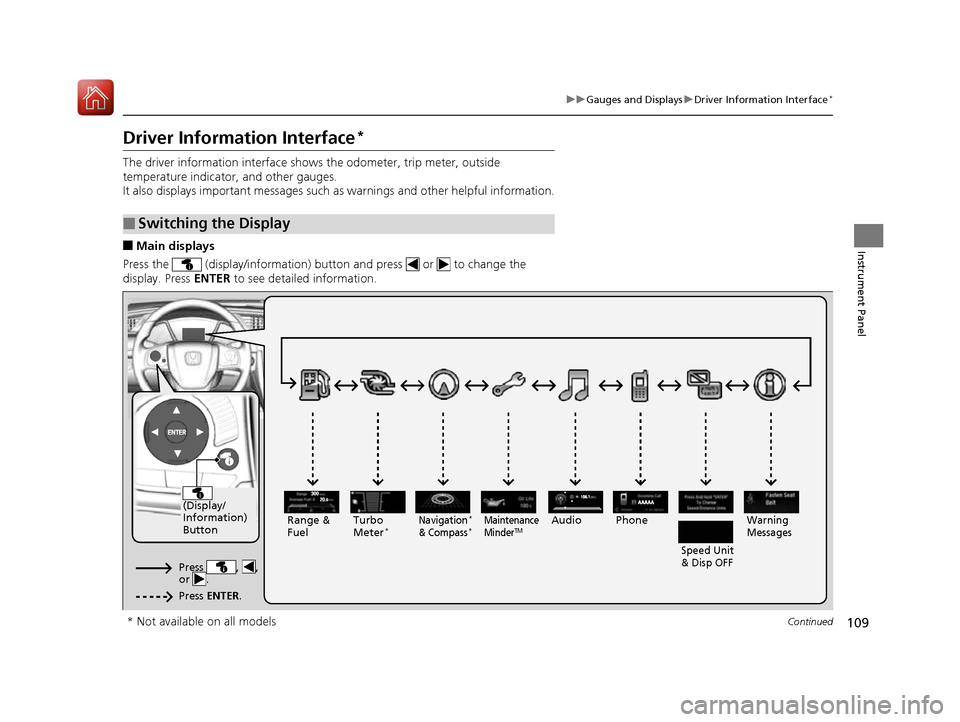

Driver Information Interface *
The driver information interface show s the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■ Main displays
Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
■Switching the Display

(Display/
Information)
Button
Warning
Messages
Speed Unit
& Disp OFFMaintenance
MinderTMPhone
Turbo
Meter * AudioNavigation*
& Compass*
Range &
Fuel
Press , , or .
Press ENTER .
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 109 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuGauges and DisplaysuDriver Information Interface*
110
Instrument Panel

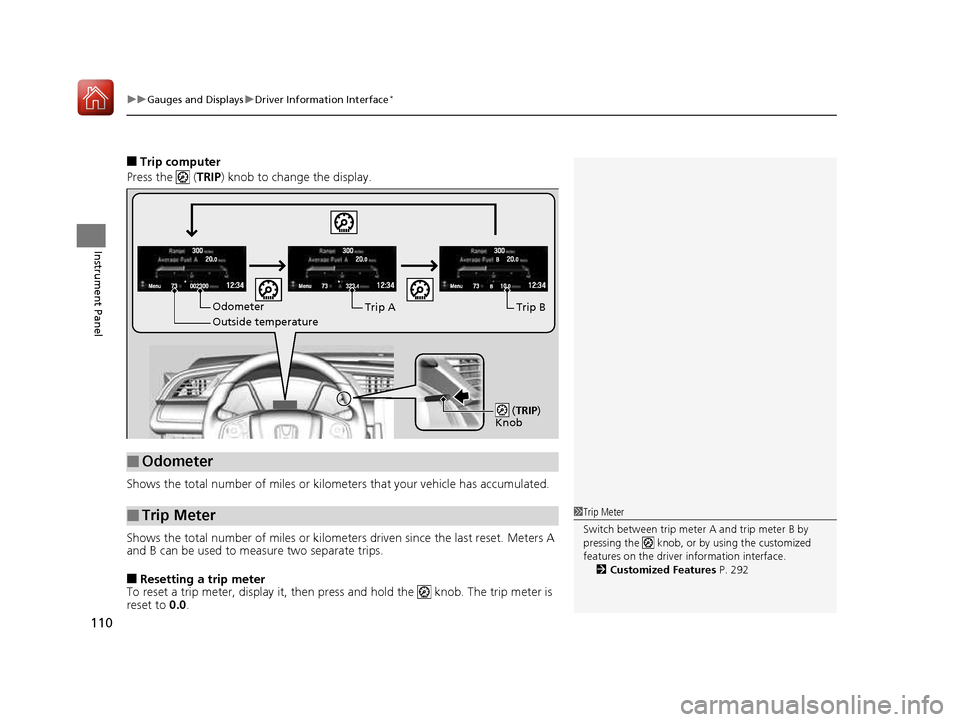

■ Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips. ■ Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Odometer
■Trip Meter
Odometer
Outside temperature Trip ATrip B
(
TRIP )
Knob
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob, or by using the customized
features on the driver information interface.
2 Customized Features P. 292
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 110 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued111
uuGauges and DisplaysuDriver Information Interface*
Instrument Panel

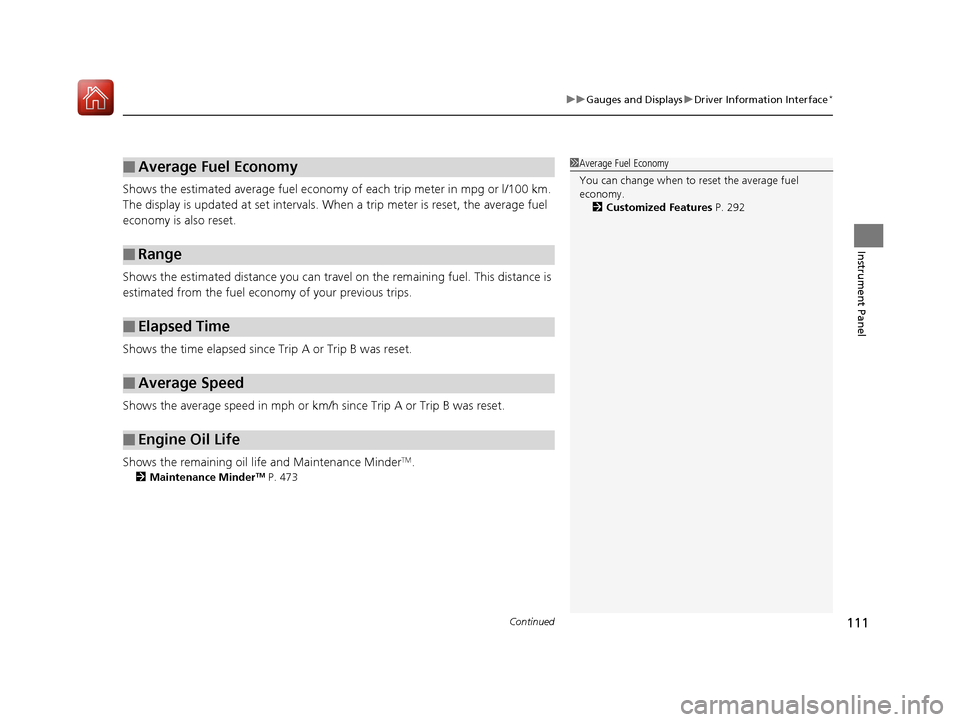

Shows the estimated average fuel economy
of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder TM
.
2 Maintenance Minder TM
P. 473
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 292
