2016 HONDA CIVIC COUPE Owners Manual

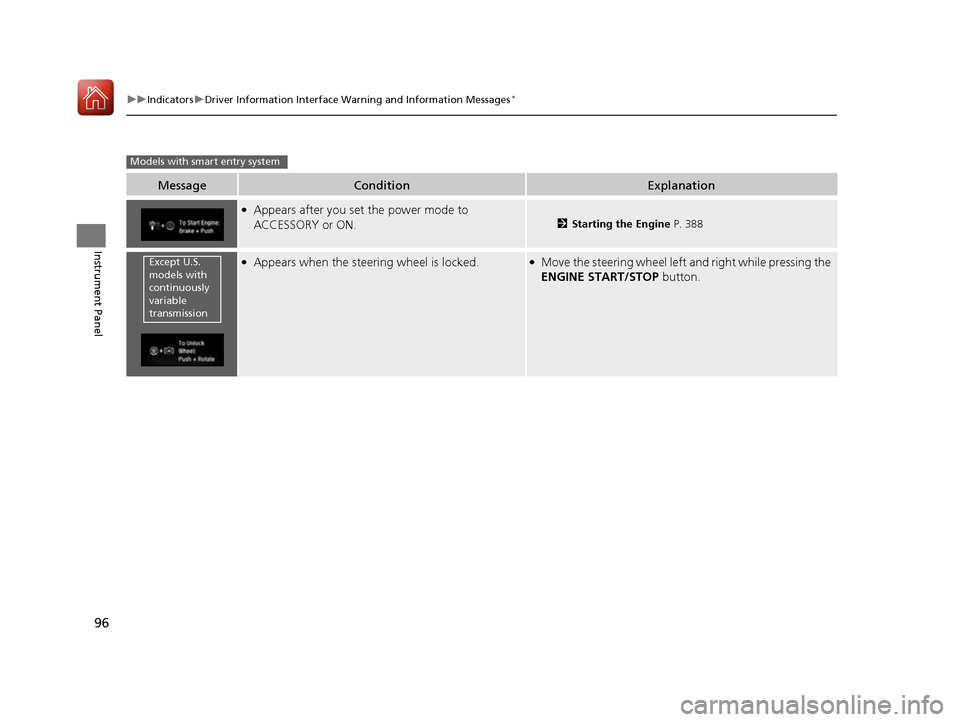

96
uuIndicatorsuDriver Information Interface Warning and Information Messages *
Instrument Panel
MessageConditionExplanation
●
Appears after you set the power mode to ACCESSORY or ON.
2 Starting the Engine P. 388
●
Appears when the steering wheel is locked.● Move the steering wheel left and right while pressing the
ENGINE START/STOP button.
Models with smart entry system
Except U.S.
models with
continuously
variable
transmission
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 96 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

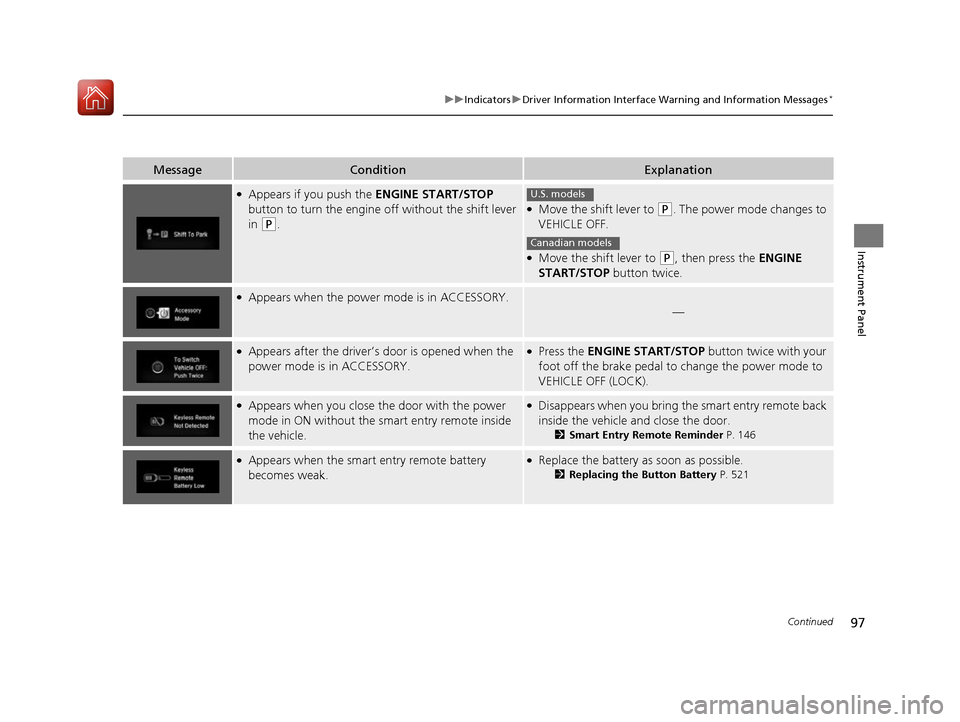

97
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●
Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P .
●
Move the shift lever to (P . The power mode changes to
VEHICLE OFF.
● Move the shift lever to
(P , then press the ENGINE
START/STOP button twice.
●
Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.● Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to VEHICLE OFF (LOCK).
● Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.● Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 146
●
Appears when the smart entry remote battery
becomes weak.● Replace the battery as soon as possible.
2Replacing the Button Battery P. 521
U.S. models
Canadian models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 97 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

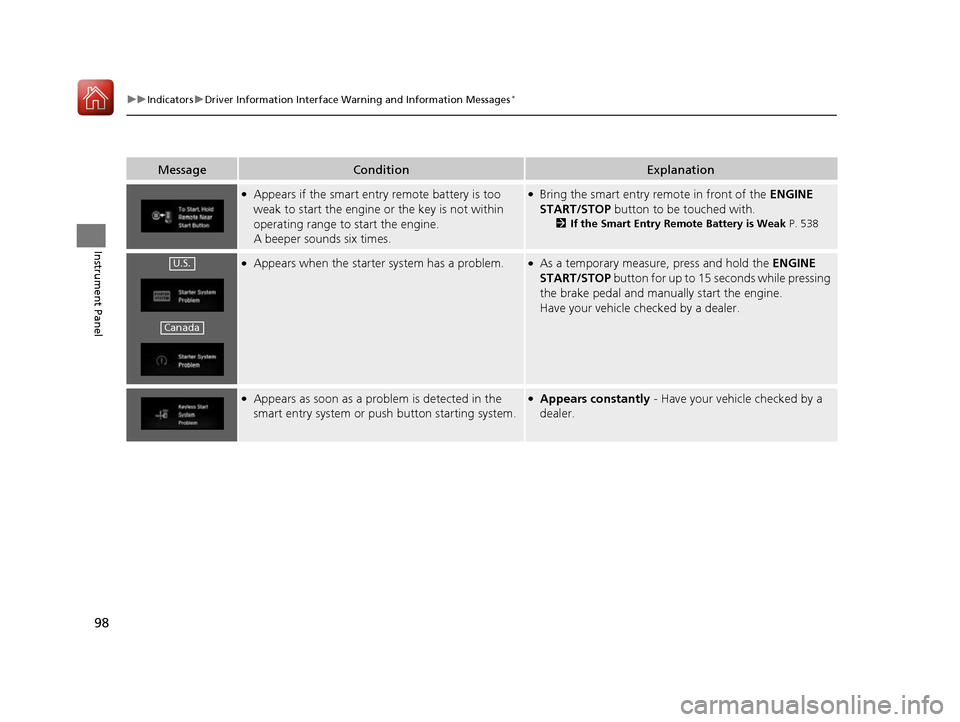

98
uuIndicatorsuDriver Information Interface Warning and Information Messages *
Instrument Panel
MessageConditionExplanation
●
Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2 If the Smart Entry Remote Battery is Weak P. 538
●
Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while pressing
the brake pedal and manua lly start the engine.
Have your vehicle checked by a dealer.
● Appears as soon as a problem is detected in the
smart entry system or pus h button starting system.●
Appears constantly - Have your vehicle checked by a
dealer.
U.S.
Canada
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 98 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

99
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●
Appears if there is a problem with the light control
system.● Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
●
Appears if there is a pr oblem with the headlights.●
Appears while driving - The headlights may not be on.
When conditions allow you to drive safely, have your
vehicle checked by a deal er as soon as possible.
Models with LED headlight
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 99 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

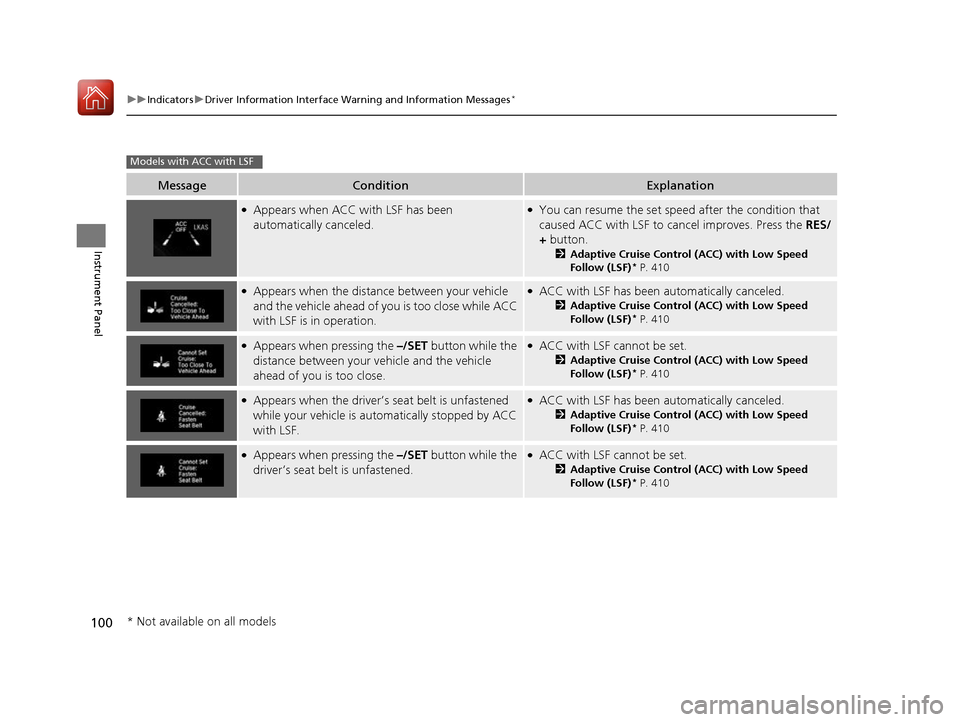

100
uuIndicatorsuDriver Information Interface Warning and Information Messages *
Instrument Panel
MessageConditionExplanation
●
Appears when ACC with LSF has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the RES/
+ button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
● Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with LSF is in operation.● ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
● Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle
ahead of you is too close.● ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
● Appears when the driver’s seat belt is unfastened
while your vehicle is automatically stopped by ACC
with LSF.● ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
● Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.● ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
Models with ACC with LSF
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 100 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

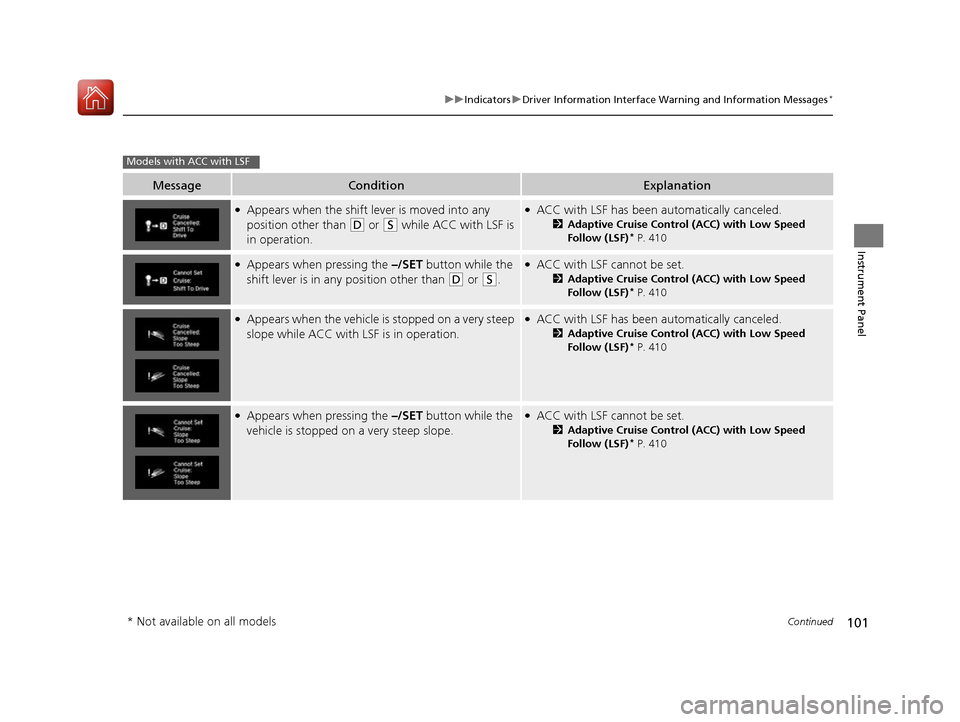

101
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●
Appears when the shift le ver is moved into any
position other than
(D or (S while ACC with LSF is
in operation.
● ACC with LSF has been au tomatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
● Appears when pressing the –/SET button while the
shift lever is in any position other than
(D or (S.
●
ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
● Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.● ACC with LSF has been au tomatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
● Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.● ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
Models with ACC with LSF
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 101 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

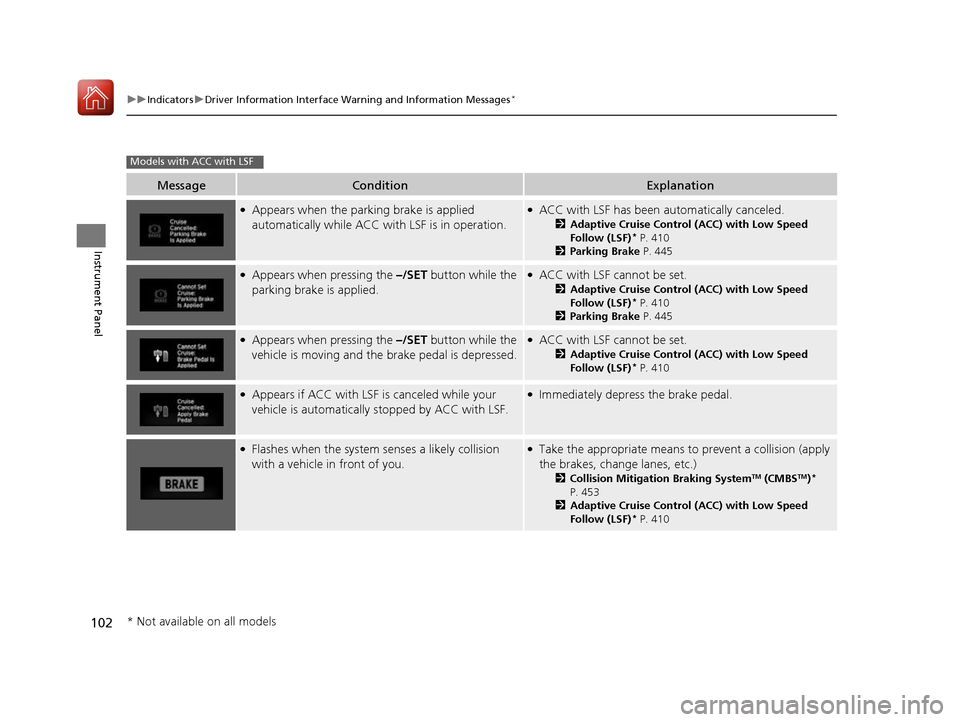

102
uuIndicatorsuDriver Information Interface Warning and Information Messages *
Instrument Panel
MessageConditionExplanation
●
Appears when the parking brake is applied
automatically while ACC wi th LSF is in operation.●
ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
2 Parking Brake P. 445
●
Appears when pressing the –/SET button while the
parking brake is applied.● ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
2 Parking Brake P. 445
●
Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.● ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
● Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF.● Immediately depress the brake pedal.
●Flashes when the system senses a likely collision
with a vehicle in front of you.● Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.) 2Collision Mitigation Braking System TM
(CMBS TM
)*

P. 453
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 410
Models with ACC with LSF
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 102 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

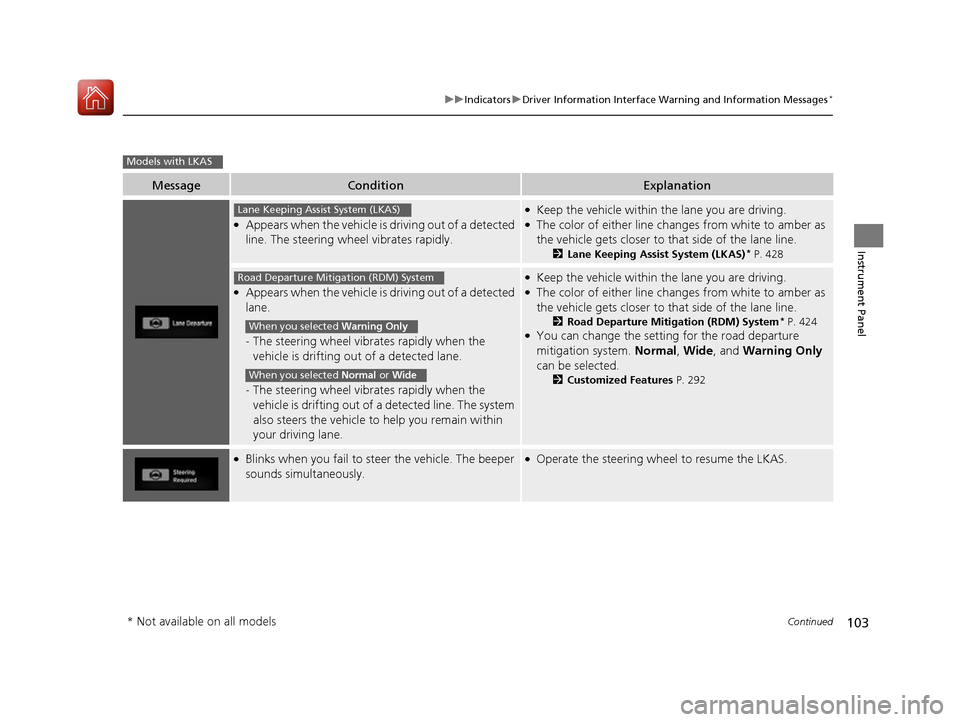

103
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●
Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●
Keep the vehicle within the lane you are driving.
● The color of either line chan ges from white to amber as
the vehicle gets closer to that side of the lane line. 2Lane Keeping Assist System (LKAS) *
P. 428
● Appears when the vehicle is driving out of a detected lane. -The steering wheel vibrat es rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrat es rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
● Keep the vehicle within the lane you are driving.
● The color of either line chan ges from white to amber as
the vehicle gets closer to that side of the lane line. 2Road Departure Mitigation (RDM) System *
P. 424
● You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected. 2Customized Features P. 292
●
Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.● Operate the steering wheel to resume the LKAS.
Models with LKAS
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
* Not available on all models
