2013 SSANGYONG NEW ACTYON SPORTS Service Manual

12-4
Power steering gearbox &
solenoid valve for SSPS model
2. MAJOR CHANGES
SSPS control unit
Installed view Unit components
It is installed at the bottom of the ECU inside the passenger's floor mat
foot protector cover and receives data related to the vehicle speed and
throttle position through the CAN communication and controls the
solenoid valves to obtain optimal steering force.
SSPS Solenoid Valve
SSPS (Speed Sensing Power Steering) system adopted ▶
Tie Rod End
Tie Rod
Bellows
SSPS Solenoid Valve
Valve Assembly
Feed Tube
Mounting Bracket
Cylinder Tube
Rack Housing
Adjusting Plug 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

12-54610-01
SSPS warning lamp
Comes on when SSPS system has a fault
Power steering supply hose and return hose for
SSPS model
Power steering pump with SSPS
Installed view Pump components

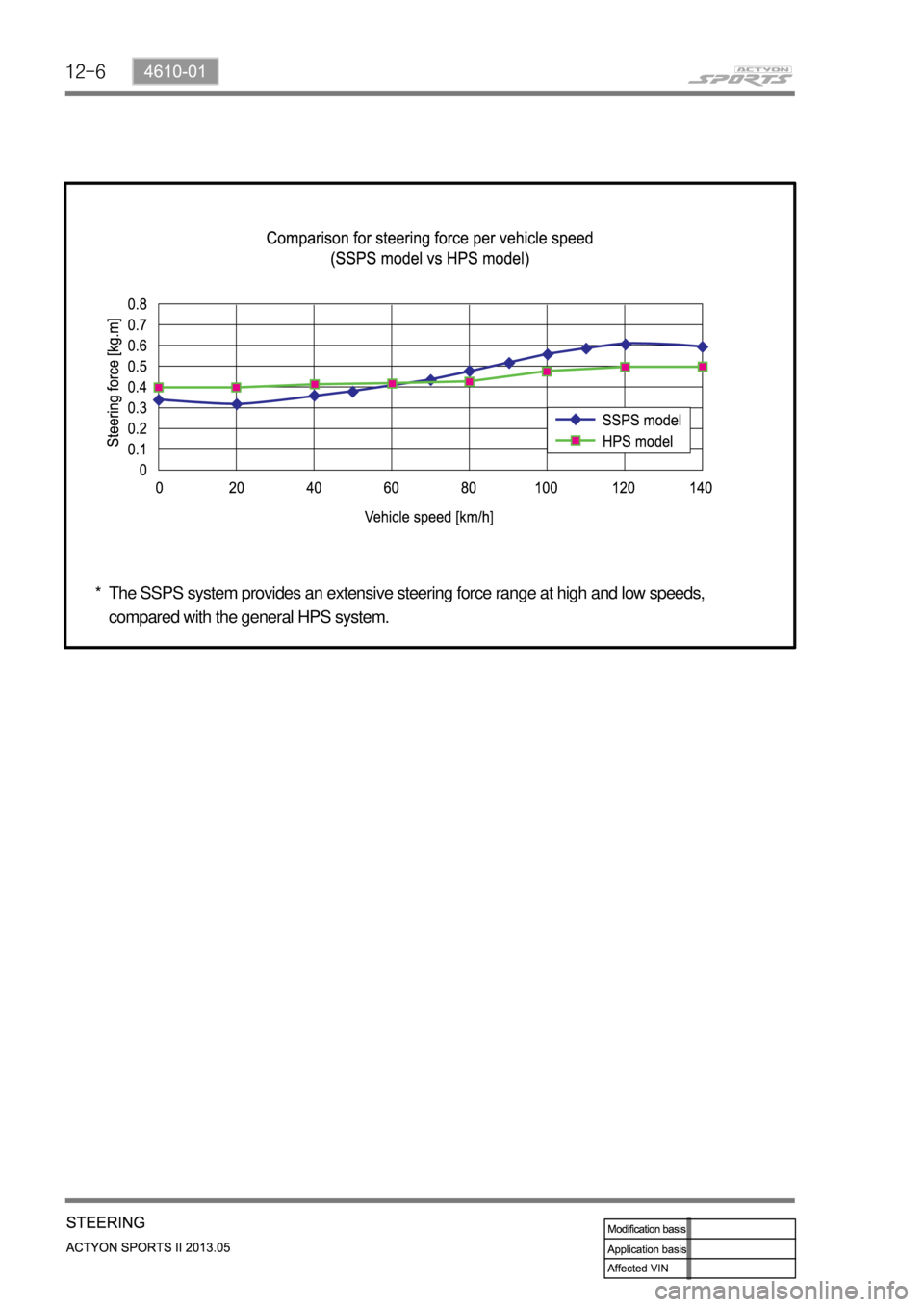

12-6
The SSPS system provides an extensive steering force range at high and low speeds,
compared with the general HPS system. *

12-74610-01
Steering Wheel Body & Heated Wire Controller
Heated pad and controller added to steering wheel body
Heated Steering Wheel Adopted ▶
HEATED STEERING WHEEL SWITCH
Heated steering wheel switch added to cluster fascia panel switch assembly
Heated pad (inside)
controller

12-8
Change of Steering Wheel & Steering Column Shaft ▶
Appearance of steering wheel boss part changed
Steering wheel assembly boss part

12-94610-01
Steering column shaft
Steering column shaft upper multifunction switch mounting bracket changed due to change of
multifunction switch
Multifunction switch mounting bracket
Multifunction switch mounting bracket

12-10
3. SYSTEM LAYOUT
1) Steering Wheel and Column
Body assembly - steering wheel
Damper - steering wheel
Screw
Lid
Bolt
Column & shaft assembly - tilt
Shaft assembly - lower
Nut (39.2~58.5 Nm) 1.
2.
3.
4.
5.
6.
7.
8.Washer
Bolt (19.6 ~ 24.5 Nm)
Bolt (19.6 ~ 24.5 Nm)
Nut
Bolt - joint (17.6~24.5 Nm)
Washer
Blanking cover - cruise switch 9.
10.
11.
12.
13.
14.
15.

12-114610-01
2) Steering Gear Linkage
Linkage assembly - gear & operation ball
joint
Bolt (100 ~ 130 Nm)
Nut (100~130 Nm)
Bolt (100 ~ 130 Nm)
Nut (100~130 Nm)
Bolt (100 ~ 130 Nm)
Pin 1.
2.
3.
4.
5.
6.
7.Nut
End assembly - tie rod
Boot kit - power steering gear box
Nut
SSPS module
Clamp - mounting
Rubber - MTG 8.
9.
10.
11.
12.
14.
15.
