2. SYSTEM LAYOUT (INTERIOR)
Sun-load sensor
A/C controller
A/C Module assembly
Mode door actuatorAir mix door actuator

01-196810-01
Air source mode actuator
Duct temperature sensor
Thermo AMP
PTC
Power transistorBlower motor assemblyA/C filter

01-20
3. VENTILATION SYSTEM
1) Vent Ports Location - Interior
2) Configuration of Air Duct

01-216810-01
1) Components
4. A/C MODULE
Mode door actuator
PTC heater assembly
Duct temperature sensor
Air mix door actuator
Air source door actuator
A/C antibacterial filter
Blower motor 1.
2.
3.
4.
5.
6.
7.Power transistor
Thermo AMP
Mode door
Heater core
Air mix door
Evaporator
Air source door 8.
9.
10.
11.
12.
13.
14.

01-22

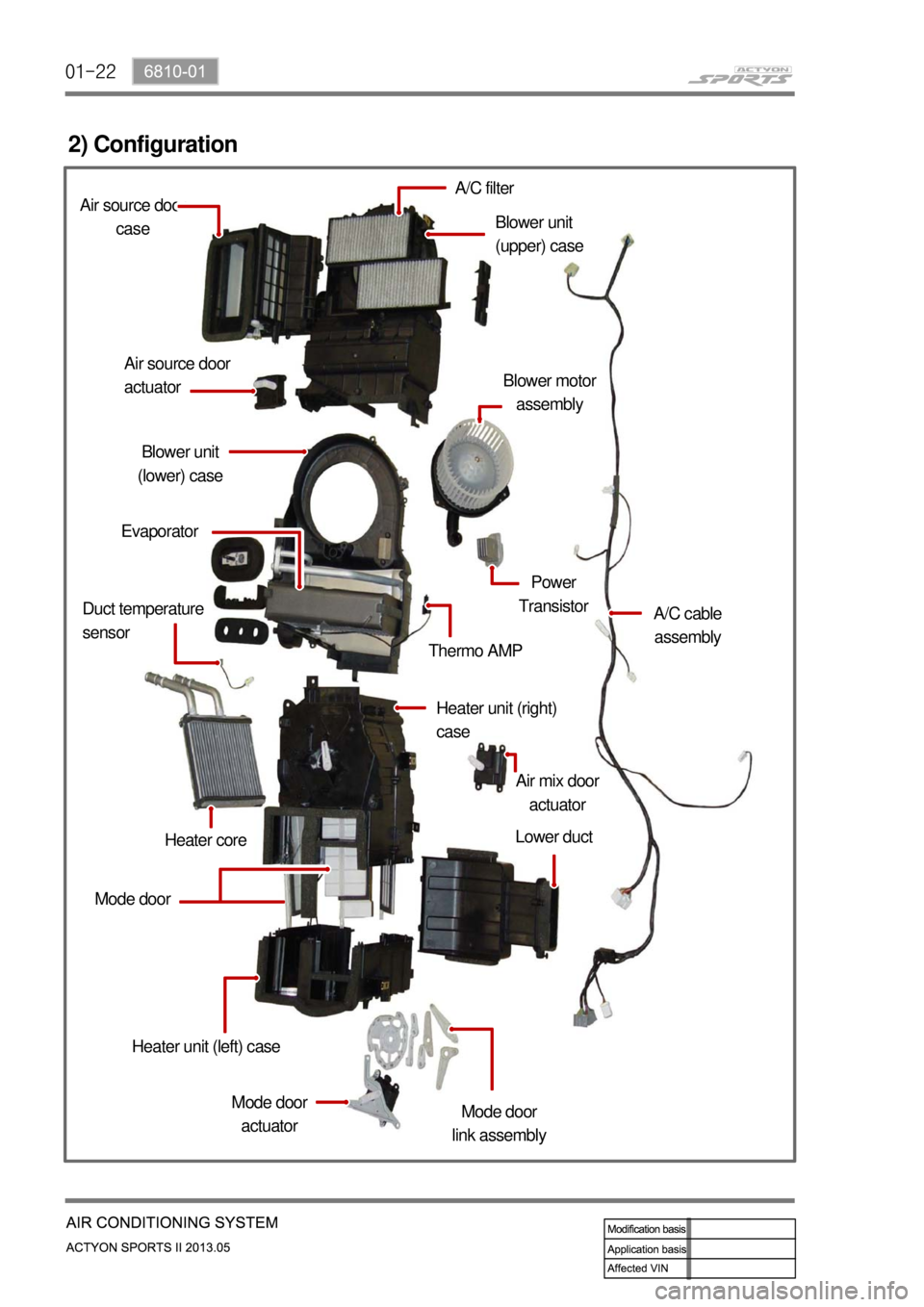

2) Configuration
Air source door
caseA/C filter
Blower unit
(upper) case
Blower motor
assembly
Power
Transistor
A/C cable
assembly
Thermo AMP
Heater unit (right)
case
Air mix door
actuator
Lower duct
Mode door
link assembly Mode door
actuator Heater unit (left) case Mode doorHeater core Duct temperature
sensorEvaporatorBlower unit
(lower) case Air source door
actuator

01-236810-01
Mode door actuatorDuct temperature sensor
Air source door actuator
Power transistor
Blower motor
Thermo AMP Air mix door
actuator
A/C controller unit Interior
temperature
sensor Main wiring
connector
3) Wiring Layout

01-24
5. A/C INPUT/OUTPUT DIAGRAM
Below diagram shows the input/output mapping between the components of FATC A/C and A/C
controller briefly.
▶ A/C compressor control by engine ECU
In case of current vehicle models, the system turns ON or OFF the compressor switch according to the
refrigerant pressure, ambient temperature and condenser temperature to protect the A/C circuits.
However, for the vehicles equipped with DI engine, the engine ECU turns off the A/C compressor unde
r
below conditions, including those above.
Coolant temperature: 20℃ or less
Coolant temperature: 115℃ or more
For approx. 4 sec. after starting the engine
Engine speed: 650 rpm or less
Engine speed: 4,500 rpm or more
During abrupt acceleration for the vehicle equipped with manual transmission 1.
2.
3.
4.
5.
6.

01-256810-01
6. A/C COOLING CYCLE
1) System Flow
"Compression -> Condensation -> Expansion -> Evaporation" -
2) Functions
(1) Compressor
Condition: Gas
Function: Circulates the refrigerant and increases the pressure and temperature for easier
evaporation. -
-
(2) Condenser
Condition: Gas/Liquid
Function: Cools and condenses the refrigerant by using ambient air to liquefy it under high pressure. -
-
(3) Receiver drier
Condition: Gas/Liquid
Function: Keeps the refrigerant free from moisture by separating/collecting the moisture from it. -
-
(4) Expansion valve
Condition: Liquid/Liquefied gas
Function: Performs adiabatic expansion and flow control for easier evaporation. -
-
(5) Evaporator
Condition: Liquefied gas/Gas
Function: Cools the air by absorbing the heat from the air around the evaporator. -
-
