2013 SSANGYONG NEW ACTYON SPORTS Service Manual

02-518710-01
Specification of Receiver
▶
Operating requirements
1.
You should remove the ignition key.
-
Code registration requirement
2.
You can register the code only using the diagnostic device.
-
Transmitter code registration
3.
You can register up to 5 transmission codes to the remote control key.
The receiver does not output the received code during registration.
Connect the device to the diagnostic terminal.
The code can be registered only by the panic signal from the transmitter\
.
(Other switches (LOCK/UNLOCK) can't code.)
a.
b.
c.
Remote Door Lock
▶
All doors are locked when briefly pressing the door LOCK burron on remot\
e control key (less than
0.5 seconds).
The system outputs LOCK signal immediately a fter receiving the door lock message from the
remote control key. The system activates the theft deterrent mode when a\
ll doors are locked while
they are fully closed (the hazard warning lamps blink twice.).
1.
2.

02-52
Door Unlock
▶
The door unlock operates when pressing the door switch on the remote con\
trol key for longer than
0.5 seconds.
The door unlock relay is "ON" for 0.5 seconds when receiving the door un\
lock message from the
remote control key.
The hazard warning lamps blink once only when all the doors unlocked suc\
cessfuly.
1.
2.
3.

02-538710-01
Remote Panic
▶
If you press and hold the door UNLOCK and PANIC button (more than 2 sec\
onds) on the remote
control key, the panic function is activated.
The vehicle activates the panic alarm by using the horn and hazard warni\
ng lamp for 27 seconds
when receiving the panic message from the remote control key.
1.
2.
Auto Door Lock in 30 Seconds after Pressing Door Unlock Button
▶
If no door is opened for 30 seconds after inputting remote door unlock, \
the doors are automatically
locked and the armed mode of anti-theft system is activated again (RELO\
CK function).
1.

02-54
Outside rearview mirror folding/unfolding control
▶
If you press the folding/unfoling switch with the ignition switch in "ON\
" position, the outside rearview
mirror is folded or unfolded depending on the previous status. At this t\
ime, folding/unfolding outputs
are maintained for about 15 to 17 seconds.
Even though the ignition switch is turned to "OFF" position during foldi\
ng/unfolding output, the output
continues on for remaining time.
When removing and refitting the battery, the first switch input folds th\
e mirror.
If you turn the ignition switch to the "OFF" from "ON" position, operating time is extended by 60
seconds. Unlikely the previous model, opening the front door does not af\
fect the extension time.
(i.e., opening/closing the front door is irrelevant)
If the unfolding input is received from the switch during folding output\
or the folding input is received
during unfolding output, the existing output stops and new output is act\
ivated after the delay time of
about 0.1 second.
When the vehilce speed is above 50 km/h with the mirror unfolded, even t\
hough the folding signal is
received it is overridden.
(folding is possible only at vehicle speed of less than 50 km/h )
1.
2.
3.
4.
5.
6.

02-558710-01

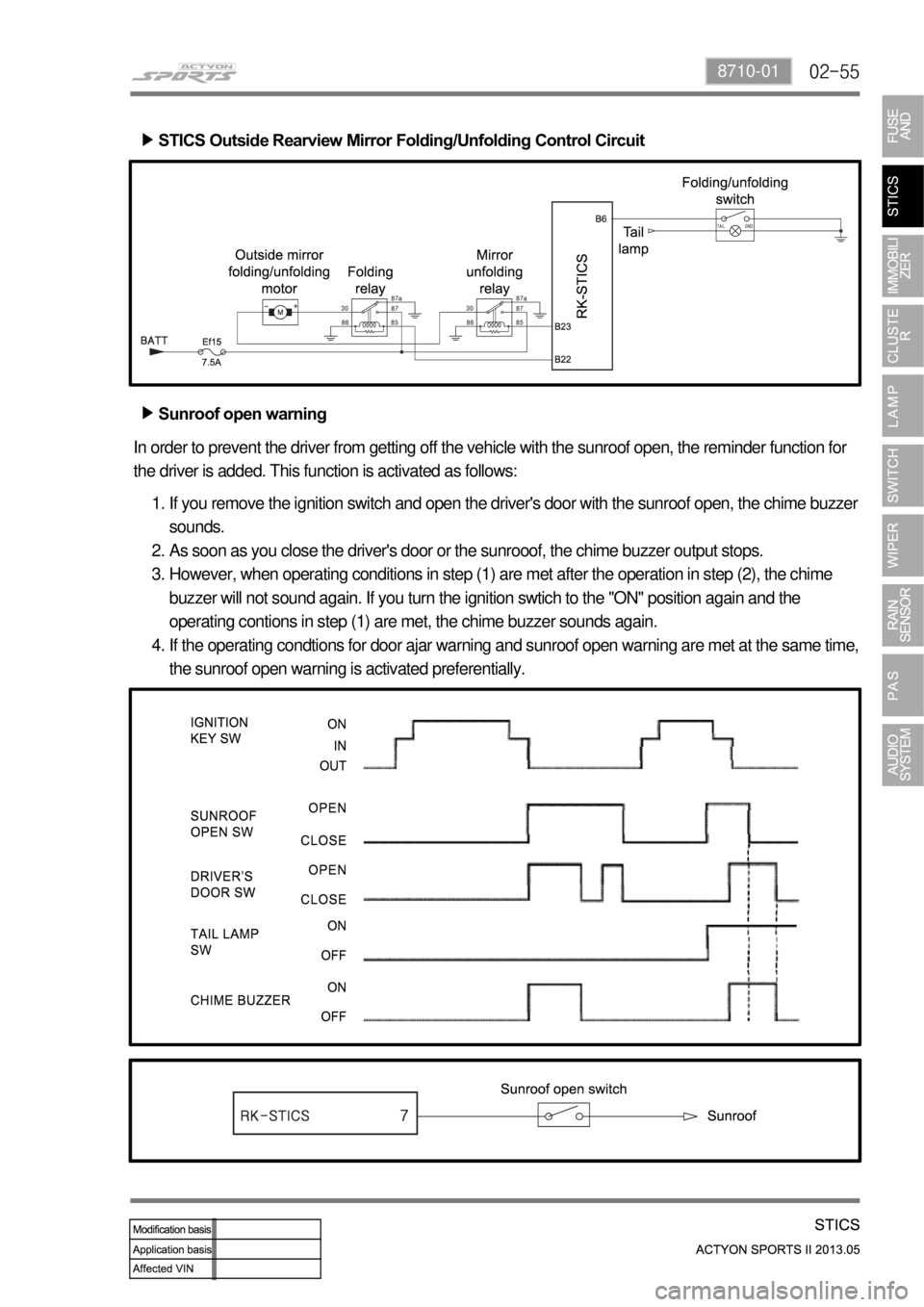

STICS Outside Rearview Mirror Folding/Unfolding Control Circuit
▶
If you remove the ignition switch and open the driver's door with the su\
nroof open, the chime buzzer
sounds.
As soon as you close the driver's door or the sunrooof, the chime buzzer\
output stops.
However, when operating conditions in step (1) are met after the opera\
tion in step (2), the chime
buzzer will not sound again. If you turn the ignition swtich to the "ON"\
position again and the
operating contions in step (1) are met, the chime buzzer sounds again.\
If the operating condtions for door ajar warning and sunroof open warnin\
g are met at the same time,
the sunroof open warning is activated preferentially.
1.
2.
3.
4.
In order to prevent the driver from getting off the
vehicle with the sunroof open, the reminder function for
the driver is added. This function is activated as follows: Sunroof open warning
▶

02-56
FRT wiper / washer
▶
3. CIRCUIT DIAGRAM

02-578710-01
Central Door Lock Circuit
▶
The door ajar warning lamp in the instrument cluster does not come on ev\
en though the tailgate is
opened.

02-58
You can register up to 2 transmission codes to the remote control key.
The receiver does not output the received code during registration.
The remote control key should be coded using the diagnostic device.
a.
b.
c.
1) Operating requirements
You should remove the ignition key.
2) Code registration requirement
You can register the code only using the diagnostic device.
3) Transmitter code registration
4. REKES Key Coding
