3163161-00 Housing ▶
Case - Transmission
Retainer - Bearing
Bolt - Seal (19.6 ~ 24.5 Nm)
Seal - Oil
Bushing
Spacer
Gasket
Plug (58.8 ~ 78.4 Nm)
Gasket
Plug 2.
3.
4.
5.
6.
7.
8.
9.
10.
11.Breather - Air
Pulg - Seal (53.9 ~ 67.6 Nm)
Cylinder assembly - Concentric slave
Plunger - Rolling
Boot
Guide - Oil
Spring - Guide
Bolt - Flange (42.1 ~ 53.9 Nm) 12.
13.
14.
15.
16.
17.
18.
19.

02-8
3162-00 Main shaft ▶

02-93170-01
Ring - Snap
Ring - Snap
Bearing - Ball
Pinion assembly - Main drive
Bearing - Needle roller
Ring - Synchronizer
Ring - Snap
Sleeve - Synchronizer
Key assembly - Synchronizer
Hub - Synchronizer
Ring assembly - Triple cone
Gear assembly - 3rd speed
Bearing - Needle roller
Shaft - Main
Gear assembly - 2nd speed
Bearing - Needle roller
Ring assembly - Triple cone
Hub - Synchronizer
Sleeve - Synchronizer 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.Ring assembly - Triple cone
Gear assembly - 1st speed
Sleeve - 1st gear
Bearing - Double angular ball
Ring - Snap
Gear - Main shaft 5th
Spacer
Gear - Main shaft 6th
Sleeve - Reverse gear
Bearing - Needle roller
Gear assembly - Reverse speed
Ring assembly - Triple cone
Hub - Synchronizer
Sleeve - Synchronizer
Stopper - Synchronizer key
Bearing - Ball
Flange assembly - Companion
O-ring
Nut - Locking (4WD: 245.1 ~ 264.7 Nm,
2WD: 117.6 ~ 137.2 Nm) 20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.

02-10
33163-00 Counter shaft ▶
Ring - Snap
Bearing - Roller
Gear - Counter shaft
Gear - Counter shaft cluster
Bearing - Roller
Sleeve - Speed gear
Bearing - Needle roller
Gear assembly - 5th speed
Key assembly - Synchronizer
Ring assembly - Triple cone 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.Hub - Synchronizer
Sleeve - Synchronizer
Ring - Synchronizer
Sleeve - Speed gear
Bearing - Needle roller
Gear assembly - 6th speed
Gear - Counter shaft
Nut - Locking (156.9 ~ 186.3 Nm)
Bearing - Needle roller 11.
12.
13.
14.
15.
16.
17.
18.
19.

02-113170-01
3164-00 Adapter assembly ▶
Plate - Intermediate
Guide - Oil
Bolt (7.8 ~ 9.8 Nm)
Pin - Dowel
Retainer - Bearing
Magnet 1.
2.
3.
4.
5.
6.Bolt - Seal (19.6 ~ 26.4 Nm)
Shaft - Reverse idler gear
Bearing - Needle roller
Gear - Reverse idler
Spacer - Reverse 7.
8.
9.
10.
11.

02-12
3165-00 Rail and shift fork ▶
Shaft assembly - Control
Ring - Retainer
Bearing - Retainer ball
Pin - Spring
Rail sub assembly - Shaft 1st & 2nd
Bushing
Rail sub assembly - Shaft 3rd & 4th
Lug - Shaft 5th & 6th 1.
2.
3.
4.
5.
6.
7.
8.Lug _ Reverse shaft
Fork - Reverse shaft
Rail - Shaft 5th & 6th
Fork - Shaft 5th & 6th
Pin - Spring
Lever assembly - Shaft 5th & 6th
Bolt - Flange (14.7 ~ 21.5 Nm) 9.
10.
11.
12.
13.
14.
15.

02-133170-01
3166-00 Extension housing ▶
Lever assembly - Semi remote
Lever - Shift
Boot - Rubber
Ring - Retainer
O-ring
Bearing
Shim
Arm - Control
Damper assembly
Rod assembly
Bushing assembly - TGS mounting
Pin - TGS mounting
Pin - Spring
Pin - Spring
Adapter - Case 1.
3.
4.
5.
6.
7.
8.
9.
10.
13.
14.
15.
16.
17.
20.Bolt - Flange (42.1 ~ 53.9 Nm)
Seal - Oil
Seal - Oil
Pin - Dowel
Switch - Neutral (29.4 ~ 34.3 Nm)
Gasket
Bolt - Interlock (14.7 ~ 21.5 Nm)
Pin - Detent
Switch - Backup lamp (29.4 ~ 34.3 Nm)
Bolt - Fork hinge (53.9 ~ 67.6 Nm)
Bearing - Poppet ball (29.4 ~ 41.1 Nm)
Bolt - Guide (14.7 ~ 21.5 Nm)
Bolt (2.9 ~ 4.9 Nm)
Bracket - Wiring 21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.

02-14
Sectional viewFront view

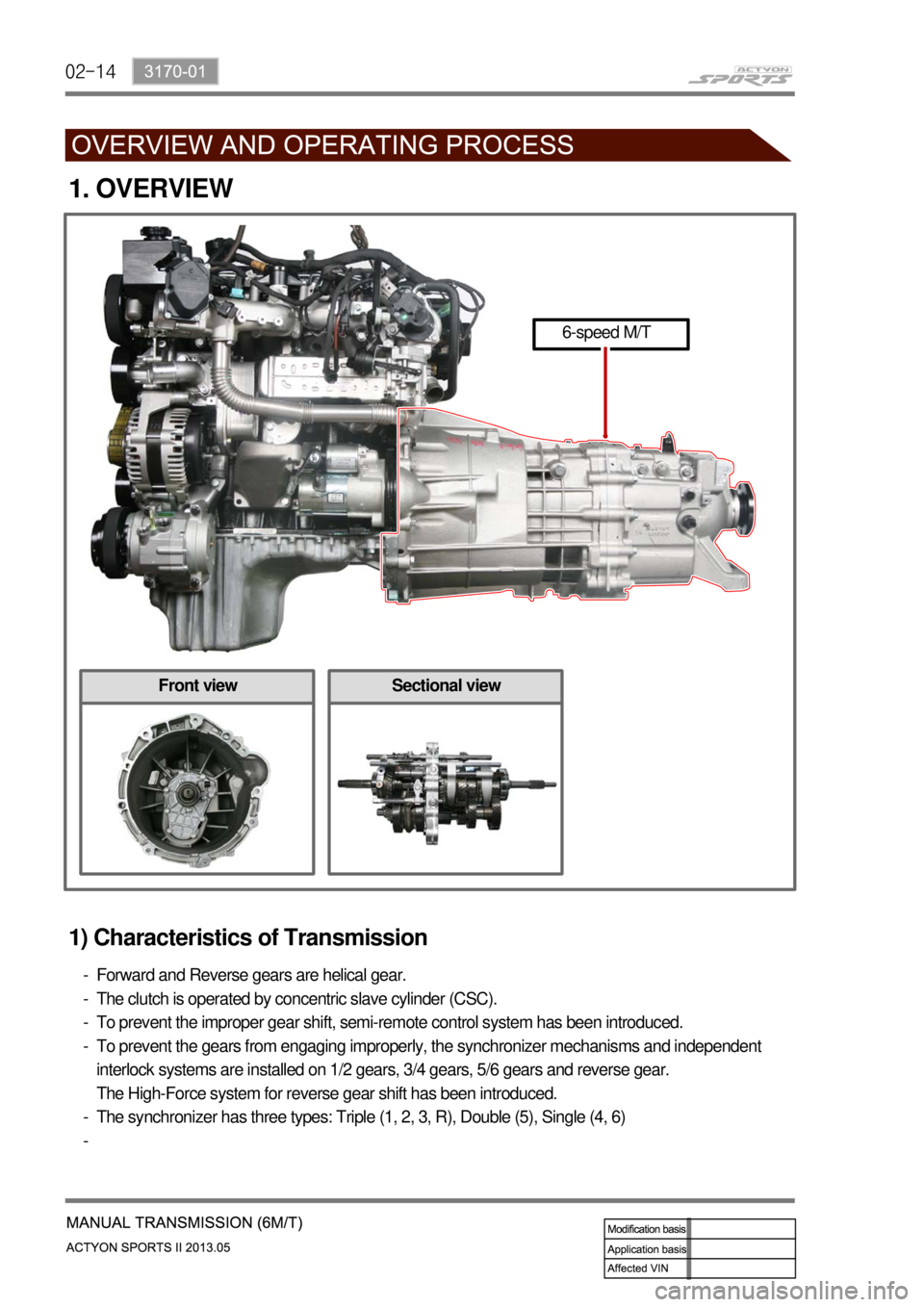

1. OVERVIEW
1) Characteristics of Transmission
Forward and Reverse gears are helical gear.
The clutch is operated by concentric slave cylinder (CSC).
To prevent the improper gear shift, semi-remote control system has been introduced.
To prevent the gears from engaging improperly, the synchronizer mechanisms and independent
interlock systems are installed on 1/2 gears, 3/4 gears, 5/6 gears and reverse gear.
The High-Force system for reverse gear shift has been introduced.
The synchronizer has three types: Triple (1, 2, 3, R), Double (5), Single (4, 6) -
-
-
-
-
-
6-speed M/T
