2013 SSANGYONG NEW ACTYON SPORTS Service Manual

01-273680-01
2) Power Flow - 1st Gear (D)
Functioning elements ▶
Control ▶C2 applied, FSG (Forward Sun Gear) driven
1-2 OWC (One-Way Clutch) operated to hold Rear Planet Carrier stationary -
-
S1 ON, S2 OFF
S1 ON, C1 shift valve moved to the left end, C1 clutch not engaged
C2 shift valve open (S2 OFF), C2 clutch engaged by drive oil
Drive oil (for C2 clutch engagement) is regulated by VBS S6 -
-
-
-
Connecting Components ▶
Gear
ratioON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
3.53 ON 1 0 0-1
Gear
ratioEngaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
3.53 ON ON
Power Flow Diagram ▶

01-28
1st Gear (D) (3.53:1) ▶

01-293680-01
3) Power Flow - 2nd Gear (D)
Functioning elements ▶
Control ▶C2 applied, FSG (Forward Sun Gear) driven
B1 applied to hold Rear Planet Carrier stationary -
-
S1 ON, S4 ON, S2 OFF
S1 ON, C1 shift valve moved to the left end, C1 clutch not engaged
C2 shift valve open (S2 OFF), C2 clutch engaged by drive oil
Drive oil (for C2 clutch engagement) is regulated by VBS S6
S4 ON, B1 shift valve moved to the left end, B1 band operated
Drive oil (for B1 band engagement) is regulated by VBS S6 -
-
-
-
-
-
Connecting Components ▶
Gear
ratioON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
2.14 ON ON 1 0
10-1
Gear
ratioEngaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
2.14 ON ON
Power Flow Diagram ▶

01-30
2nd Gear (D) (2.14:1) ▶

01-313680-01
4) Power Flow - 2nd Gear (D) Lock-Up
Connecting Components ▶
Gear
ratioON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
2.14 ON ON ON 1 0 0 1 0-1 1
Gear
ratioEngaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
2.14 ON ON
Power Flow Diagram ▶

01-32
2nd Gear (D) Lock-Up ▶

01-333680-01

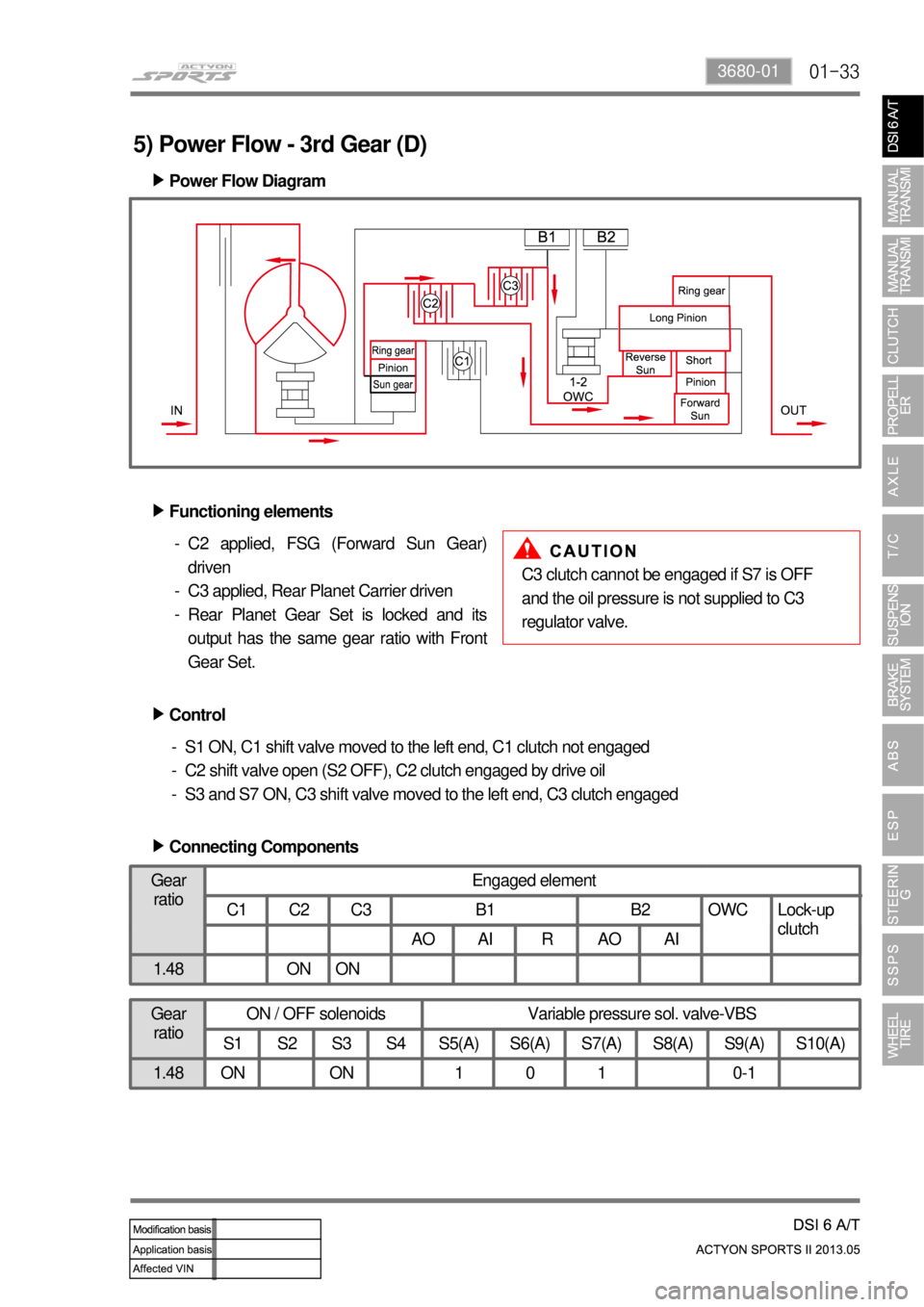

5) Power Flow - 3rd Gear (D)
Functioning elements ▶
Control ▶C2 applied, FSG (Forward Sun Gear)
driven
C3 applied, Rear Planet Carrier driven
Rear Planet Gear Set is locked and its
output has the same gear ratio with Front
Gear Set. -
-
-
S1 ON, C1 shift valve moved to the left end, C1 clutch not engaged
C2 shift valve open (S2 OFF), C2 clutch engaged by drive oil
S3 and S7 ON, C3 shift valve moved to the left end, C3 clutch engaged -
-
-
Connecting Components ▶
Gear
ratioON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
1.48 ON ON 1 0 1 0-1
Gear
ratioEngaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
1.48 ON ON
Power Flow Diagram ▶
C3 clutch cannot be engaged if S7 is OFF
and the oil pressure is not supplied to C3
regulator valve.

01-34
3rd Gear (D) (1.48:1) ▶
