2013 SSANGYONG NEW ACTYON SPORTS Service Manual

01-33680-01
1. GENERAL INFORMATION
Six forward speeds
One reverse gear
A toruqe converter with an integral converter
lock-up clutch
Electronic shift and pressure controls
A single planetary gear-set
A double planetary gear-set
Two hydraulically controlled brake bands
Three multi-plate clutches
All hydraulic functions are directed by electronic
solenoids to control -
-
-
-
-
-
-
-
- Automatic transaxle (DSI M78) ▶
TCU ▶
TCU is located under the driver's seat and controls the operations of transmission.
TCU receives the ignition voltage and has three connectors (16-pin, 12-pin, 20-pin).
TCU receives input signals from certain transmission-related sensors, gear select lever and inhibitor
switch. TCU also uses these signals when determining transmission operating strategy. TCU uses
PCAN to communicate with other units. And, TCU communicates with engine ECU, ESP unit, TCCU
and instrument cluster through CAN lines to control the gear shifting and to recognize the current gear
position.
TCU

01-4
This indicator shows the current position of the
gear.
In normal mode: P, R, N, D
Gear indication in “M” mode: 1, 2, 3, 4, 5, 6
Driving gear can be adjusted by operating the
tip switch after moving the gear select lever in
“M” position.
Shift down Shift up
Tip switch on steering wheel ▶
Gear position display on instrument
cluster ▶
Gear select lever ▶
Mode Switch
W :
S :
Selection of Manual/
Automatic Shift Function
D :
M :Shift Lock Release Button Hole
when Locked in the "P" Position
If you cannot move the gear select
lever from the "P" position, try to
move the lever while pushing down
here with a sharp object such as a
ballpoint pen. For your safety, turn
off the engine and depress the
brake pedal before the attempt. Tip Switch in “M” Position (Manual Gear Shift)
The shiftable gear can be adjusted by moving this switch to forward and rearward when the gear
select lever is in “M” position.
Positions of gear
select lever
P : Parking
R : Reverse
N : Neutral
D : Drive
Winter mode
Standard mode (Use the
standard mode in normal
driving conditions.)
Automatic shift according to
the driving condition
Manual shift

01-53680-01
2. FEATURES AND SPECIFICATIONS
1) Specifications
Description DSI M78 (6-speed) Remarks
Gear ratio1st 3.53:1
2nd 2.14:1
3rd 1.48:1
4th 1.16:1
5th 0.87:1
6th 0.68:1
Reverse 3.09:1
Transmission
fluidFluid Fuchs ATF 3292
Capacity Approx. 9.5 L
Change interval Check the fluid at every
30,000 km or 1 year, and
change it if necessary.Under the severe driving
conditions, change the fluid a
t
every 60,000 km.
Resistance of oil
temperature
sensor-20 430.7 ~ 533.9 kΩ
0 146.8 ~ 175.7 kΩ
20 56.74 ~ 65.86 kΩ
100 3.201 ~ 3.399 kΩ
Gear position
sensor1 -
2 -
3 -
D 2.686 kΩ ± 8%
N 5.036 kΩ ± 8%
R 8.953 kΩ ± 8%
P 16.786 kΩ ± 8%
Severe driving conditions? *
Towing a trailer or off-road driving (Inspect the
leak of fl uid at any time, occasionlly)
Taxi, patrol service or delivery service (extended
idling and excessive driving with low speed)
Frequent stop-and-go traffi c, extended idling,
short driving distance -
-
-Driving in a hilly or mountainous terrain,
sandy, or dusty area
Driving frequently at high speed over 170
km/hour
Driving frequently in area where heavy traffi c
under the ambient tem
perature above 32°C
-
-
-

01-6
4WD Automatic Transmission ▶
Torque converter
Oil cooler outletOil cooler return
Inhibiter switch Adapter housing
2) Appearance
Connector plug
Transfer case

01-73680-01

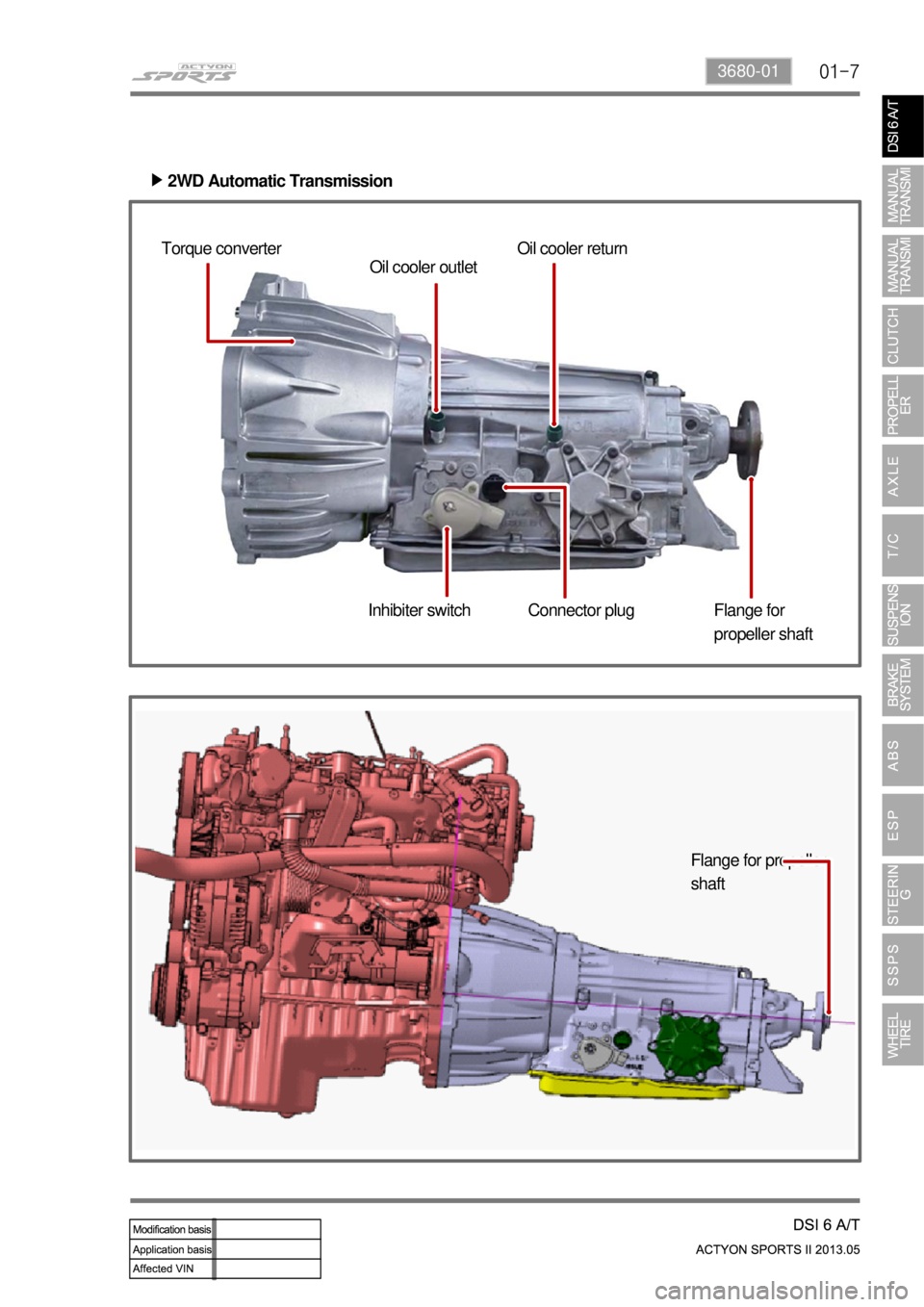

2WD Automatic Transmission ▶
Torque converter
Oil cooler outletOil cooler return
Inhibiter switch Flange for
propeller shaft
Connector plug
Flange for propeller
shaft

01-8
4WD
2WD
3) Sectional Diagram
Fluid pumpClutch pack
Double planetary
gear-set
Torque converter Valve body
Fluid pumpSingle planetary
gear-set
Clutch pack
Torque converter Valve body
Single planetary
gear-setDouble planetary
gear-set

01-93680-01
3. TIGHTENING TORQUE
Description Size x Numbers Tightening torque
Transfer case housing M12 x 32 54 ~ 68
Etension housing M12 x 32 54 ~ 68
Oil pan M6 x 16 4 ~ 6
Valve body to transmission housing M6 x 26 8 ~ 13
Valve body to transmission housing M6 x 45 8 ~ 13
Center support to transmission housing M10 x 34 20 ~ 27
Output shaft locking nut M24 x 15 100 ~ 110
Pump cover to oil pump M8 x 55 24 ~ 27
Pump cover to transmission housing M8 x 40 24 ~ 34
Pump cover to transmission housing M8 x 58 24 ~ 34
Upper valve body to lower valve body M6 x 30 15 ~ 17
Detent spring M8 x 16 20 ~ 25
Variable bleed solenoid and speed sensor
M4 x 12 2.8 ~ 3.2
Transmission oil level plug 30 ~ 35
Front cooling lines to transmission cooler
25 ~ 35
Rear cooling lines to transmission cooler
25 ~ 35
Drive plate to torque converter
40 ~ 42
Gear select lever to shaft rod
14 ~ 20

01-10
4. SHIFT PATTERN DIAGRAM
