7-54 Vehicle care and maintenance
7


Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.


The table above shows the main equipment corresponding
to each fuse.
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of
these capacities blows, replace it temporarily by borrowing one
of the fuses indicated below.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio amplifier fuse
Replace the borrowed fuse with a fuse that has the correct
capacity as soon as possible.

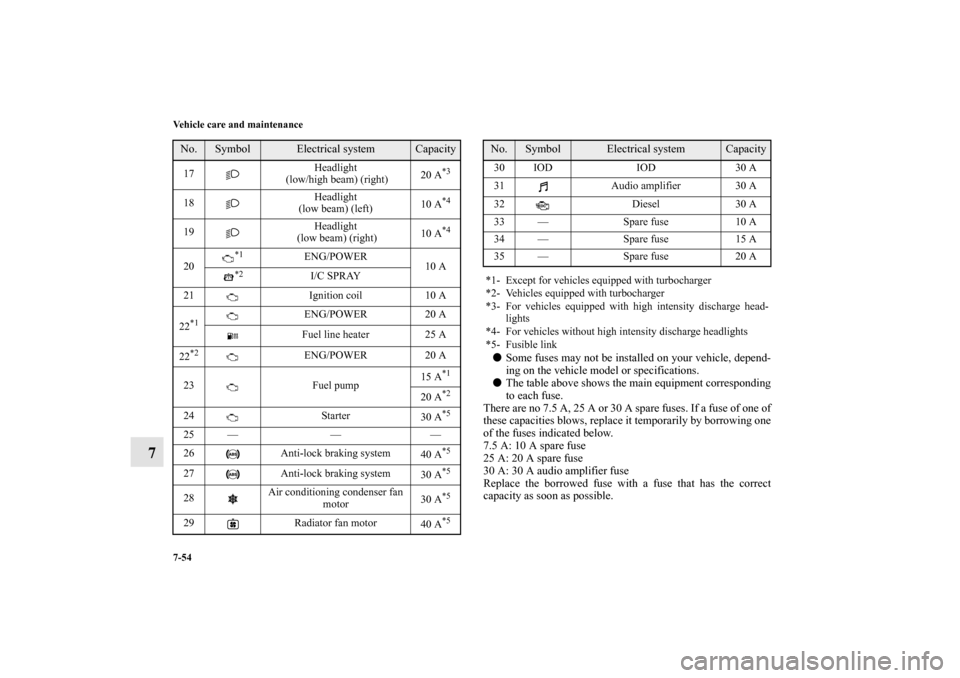

17Headlight
(low/high beam) (right)20 A
*3
18Headlight
(low beam) (left)10 A
*4
19Headlight
(low beam) (right)10 A
*4
20
*1
ENG/POWER
10 A
*2
I/C SPRAY
21 Ignition coil 10 A
22
*1
ENG/POWER 20 A
Fuel line heater 25 A
22
*2
ENG/POWER 20 A
23 Fuel pump15 A
*1
20 A
*2
24 Starter
30 A
*5
25 — — —
26 Anti-lock braking system
40 A
*5
27 Anti-lock braking system
30 A
*5
28Air conditioning condenser fan
motor30 A
*5
29 Radiator fan motor
40 A
*5
No.
Symbol
Electrical system
Capacity
30 IOD IOD 30 A
31 Audio amplifier 30 A
32 Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
35 — Spare fuse 20 A
*1- Except for vehicles equipped with turbocharger
*2- Vehicles equipped with turbocharger
*3- For vehicles equipped with high intensity discharge head-
lights
*4- For vehicles without high intensity discharge headlights
*5- Fusible linkNo.
Symbol
Electrical system
Capacity
BK0103001US.book 54 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-55
7

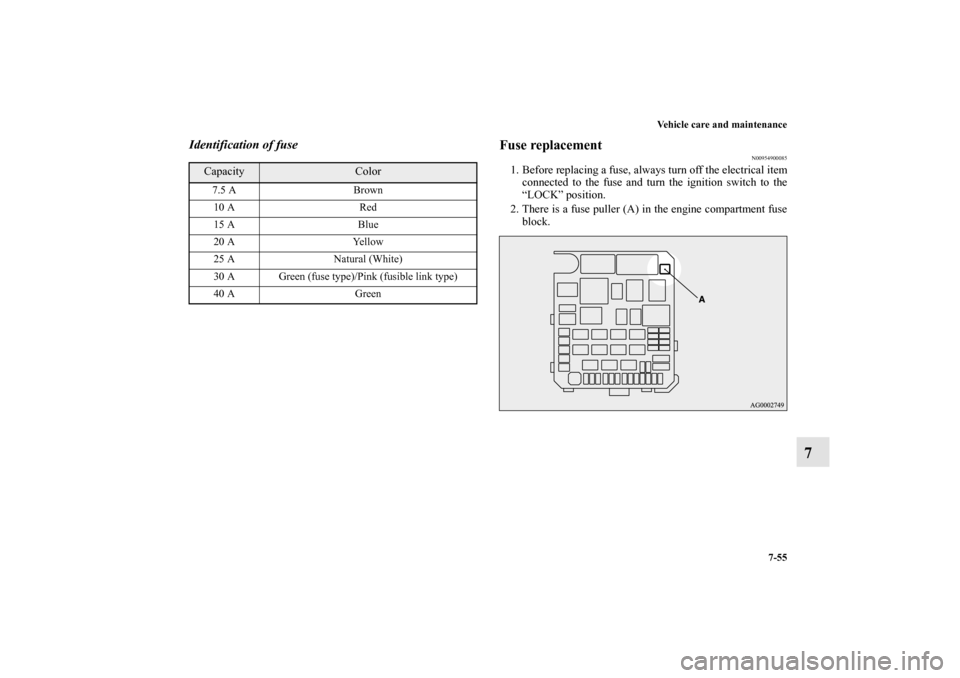

Identification of fuse
Fuse replacement
N00954900085
1. Before replacing a fuse, always turn off the electrical item
connected to the fuse and turn the ignition switch to the
“LOCK” position.
2. There is a fuse puller (A) in the engine compartment fuse
block.
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A Green (fuse type)/Pink (fusible link type)
40 A Green
BK0103001US.book 55 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-56 Vehicle care and maintenance
7
3. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice to have the problem checked.
B- Fuse is OK
C- Blown fuse
BK0103001US.book 56 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-57
7
5. Insert a new fuse of the same capacity securely into the
appropriate slot.
Replacement of light bulbs
N00942900219
Before replacing a bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE

If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.


Be careful not to scratch the vehicle body when removing
a light and lens.


When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
CAUTION
!

Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.


If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
CAUTION
!

Bulbs are extremely hot immediately after being
turned off.
When replacing a bulb, wait for it to cool sufficiently
before touching it. You could otherwise be burned.
BK0103001US.book 57 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-58 Vehicle care and maintenance
7
Bulb capacity
N00943000158
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300717
[For vehicles without high intensity discharge headlights]
Front
Description
Wattage
ANSI Trade
No. or Bulb
type
1-Front turn signal
light21 W WY21W
2- Headlight, high beam 60 W9005
HB3
3-Headlight, low beam
(Halogen bulb)51 W9006
HB4
4- Front fog light 55 W H11
5-Front side-marker
and parking light5 W WY5W
6- Side turn signal light 5 W —
BK0103001US.book 58 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-59
7
[For vehicles equipped with high intensity discharge head-
lights]
NOTE

It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
Description
Wattage or Candle
power
ANSI Trade
No. or Bulb
type
1-Front turn signal
light21 W WY21W
2-Daytime running
light27 W
32 cp1156
3-Headlight, low/high
beam (Discharge
bulb)35 W —
4- Front fog light 55 W H11
5-Front side-marker
and parking light5 W WY5W
6- Side turn signal light 5 W —
WA R N I N G
!

Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a discharge headlight or to replace the
bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe electrical shock.
BK0103001US.book 59 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-60 Vehicle care and maintenance
7
NOTE

The high-mounted stop light uses LEDs rather than bulbs.
For repair and replacement, contact an authorized Mitsub-
ishi Motors dealer or a repair facility of your choice.
Description
Wattage
ANSI Trade
No. or Bulb
type
7- High-mounted stop
light——
8- License plate light 5 W W5W
9- Back-up light 18 W 921
10- Tail and stop light 21/5 W 7443
11- Rear turn signal
light21 W WY21W
12- Rear side-marker
light5 W W5WRearBK0103001US.book 60 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-61
7
Inside
N00950400545
Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800059
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.
Description
Wattage
1- Cargo room light 8 W
2- Dome light (rear) (if so equipped) 8 W
3- Dome light (front)/Reading light 8 W
*- Front of the vehicle
