2010 MITSUBISHI LANCER SPORTBACK Owners Manual

2 Quick index
Anti-lock braking system warning light
When this light comes on, the anti-lock braking system is not func-
tioning and only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-137.

If the light does not go out after the test, or if it comes on again, we
recommend that you have the system checked at an authorized Mit-
subishi Motors dealer or a repair facility of your choice as soon as
possible.P.3-136,
3-137
SRS warning light
It is not necessary to stop the vehicle immediately, but we recommend
that you have the airbag and the pre-tensioner seat belt system
checked at an authorized Mitsubishi Motors dealer as soon as possi-
ble.P. 2 - 2 4 ,
2-46
Tire pressure monitoring system warning light
If the warning light comes on, you should stop and adjust the tires to
the proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-33.)
Once adjustments have been made, the warning light will go off after
a few minutes of driving.

If the warning light blinks for approximately 1 minute and then
remains continuously illuminated, the system is not operating prop-
erly. If the system returns to normal, the warning light will go off. If
the warning light does not go off, have the vehicle inspected at an
authorized Mitsubishi Motors dealer.P.3-154
Warning light
Do this
Ref. page
BK0103001US.book 2 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Quick index
3
If this problem occurs...
N00200900740
Problem
Do this
Ref. Page
Cannot turn the key.
(When using a key to start the
engine)When using a key to start the engine
Will not turn from “LOCK” to “ACC”.
Turn the key while turning the steering wheel in either direction.
P.3-82,
3-84
Will not turn from “ACC” to “LOCK”.Vehicles equipped with continuously variable transmission (CVT) or Twin Clutch
SST:
Check the position of the selector lever (CVT) or the gearshift lever (Twin Clutch SST).
The key cannot be removed unless the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) is set to the “P” (PARK) position.
Vehicles equipped with manual transaxle:
Place the key at the “ACC” position. Push the key in and turn it.
(When using the F.A.S.T.-key
to start the engine)When using the F.A.S.T.-key to start the engine
Will not turn from “LOCK (PUSH OFF)” to “ACC”.
Push the ignition switch again, turn the steering wheel in both directions and then turn the
ignition switch.Will not turn from “ACC” to “LOCK”.Vehicles equipped with CVT or Twin Clutch SST:
Check whether the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is set to
the “P” (PARK) position.
Vehicles equipped with manual transaxle:
Place the ignition switch at the “ACC” position. Push the ignition switch in and turn it.P.3-16
The F.A.S.T.-key does not
operate.
(for vehicles equipped with the
F. A . S . T. - k e y )Use the emergency key to lock and unlock the doors and start the engine. P.3-34
BK0103001US.book 3 ページ ２００９年８月２０日　木曜日　午前１０時４５分

4 Quick indexCannot shift the selector lever
(CVT) or the gearshift lever
(Twin Clutch SST) from the
“P” (PARK) position.
(for vehicles equipped with
CVT or Twin Clutch SST)Shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) while pressing the
brake pedal.
Check that the ignition key or ignition switch is in the “ON” position.P.3-94, 3-104
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-14, 5-24
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
7-23
Problem
Do this
Ref. Page
BK0103001US.book 4 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Quick index
5
Problem
Do this
Ref. page
The engine coolant tempera-
ture display “ ” in the multi-
information display is flashing.
Steam comes out of the engine
compartment.
Ty p e 1
Ty p e 2The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 5
The vehicle is stuck in sand,
mud, or snow.Rock your vehicle back and forth to free it. P.6-20
WA R N I N G
!

When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.


Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
BK0103001US.book 5 ページ ２００９年８月２０日　木曜日　午前１０時４５分

6 Quick index
Problem
Do this
Ref. page
The brakes are not functioning
properly after driving through
water. Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-6
The CVT makes no engine
speed to vehicle speed ratio
change when accelerating. The
initial movement of the vehicle
is slow when the vehicle starts
moving.
(for vehicles equipped with
CVT)There may be a problem in the CVT.
If the or warning lights on the multi-information display will not turn off, or if they
are coming on frequently, please have the vehicle checked at your nearest Mitsubishi
Motors dealer.P.3-103
Twin Clutch SST does not
shift.
Vehicle cannot move.
Acceleration is slow.
The vehicle does not creep.
A large shock is felt when
shifting.
Shifting occurs at higher
engine speed.
Response is slow.
(for vehicles equipped with
Tw i n C l u t c h S S T )The temperature of the Twin Clutch SST fluid is high, a safety device in the Twin Clutch
SST has been activated due to a possible malfunction in the Twin Clutch SST, or there is
a possible malfunction in the engine electronic control module.P.3-109,
3-123,
3-215BK0103001US.book 6 ページ ２００９年８月２０日　木曜日　午前１０時４５分

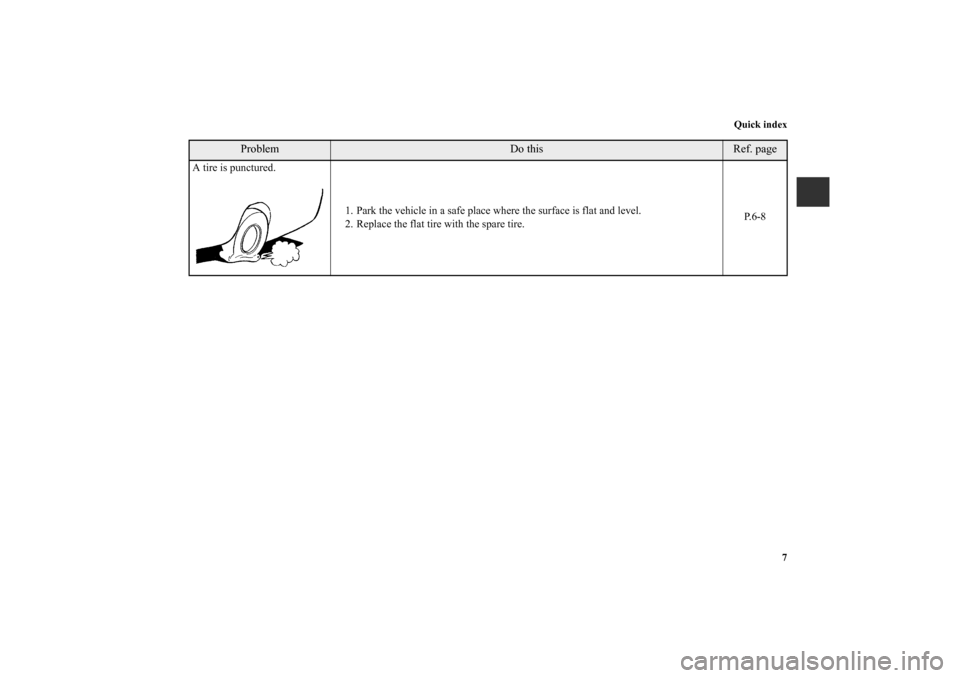

Quick index
7
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the spare tire.P. 6 - 8
Problem
Do this
Ref. page
BK0103001US.book 7 ページ ２００９年８月２０日　木曜日　午前１０時４５分

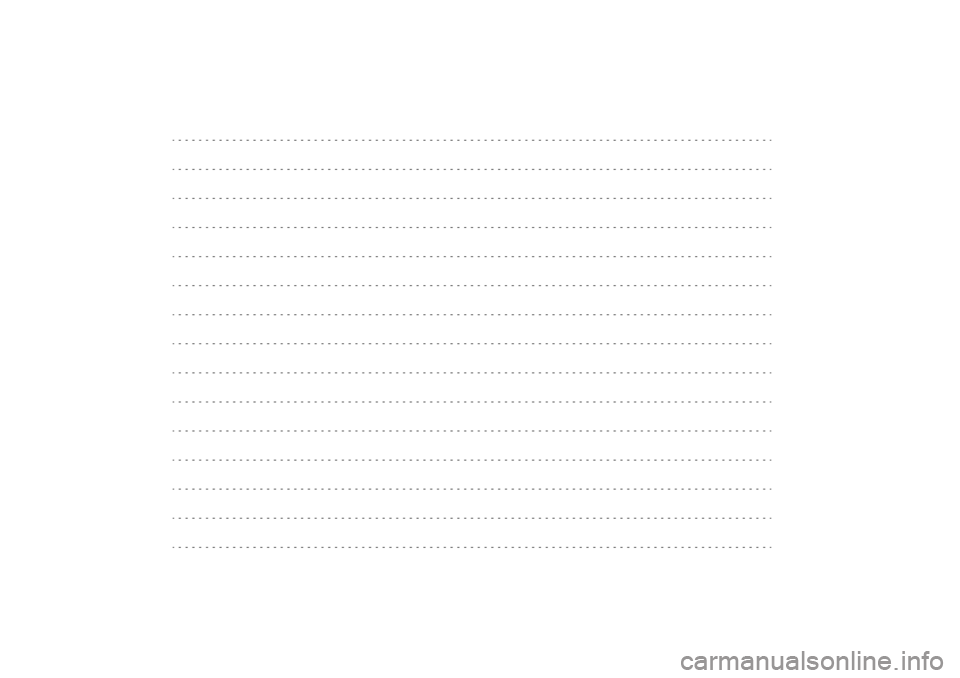

BK0103001US.book 8 ページ ２００９年８月２０日　木曜日　午前１０時４５分

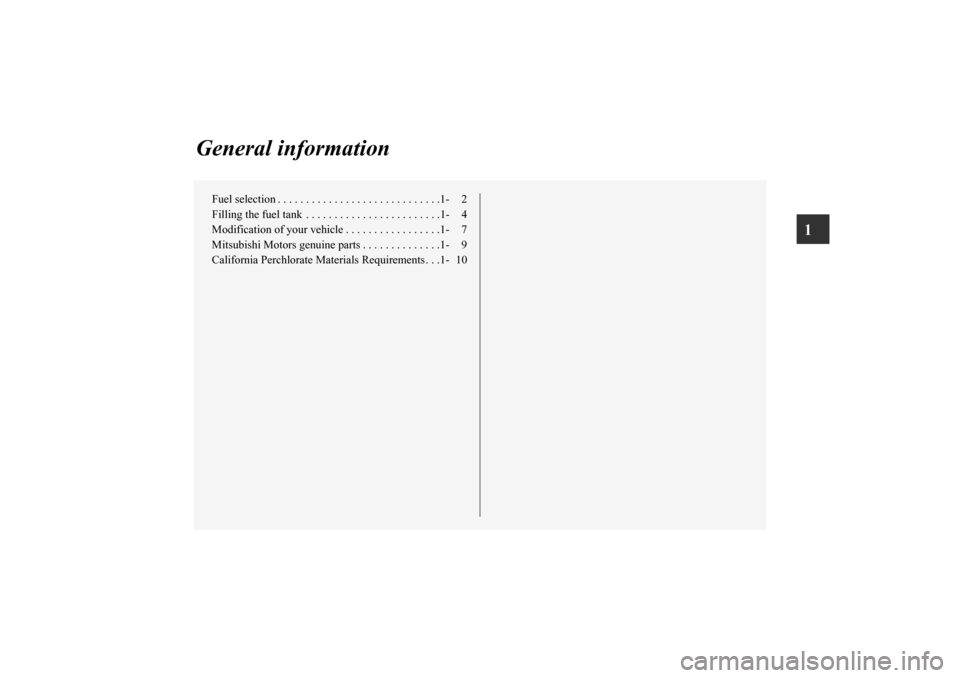

1
General information
Fuel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2
Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . .1- 4
Modification of your vehicle . . . . . . . . . . . . . . . . .1- 7
Mitsubishi Motors genuine parts . . . . . . . . . . . . . .1- 9
California Perchlorate Materials Requirements . . .1- 10
