2010 MITSUBISHI LANCER SPORTBACK Owners Manual

3-274 Features and controls
3
Va n i t y m i r r o rThe vanity mirrors are located on the back of the sun visors.
Card holderCards can be slipped into the front (A) of the lid of the vanity
mirror.
BK0103001US.book 274 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-275

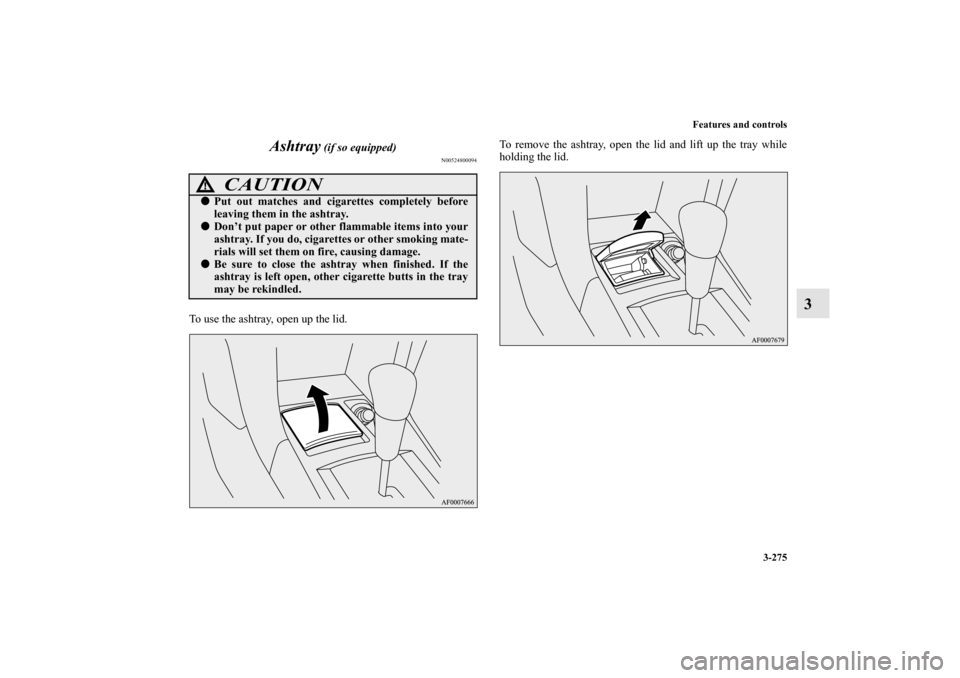

3 Ashtray
(if so equipped)
N00524800094
To use the ashtray, open up the lid.To remove the ashtray, open the lid and lift up the tray while
holding the lid.
CAUTION
!

Put out matches and cigarettes completely before
leaving them in the ashtray.


Don’t put paper or other flammable items into your
ashtray. If you do, cigarettes or other smoking mate-
rials will set them on fire, causing damage.


Be sure to close the ashtray when finished. If the
ashtray is left open, other cigarette butts in the tray
may be rekindled.
BK0103001US.book 275 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-276 Features and controls
3Cigarette lighter
(if so equipped)
N00524900239
The cigarette lighter can only be used when the ignition switch
is in either the “ON” or “ACC” position.
To use the cigarette lighter, push it all the way into the socket
until it clicks. It will pop out automatically when it is ready for
use.NOTE

Keep the cigarette lighter in its socket when not in use.
This will prevent the socket from becoming clogged and
short circuiting.
CAUTION
!

Do not touch the heating element or lighter housing.
Hold the lighter by the knob only.


Do not allow children to use or play with the ciga-
rette lighter because they could be burned.


The cigarette lighter should pop back out about 30
seconds after pushing it in. If it does not pop out by
itself, pull it out and have it fixed at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice. Leaving the cigarette lighter pushed in for a
long time could cause a fire.


Do not leave the cigarette lighter pushed in. Do not
use a cigarette lighter from another vehicle in this
socket. If you do, the lighter may overheat and cause
a fire.


It is recommended that only the lighter be inserted
in this socket. Using “plug-in” type accessories may
damage the socket and loosen the lighter.


When the cigarette lighter socket is used as a power
source for electronic equipment, be sure that the
equipment runs at 12 V and at 120 W or less.


When using cigarette lighter and 12 V power outlet
simultaneously, make sure that the total power con-
sumption of these does not exceed 120 W at 12 V.


Be aware that using electronic equipment with the
engine not running may run the battery down.
BK0103001US.book 276 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-277

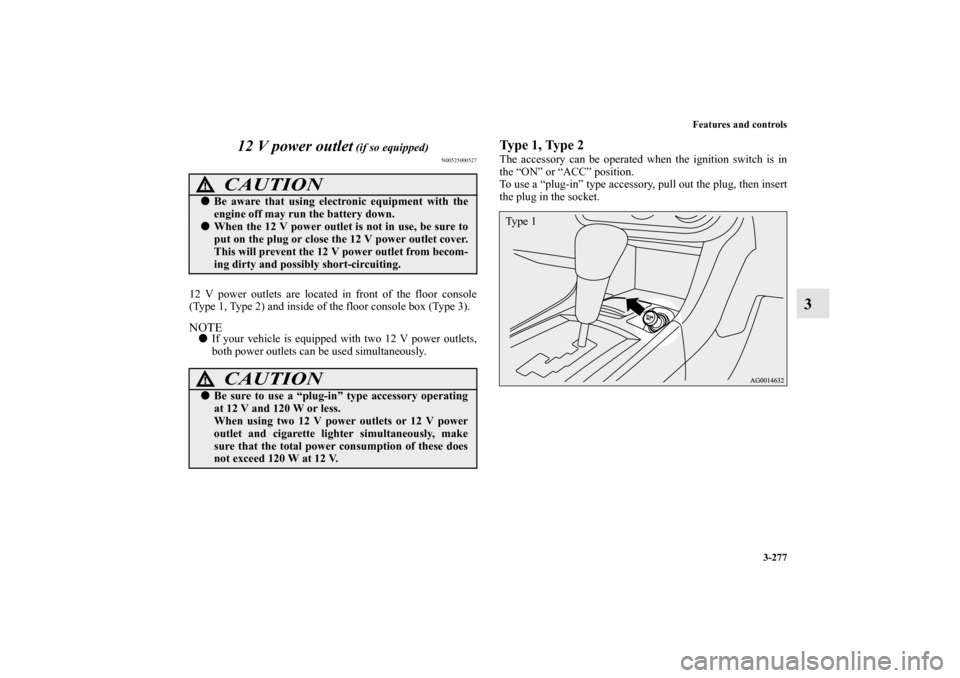

3 12 V power outlet
(if so equipped)
N00525000527
12 V power outlets are located in front of the floor console
(Type 1, Type 2) and inside of the floor console box (Type 3).NOTE

If your vehicle is equipped with two 12 V power outlets,
both power outlets can be used simultaneously.
Type 1, Type 2The accessory can be operated when the ignition switch is in
the “ON” or “ACC” position.
To use a “plug-in” type accessory, pull out the plug, then insert
the plug in the socket.
CAUTION
!

Be aware that using electronic equipment with the
engine off may run the battery down.


When the 12 V power outlet is not in use, be sure to
put on the plug or close the 12 V power outlet cover.
This will prevent the 12 V power outlet from becom-
ing dirty and possibly short-circuiting.CAUTION
!

Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.
When using two 12 V power outlets or 12 V power
outlet and cigarette lighter simultaneously, make
sure that the total power consumption of these does
not exceed 120 W at 12 V.
Ty p e 1
BK0103001US.book 277 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-278 Features and controls
3

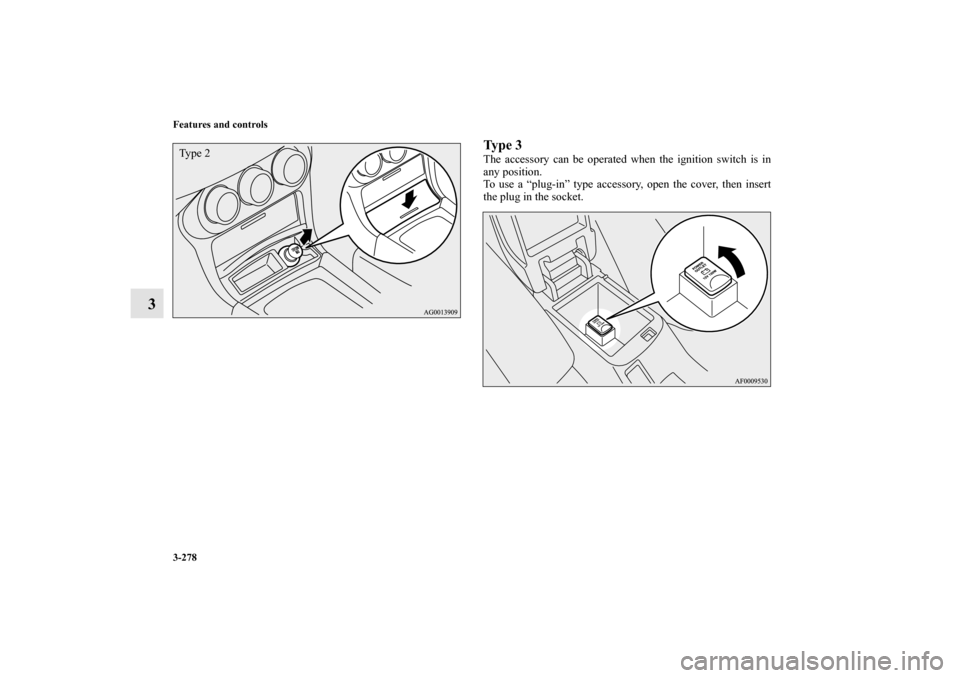

Ty p e 3The accessory can be operated when the ignition switch is in
any position.
To use a “plug-in” type accessory, open the cover, then insert
the plug in the socket.
Ty p e 2BK0103001US.book 278 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-279

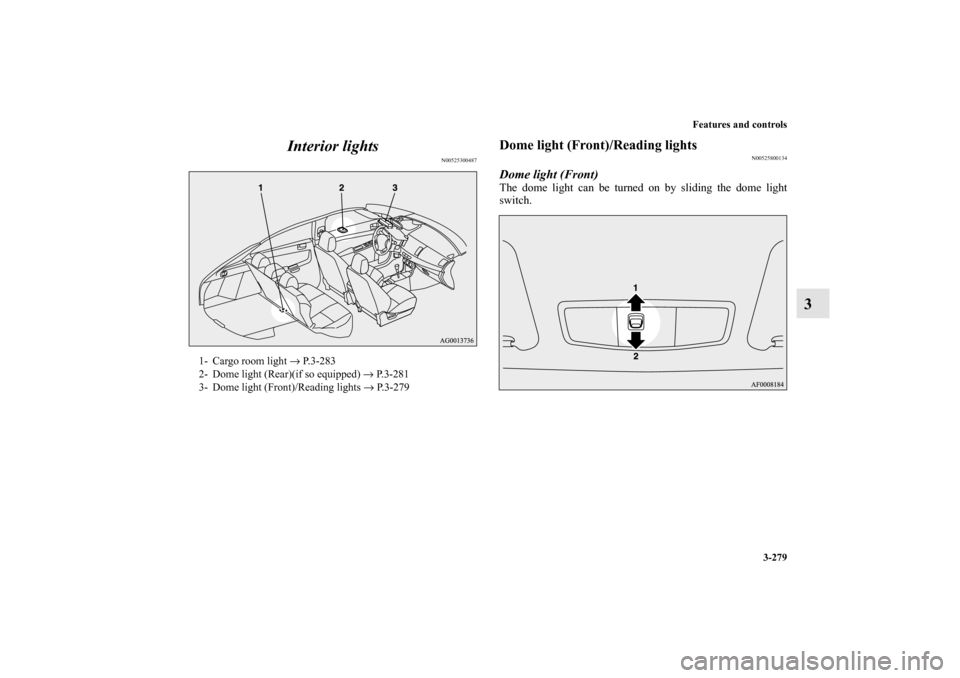

3 Interior lights
N00525300487
Dome light (Front)/Reading lights
N00525800134
Dome light (Front)The dome light can be turned on by sliding the dome light
switch.
1- Cargo room light → P.3-283
2- Dome light (Rear)(if so equipped) → P.3-281
3- Dome light (Front)/Reading lights → P.3-279
BK0103001US.book 279 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-280 Features and controls
3
1- (DOOR)
The dome light comes on when any door or the rear hatch is
opened. When all the doors and the rear hatch are closed, the
dome light goes off after approximately 30 seconds. How-
ever, the light goes off immediately if:

The doors and the rear hatch are closed while the igni-
tion switch is in the “ON” position.

The driver’s door is closed after all the other doors and
the rear hatch are closed while the lock knob of the
driver’s door is in the lock position.

The doors and the rear hatch are closed and the power
door lock switch is used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors and the rear hatch.

In vehicles equipped with the F.A.S.T.-key, the doors
and the rear hatch are locked using the F.A.S.T.-key.
NOTE
When the engine is started using the key while the
doors and rear hatch are closed, if you remove the key,
the dome light will illuminate for approximately 30
seconds before going off.

When the engine is started using the F.A.S.T.-key while
the doors and rear hatch are closed, if the ignition
switch is moved to the “LOCK” position, the dome
light will illuminate for approximately 30 seconds
before going off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light goes off.
BK0103001US.book 280 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-281
3

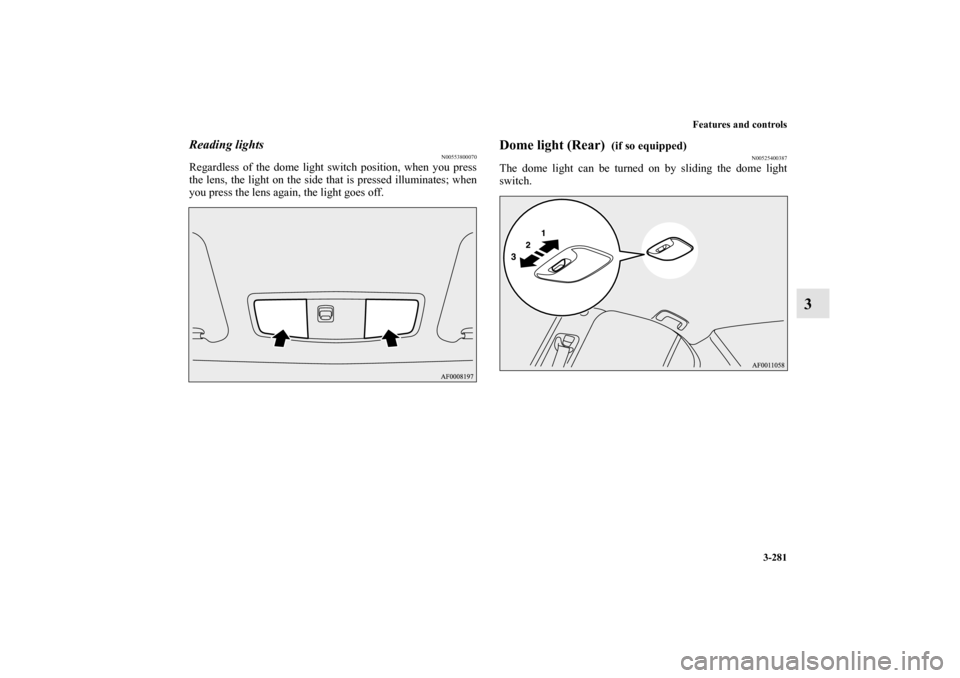

Reading lights
N00553800070
Regardless of the dome light switch position, when you press
the lens, the light on the side that is pressed illuminates; when
you press the lens again, the light goes off.
Dome light (Rear)
(if so equipped)
N00525400387
The dome light can be turned on by sliding the dome light
switch.
BK0103001US.book 281 ページ ２００９年８月２０日　木曜日　午前１０時４５分
